Operating Weight
3.8 Ton
Rated Power
56 HP
Rated Load
1.6 Ton
Machinery Comes With:
Original price was: $27,900.00.$22,900.00Current price is: $22,900.00.
exc. GST
Ultra-Compact Size: Perfect for maneuvering in tight spaces, making it ideal for confined job sites.
Exceptional Maneuverability: Super small turning radius for easy navigation in restricted areas.

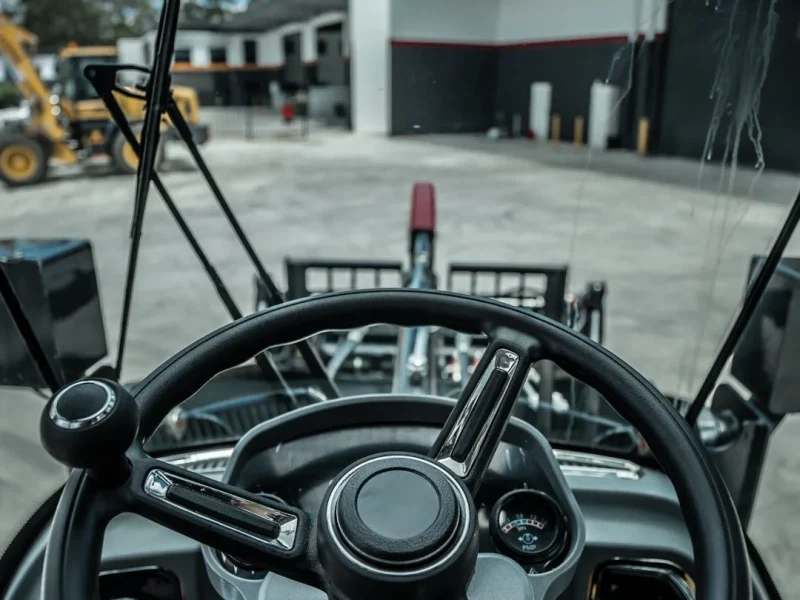

4-in-1 Joystick: Integrated control for operating the boom, managing attachments, hydraulic quick hitch, and shifting gears efficiently.
All-Terrain Tires + 4WD: Equipped to tackle various terrains, ensuring reliable performance in any condition.
Designed for such situations:
| LM920 | |
|---|---|
| Rated Load | 1600 kg |
| Operating Weight | 3800 kg (Filling counterweight) |
| Bucket Capacity | 0.8 m³ |
| Bucket width xBucket Depth | 1900 mmx500 mm |
| Overall Dimension (LxWxH) | 5800 mmx1830 mmx2650 mm |
| Wheel Base | 2220 mm |
| Wheel Track | 1500 mm |
| Max.Dumping Height | 3200 mm |
| Max.Dumping Distance | 1050mm |
| Tuming Radius | 5000 mm |
| Min Ground Clearance | 300 mm |
| TRANSMISSION SYSTEM | |
| Type | 265 Integral H/L Speed |
| Pattern | Automatic,Mechanical gear change |
| Pattern (Options) | Automatic,Electronically gear change |
| Radiator | Large hole double row |
| Auxiliary Water Tank | Standard |

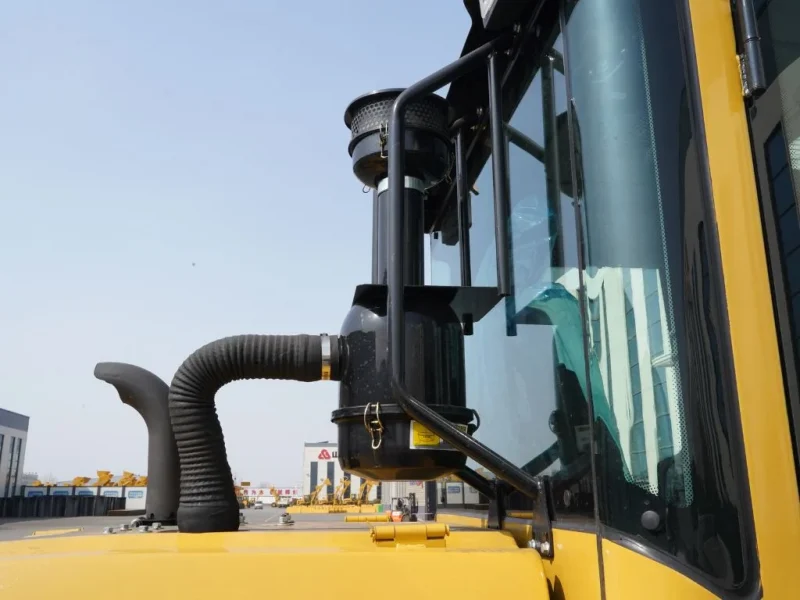

| Prefilter | Dual air filter |
| HYDRAULIC SYSTEM | |
| Lifting Time | 4 s |
| Falling Time | 3 s |
| Total Cycling Time | 10 s |
| Working Pump | 1040 Left-hand Spline key |
| Walking Pump | 316 Left-hand Spline key |
| Steering Gears | 200 A |
| Distributor | 15.2，40L/min |
| Priority Valve | 200 |
| Pump and Valve Integrated | NO |
| Oil Pipe | 24° Tapered |
| Fuel Tank | New style fuel tank |
| DRIVE AXLES | |
| Axle | LG Small Wheel Hub Reduction Cast Steel Disc Brake Axle |
| Articulated | Double layer |
| ENGINE | |

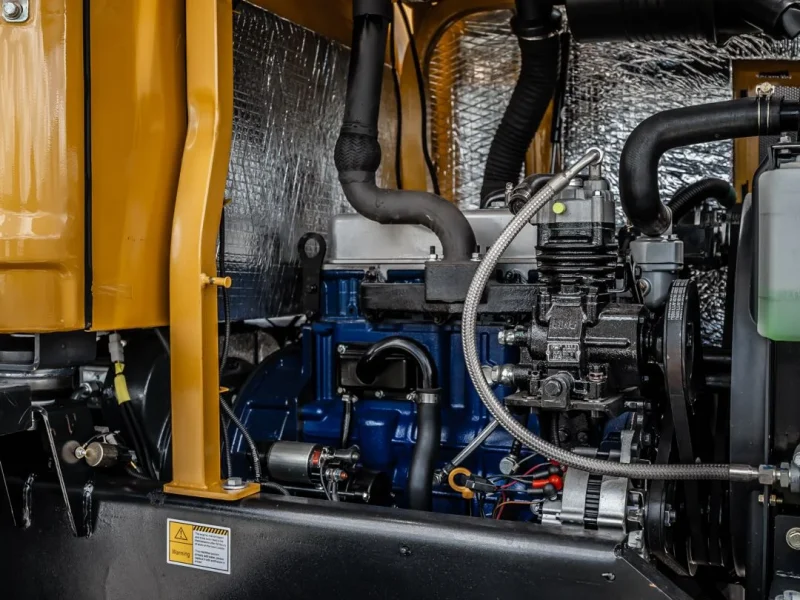

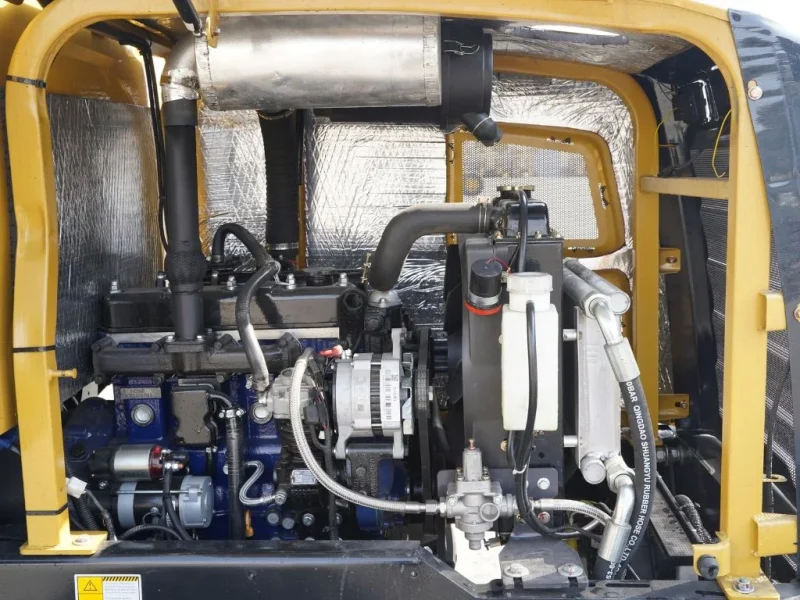

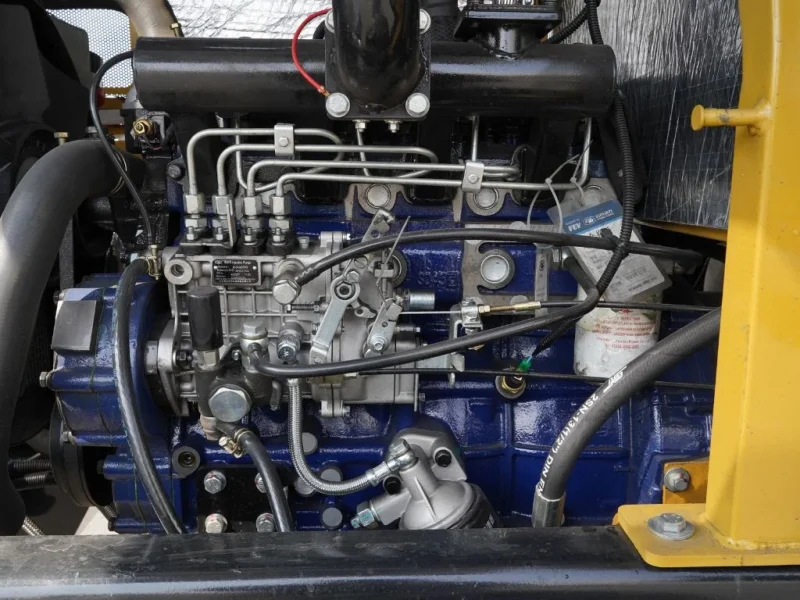

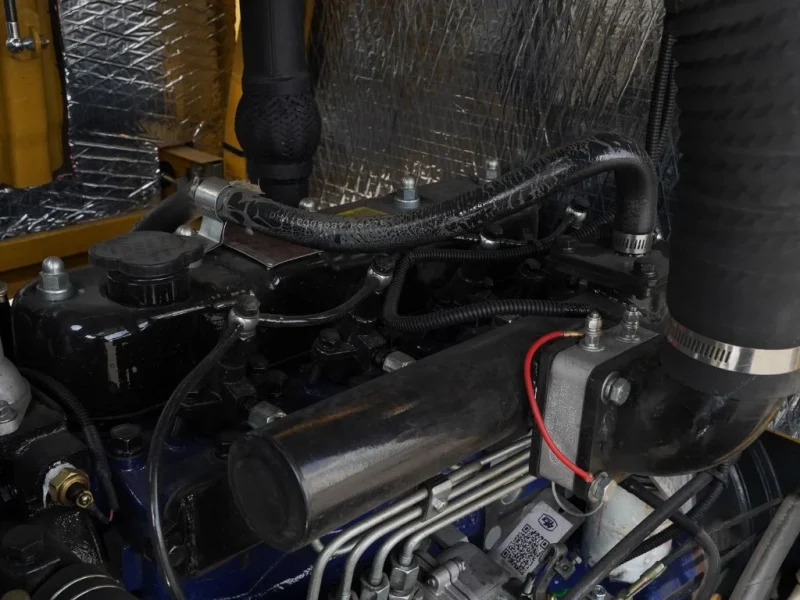

| Standard Engine | YUNNEI490(42kw) |
| BRAKE SYSTEM | |
| Operating Type | Mechanical single joystick |
| Control Mode (Optional) | ①Single hydraulic joystick ②Electrical hydraulic joystick |
| Brake Booster Pump | Two-way air brake |
| WHOLE CAR COVERING PARTS | |
| Color | Customization |
| Stamped and Stretched Front Hood | Yes |
| Stamped and Stretched Rear Hood | Yes, Side flip type(T type) |
| Stamped and Stretched Counterweight | Yes |

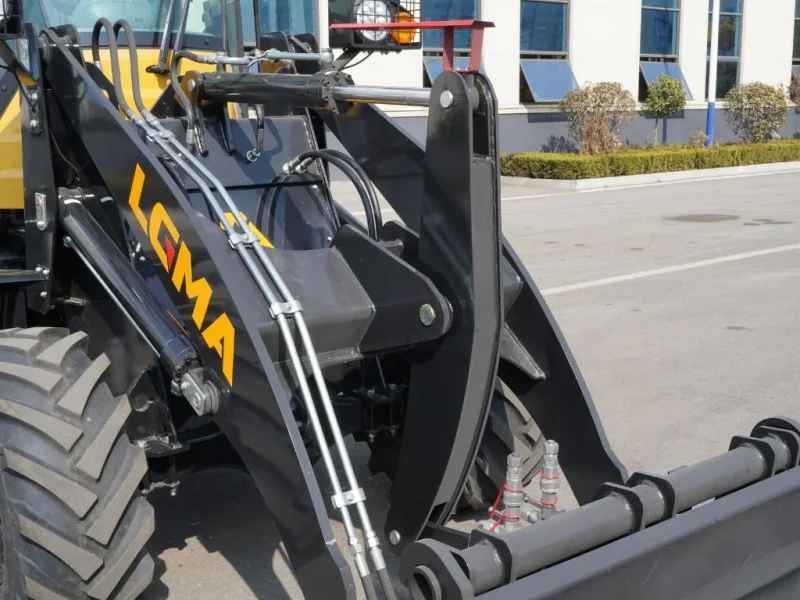

| Quick-Hitch | Optional |

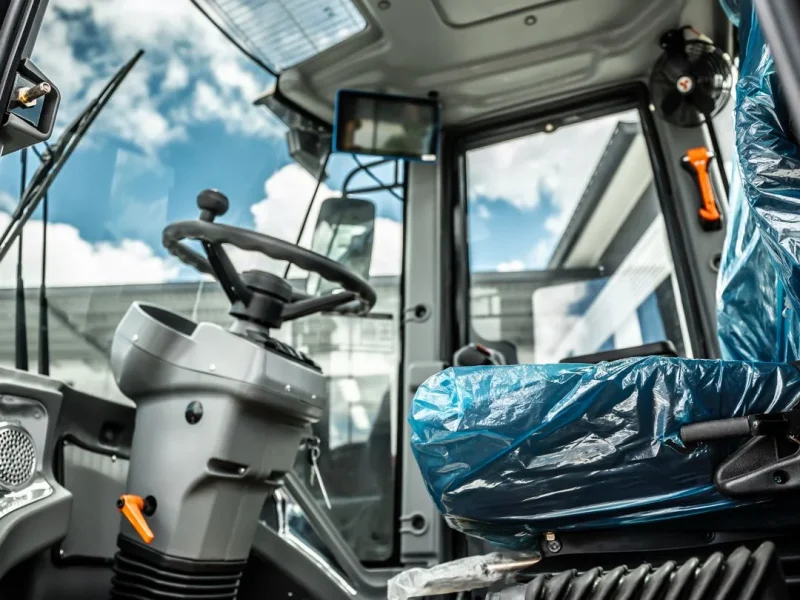

| Seat | Luxury Seat |
| Dashboard | LCD Dashboard |
| Dashboard(Optional) | Adjustable LCD |
| Air Conditioner (Optional) | ①Cold A/C ②Heating and cooling |
| Battery | 24V，60A |
| Reversing Camera | Optional,Customizable start-up screen |
| Warning Lights | Standard |
| Reverse Horn | Standard |
| Timer | Standard |
| Radios | Standard |
| Tool Box | Export-specific toolbox |
| TYRE | |
| Tyre (Standard) | 20.5/70-16 |

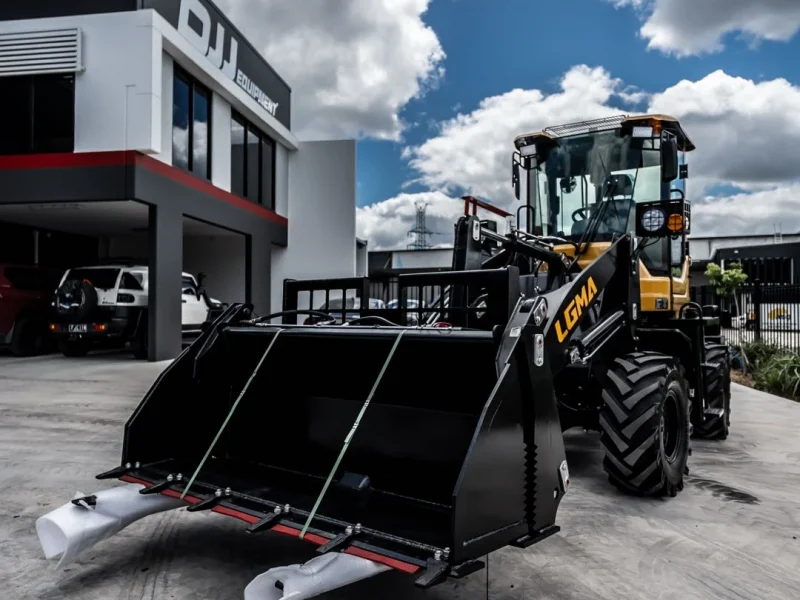

| GRAIN BUCKET | |
| Unloading Height | 3500 mm/3800 mm/4500 mm |
| Bucket Width | 1900 mm |
| Depth | 700 mm/700 mm/800 mm |
| Capacity | 1.6 m³/1.6 m³/1.7 m³ |
Unlock your machinery’s full potential with DJJ Equipment’s diverse selection of attachments. Whether you need standard tools or custom solutions, we’re here to match your unique specifications. Enhance your project’s efficiency with precision-fit attachments. Ready to elevate your operation? Contact us today and find the perfect attachment for your needs.
1. Consult Sales: Talk to our sales team to pick your machine.
2. Test Drive or Video Viewing: Visit our site for a test drive or view detailed videos of our machinery.
3. Pay Deposit: Secure your choice with a deposit.
4. Schedule Delivery: We arrange pre-delivery and delivery based on your timing.
5. Final Payment: Make the final payment.
6. Receive Machine: Get the machine delivered to your address.
1. In Stock: Delivered approximately one week after final payment is received.
2. Not In Stock: Takes around one month to arrive at our warehouse, plus around an additional week for delivery after final payment.
We deliver across all of Australia.
No, all our machines are ready to use upon delivery and require no assembly.
Our DJJ Care Standard Service package includes Pre-Delivery Inspection, On-Site and On-Call Maintenance, Regular Maintenance checks, and ongoing Technical Support.
Yes, we offer training either online or on-site as needed.
Normally, Our machinery comes with a 2-4 year warranty, varying by machine.
1. First-Year Warranty: Covers labor and parts. Free maintenance and repair for any defects.
2. Second-Year Warranty: Covers parts only. Free replacement parts for any defects.
3. Exceptions: Some situations are not covered by our warranty. Please see our service page for details.
