Operating Weight
3.8 Ton
Rated Power
87 HP
Rated Load
1.6 Ton
24 Months / 2,000 Hours Warranty
Attachment Options：
– 4-in-1 Bucket
– Pallet Fork
– Hay Fork
– Bale Grapple
– Stick Rake
Original price was: $29,900.00.$24,990.00Current price is: $24,990.00.
exc. GST

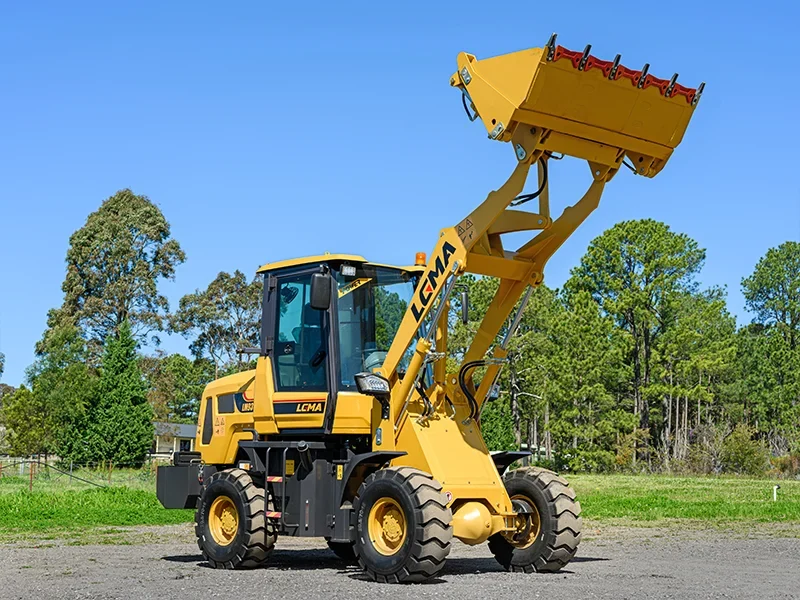

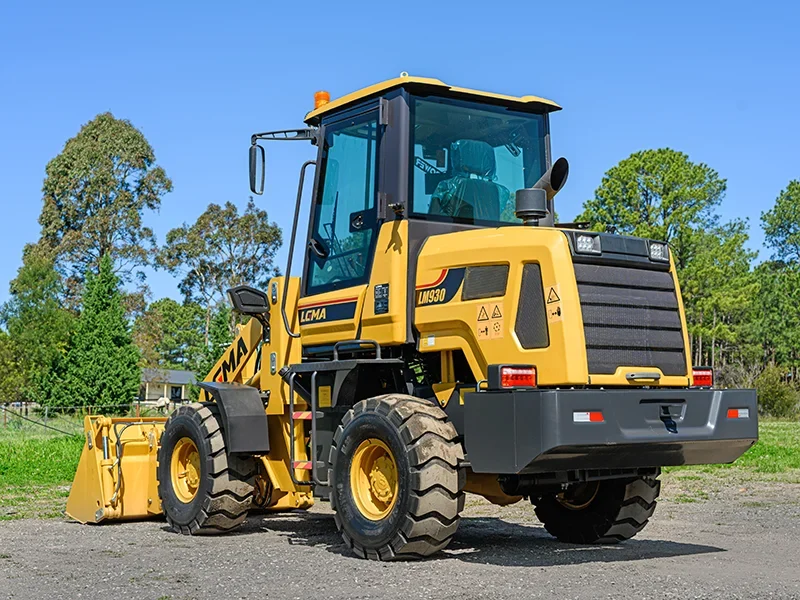

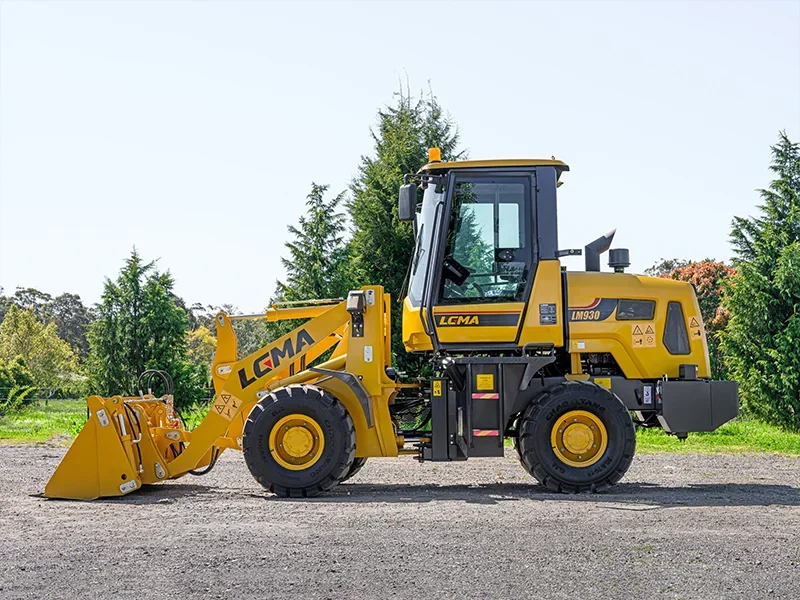

The 3.8 Ton LM930 Wheel Loader stands as a versatile and powerful machine, ideal for a wide range of construction tasks. Equipped with a dynamic 4 & 4 speed transmission, it offers both high-speed efficiency for fast operations and low-speed precision for detailed work. The loader’s upgraded NVH cabin enhances operator comfort by reducing noise and vibration, while its robust 4WD system ensures reliable performance across challenging terrains. Designed for superior performance and comfort, the LM930 includes these features:
Engineered for versatility, our wheel loaders offer high-speed efficiency for brisk operation and low-speed precision for meticulous tasks, boosting overall control and productivity on the job site.

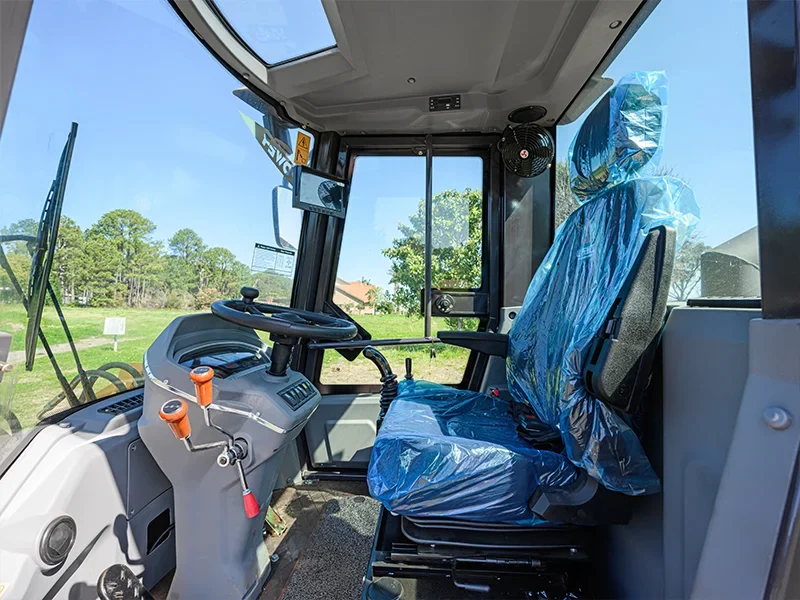

Operator comfort is paramount in any climate, which is why our heat and cool air conditioning system maintains an ideal cabin temperature, promoting a focused and efficient work environment.
Maneuver with confidence using the HD Rear Camera, which provides expanded visibility, increases safety during reverse operations, and significantly lowers accident risks.
Designed to mitigate vibrations and soften impacts, the suspension seat offers unparalleled comfort, diminishing operator fatigue and elevating productivity through extended use.
Navigate complex terrains and tackle obstacles with ease. Our wheel loaders’ high departure angles minimize the likelihood of hang-ups, assuring smooth, uninterrupted operation.
Features a higher speed ratio (7:41) for strong power; uses large wheel-side reduction for increased speed and exceptional torque. Paired with our gearbox, it offers efficiency and low fuel usage.

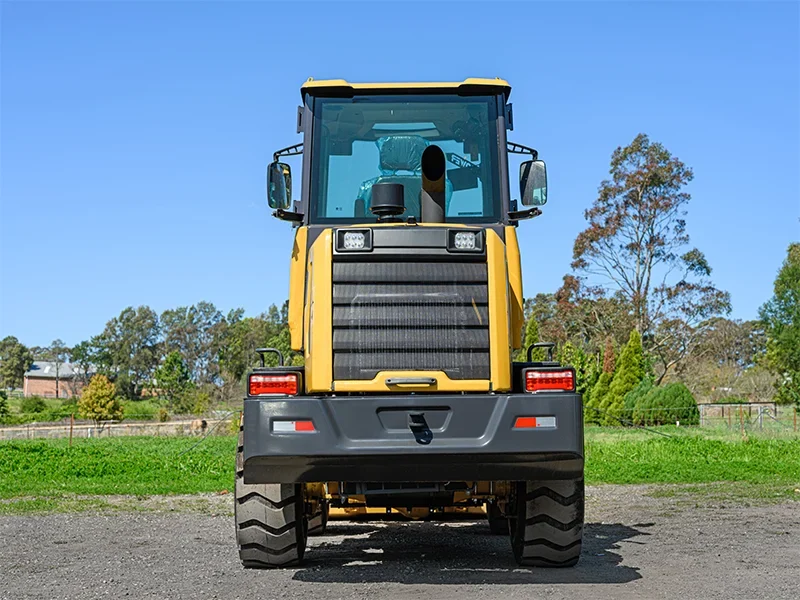

The rear engine cover features a large-hole metal mesh for efficient cooling while protecting the internal structure from damage.

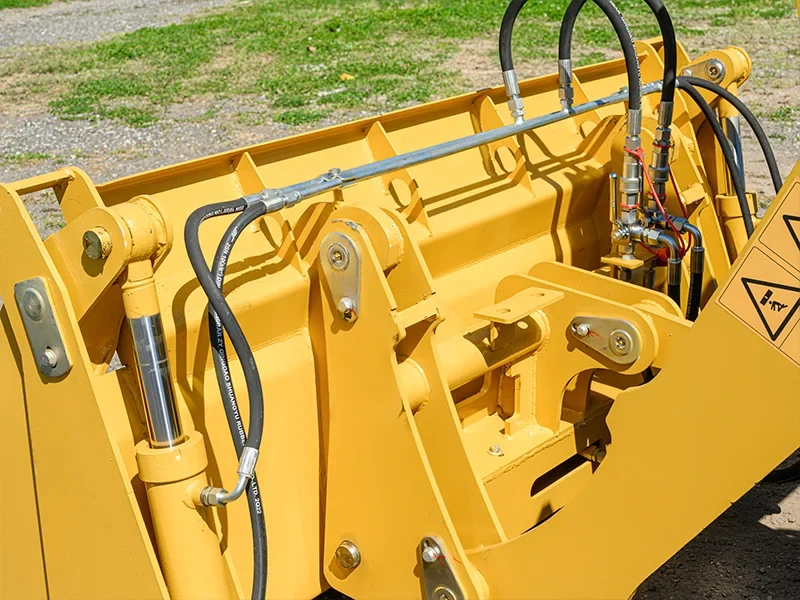

Utilizes premium rubber hydraulic hoses with special H-type fittings, meeting stringent German Parker standards to effectively prevent leaks.
The fuel tank undergoes acid washing and phosphating to prevent clogging with impurities, ensuring the hydraulic system runs smoothly. The strategically placed filler cap under the foot pedal enhances protection and accessibility.
Rectangular frame for rollover and debris protection, curved windshield for better visibility, and NVH upgrades for a quieter, more comfortable workspace.
The cooling system uses a novel rear frame design, aligning the fan and engine to boost efficiency and accommodate a larger radiator. Equipped with a dual-layer radiator and enlarged 32mm pipes, it prevents clogs and enhances cooling performance.
The brake system features two independent, parallel brake lines connected to an air booster pump, controlling front and rear axle brakes separately for increased safety.
BASIC PERFORMANCE PARAMETERS | |
Engine Power | 65 kW / 87 HP |
Operating Weight | 3,800 kg |
Bucket Capacity | 0.80 - 1.7 m³ |
Rated Load | 1,600 kg |
ENGINE | |
Engine Model | WEICHAI Huafeng 4102 diesel |
Engine Pattern | In-line, 4 cylinder |
Rated power / speed | 65 kW / 2,400 |
Engine Weight | 340 kg |
DRIVES AND BRAKES | |
Service brake | Air hydraulic disc brake |
Parking brake | Hand brake |
ELECTRICAL SYSTEM |
|
Operating voltage | 24 V |
HYDRAULIC SYSTEM | |
Operating type | Hydraulic |
Lifting time | 5 S |
Falling time | 4 S |
TRANSMISSION | |
Type | Hydraulic torque converter |
Pattern | Automatic |
Gear shift | Double H / L |
Axle | AWD, small hub reduction |
UNDERCARRIAGE | |
Tyre | 16 / 70-16 |
MACHINE DIMENSIONS | |
Overall dimension | 5,500 x 1,850 x 2,760 mm |
Wheel base | 2,250 mm |
Wheel track | 1,500 mm |
Bucket width | 1,900 mm |
Max. dumping height | 3,200 mm |
Max. dumping distance | 750 mm |
Turning radius | 4.900 mm |
Unlock your machinery’s full potential with DJJ Equipment’s diverse selection of attachments. Whether you need standard tools or custom solutions, we’re here to match your unique specifications. Enhance your project’s efficiency with precision-fit attachments. Ready to elevate your operation? Contact us today and find the perfect attachment for your needs.
1. Consult Sales: Talk to our sales team to pick your machine.
2. Test Drive or Video Viewing: Visit our site for a test drive or view detailed videos of our machinery.
3. Pay Deposit: Secure your choice with a deposit.
4. Schedule Delivery: We arrange pre-delivery and delivery based on your timing.
5. Final Payment: Make the final payment.
6. Receive Machine: Get the machine delivered to your address.
1. In Stock: Delivered approximately one week after final payment is received.
2. Not In Stock: Takes around one month to arrive at our warehouse, plus around an additional week for delivery after final payment.
We deliver across all of Australia.
No, all our machines are ready to use upon delivery and require no assembly.
Our DJJ Care Standard Service package includes Pre-Delivery Inspection, On-Site and On-Call Maintenance, Regular Maintenance checks, and ongoing Technical Support.
Yes, we offer training either online or on-site as needed.
Normally, Our machinery comes with a 2-4 year warranty, varying by machine.
1. First-Year Warranty: Covers labor and parts. Free maintenance and repair for any defects.
2. Second-Year Warranty: Covers parts only. Free replacement parts for any defects.
3. Exceptions: Some situations are not covered by our warranty. Please see our service page for details.
