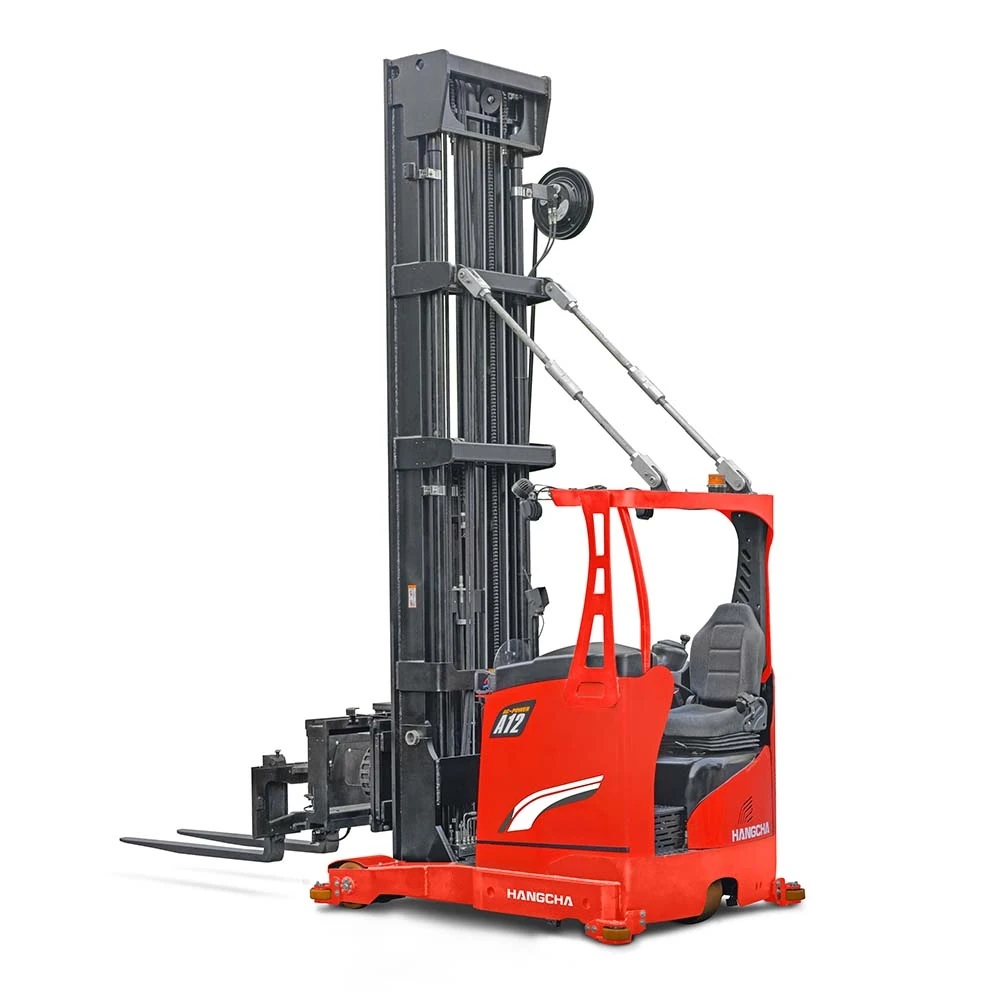

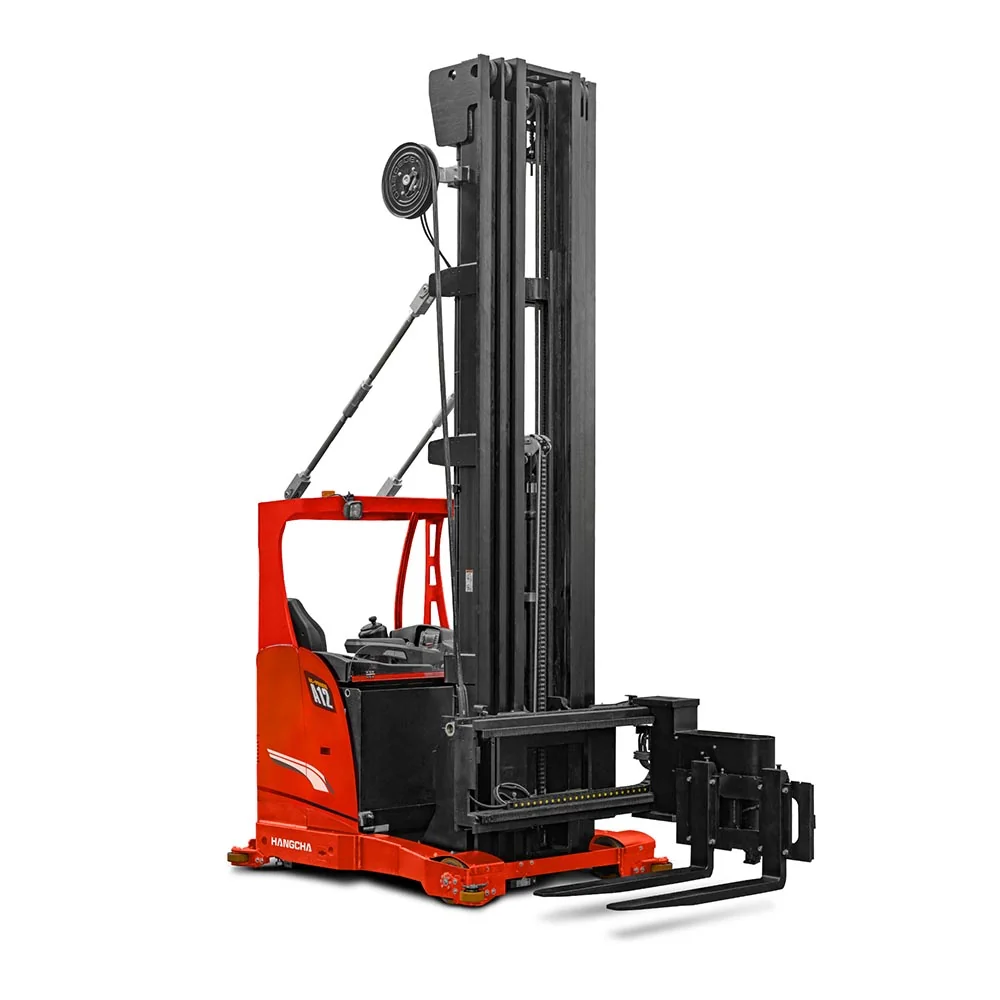

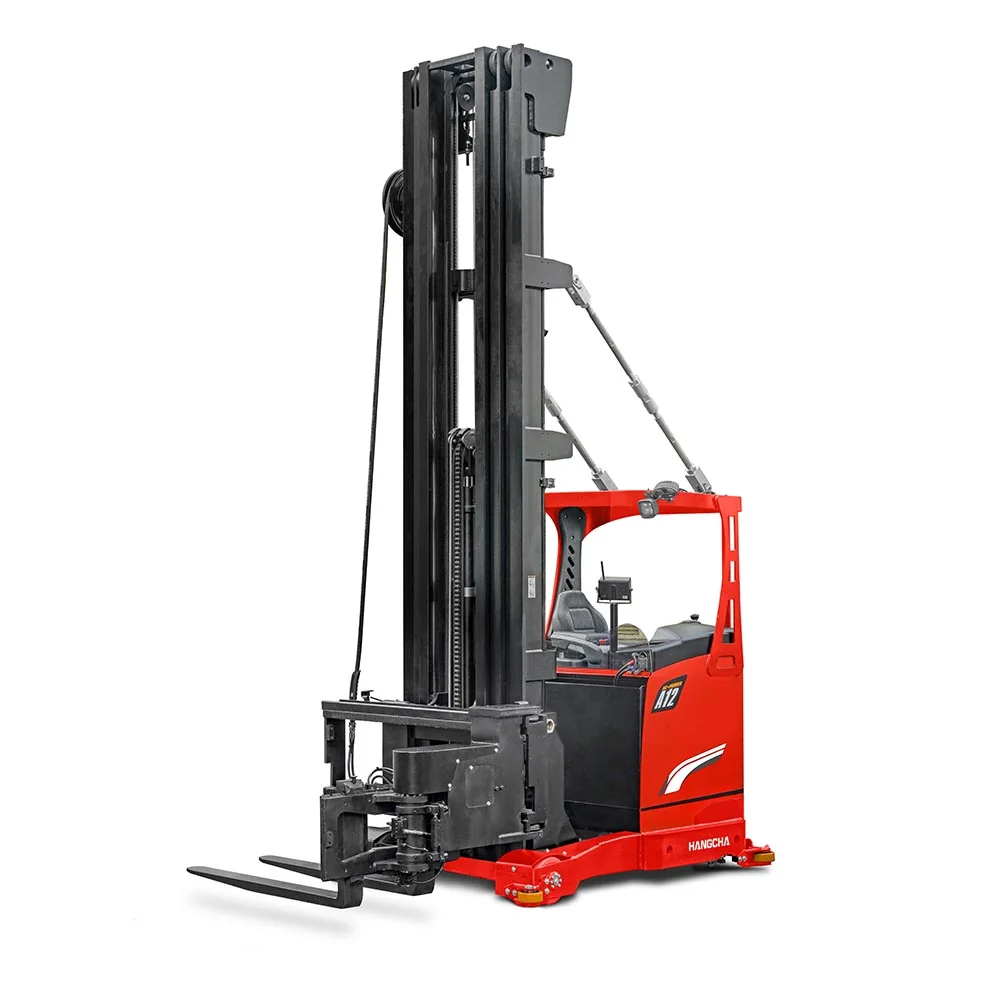

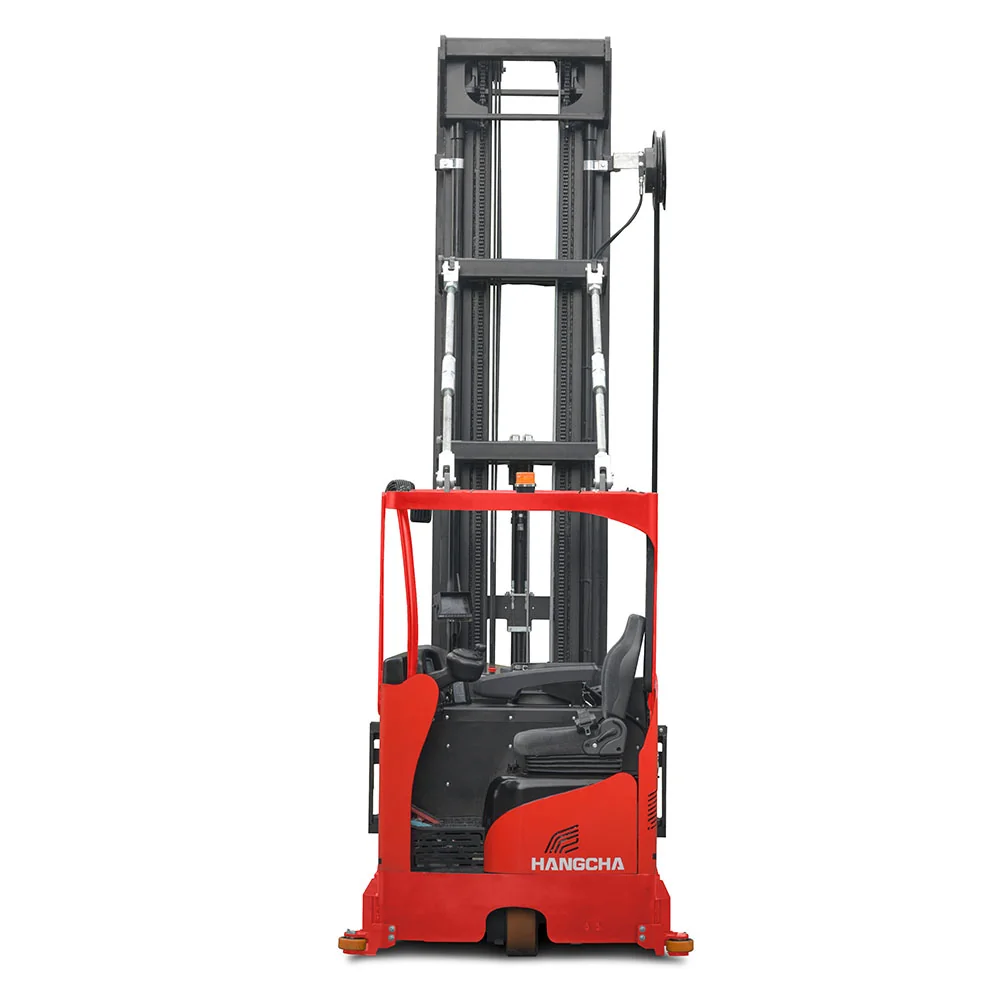

A Series Turret Truck 1.2 t

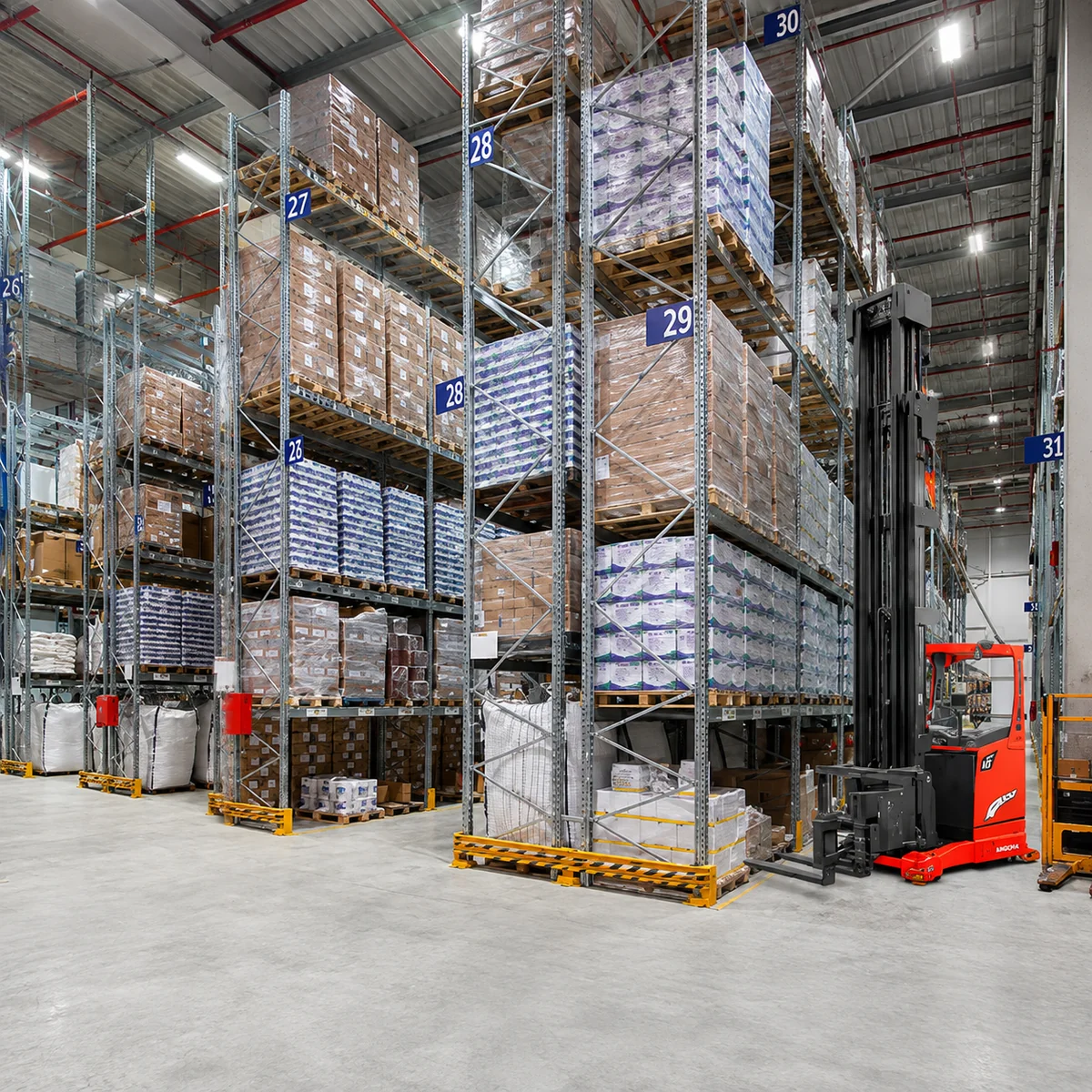

A 1.2 t turret truck range for indoor warehouse and narrow-aisle operations, with lift heights up to 10 m and minimum aisle widths from 1,750 mm to match load, storage height and aisle requirements.
1.2 t
Capacity
Lead-acid
Power
Up to 10 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing a Mast for the A Series Man-Down Turret Truck 1.2 t
The A Series man-down turret truck is a seated very narrow aisle truck that carries 1,200 kg at a 600 mm load centre. The turret head rotates the forks through 180 degrees with a stop at 90 degrees, so pallets can be put away on either side of a 1,750 mm aisle. The choice of mast sets how high you can store and how much the truck can lift at that height.
- Duplex mast (standard, 5 m): the full 1,200 kg, with duplex masts available up to 9 m, where capacity falls to 800 kg.
- Triplex mast (optional): reaches 10 m, with 650 kg of residual capacity at the top.
- Guidance: rail or wire guidance in the aisle, with magnetic stripe guidance as an option.
A 48V/525Ah DIN-C battery is standard, up to 775Ah as an option, and rolls out from the side. A 6.5 kW AC drive motor and a 12.8 kW AC lift motor give 6/8 km/h travel and 0.30/0.40 m/s lifting laden and unladen. Regenerative braking, electric power steering, a fingertip control system and cameras for driving and pallet handling are standard. For a lighter stand-on truck with a lithium battery, see the A Series stand-on turret truck 1-1.5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Left or Right Stacking
A rotating turret fork stacks to either side, in aisles from 1,750 mm wide.
Fingertip Controls
Grammer fingertip controls, a shock-absorbing seat and a low step-in cabin.
Full Specifications
| Capacity | 1.2 t |
|---|---|
| Power | Lead-acid |
| Lift Height | Up to 10 m |
| Operator Configuration | Man-Down |
| Turret / Fork Configuration | Turret fork |
| Battery Type | Lead-acid, 48V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CSD12
| Model | Capacity | Load centre | Standard lift | Max lift (capacity) | Aisle | Service weight |
|---|---|---|---|---|---|---|
| CSD12-AED2 | 1,200 kg | 600 mm | 5,000 mm | 9 m duplex (800 kg) / 10 m triplex (650 kg) | 1,750 mm | 5,065 kg |
Battery 48V/525Ah DIN-C, up to 775Ah optional. Minimum transfer aisle 3,800 mm, turning radius 1,975 mm. Figures from the Hangcha A Series man-down turret truck brochure (2022).
