A Series Turret Truck 1-1.5 t
A 1-1.5 t turret truck range for indoor warehouse and narrow-aisle operations, with lift heights up to 7.5 m and minimum aisle widths from 1,550 mm to match load, storage height and aisle requirements.
1-1.5 t
Capacity
Li-ion
Power
Up to 7.5 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series Stand-On Turret Truck: 1, 1.2 or 1.5 t

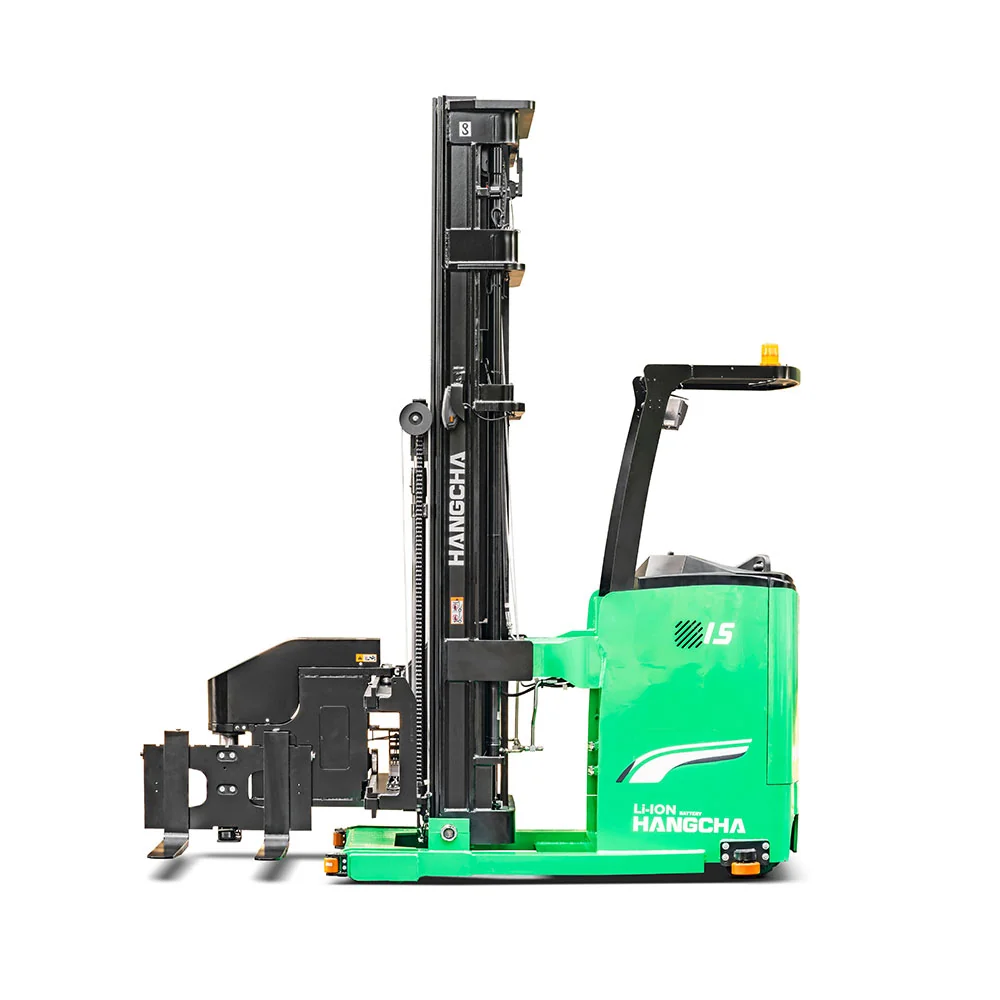

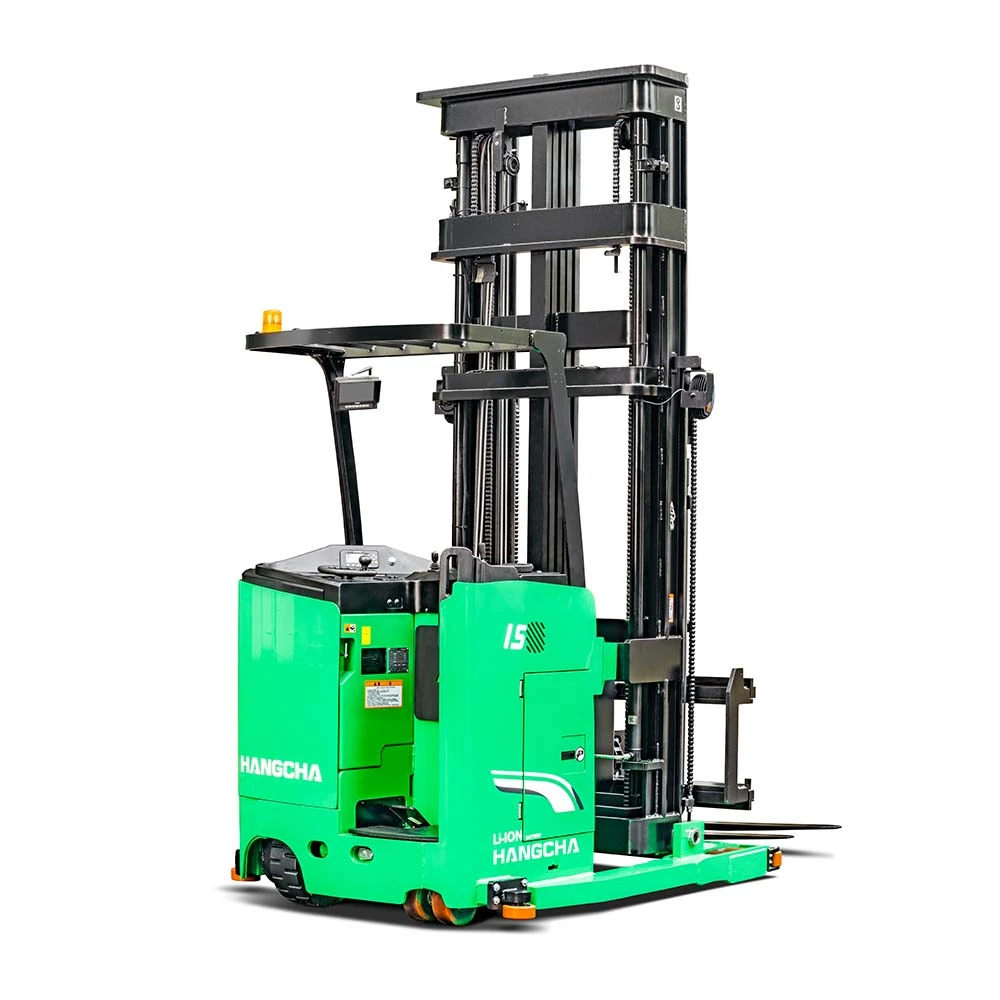

The A Series stand-on man-down turret truck is a very narrow aisle truck: the operator stands at ground level while the electric turret head turns the forks to either side of the aisle. It comes in 1,000, 1,200 and 1,500 kg capacities at a 550 mm load centre, all on a 48V lithium iron phosphate battery with CATL cells and a 6-year or 12,000-hour warranty.
- CSD10: the narrowest, needing a 1,550 mm aisle for 1100 x 1100 mm pallets, with a 48V/228Ah battery and 4,130 kg service weight.
- CSD12: 1,200 kg in a 1,650 mm aisle, with 228Ah as standard and 302Ah or 456Ah as options.
- CSD15: 1,500 kg in a 1,650 mm aisle, with a 302Ah battery as standard and 1,050 kg of residual capacity at 7.5 m.
Duplex masts reach 6,000 mm and optional triplex masts reach 7,500 mm, with capacity at that height falling to 800 kg (CSD10) and 1,000 kg (CSD12). Travel speed is 9 km/h, with a 5 kW AC drive motor, an 11 kW AC lift motor and electric power steering. Fork descent buffering, a side-removable battery and an interactive display are standard, and height selection, a cold store version and card or fingerprint access are optional. For racking up to 10 m, see the A Series man-down turret truck 1.2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Three-Way Turret Fork

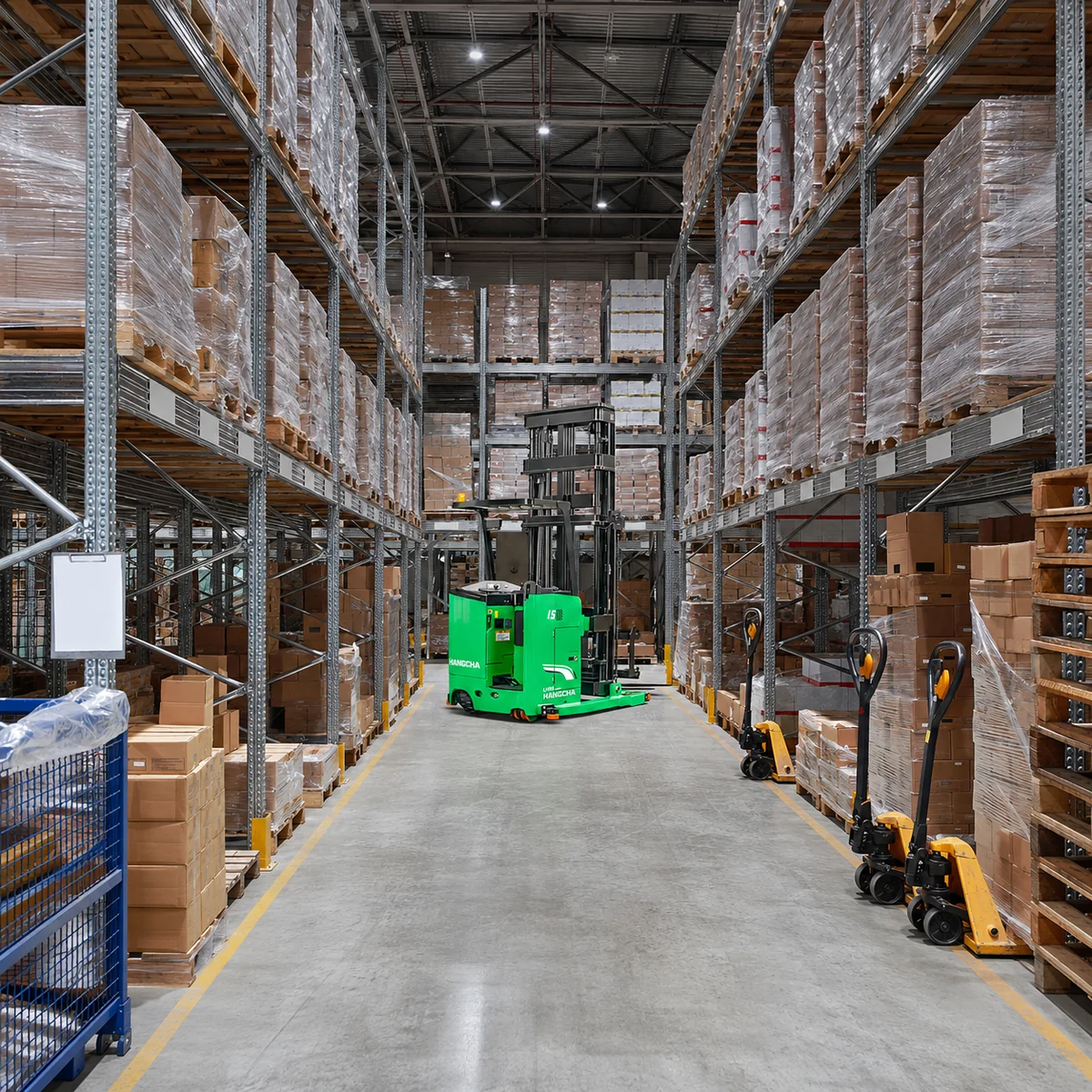

A three-way turret stacks to either side in aisles from 1,550 mm wide.
Stand-On Operator Layout
A stand-on position with a cushioned pedal and soft backrest, plus a wide-view mast.
Full Specifications
| Capacity | 1-1.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7.5 m |
| Operator Configuration | Man-Down |
| Turret / Fork Configuration | Turret fork |
| Battery Type | Li-ion |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CSD10
- CSD12
- CSD15
| Model | Capacity | Battery (standard) | Aisle (1100 x 1100 pallet) | Width | Capacity at 7.5 m | Service weight |
|---|---|---|---|---|---|---|
| CSD10-AEC5S-I | 1,000 kg | 48V / 228Ah | 1,550 mm | 1,380 mm | 800 kg | 4,130 kg |
| CSD12-AEC5S-I | 1,200 kg | 48V / 228Ah | 1,650 mm | 1,480 mm | 1,000 kg | 4,240 kg |
| CSD15-AEC5S-I | 1,500 kg | 48V / 302Ah | 1,650 mm | 1,480 mm | 1,050 kg | 4,260 kg |
Rated at a 550 mm load centre. Standard lift 3,000 mm; 7.5 m requires the optional triplex mast. Figures from the Hangcha A Series stand-on man-down turret truck brochure (2025).
