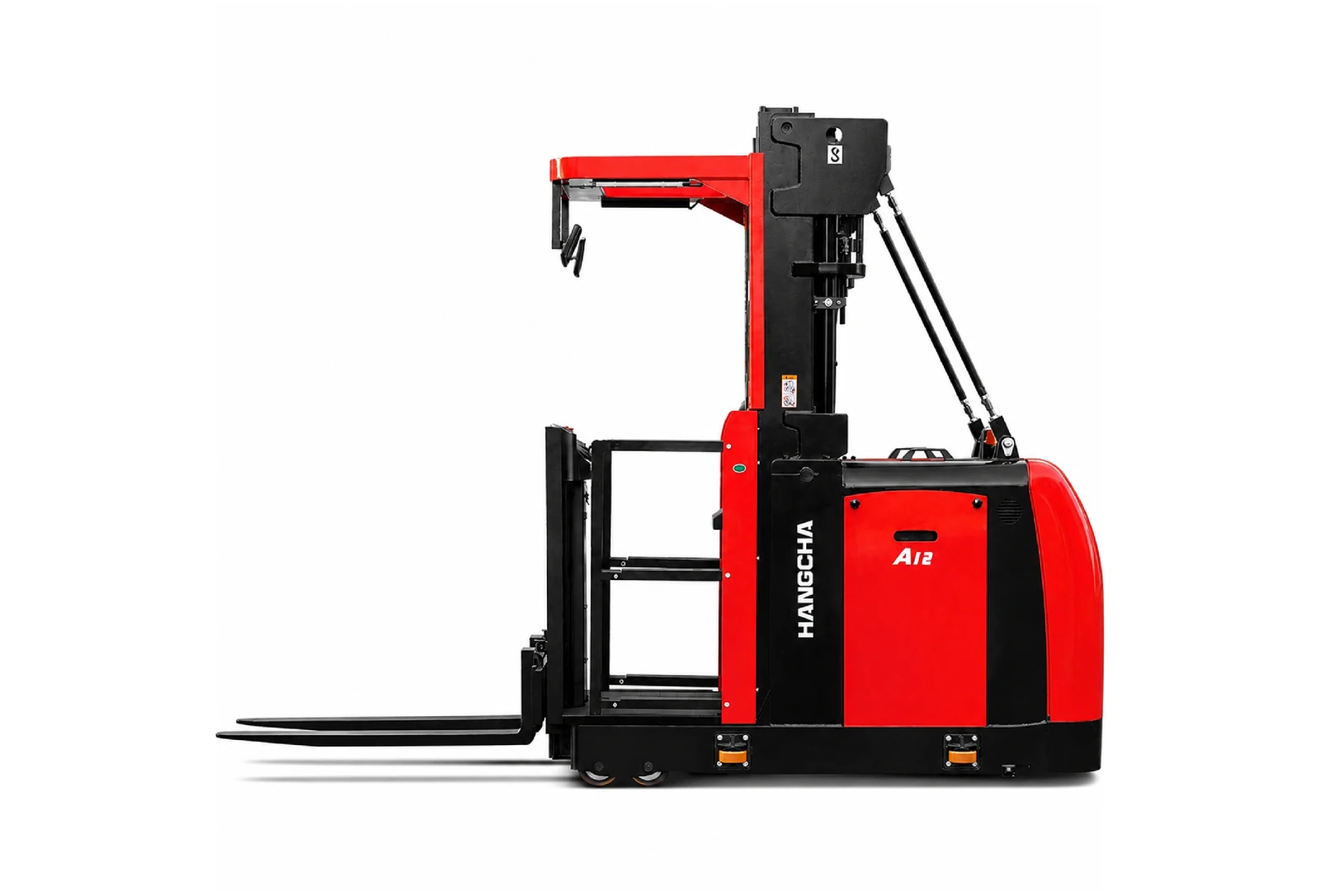

A Series Order Picker 1.2 t
A 1.2 t order picker range for indoor warehouse and narrow-aisle operations, with man-up picking at platform heights of up to 9.77 m for order-picking tasks where working height and aisle conditions need to match the application.
1.2 t
Capacity
Lead-acid / Li-ion
Power
Fork lift up to 9.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series High-Level Order Picker Version
The A Series high-level order picker is a man-up truck for picking in high-bay warehouses from 5 m to 10 m. It carries 1,200 kg at a 400 mm load centre up to 3 m of lift, falling to 1,000 kg at 5 m and 400 kg at the maximum 9.5 m. Choose the version by battery and by whether you need the supplementary lift.
- H and HI: an 800 mm supplementary lift on the platform raises the pallet to a convenient picking height, with mounted forks adjustable from 252 to 772 mm apart.
- HK and HKI: no supplementary lift, with welded forks at a 540 mm spread, a full-length safety belt and 150 kg less service weight.
- Battery: H and HK use a 48V/620Ah lead-acid battery. HI and HKI use a 48V/500Ah lithium iron phosphate battery that charges fully in 2 hours, against 8-10 hours for lead-acid, with a 6-year or 12,000-hour warranty.
Every version is 1,000 mm wide, with a 1,812 mm turning radius and a 3,535 mm aisle for 1000 x 1200 mm pallets crossways; rail guidance rollers for very narrow aisles are optional. Travel reaches 10 km/h, slows as the platform rises and stops above 6 m. Masts run from 4,500 mm to 9,500 mm, with a platform height of up to 9,766 mm. For a narrower truck from Hangcha's North American range, see the A Series narrow aisle high-level order picker 1.3 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
High-Level Picking
Man-up order picking with a platform height of up to 9,766 mm and an 800 mm supplementary lift on H versions.
Aisle Width 3,930 mm
Works in aisles from 3,930 mm wide, handling picked loads of up to 1.2 t.
Full Specifications
| Capacity | 1.2 t |
|---|---|
| Power | Lead-acid / Li-ion |
| Lift Height | Fork lift up to 9.5 m |
| Operator Type | Order Picker |
| Minimum Aisle Width | 3,535mm |
| Battery Type | Lead-acid / Li-ion, 48V |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CJD12
| Model | Battery | Supplementary lift | Fork spread | Service weight (with battery) |
|---|---|---|---|---|
| CJD12-AC4-H | 48V / 620Ah lead-acid | 800 mm | 252-772 mm | 3,960 kg |
| CJD12-AC4-HK | 48V / 620Ah lead-acid | None | 540 mm | 3,810 kg |
| CJD12-AC4-HI | 48V / 500Ah lithium | 800 mm | 252-772 mm | 3,960 kg |
| CJD12-AC4-HKI | 48V / 500Ah lithium | None | 540 mm | 3,810 kg |
Rated at a 400 mm load centre: 1,200 kg up to 3 m lift, 1,100 kg at 4 m, 1,000 kg at 5 m, 800 kg at 7 m, 600 kg at 8 m, 500 kg at 9 m and 400 kg at 9.5 m. Figures from the Hangcha A Series high-lift order picker brochure (2026).
