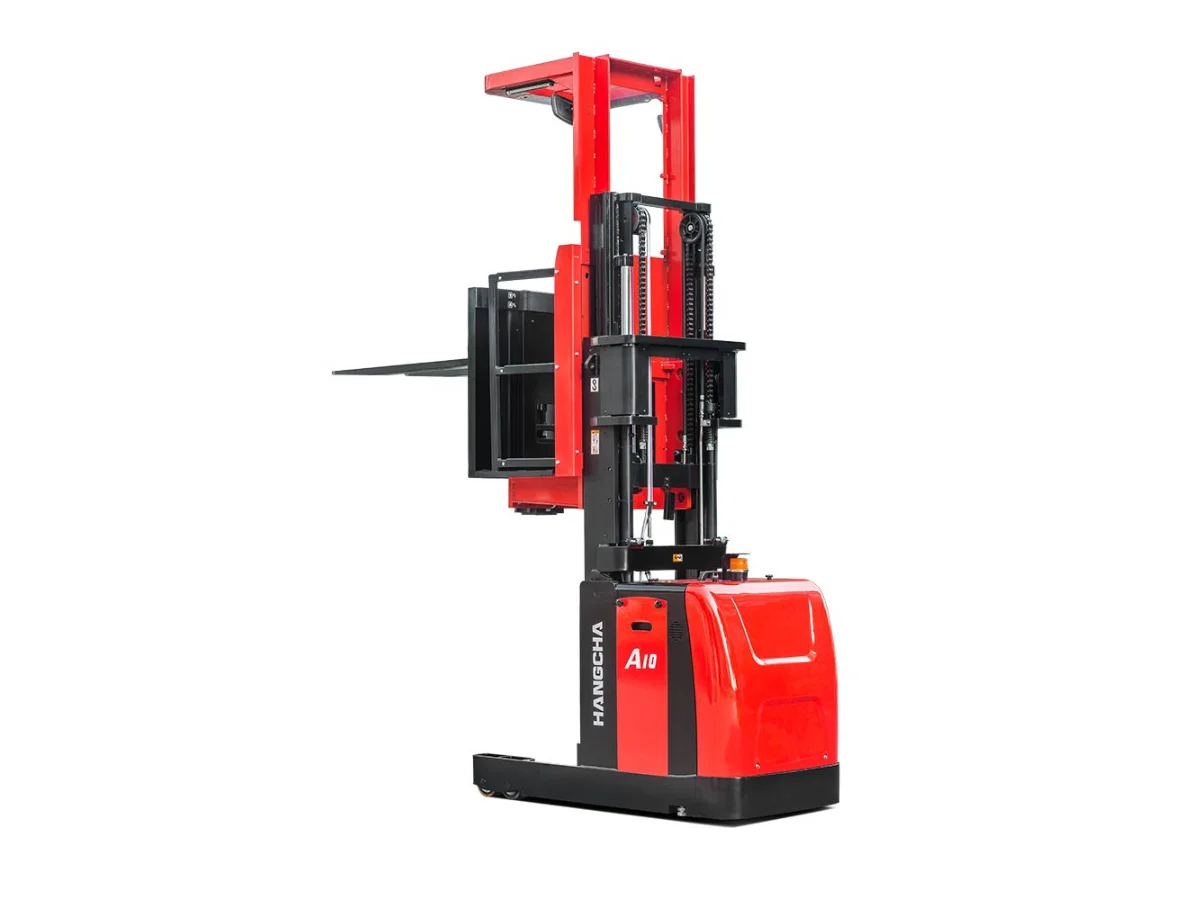

A Series Order Picker 1 t
A 1 t order picker range for indoor warehouse and narrow-aisle operations, with picking heights of up to 4.5 m for order-picking tasks where working height and aisle conditions need to match the application.
1 t
Capacity
Lead-acid / Li-ion
Power
Up to 4.5 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series Medium-Level Order Picker: Lift and Version
The Hangcha A Series medium-level order picker is a man-up truck that carries the operator and a 1,000 kg load (at a 600 mm load centre) up to the racking, for picking in stores below about 5 m high. It comes in four versions, chosen by lift height and by whether you need an auxiliary lift for the pallet.
- AC1 (CJD10-AC1-M1 and M1K): 3,000 mm lift, a 24V/625Ah battery and a 3.2 kW lift motor. Service weight is 2,516 kg.
- AC2 (CJD10-AC2-M2 and M2K): 4,500 mm lift, a larger 24V/700Ah battery and a 6.4 kW lift motor that raises the platform almost twice as fast (0.200 m/s laden against 0.115 m/s). Service weight is 2,805 kg.
- M1 and M2 against M1K and M2K: the M1 and M2 versions add an 800 mm auxiliary lift that raises the pallet to a comfortable picking height; the K versions have no auxiliary lift.
Every version travels at 9 km/h laden and unladen, turns in 1,610 mm and needs a 3,235 mm aisle for 1000 x 1200 mm pallets crossways. A lithium iron phosphate battery (25.76V/542Ah) is optional on all versions and charges fully in 2 hours, against 8-10 hours for lead-acid. Side barriers with a switch, a safety pedal, a tilt angle detection system, automatic slowing in turns and a side roll-out battery are standard. For picking up to 9.5 m, see the A Series high-level order picker 1.2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Height to 4.5 m
Lift heights of up to 4.5 m, with mast cushioning that softens stops at the top and bottom.
Tilt Angle Monitoring
Standard tilt detection halts operation if an unsafe tilt angle is detected in any direction.
Full Specifications
| Capacity | 1 t |
|---|---|
| Power | Lead-acid / Li-ion |
| Lift Height | Up to 4.5 m |
| Operator Type | Order Picker |
| Minimum Aisle Width | 3,235mm |
| Battery Type | Lead-acid / Li-ion, 24V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CJD10-AC1-M1
- CJD10-AC1-M1K
- CJD10-AC2-M2
- CJD10-AC2-M2K
| Model | Capacity (600 mm) | Lift | Auxiliary lift | Battery (standard) | Service weight |
|---|---|---|---|---|---|
| CJD10-AC1-M1 | 1,000 kg | 3,000 mm | 800 mm | 24V / 625Ah | 2,516 kg |
| CJD10-AC1-M1K | 1,000 kg | 3,000 mm | None | 24V / 625Ah | 2,516 kg |
| CJD10-AC2-M2 | 1,000 kg | 4,500 mm | 800 mm | 24V / 700Ah | 2,805 kg |
| CJD10-AC2-M2K | 1,000 kg | 4,500 mm | None | 24V / 700Ah | 2,805 kg |
25.76V / 542Ah lithium battery optional on all versions (suffix I). Figures from the Hangcha A Series medium-level order picker brochure (2022).
