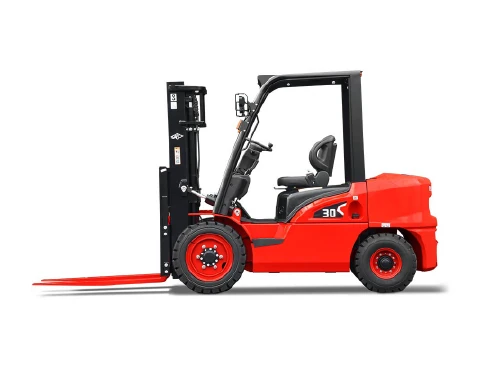

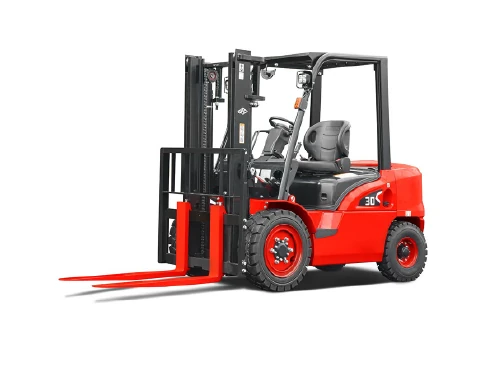

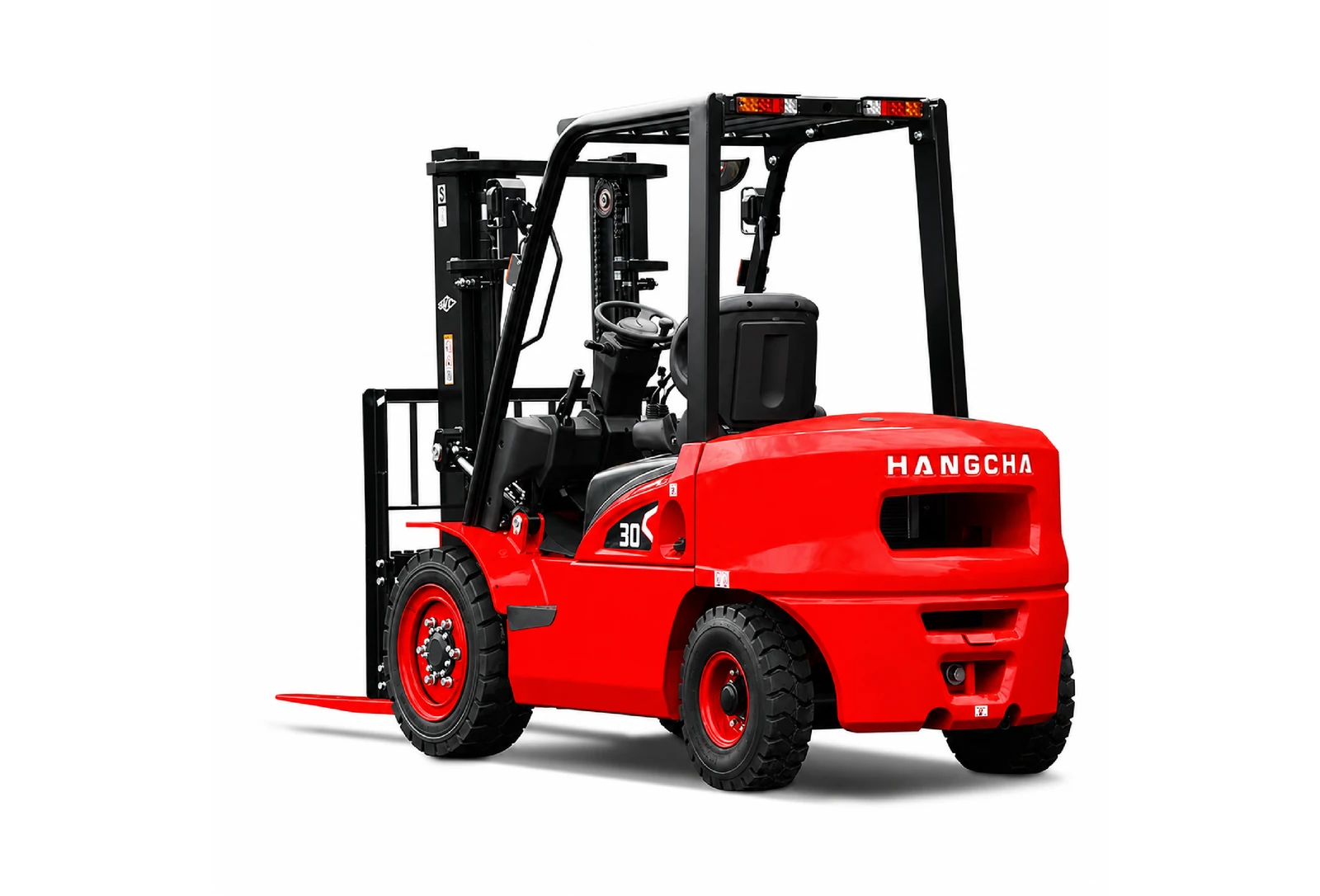

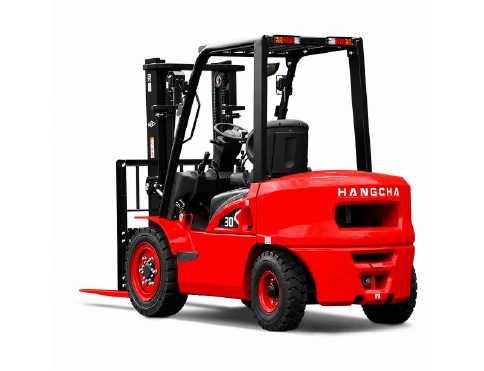

X Series Diesel & LPG Forklift 1.5-3.8 t
A 1.5-3.8 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 8 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
1.5-3.8 t
Capacity
Diesel / LPG
Power
Up to 8 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 1.5-3.8 t Model: Diesel or LPG
The X Series 1.5-3.8 t is a pneumatic-tyre counterbalance forklift in diesel or LPG. In the specification table, diesel models use an Isuzu engine from 1.5 t to 3 t and LPG models use a GCT GK25 from 2 t to 3.8 t, so the 3.5 t and 3.8 t models are LPG.
- 1.5-1.75 t diesel: the most compact models, with a 2,035-2,060 mm turning radius and 25% laden gradeability.
- 2-3 t, diesel or LPG: the same dimensions on either fuel. At 2.5-3 t the LPG versions climb 20% laden, against 15% for the diesel.
- 3.5-3.8 t LPG: the highest capacity, with a 2,440-2,480 mm turning radius and a 4,120-4,160 mm aisle for 1000 x 1200 mm pallets crossways.
Other diesel engines from Yanmar, Xinchai and Mitsubishi, plus petrol and dual-fuel GCT engines, are listed as options. All models have a powershift transmission and are rated at a 500 mm load centre with a 3,000 mm standard lift. Triplex masts reach 7 m, and 7.5 m or 8 m masts are available on the 3-3.8 t models. For 4-5 t loads, see the X Series diesel and LPG forklift 4-5 t.
Practical Features for Daily Operation
Diesel or LPG Engine
Isuzu, GCT, Yanmar, Xinchai or Mitsubishi engines, running on diesel or LPG.

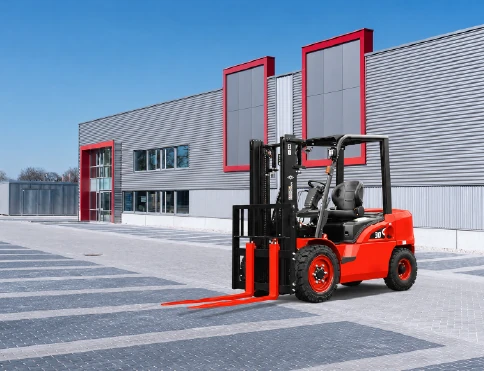

Pneumatic Tyres for Yards
Pneumatic tyres for outdoor yards, with gradeability of up to 25% on ramps.
Capacities of 1.5-3.8 t
Capacities of 1.5-3.8 t with lift heights of up to 8 m for yard and dock loading.
Full Specifications
| Capacity | 1.5-3.8 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 8 m |
| Engine | ISUZU / GCT / YANMAR / XINCHAI / MITSUBISHI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 25% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD15
- CPCD18
- CPCD20
- CPCD25
- CPCD30
- CPYD20
- CPYD25
- CPYD30
- CPYD35
- CPYD38
| Model | Capacity | Fuel | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPCD15-XRW10 | 1,500 kg | Diesel | 2,035 mm | 3,640 mm | 25% | 2,720 kg |
| CPCD18-XRW10 | 1,750 kg | Diesel | 2,060 mm | 3,670 mm | 25% | 2,880 kg |
| CPCD20-XRW10 / CPYD20-XRW52F | 2,000 kg | Diesel / LPG | 2,270 mm | 3,930 mm | 20% / 20% | 3,450 kg |
| CPCD25-XRW10 / CPYD25-XRW52F | 2,500 kg | Diesel / LPG | 2,330 mm | 3,990 mm | 15% / 20% | 3,850 kg |
| CPCD30-XRW10 / CPYD30-XRW52F | 3,000 kg | Diesel / LPG | 2,400 mm | 4,075 mm | 15% / 20% | 4,380 kg |
| CPYD35-XRW52F | 3,500 kg | LPG | 2,440 mm | 4,120 mm | 20% | 4,750 kg |
| CPYD38-XRW52F | 3,800 kg | LPG | 2,480 mm | 4,160 mm | 20% | 4,950 kg |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha X Series diesel / gasoline / LPG brochure (1.5-3.8 t).
