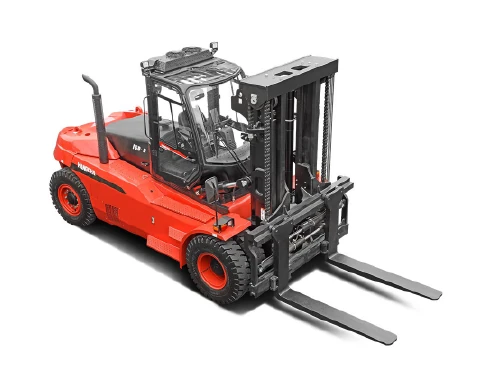

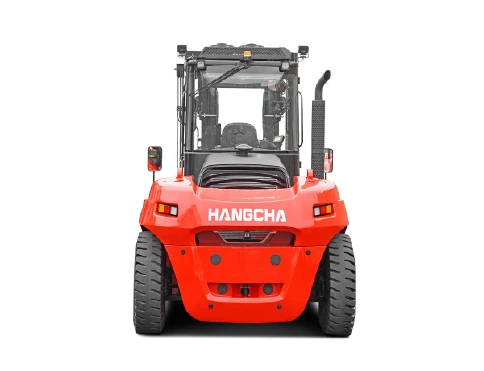

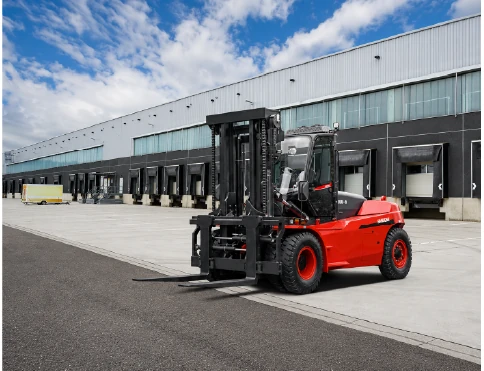

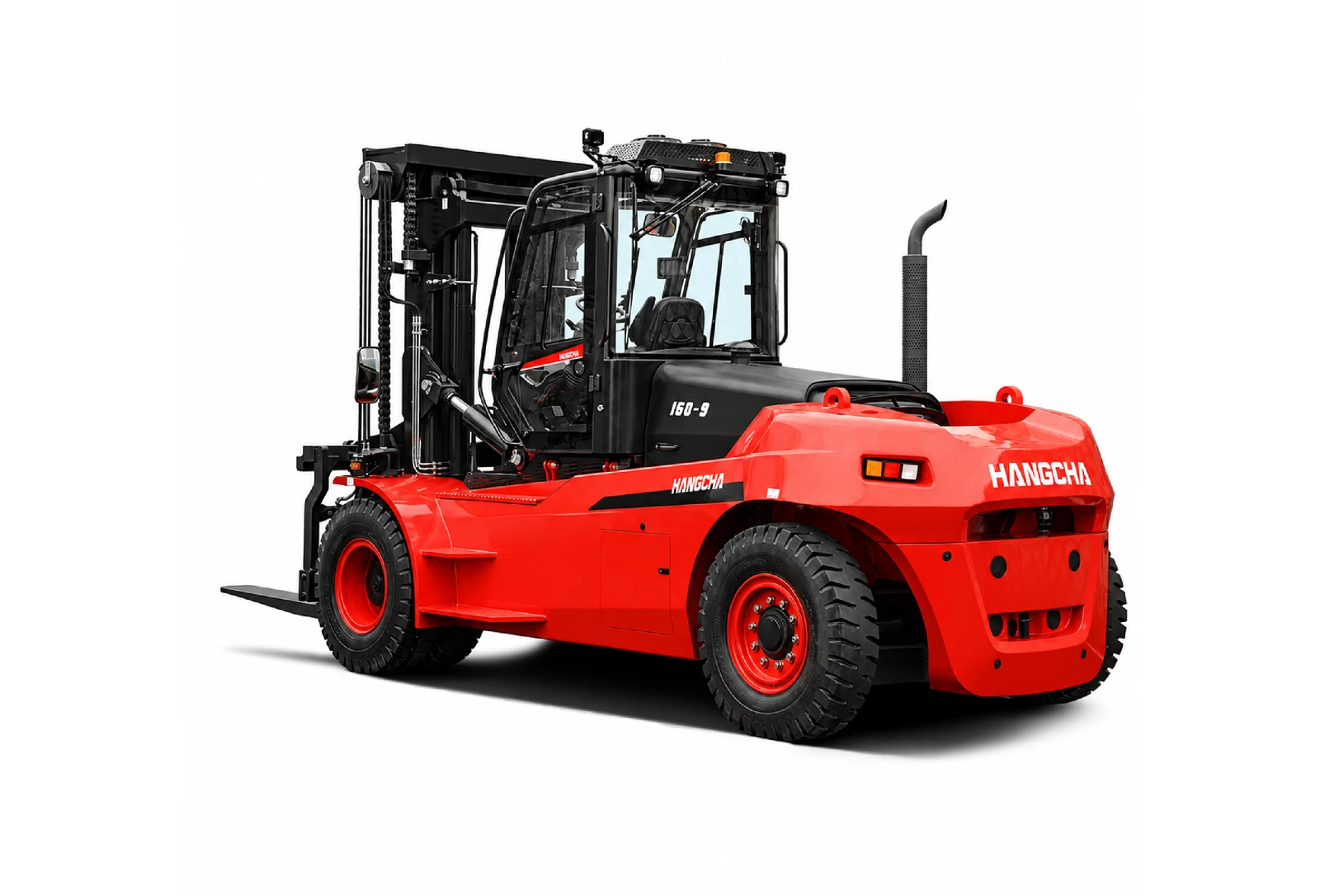

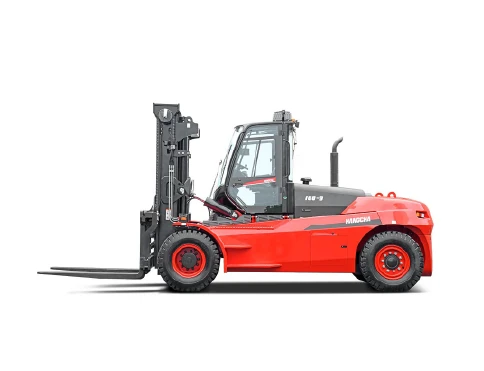

X Series Diesel Forklift 14-18 t
A 14-18 tonne diesel forklift range for outdoor operations, with lift heights of up to 6.5 m and Diesel power options for material handling where load, lift height and site conditions guide model selection.
14-18 t
Capacity
Diesel
Power
Up to 6.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 14-18 t Diesel Forklift: Load Centre and Engine
The Hangcha X Series 14-18 t diesel forklift is built for long and bulky loads: most versions are rated at a 900 mm or 1,200 mm load centre, with one 18 t version at 600 mm. Each model of this long-load diesel forklift comes with one of two Cummins engines.
- Cummins B6.7 (H9G): 149 kW and EU Stage V / Tier 4.
- Cummins QSB6.7-C190 (W25G): 142 kW and Stage IIIA / Tier 3.
- Gradeability: up to 28% laden on most versions, 25% on two and 20% on the CPCD180-XRA.
A ZF 3WG161 powershift with three forward and three reverse gears gives 26/30 km/h laden and unladen. Turning radius is 4,950 mm on the main versions and up to 5,460 mm on the longest load centre models, with service weights from 20,500 to 25,600 kg. The standard lift is 3,000 mm and masts reach 6,500 mm, where capacity falls to 9,500, 11,500 and 13,500 kg. A climate-controlled tilting cabin, variable hydraulic pump and pre-cleaner air filter are standard. Loads from 20 tonnes need the X Series diesel forklift 20-35 t.
Practical Features for Daily Operation
Cummins Engine Power
Cummins engine power for heavy 14-18 t loads in outdoor yards.
14-18 t Load Capacity
Rated capacities from 14 t to 18 t for heavy loads in outdoor yards.
Pneumatic Tyres for Yards
Pneumatic tyres and gradeability of up to 28% for loaded travel across outdoor sites.
Full Specifications
| Capacity | 14-18 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 6.5 m |
| Engine | CUMMINS |
| Tyre Type | Pneumatic |
| Gradeability | Up to 28% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD140
- CPCD160
- CPCD180
| Model | Capacity | Load centre | Turning radius | Capacity at 6.5 m | Service weight |
|---|---|---|---|---|---|
| CPCD140-XR | 14,000 kg | 900 mm | 4,950 mm | 9,500 kg | 20,500 kg |
| CPCD160-XR | 16,000 kg | 900 mm | 4,950 mm | 11,500 kg | 21,500 kg |
| CPCD180-XRX | 18,000 kg | 600 mm | 4,950 mm | 13,500 kg | 20,900 kg |
Main versions with the QSB6.7-C190 engine. Further 14-18 t versions at 900 mm and 1,200 mm load centres are listed, with turning radii to 5,460 mm and weights to 25,600 kg.
