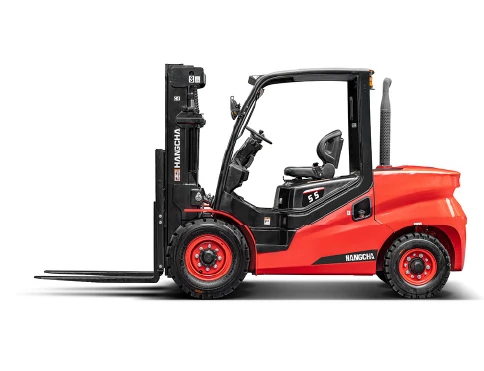

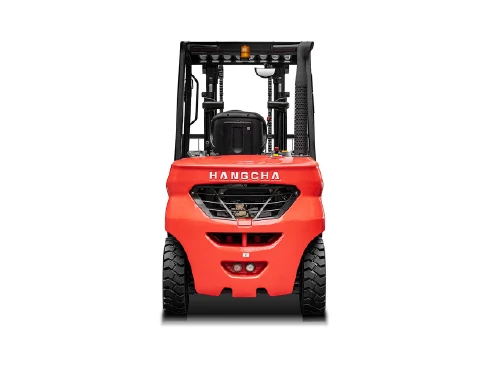

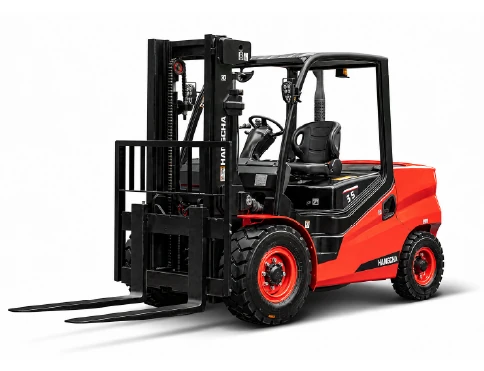

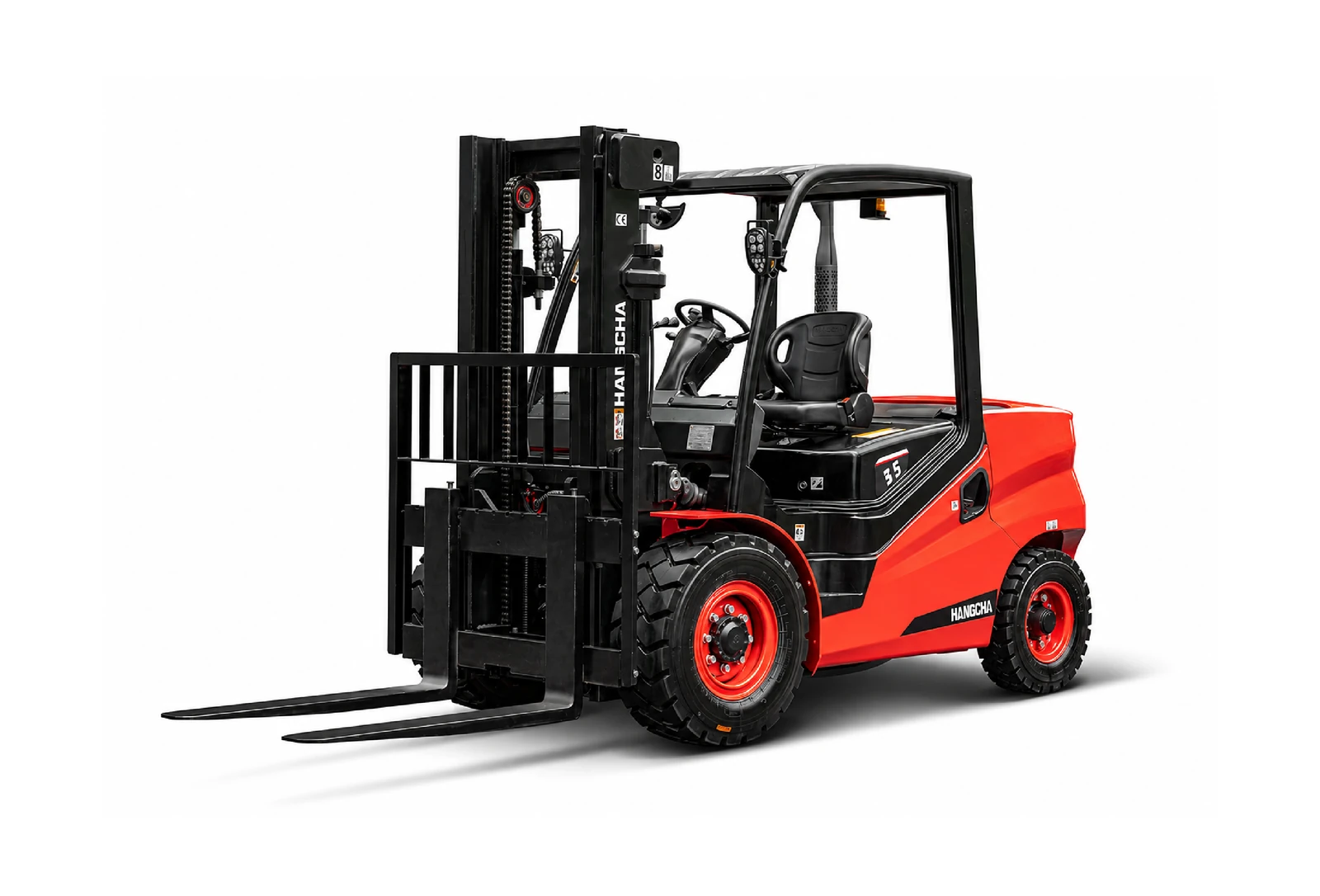

XF2 Series Diesel & LPG Forklift 4-5.5 t
A 4-5.5 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
4-5.5 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF2 Series 4-5.5 t Model and Engine
The XF2 Series 4-5.5 t is the updated version of the XF Series, with a smaller turning radius, a 5% lower centre of gravity and a maintenance-free wet-brake drive axle. The specification table covers three engines with identical dimensions: Xinchai 4E30 diesel (EU Stage V), Kubota V3307 diesel (EU Stage V and EPA Tier 4 Final) and Kubota WG3800 LPG.
- 4 t: the narrowest at 1,420 mm, turning in 2,630 mm and working in a 4,390 mm aisle for 1000 x 1200 mm pallets crossways.
- 4.5-5.5 t: a 1,450 mm wide body and a 2,660-2,810 mm turning radius, with 2,300-2,650 kg capacity at a 7 m lift on dual tyres.
- Engine choice: the Xinchai diesel comes with a China-made powershift transmission. The Kubota diesel and Kubota LPG come with an Okamura transmission and climb 25-30% laden, against 21-24% for the Xinchai.
Kubota dual-fuel, PSI 4.3L LPG and Cummins diesel engines are options, and the overhead guard has pre-set holes for conversion to a cab. Ratings are at a 500 mm load centre with a 3,000 mm standard lift. Triplex masts reach 7 m, with 7.5 m or 8 m optional. To compare the earlier design, which also lists 600 mm load-centre ratings, see the XF Series diesel and LPG forklift 4-5.5 t.
Practical Features for Daily Operation
Diesel or LPG Engine
Xinchai, Kubota, Cummins or PSI engine options, running on diesel or LPG.

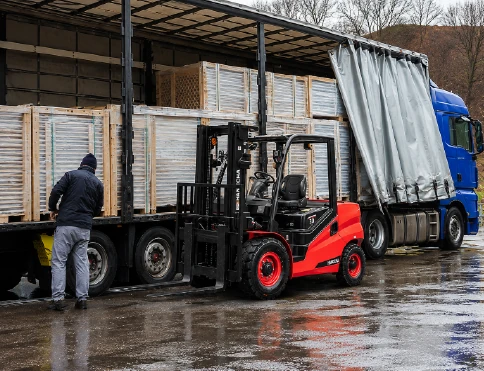

4-5.5 t Outdoor Capacity
Capacities of 4-5.5 t and lift heights of up to 7 m for heavier outdoor loading.
Gradeability to 30%
Climbs grades of up to 30% on pneumatic tyres, suited to sloped outdoor sites.
Full Specifications
| Capacity | 4-5.5 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | XINCHAI / KUBOTA / CUMMINS / PSI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 30% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD40
- CPCD45
- CPCD50
- CPCD55
- CPYD40
- CPYD45
- CPYD50
- CPYD55
| Model | Capacity | Overall width | Turning radius | Aisle (1000 x 1200 crossways) | Capacity at 7 m | Service weight |
|---|---|---|---|---|---|---|
| CPCD40 / CPYD40 | 4,000 kg | 1,420 mm | 2,630 mm | 4,390 mm | 2,100 kg | 6,400 kg |
| CPCD45 / CPYD45 | 4,500 kg | 1,450 mm | 2,660 mm | 4,420 mm | 2,300 kg | 6,600 kg |
| CPCD50 / CPYD50 | 5,000 kg | 1,450 mm | 2,750 mm | 4,510 mm | 2,450 kg | 6,900 kg |
| CPCD55 / CPYD55 | 5,500 kg | 1,450 mm | 2,810 mm | 4,580 mm | 2,650 kg | 7,300 kg |
Rated at a 500 mm load centre. Capacity at 7 m is with the full free triplex mast on dual tyres. Figures from the Hangcha XF2 Series IC counterbalanced truck brochure (4-5.5 t).
