X Series Diesel & LPG Forklift 5-10 t
A 5-10 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
5-10 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 5-10 t Model and Engine

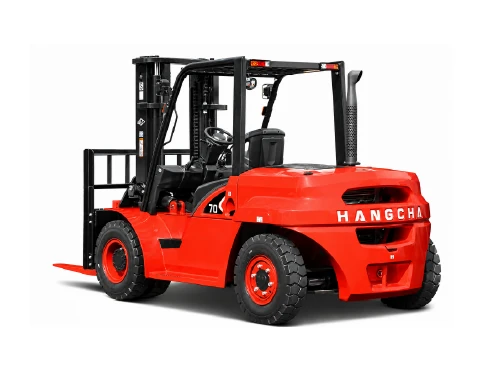

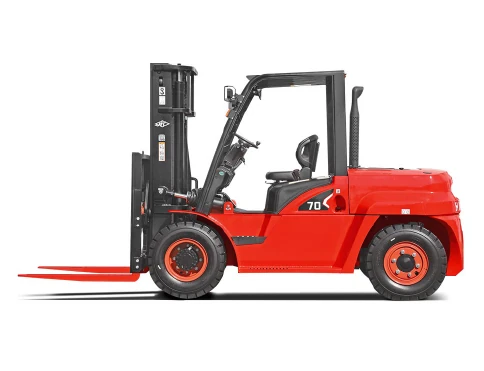

The X Series 5-10 t is a heavy-duty diesel counterbalance forklift on dual front pneumatic tyres, rated at a 600 mm load centre. Every model is offered with an Isuzu 6BG1QP or a Cummins QSF3.8 (EU Stage IIIA) engine, and a PSI 4.3L LPG/petrol engine is an option on the 5-7 t models.
- 5-7 t: a 3,230-3,350 mm turning radius, 1,990 mm overall width and 1,220 mm forks. With the Isuzu engine, laden gradeability is 39-43%.

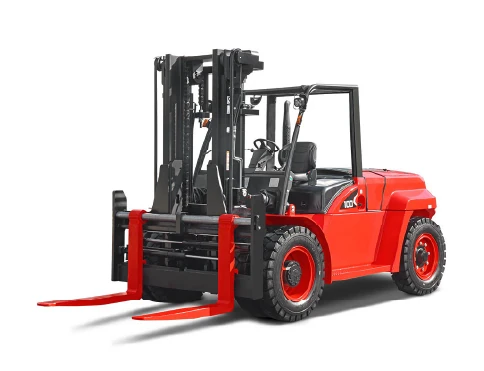

- 8.5-10 t: a 2,197 mm wide body and 1,520 mm forks for longer loads, with dynamic braking, an accumulator alarm and a fork positioner as standard.
- Isuzu or Cummins: the 6-cylinder 6.5 L Isuzu gives more laden gradeability and 68-78 kN drawbar pull. The 4-cylinder 3.8 L Cummins gives 60-70 kN and carries the Stage IIIA certification.
All models use a powershift transmission with two forward speeds, with an Okamura gearbox and an automatic shift system as options. Triplex masts reach 7 m, where the 10 t model still carries 5,200 kg on dual tyres. For a diesel or LPG forklift up to 7 t with a ZF transmission and wet brakes, see the XF Series diesel and LPG forklift 5-7 t.
Practical Features for Daily Operation
Isuzu or Cummins Engine
Isuzu or Cummins engines on diesel or LPG for heavy 5-10 t handling.
5-10 t Capacity Range
Capacities from 5 to 10 t, lifting to 7 m, for heavy outdoor material handling.
Gradeability to 43%
Gradeability of up to 43% on pneumatic tyres for steep ramps and outdoor yards.
Full Specifications
| Capacity | 5-10 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | ISUZU / CUMMINS; optional YUCHAI / MITSUBISHI / CHAOCHAI / PSI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 43% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD50
- CPCD60
- CPCD70
- CPCD85
- CPCD100
| Model | Capacity | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability (Isuzu / Cummins) | Capacity at 7 m | Service weight |
|---|---|---|---|---|---|---|
| CPCD50 | 5,000 kg | 3,230 mm | 5,030 mm | 43% / 36% | 3,000 kg | 8,150 kg |
| CPCD60 | 6,000 kg | 3,280 mm | 5,080 mm | 41% / 34% | 3,300 kg | 8,700 kg |
| CPCD70 | 7,000 kg | 3,350 mm | 5,155 mm | 39% / 32% | 3,800 kg | 9,400 kg |
| CPCD85 | 8,500 kg | 3,630 mm | 5,540 mm | 24% / 22% | 4,800 kg | 11,400 kg |
| CPCD100 | 10,000 kg | 3,940 mm | 5,865 mm | 24% / 22% | 5,200 kg | 12,900 kg |
Rated at a 600 mm load centre. Capacity at 7 m is with the full free triplex mast on dual tyres. Figures from the Hangcha X Series diesel / gasoline / LPG brochure (5-10 t).
