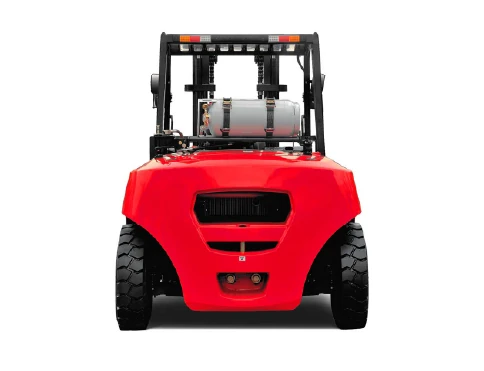

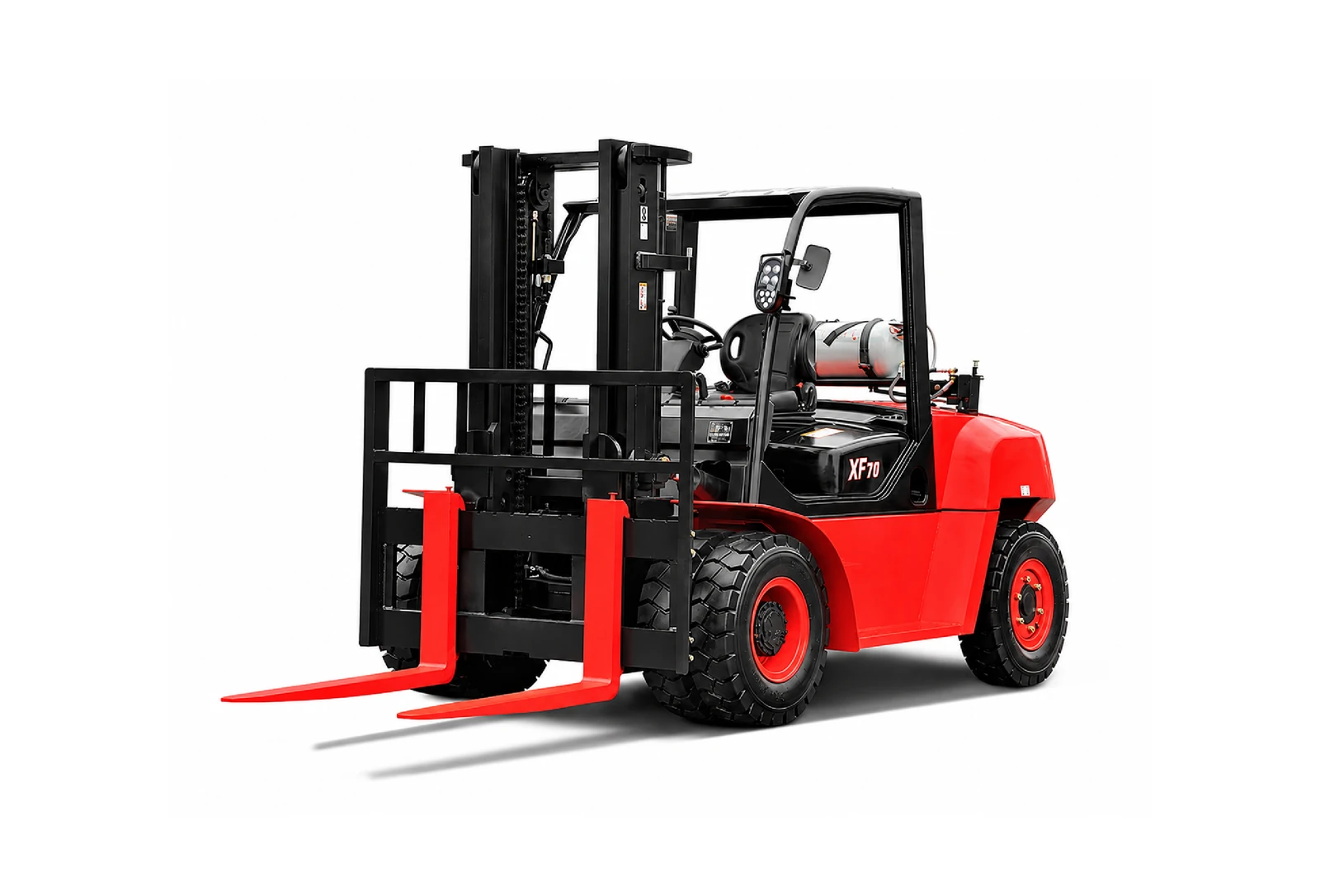

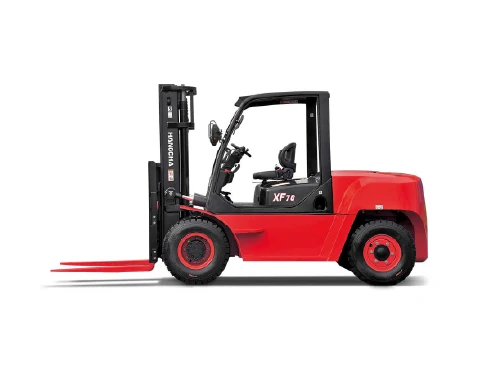

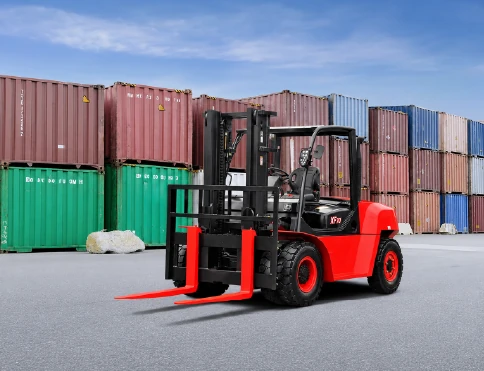

XF Series Diesel & LPG Forklift 5-7 t
A 5-7 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
5-7 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF Series 5-7 t Model: Diesel or LPG
The XF Series 5-7 t is a heavy-duty counterbalance forklift on dual front pneumatic tyres, rated at a 600 mm load centre. Choose between a Deutz TCD3.6 diesel and a PSI 4.3L LPG engine; the truck dimensions are the same on both.
- Deutz diesel: offered to EU Stage IIIB or Stage V, with a ZF powershift transmission and wet brakes. It has the highest laden gradeability at 30-41% and about 64-65 kN drawbar pull.
- PSI 4.3L LPG: faster laden travel at 27.1-29.8 km/h, against 22-24 km/h for the diesel, with 27-38% laden gradeability.
- Capacity: the 5 t turns in 3,230 mm and the 7 t in 3,350 mm. At a 7 m lift, capacity is 3,000-3,800 kg.
All models have a 2,050 mm overall width and 1,200 mm forks. The brochure highlights a high-strength chassis, mast and axles, an aluminium radiator for severe environments and a brake accumulator that gives more than four emergency stops with the engine off. For capacities up to 10 t, see the X Series diesel and LPG forklift 5-10 t.
Practical Features for Daily Operation
PSI Engine, Diesel or LPG
PSI engine power on diesel or LPG, with load-sensing steering to cut energy loss.
Reinforced Mast and Guard
A stamped frame and hood with a reinforced mast and head guard for demanding yard work.
Hydraulic Fail-Safe Valve
A throttling valve helps keep the mast under control if a hydraulic line fails.
Full Specifications
| Capacity | 5-7 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | DEUTZ / PSI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 41% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD50
- CPYD60
- CPYD70
- CPCD50
- CPCD60
- CPCD70
| Model | Capacity | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability (diesel / LPG) | Laden travel (diesel / LPG) | Capacity at 7 m |
|---|---|---|---|---|---|---|
| CPCD50 / CPYD50 | 5,000 kg | 3,230 mm | 5,030 mm | 41% / 38% | 24 / 29.8 km/h | 3,000 kg |
| CPCD60 / CPYD60 | 6,000 kg | 3,280 mm | 5,080 mm | 36% / 33% | 23 / 28.1 km/h | 3,300 kg |
| CPCD70 / CPYD70 | 7,000 kg | 3,350 mm | 5,150 mm | 30% / 27% | 22 / 27.1 km/h | 3,800 kg |
Rated at a 600 mm load centre. Capacity at 7 m is with the full free triplex mast on dual tyres. Figures from the Hangcha XF Series diesel / LPG brochure (5-7 t).
