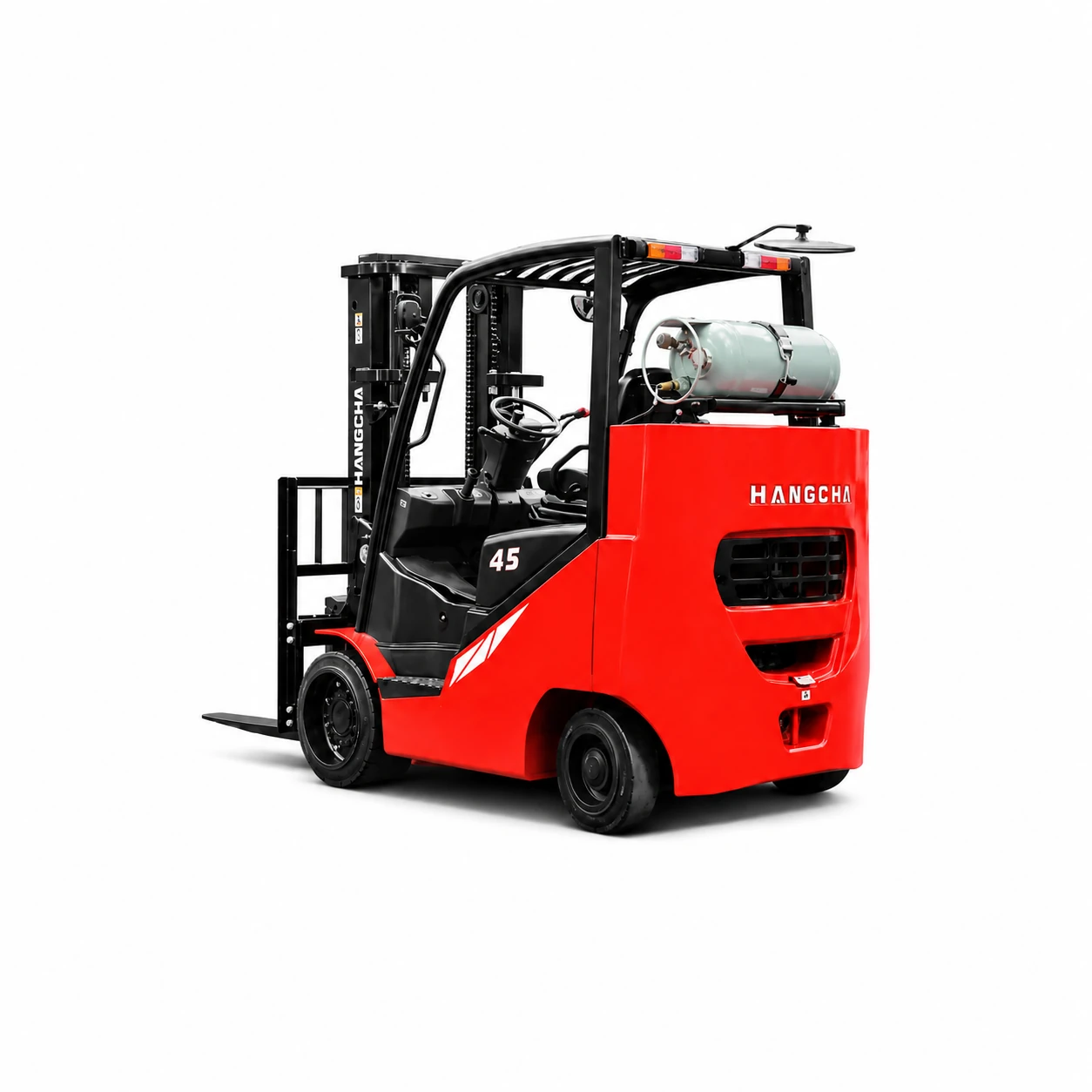

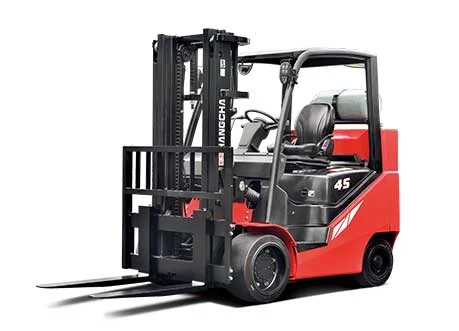

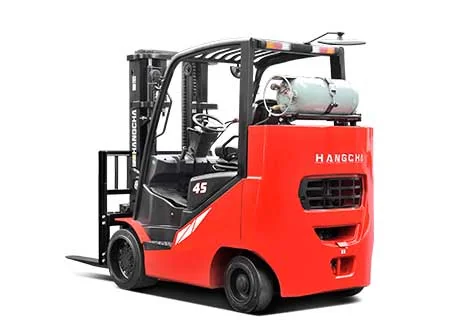

XF Series Box Car Cushion Forklift 3.5-5.5 t
A 3.5-5.5 t box car cushion forklift range for indoor warehouse operations, with lift heights of up to 6 m for material handling where load, lift height and site conditions guide model selection.
3.5-5.5 t
Capacity
LPG / IC
Power
Up to 6 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF Series Box Car Forklift Model
The XF Series box car forklift is an LPG cushion tyre truck with a vertical counterweight, designed for working inside tight railway box cars. All three models use a 77 kW PSI 4.3L LPG engine certified to North American EPA standards and an Okamura powershift transmission with power take-off.
- FP35CB (3,500 kg): the narrowest at 1,270 mm, with a 1,570 mm wheelbase and a 2,140 mm turning radius.
- FP45CB (4,500 kg): the same short 1,570 mm wheelbase on a 1,420 mm wide body, turning in 2,230 mm.
- FP55CB (5,500 kg): a 1,790 mm wheelbase and 1,220 mm forks, still carrying 5,000 kg at the 6 m maximum lift.
Capacities are rated at a 600 mm (24 in) load centre with a 3,000 mm standard lift, and all models share a 2,248 mm overhead guard height. The mast can be swapped for a paper roll clamp, which is listed as an option. For a truck built for paper roll handling, see the XF Series paper roll cushion forklift 5.5 t.
Practical Features for Daily Operation
LPG / IC Power
Engine power with quick refuelling, for long or back-to-back shifts.
Cushion Tyres
Solid cushion tyres suit smooth, sealed floors in warehouses and on docks.
Compact for Box Cars
1,270-1,420 mm overall width and a tight turning radius for loading inside box cars.
Full Specifications
| Capacity | 3.5-5.5 t |
|---|---|
| Power | LPG / IC |
| Lift Height | Up to 6 m |
| Tyre Type | Cushion tyre |
| Overall Width | 1,270-1,420mm |
| Turning Radius | 2,140-2,380mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD35
- CPYD45
- CPYD55
| Model | Rated capacity (600 mm / 24 in) | Capacity at 6 m | Overall width | Turning radius | Aisle (40 x 48 in pallet) | Laden gradeability |
|---|---|---|---|---|---|---|
| FP35CB (CPYD35) | 3,500 kg (8,000 lb) | 3,000 kg | 1,270 mm | 2,140 mm | 3,590 mm | 39% |
| FP45CB (CPYD45) | 4,500 kg (10,000 lb) | 4,000 kg | 1,420 mm | 2,230 mm | 3,690 mm | 36% |
| FP55CB (CPYD55) | 5,500 kg (12,000 lb) | 5,000 kg | 1,420 mm | 2,380 mm | 3,850 mm | 34% |
Rated at a 600 mm (24 in) load centre. Figures from the HC Forklift America XF Series box car special forklift brochure.
