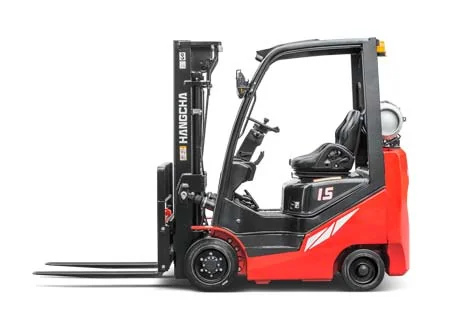

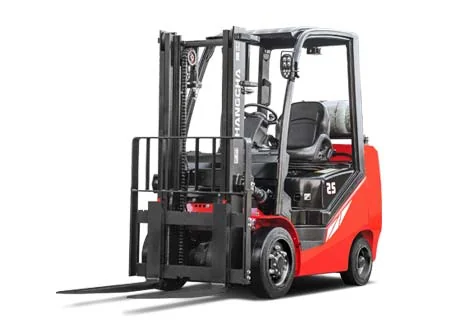

XF Series LPG Cushion Tyre Forklift 1.4-2.9 t
A 1.4-2.9 t LPG cushion tyre forklift range for indoor warehouse operations, with lift heights of up to 7 m for material handling where load, lift height and site conditions guide model selection.
1.4-2.9 t
Capacity
LPG / IC
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF Series LPG Cushion Tyre Model
The XF Series LPG cushion tyre forklift is an indoor truck from Hangcha's North American range, built for warehouses, distribution centres and manufacturing plants. The models follow the Hangcha type codes CPYD15 to CPYD32. Because this is a North American specification, capacities are rated at a 600 mm (24 in) load centre, which gives 1,360-2,950 kg.
- FP15C and FP18C (CPYD15-18): a GCT GK21 LPG engine, a 964 mm overall width and a 1,780-1,810 mm turning radius. Masts reach 4.8 m.
- FP20C and FP25C (CPYD20-25): a GCT GK25 engine and 30% laden gradeability, the highest in the range, with masts up to 6 m, or 7,055 mm with a quad mast.
- FP30C and FP32C (CPYD30-32): the heaviest loads at 2,720-2,950 kg, with a 1,123 mm wide body and a 2,035-2,060 mm turning radius.
Every model uses an EPA-certified GCT LPG engine and an Okamura powershift transmission, with a 3,000 mm standard lift. Smooth cushion tyres are standard, with traction and non-marking cushion tyres as options, and a swing-out bracket makes LPG cylinder changes easier. For 6-7 t loads, see the XF Series LPG cushion tyre forklift 6-7 t.
Practical Features for Daily Operation
LPG Engine Power
LPG power for long indoor shifts with quick bottle changes; needs good ventilation.
Lift Heights to 7 m
Masts reaching up to 7 m for high racking and stacking in indoor warehouses.
Narrow Cushion Tyre Build
Cushion tyres with overall widths from 964 mm to 1,123 mm for tighter warehouse aisles.
Full Specifications
| Capacity | 1.4-2.9 t |
|---|---|
| Power | LPG / IC |
| Lift Height | Up to 7 m |
| Tyre Type | Cushion tyre |
| Overall Width | 964-1,123mm |
| Turning Radius | 1,780-2,060mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD15
- CPYD18
- CPYD20
- CPYD25
- CPYD30
- CPYD32
| Model | Rated capacity (600 mm / 24 in) | Engine | Turning radius | Aisle (40 x 48 in pallet) | Max lift | Service weight |
|---|---|---|---|---|---|---|
| FP15C (CPYD15) | 1,360 kg (3,000 lb) | GCT GK21, 43 kW | 1,780 mm | 3,371 mm | 4,800 mm | 2,940 kg |
| FP18C (CPYD18) | 1,600 kg (3,500 lb) | GCT GK21, 43 kW | 1,810 mm | 3,401 mm | 4,800 mm | 3,100 kg |
| FP20C (CPYD20) | 1,810 kg (4,000 lb) | GCT GK25, 47 kW | 1,925 mm | 3,552 mm | 7,055 mm | 3,575 kg |
| FP25C (CPYD25) | 2,270 kg (5,000 lb) | GCT GK25, 47 kW | 1,990 mm | 3,617 mm | 7,055 mm | 3,920 kg |
| FP30C (CPYD30) | 2,720 kg (6,000 lb) | GCT GK25, 47 kW | 2,035 mm | 3,685 mm | 7,055 mm | 4,340 kg |
| FP32C (CPYD32) | 2,950 kg (6,500 lb) | GCT GK25, 47 kW | 2,060 mm | 3,710 mm | 7,055 mm | 4,490 kg |
Rated at a 600 mm (24 in) load centre. 7,055 mm is with the quad mast. Figures from the HC Forklift America XF Series LPG cushion tire brochure (3,000-6,500 lb).
