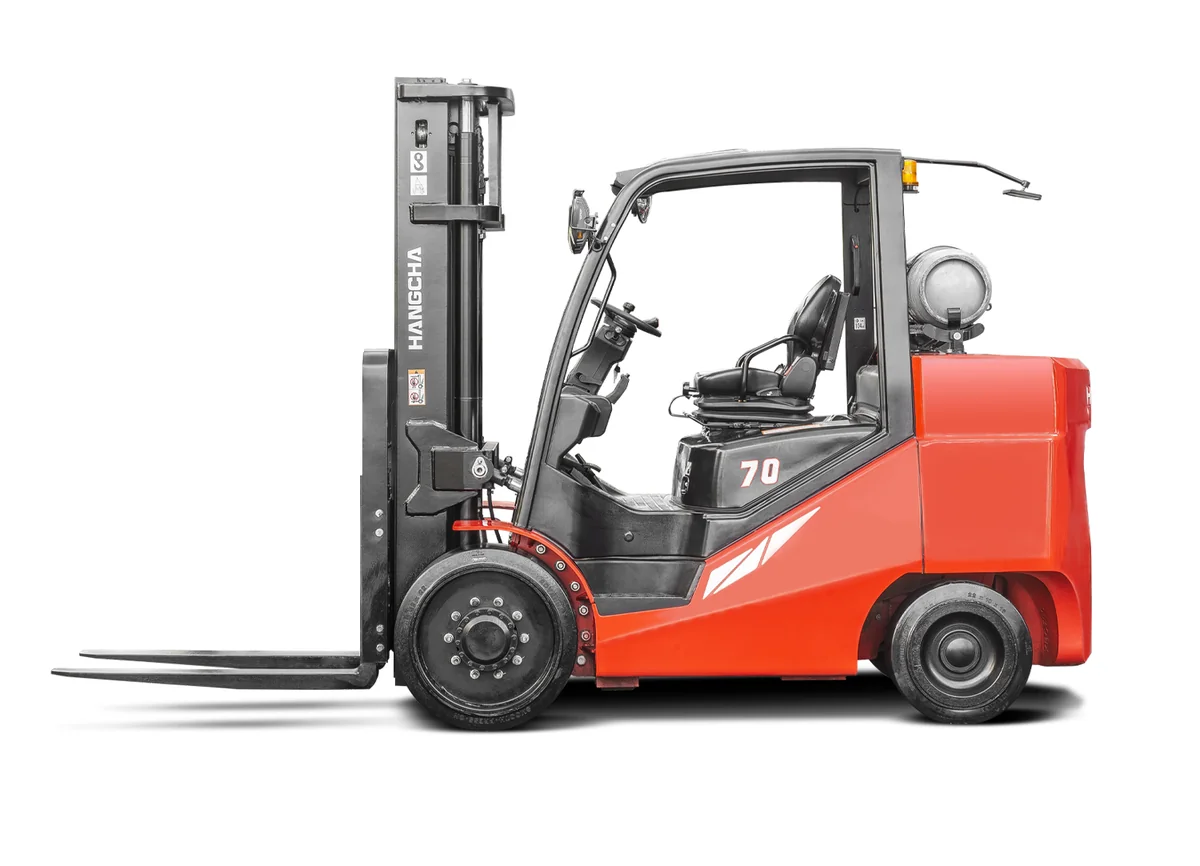

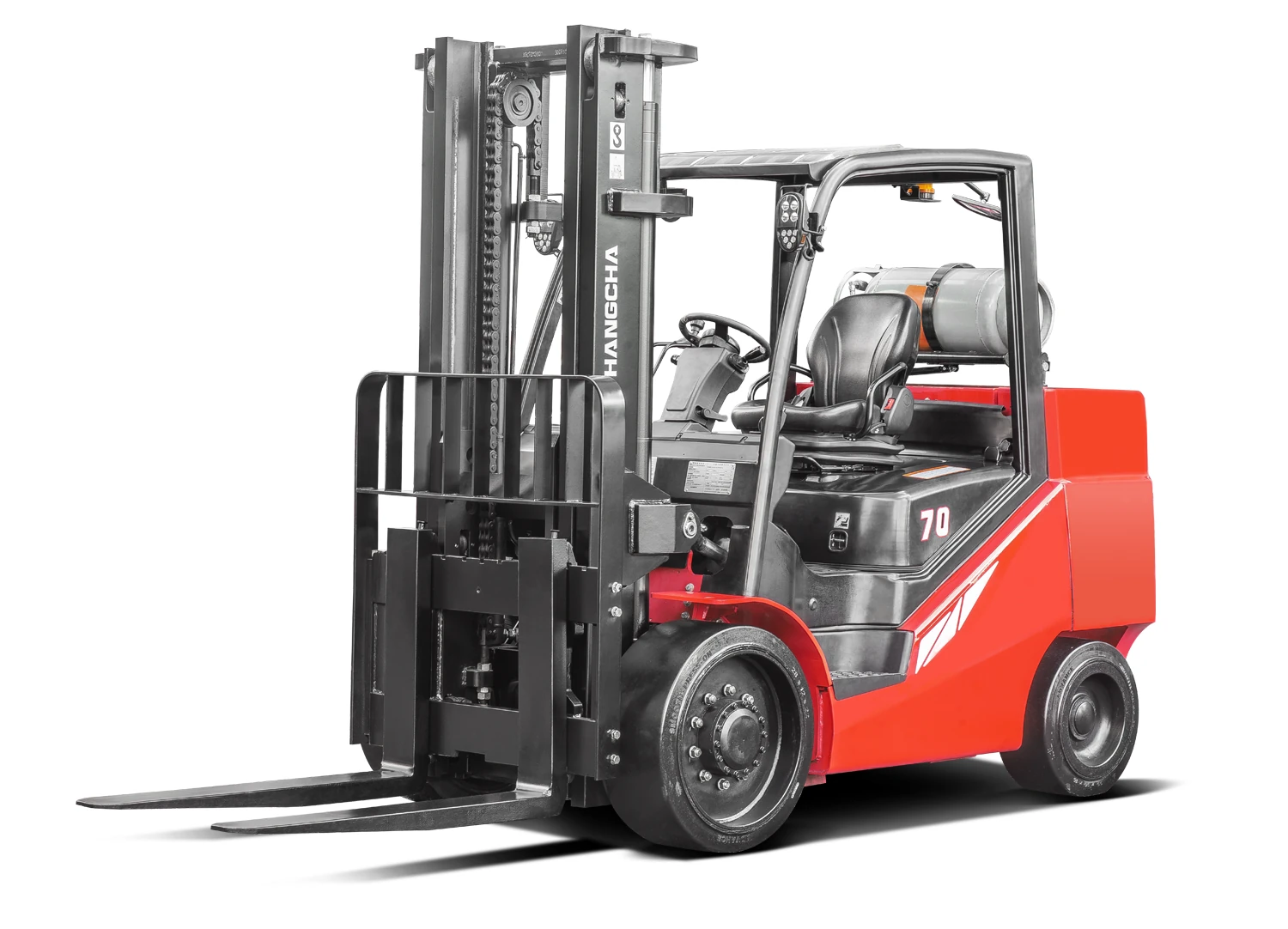

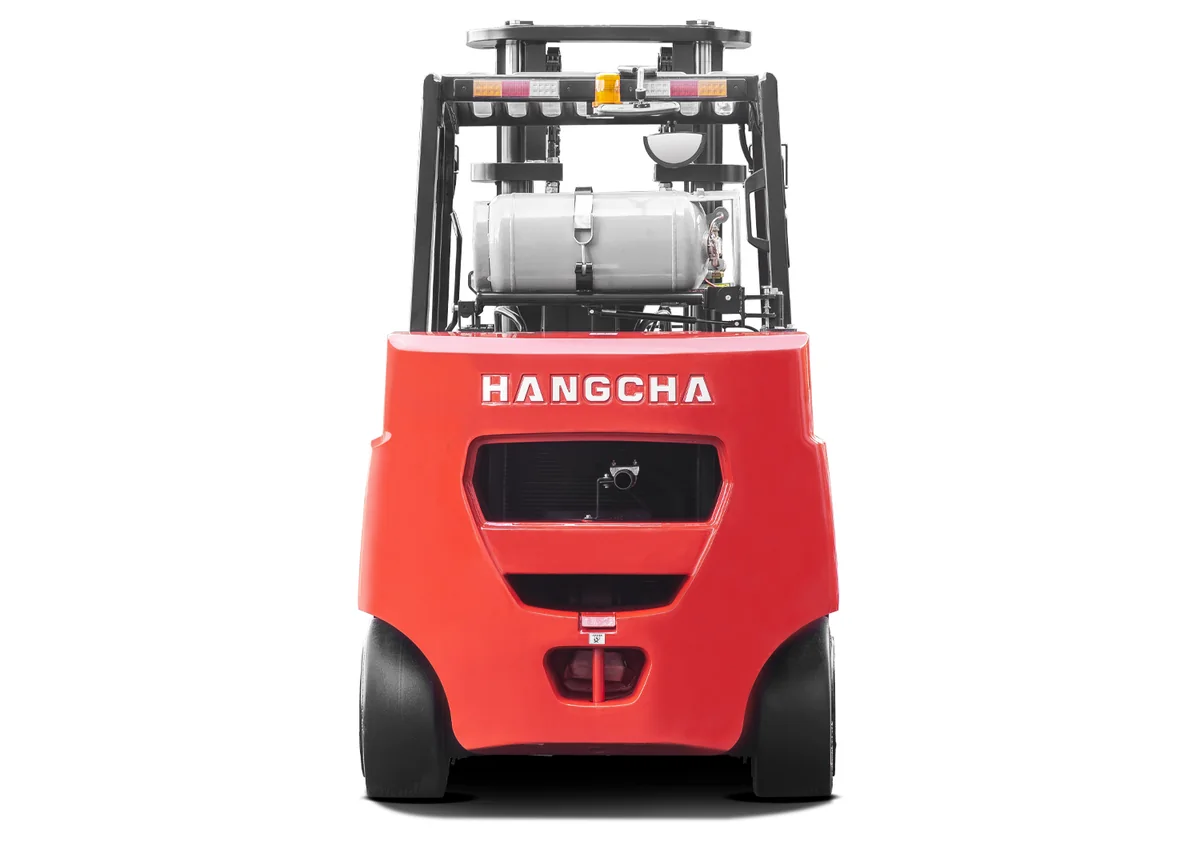

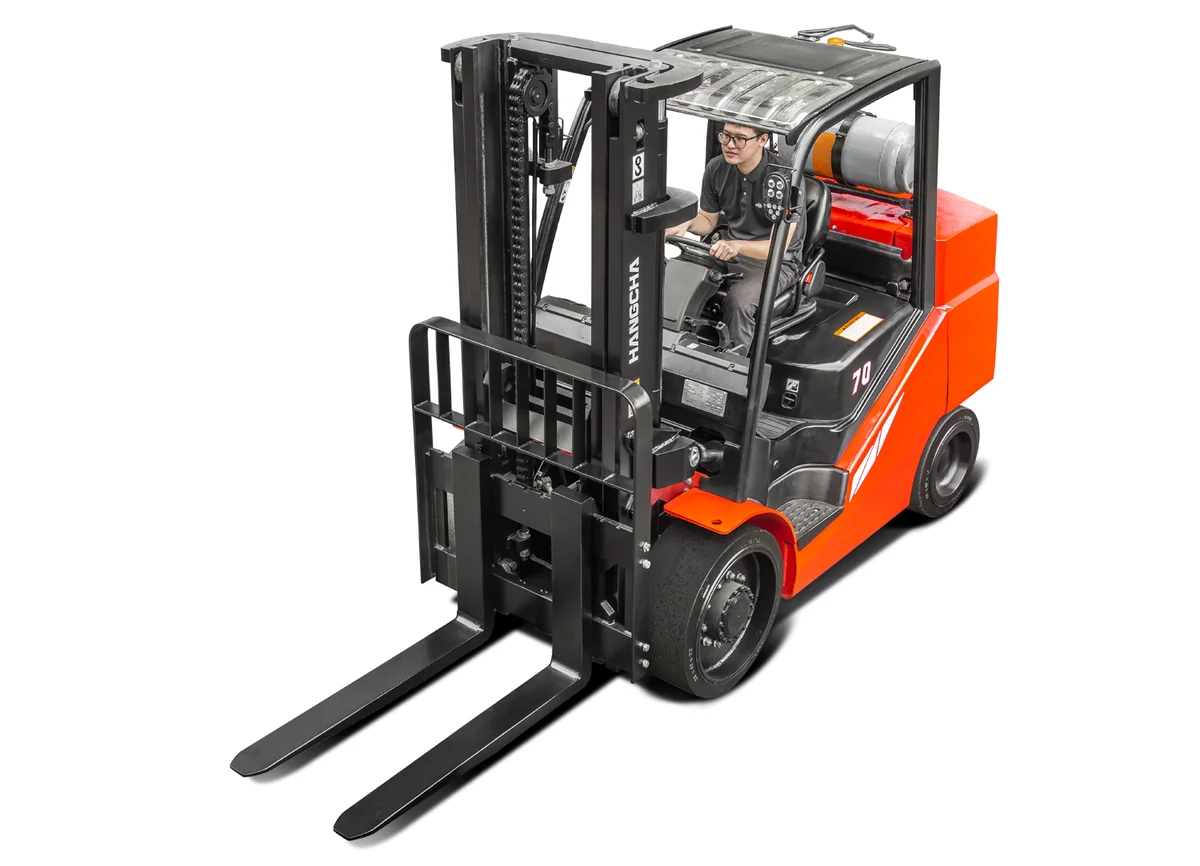

XF Series LPG Cushion Tyre Forklift 6-7 t
A 6-7 t LPG cushion tyre forklift range for indoor warehouse operations, with lift heights of up to 6.2 m for material handling where load, lift height and site conditions guide model selection.
6-7 t
Capacity
LPG / IC
Power
Up to 6.2 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the FP60C and FP70C
The XF Series LPG cushion tyre forklift 6-7 t is a heavy-capacity indoor truck from Hangcha's North American range, built for warehouses, distribution centres and manufacturing plants. Both models use a 77 kW PSI 4.3L LPG engine certified to North American EPA standards and an Okamura powershift transmission with power take-off.
- FP60C (6,000 kg): 26% laden gradeability and 5,800 kg capacity at the 6.2 m maximum lift.
- FP70C (7,000 kg): 23% laden gradeability and 6,800 kg at 6.2 m.
Both share a 1,438 mm overall width, a 2,580 mm turning radius, 1,220 mm forks and a heavy-duty drive axle with maintenance-free wet disc brakes. Capacities are rated at a 600 mm (24 in) load centre with a 3,000 mm standard lift. Limited free lift 2-stage masts reach 5.4 m and full free lift 3-stage masts reach 6.2 m. For 1.5-3.2 t loads, see the XF Series LPG cushion tyre forklift 1.4-2.9 t.
Practical Features for Daily Operation
LPG Engine Power
LPG power for indoor stacking of heavy loads; run it only with adequate ventilation.
Cushion Tyre Footprint
Cushion tyres and a 1,438 mm overall width suit smooth indoor warehouse floors.
6.2 m Lift Height
Lifts loads of 6-7 t to heights of up to 6.2 m for indoor stacking and racking.
Full Specifications
| Capacity | 6-7 t |
|---|---|
| Power | LPG / IC |
| Lift Height | Up to 6.2 m |
| Tyre Type | Cushion tyre |
| Overall Width | 1,438mm |
| Turning Radius | 2,580mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD60
- CPYD70
| Model | Rated capacity (600 mm / 24 in) | Capacity at 6.2 m | Turning radius | Aisle (40 x 48 in pallet) | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| FP60C (CPYD60) | 6,000 kg (13,500 lb) | 5,800 kg | 2,580 mm | 4,278 mm | 26% | 8,850 kg |
| FP70C (CPYD70) | 7,000 kg (15,500 lb) | 6,800 kg | 2,580 mm | 4,278 mm | 23% | 9,550 kg |
Rated at a 600 mm (24 in) load centre. Figures from the HC Forklift America XF Series LPG cushion tire brochure (13,500-15,500 lb).
