XF Series Paper Roll Cushion Forklift 5.5 t
A 5.5 t paper roll cushion forklift range for indoor warehouse operations, with lift heights of up to 6 m and LPG / IC power options for material handling where load, lift height and site conditions guide model selection.
5.5 t
Capacity
LPG / IC
Power
Up to 6 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an Engine for the XF Paper Roll Forklift

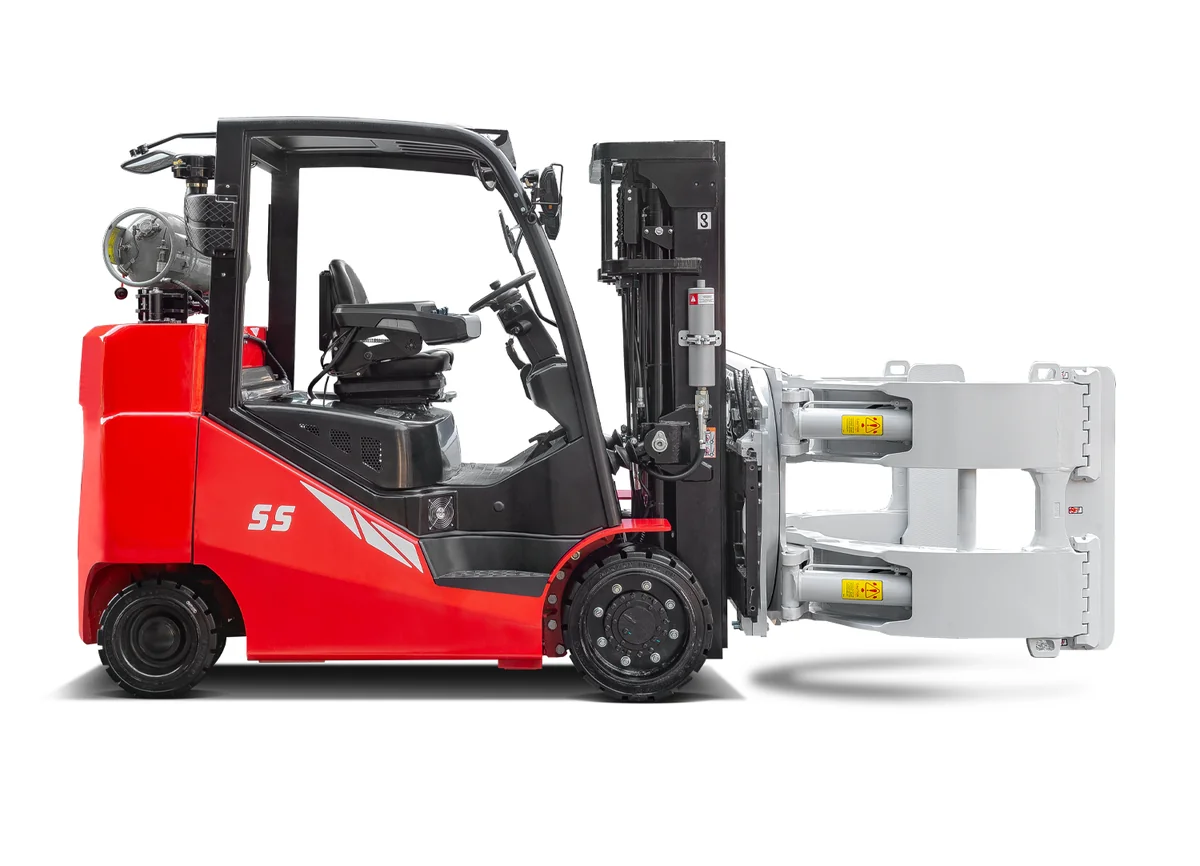

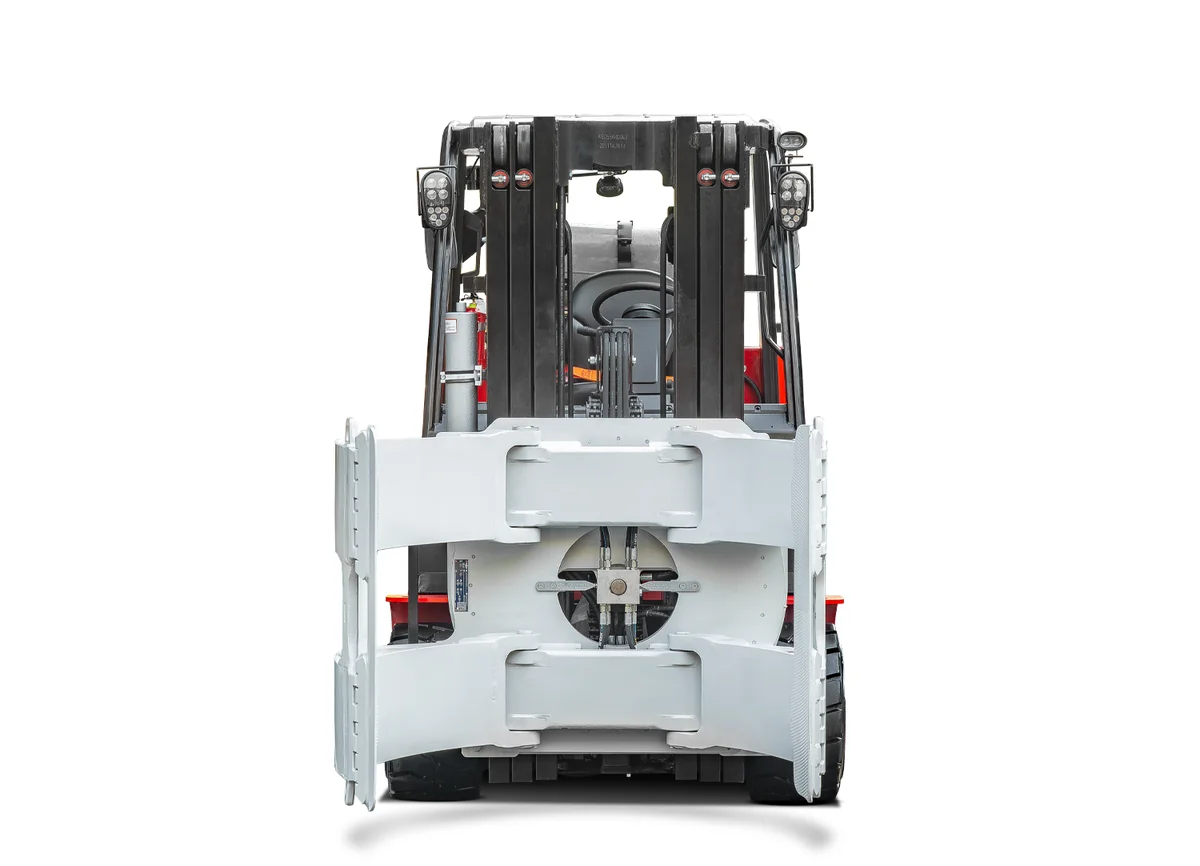

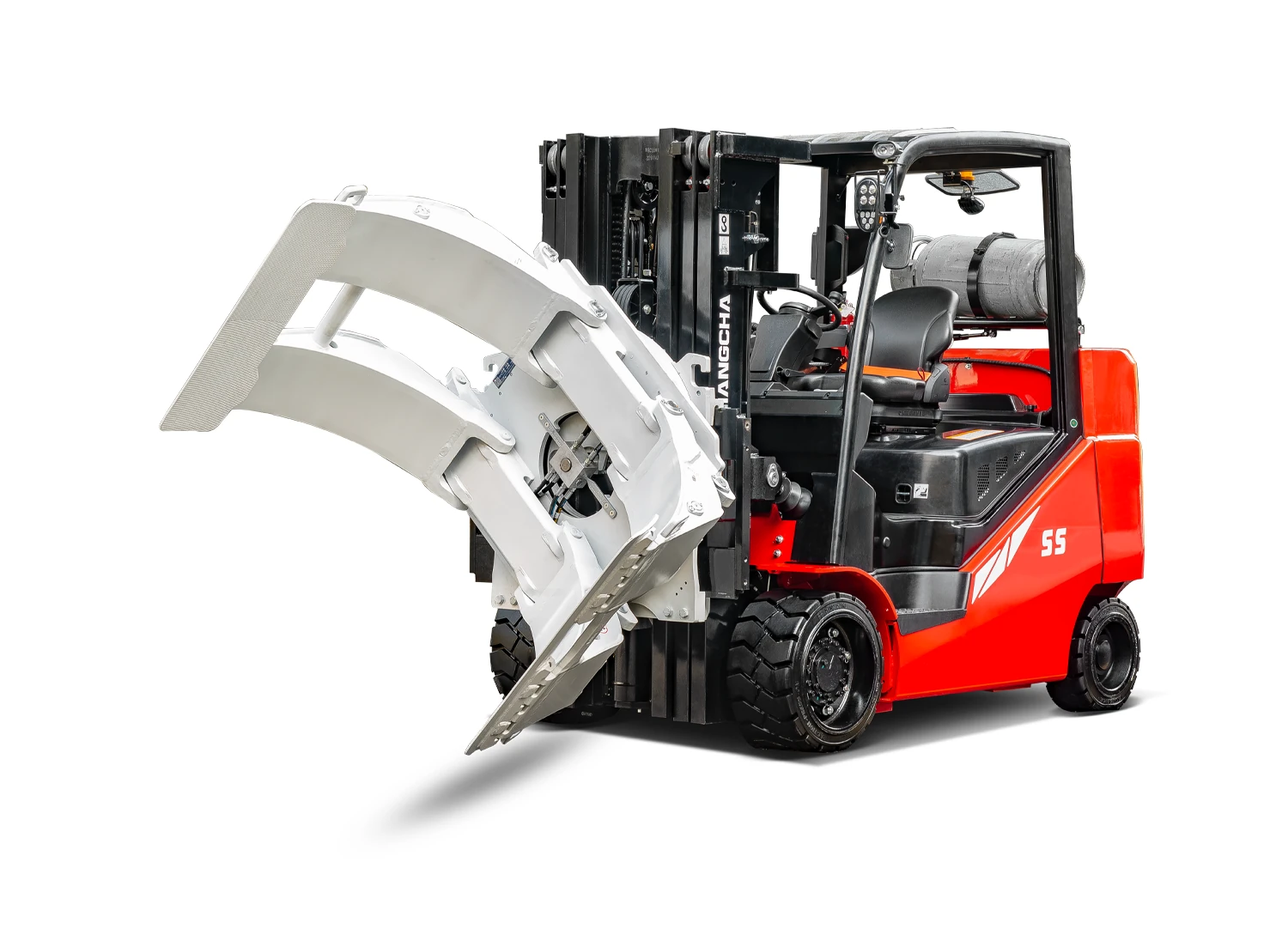

The XF Series paper roll forklift is a 5,500 kg (12,000 lb) LPG cushion tyre truck for sites where lifting large paper rolls is daily work. Its counterweight is 400 kg heavier than standard to handle heavy rolls, and it adds a hydraulic oil cooler and is designed to work with a heavy-duty paper roll clamp.
- PSI 4.3L LPG (77 kW): 34% laden gradeability and 48 kN drawbar pull, certified to North American EPA standards, with a 2,298 mm overhead guard.
- WG3800 LPG (61.6 kW): a lower 2,198 mm overhead guard, with 32% laden gradeability and 39 kN drawbar pull.
Both versions share an Okamura powershift transmission, a 1,420 mm overall width, a 2,380 mm turning radius and a 3,000 mm standard lift, with masts up to 6 m. A clamp release interlock and a strobe light are standard. Capacities are rated at a 600 mm (24 in) load centre. For box car loading, see the XF Series box car cushion forklift 3.5-5.5 t.
Practical Features for Daily Operation
LPG / IC Power
Engine power with quick refuelling, for long or back-to-back shifts.
Paper Roll Handling
A 5.5 t configuration for paper rolls; the fitted clamp and load centre set the real capacity.
Cushion Tyres
Solid cushion tyres suit smooth, sealed floors in mills, warehouses and docks.
Full Specifications
| Capacity | 5.5 t |
|---|---|
| Power | LPG / IC |
| Lift Height | Up to 6 m |
| Tyre Type | Cushion tyre |
| Overall Width | 1,420mm |
| Turning Radius | 2,380mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD55
| Model | Engine | Engine power | Overhead guard height | Laden gradeability | Laden drawbar pull |
|---|---|---|---|---|---|
| CPYD55-XW24B-CBP | PSI 4.3L LPG | 77 kW | 2,298 mm | 34% | 48 kN |
| CPYD55-XH11B-CBP | WG3800 LPG | 61.6 kW | 2,198 mm | 32% | 39 kN |
Both rated at 5,500 kg (12,000 lb) at a 600 mm (24 in) load centre, and 5,000 kg at 6 m with forks. Figures from the Hangcha XF Series paper roll special forklift brochure.
