XC Series Electric Cushion Tyre Forklift 1.8-3.5 t
A 1.8-3.5 t electric cushion tyre forklift range for indoor warehouse operations, combining electric operation with lift heights of up to 7.3 m for day-to-day material handling.
1.8-3.5 t
Capacity
Electric
Power
Up to 7.3 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series Electric Cushion Tyre Model

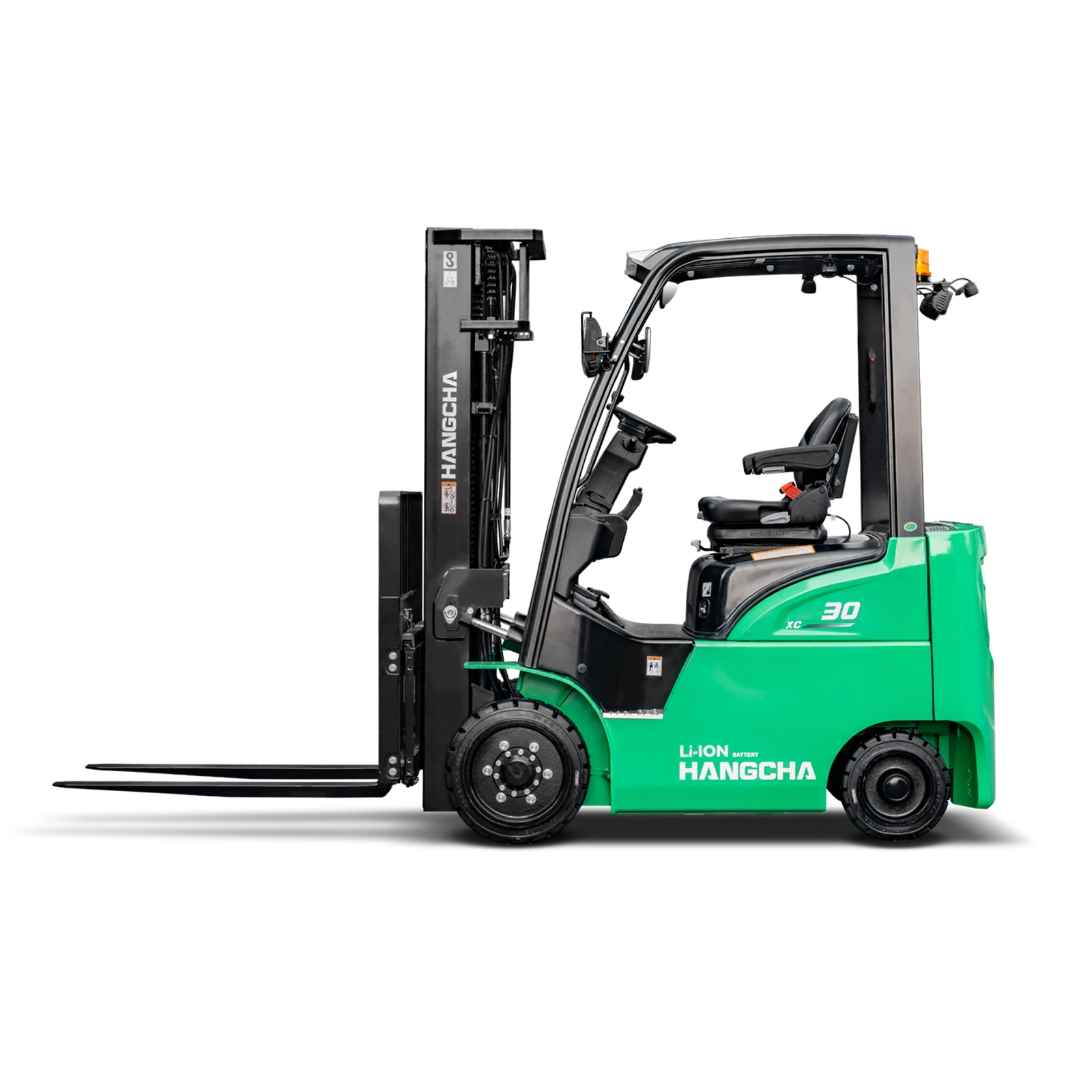

The XC Series electric cushion tyre forklift is an indoor lithium-ion truck from Hangcha's North American range, built for smooth warehouse floors. Because it is a North American specification, capacities are rated at a 600 mm (24 in) load centre, giving 1,810-3,500 kg across seven models, all on an 80V/536Ah battery.
- CPD20 and CPD25: the most compact models at 1,070 mm wide, with a 1,740-1,750 mm turning radius, 19 km/h travel and 19-23% laden gradeability.
- CPD28, CPD30 and CPD32: 2,495-2,950 kg, 1,070-1,110 mm wide and a 1,820-2,000 mm turning radius.
- CPD35 and CPD40: the heaviest loads at 3,175-3,500 kg, 1,158 mm wide with a 2,070-2,120 mm turning radius; masts reach 6,000 mm.
Every model has an 18 kW AC drive motor and a 21 kW AC lift motor, with a 3,000 mm standard lift. The CPD20 to CPD32 can take a quad mast to 7,300 mm, but residual capacity at that height falls to 450-1,050 kg, so check the mast chart for high racking. Cornering deceleration, a load-sensing valve and smooth cushion tyres are standard, with treaded or non-marking tyres, a triplex mast and a cab as options. For 3.5-5.5 t loads, see the XC Series electric cushion tyre forklift 3.5-5.5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Heights to 7.3 m
Lift heights of up to 7.3 m for racking and stacking work in the warehouse.
Compact Cushion Tyre Build
Cushion tyres, overall widths of 1,070-1,158 mm and a 1,740-2,120 mm turning radius.
Full Specifications
| Capacity | 1.8-3.5 t |
|---|---|
| Power | Electric |
| Lift Height | Up to 7.3 m |
| Tyre Type | Cushion tyre |
| Overall Width | 1,070-1,158mm |
| Turning Radius | 1,740-2,120mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD20
- CPD25
- CPD28
- CPD30
- CPD32
- CPD35
- CPD40
| Model | Rated capacity (600 mm / 24 in) | Width | Turning radius | Aisle (1000 x 1200 crossways) | Max lift | Service weight |
|---|---|---|---|---|---|---|
| CPD20-XD2-CSI | 1,810 kg (4,000 lb) | 1,070 mm | 1,740 mm | 3,367 mm | 7,300 mm | 3,970 kg |
| CPD25-XD2-CSI | 2,270 kg (5,000 lb) | 1,070 mm | 1,750 mm | 3,377 mm | 7,300 mm | 4,300 kg |
| CPD28-XD2-CSI | 2,495 kg (5,500 lb) | 1,070 mm | 1,820 mm | 3,470 mm | 7,300 mm | 4,865 kg |
| CPD30-XD2-CSI | 2,720 kg (6,000 lb) | 1,110 mm | 1,960 mm | 3,610 mm | 7,300 mm | 4,960 kg |
| CPD32-XD2-CSI | 2,950 kg (6,500 lb) | 1,110 mm | 2,000 mm | 3,650 mm | 7,300 mm | 5,140 kg |
| CPD35-XXD2-CSI | 3,175 kg (7,000 lb) | 1,158 mm | 2,070 mm | 3,720 mm | 6,000 mm | 5,450 kg |
| CPD40-XXD2-CSI | 3,500 kg (8,000 lb) | 1,158 mm | 2,120 mm | 3,770 mm | 6,000 mm | 5,800 kg |
All models use an 80V/536Ah lithium-ion battery. The 7,300 mm lift uses a quad mast. Kilogram figures as printed in the brochure; 8,000 lb converts to 3,629 kg. Figures from the Hangcha XC Series electric cushion tyre forklift brochure (2025).
