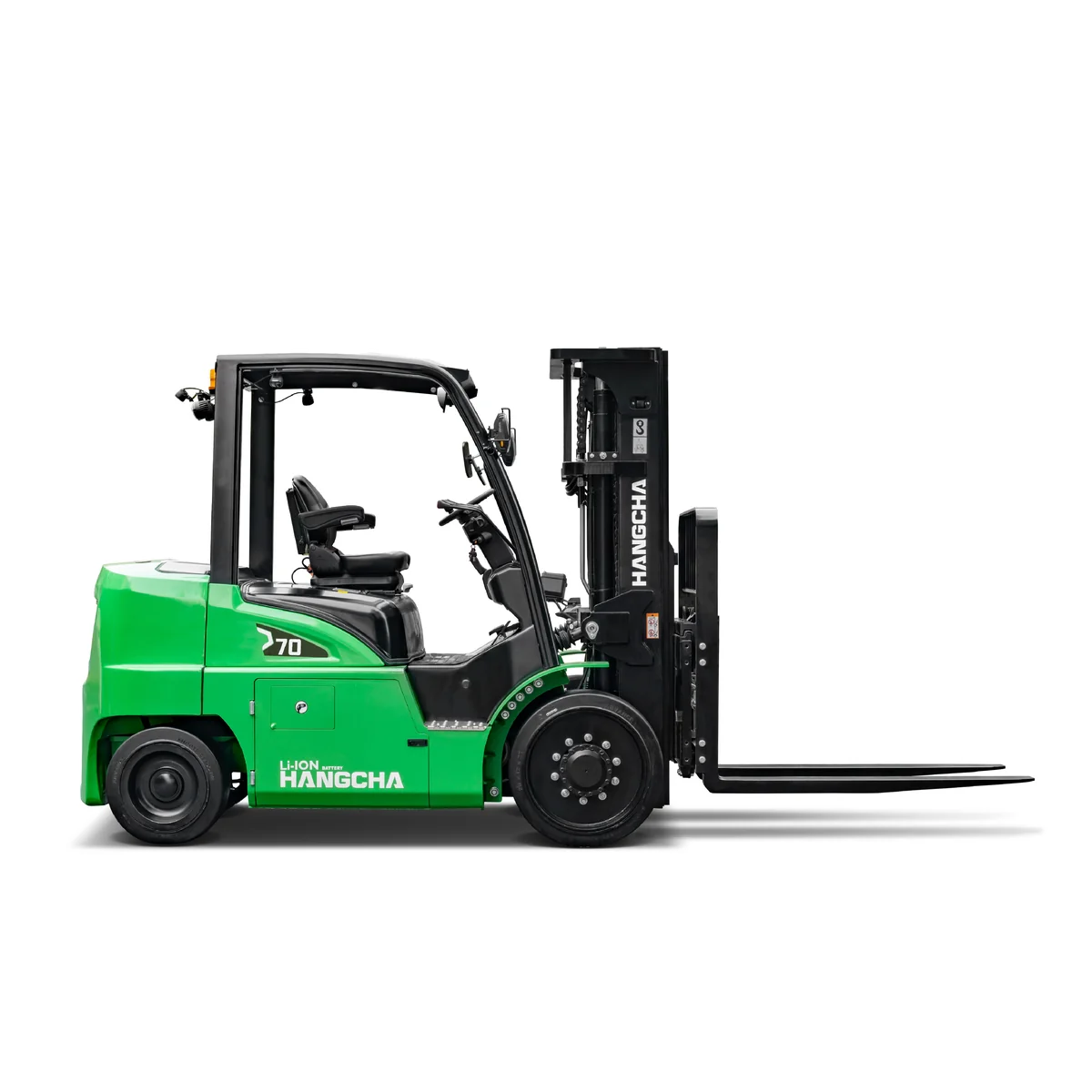

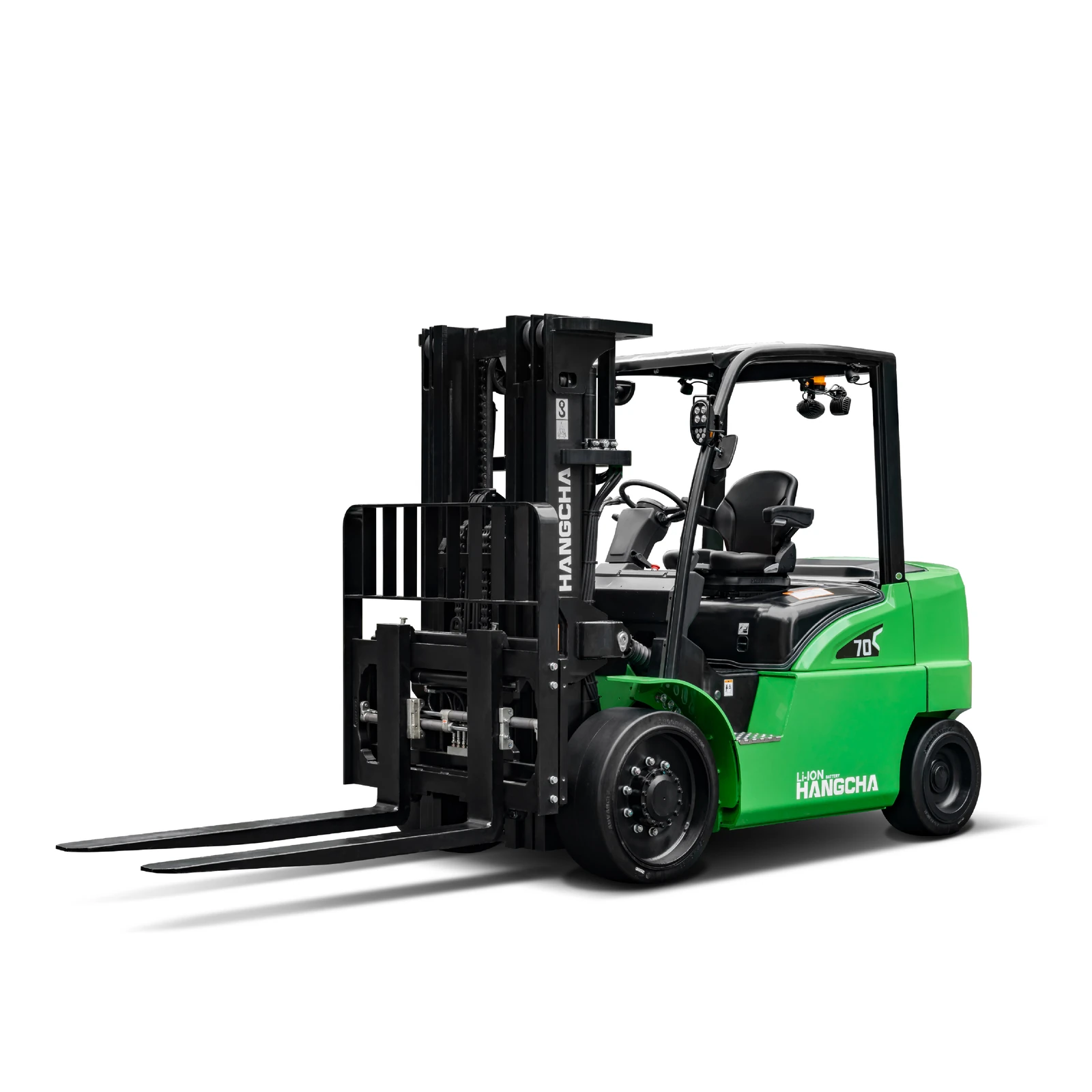

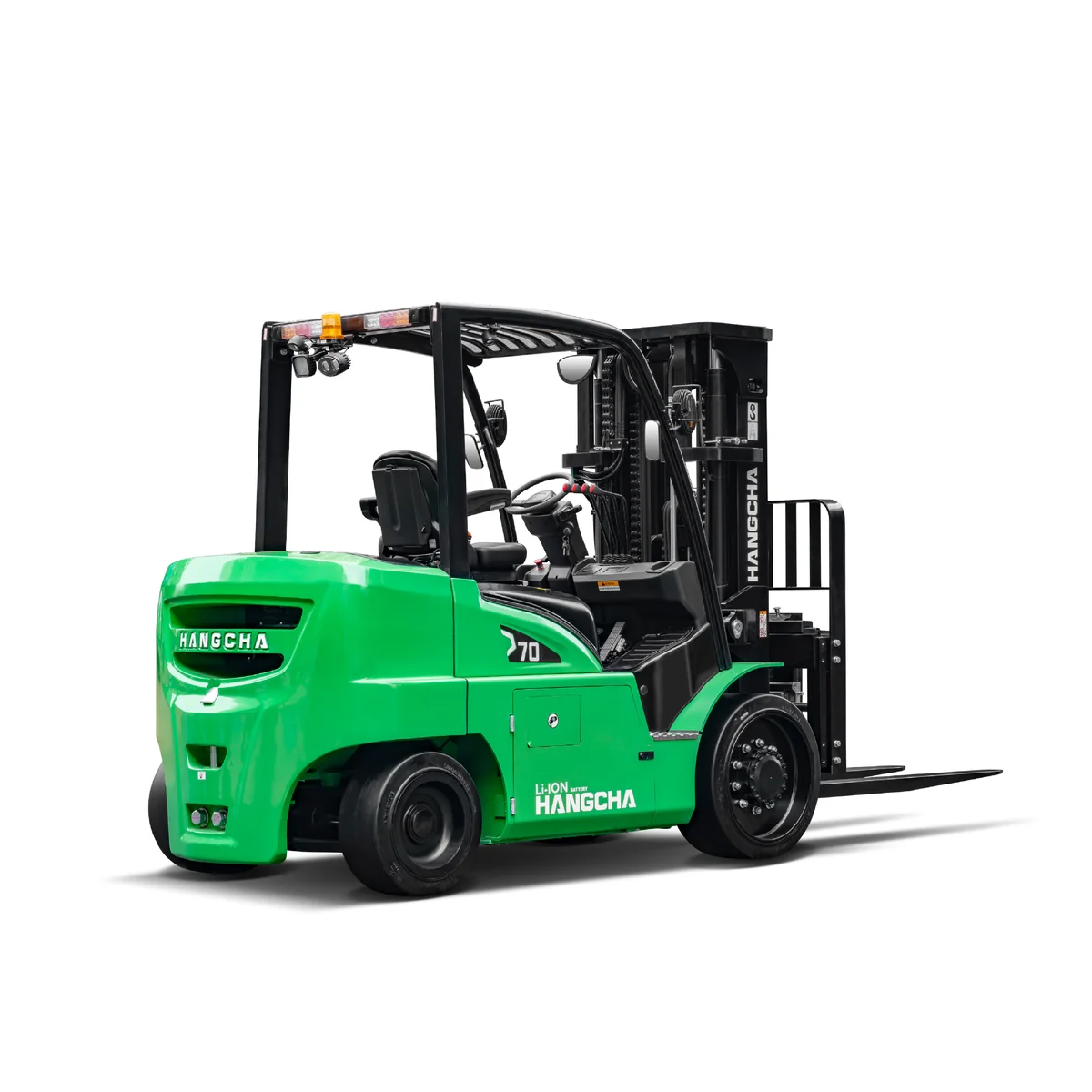

XC Series Electric Cushion Tyre Forklift 6-7 t
A 6-7 t electric cushion tyre forklift range for indoor warehouse operations, combining electric operation with lift heights of up to 6.2 m for day-to-day material handling.
6-7 t
Capacity
Electric
Power
Up to 6.2 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series 6-7 t Electric Cushion Tyre Forklift
The XC Series 6-7 t electric cushion tyre forklift is the largest model in Hangcha's North American lithium cushion range, sold there as the FB60CLi and FB70CLi. Both models run on a 96V/800Ah (76.8 kWh) lithium iron phosphate battery with dual charging ports, and capacities are rated at a 600 mm (24 in) load centre.
- CPD60 (FB60CLi): 6,000 kg (13,500 lb) and 9,200 kg service weight.
- CPD70 (FB70CLi): 7,000 kg (15,500 lb) and 9,760 kg service weight, with the same 1,438 mm width and 2,580 mm turning radius.
- Masts: two-stage wide-view masts to 5,400 mm or full free lift three-stage masts to 6,200 mm, with residual capacity of 5,300 kg on the CPD60 at 6.2 m.
The drive motor is rated at 32 kW and two 23 kW lift motors power the hydraulics. Travel speed is 18.5/20.5 km/h laden and unladen, with 16% laden gradeability. Automatic deceleration while turning, SPE power selection, an operator presence system and load-sensing valves are standard, with non-marking or treaded cushion tyres and an integral sideshifter as options. For lighter loads in a narrower truck, see the XC Series electric cushion tyre forklift 3.5-5.5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Heights to 6.2 m
Lift heights of up to 6.2 m for racking and high stacking in the warehouse.
Cushion Tyre Chassis
Cushion tyres, a 1,438 mm overall width and a 2,580 mm turning radius for aisles.
Full Specifications
| Capacity | 6-7 t |
|---|---|
| Power | Electric |
| Lift Height | Up to 6.2 m |
| Tyre Type | Cushion tyre |
| Overall Width | 1,438mm |
| Turning Radius | 2,580mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD60
- CPD70
| Model | Rated capacity (600 mm / 24 in) | Battery | Width | Turning radius | Travel laden / unladen | Service weight |
|---|---|---|---|---|---|---|
| CPD60-XD2-CSI (FB60CLi) | 6,000 kg (13,500 lb) | 96V / 800Ah | 1,438 mm | 2,580 mm | 18.5 / 20.5 km/h | 9,200 kg |
| CPD70-XD2-CSI (FB70CLi) | 7,000 kg (15,500 lb) | 96V / 800Ah | 1,438 mm | 2,580 mm | 18.5 / 20.5 km/h | 9,760 kg |
Standard lift 3,000 mm, masts to 6,200 mm. Kilogram figures as printed in the brochure; 13,500 lb converts to 6,123 kg. Figures from the Hangcha XC Series 6-7 t electric cushion tyre forklift brochure (2025).
