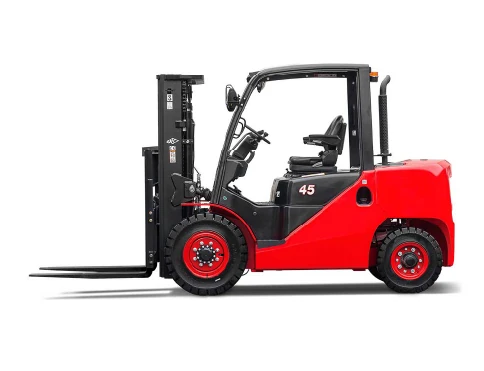

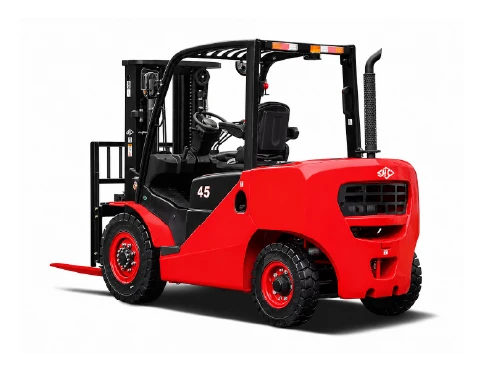

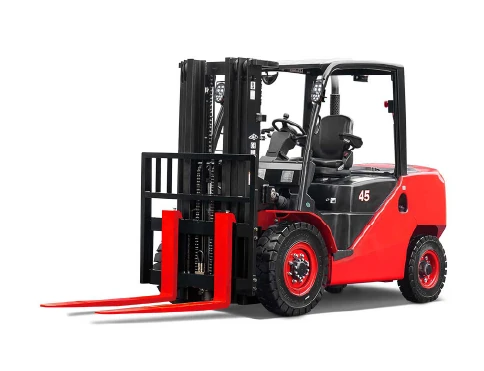

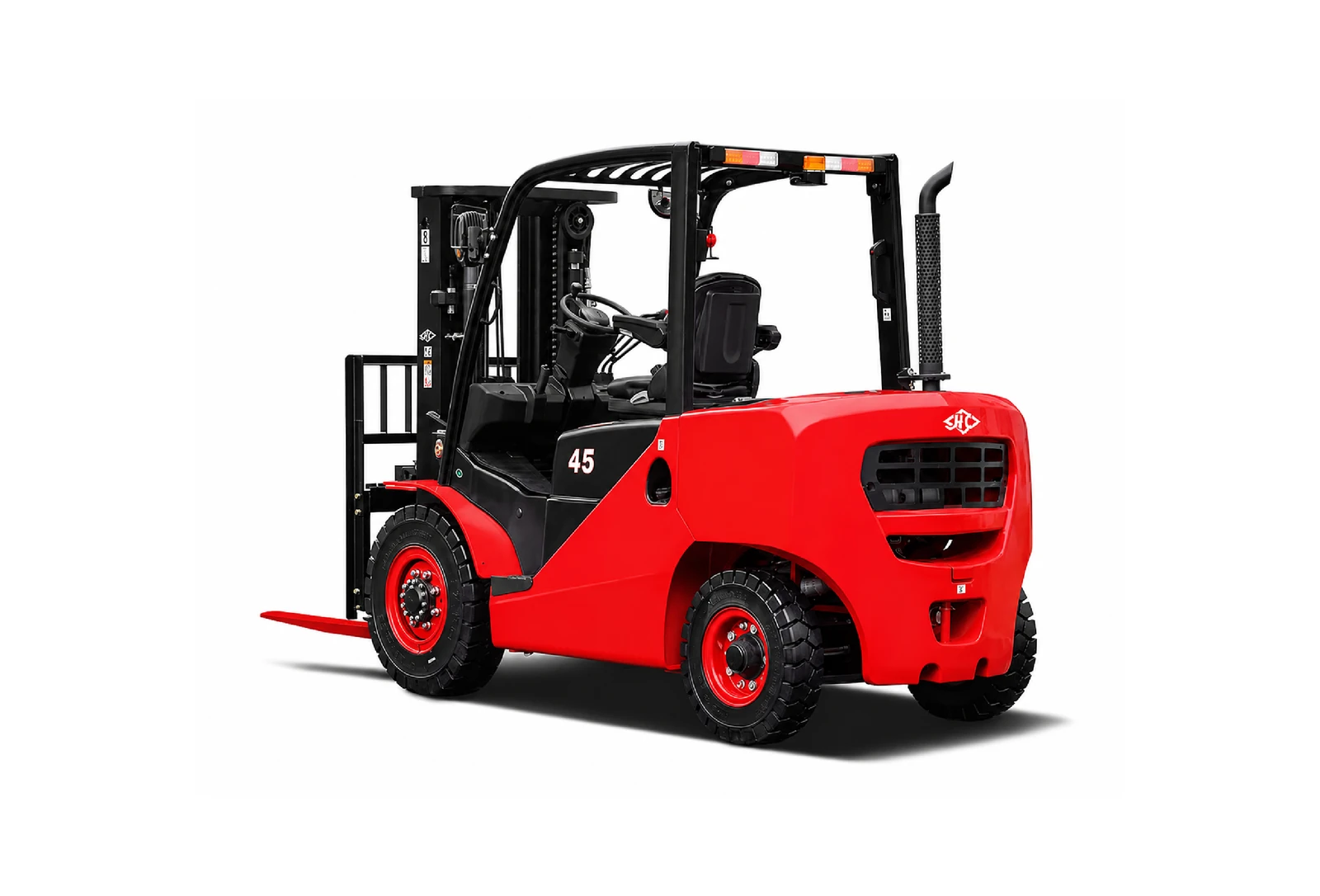

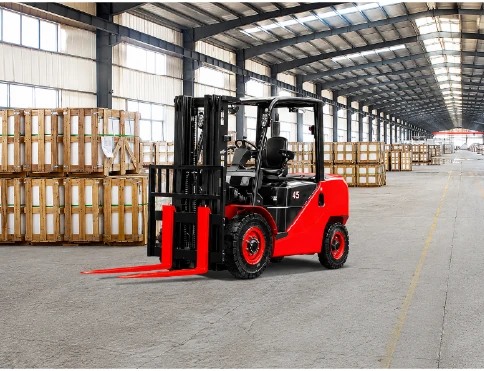

XF Series Diesel & LPG Forklift 4-5.5 t
A 4-5.5 t diesel & LPG forklift range for outdoor operations, with lift heights of up to 7 m and Diesel / LPG power options for material handling where load, lift height and site conditions guide model selection.
4-5.5 t
Capacity
Diesel / LPG
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XF Series 4-5.5 t Model and Engine
The XF Series 4-5.5 t is offered with five engines: Kubota V3307 diesel (EU Stage V and EPA/CARB Tier 4 Final), Xinchai 4E30 diesel (EU Stage V), PSI 4.3L LPG, Kubota WG3800 LPG and a Kubota WG3800 dual-fuel engine for LPG or petrol. Every engine comes with an Okamura powershift transmission and the same truck dimensions.
- 4 t: the narrowest at 1,420 mm, with a 2,690 mm turning radius and a 4,440 mm aisle for 1000 x 1200 mm pallets crossways.
- 4.5-5.5 t: a 1,503 mm wide body and a 2,720-2,905 mm turning radius. The 5.5 t has 1,200 mm forks.
- Engine choice: the PSI 4.3L LPG has a two-speed transmission and the highest laden gradeability at 27-33%. The two diesels and the Kubota LPG and dual-fuel engines use a single-speed transmission and climb 23-30% laden.
Capacities are rated at a 500 mm load centre, and the 600 mm ratings are 500 kg lower. The standard lift is 3,000 mm and triplex masts reach 7 m. For the newer design with a smaller turning radius and faster lifting, see the XF2 Series diesel and LPG forklift 4-5.5 t.
Practical Features for Daily Operation
Diesel or LPG Engine
Xinchai, Kubota or PSI engines, with a rotating LPG bottle holder for quick swaps.
Backup Braking Accumulator
An energy accumulator keeps emergency braking available after engine shutdown.
Dual-Seal Air Cleaner
A tangential intake air cleaner with a dual-seal filter for dusty outdoor sites.
Full Specifications
| Capacity | 4-5.5 t |
|---|---|
| Power | Diesel / LPG |
| Lift Height | Up to 7 m |
| Engine | XINCHAI / KUBOTA / PSI |
| Tyre Type | Pneumatic |
| Gradeability | Up to 33% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPYD40
- CPYD45
- CPYD50
- CPYD55
- CPCD40
- CPCD45
- CPCD50
- CPCD55
- CPQYD40
- CPQYD45
- CPQYD50
- CPQYD55
| Model | Capacity (500 / 600 mm centre) | Overall width | Turning radius | Aisle (1000 x 1200 crossways) | Fork length | Service weight |
|---|---|---|---|---|---|---|
| CPCD40 / CPYD40 / CPQYD40 | 4,000 / 3,500 kg | 1,420 mm | 2,690 mm | 4,440 mm | 1,070 mm | 6,500 kg |
| CPCD45 / CPYD45 / CPQYD45 | 4,500 / 4,000 kg | 1,503 mm | 2,720 mm | 4,470 mm | 1,070 mm | 6,700 kg |
| CPCD50 / CPYD50 / CPQYD50 | 5,000 / 4,500 kg | 1,503 mm | 2,875 mm | 4,630 mm | 1,070 mm | 6,850 kg |
| CPCD55 / CPYD55 / CPQYD55 | 5,500 / 5,000 kg | 1,503 mm | 2,905 mm | 4,690 mm | 1,200 mm | 7,250 kg |
CPCD diesel, CPYD LPG, CPQYD LPG/petrol. Figures from the Hangcha XF Series diesel / gasoline / LPG brochure (4-5.5 t).
