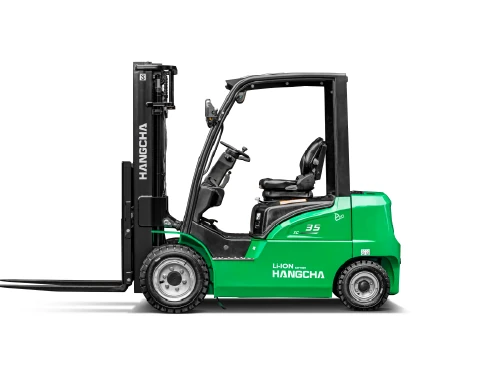

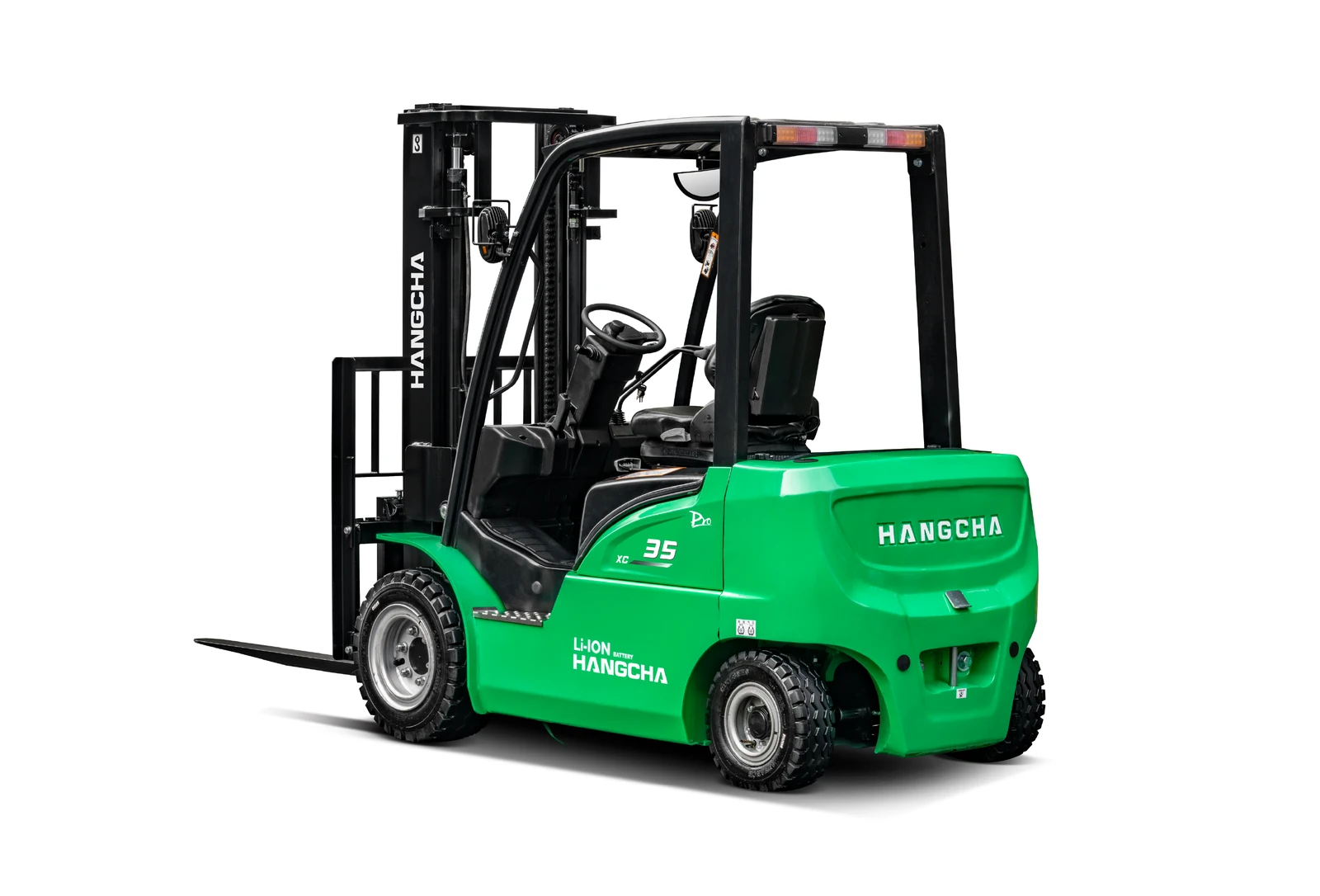

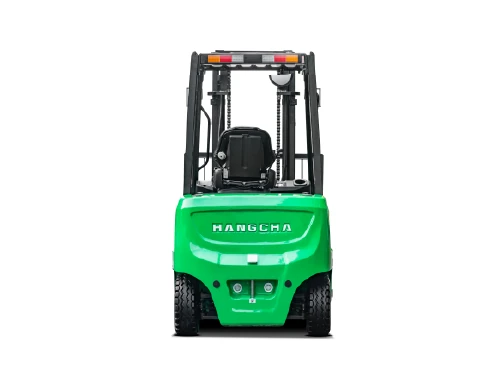

XC Series 4-Wheel Electric Forklift - PMSM 1.5-3.8 t
A 1.5-3.8 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 6.5 m and Li-ion battery options for day-to-day material handling.
1.5-3.8 t
Capacity
Li-ion
Power
Up to 6.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series 1.5-3.8 t Model and Version
The XC Series 1.5-3.8 t comes in standard and high-performance versions, all on 80V lithium iron phosphate batteries with IPX4 water resistance. Choose the capacity first, then decide whether you need the extra speed of the H models.
- CPD15, CPD18 and CPD20 mini (1.5-2 t): compact trucks with a 1,910-1,935 mm turning radius, a 10 kW drive motor and an 80V/173Ah battery as standard.
- Standard CPD20 to CPD38 (2-3.8 t): 17-20 kW drive motors, 16 km/h laden travel and 15% laden gradeability, with turning radii of 2,035-2,210 mm. The CPD35 and CPD38 run on solid tyres.
- H models CPD20H, CPD25H, CPD30H and CPD35H: 20 kW drive and 28 kW lift motors with larger batteries, giving 19 km/h laden travel, 20% laden gradeability and faster lifting for higher-throughput work.
All models are rated at a 500 mm load centre with a 3,000 mm standard lift and masts up to 6.5 m. GW versions add a taller 2,550 mm high-vision overhead guard. The battery carries a 6-year or 12,000-hour warranty, and a -30°C cold storage option is available.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Gradeability to 28%
Gradeability of up to 28% for loaded travel on ramps and steeper inclines.
1.5-3.8 t Capacity Range
Capacities from 1.5 t to 3.8 t cover light pallets through to heavier stock.
Full Specifications
| Capacity | 1.5-3.8 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 6.5 m |
| Battery Voltage | 80V |
| Turning Radius | 1,910-2,210mm |
| Gradeability | Up to 28% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD15
- CPD18
- CPD20
- CPD25
- CPD27
- CPD35
- CPD30
- CPD38
| Model | Capacity | Drive / lift motor | Battery (std) | Laden travel | Laden gradeability | Turning radius |
|---|---|---|---|---|---|---|
| CPD15-XCY2-SI | 1,500 kg | 10 / 18 kW | 80V / 173Ah | 16 km/h | 15% | 1,910 mm |
| CPD18-XCY2-SI | 1,800 kg | 10 / 18 kW | 80V / 173Ah | 16 km/h | 15% | 1,910 mm |
| CPD20-XCXY2-SI (mini) | 2,000 kg | 10 / 18 kW | 80V / 173Ah | 16 km/h | 15% | 1,935 mm |
| CPD20-XCY2-SI | 2,000 kg | 17 / 23 kW | 80V / 230Ah | 16 km/h | 15% | 2,035 mm |
| CPD20-XCY2H-SI | 2,000 kg | 20 / 28 kW | 80V / 304Ah | 19 km/h | 20% | 2,035 mm |
| CPD25-XCY2-SI | 2,500 kg | 17 / 23 kW | 80V / 230Ah | 16 km/h | 15% | 2,035 mm |
| CPD25-XCY2H-SI | 2,500 kg | 20 / 28 kW | 80V / 304Ah | 19 km/h | 20% | 2,035 mm |
| CPD27-XCY2H-SI | 2,700 kg | 20 / 28 kW | 80V / 304Ah | 16 km/h | 20% | 2,050 mm |
| CPD30-XCY2-SI | 3,000 kg | 17 / 23 kW | 80V / 304Ah | 16 km/h | 15% | 2,185 mm |
| CPD30-XCY2H-SI | 3,000 kg | 20 / 28 kW | 80V / 460Ah | 19 km/h | 20% | 2,185 mm |
| CPD35-XCY2-SI | 3,500 kg | 17 / 23 kW | 80V / 304Ah | 16 km/h | 15% | 2,185 mm |
| CPD35-XCY2H-SI | 3,500 kg | 20 / 28 kW | 80V / 460Ah | 19 km/h | 20% | 2,185 mm |
| CPD38-XCY2-SI | 3,800 kg | 20 / 28 kW | 80V / 460Ah | 16 km/h | 15% | 2,210 mm |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha XC Series 1.5-3.8 t (XC-pro) brochure.
