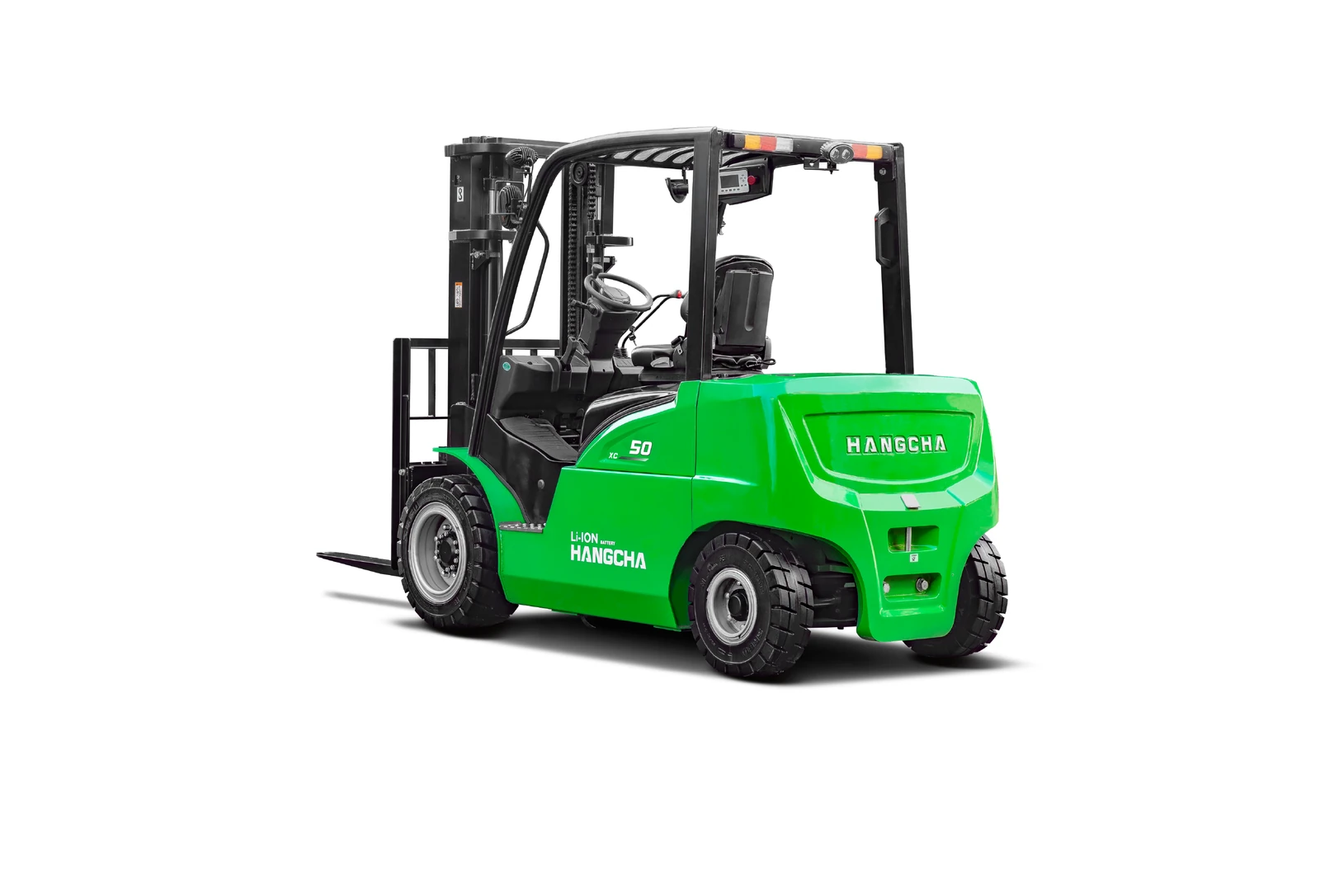

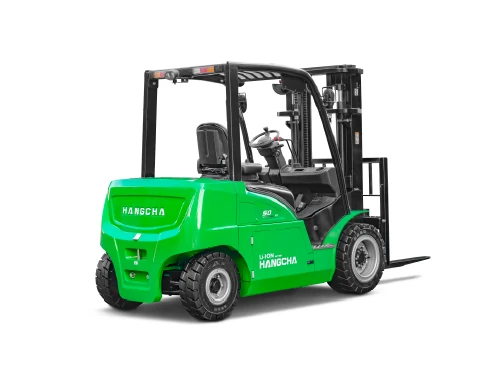

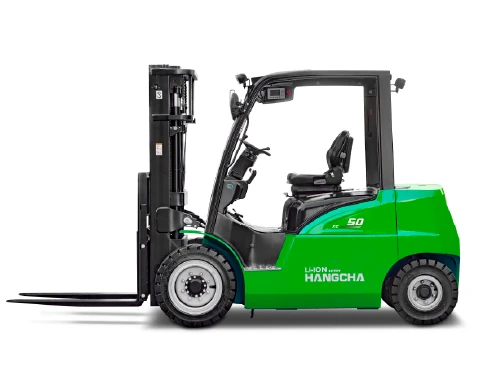

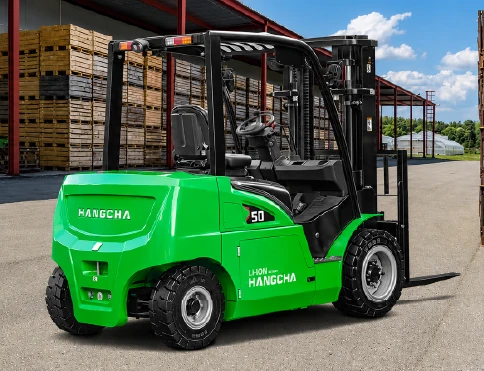

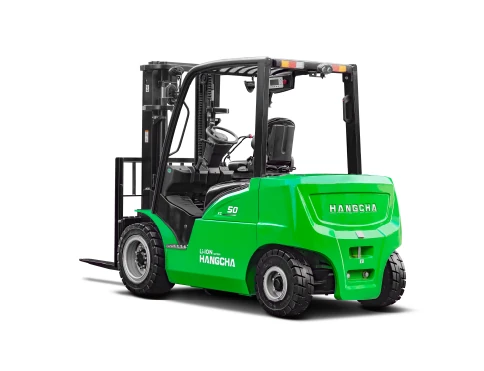

XC Series 4-Wheel Electric Forklift 4-5 t
A 4-5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
4-5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series 4-5 t Model: AC or PMSM
The XC Series 4-5 t is a lithium-only forklift on an 80V/608Ah lithium iron phosphate battery, built in two drive versions. XD6 models use AC motors, while XCY2 models use dual permanent magnet synchronous motors that use about 27% less energy.
- CPD40 and CPD45 (4-4.5 t): a 2,550 mm turning radius and 4,270 mm aisle, carrying 3,400 kg at 7 m on dual tyres.
- CPD50 mini and CPD50 (5 t): rated at 500 mm and 600 mm load centres, with the same 2,550 mm turning radius and 3,600-3,800 kg at 7 m on dual tyres.
- AC or PMSM: the PMSM versions have a 25 kW drive motor against 23 kW, 19 km/h laden travel against 18 km/h and 16% laden gradeability against 15%.
All models are rated IPX4 with a fully sealed hood and side plates, and the battery carries a 6-year or 12,000-hour warranty. Single front tyres are available with masts up to 6 m. For a lead-acid option in the same capacity class, compare the X Series 4-5 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
7 m Lift Height
Handles 4-5 t loads with lift heights of up to 7 m for heavier stacking work.
Ramp-Ready 20% Gradeability
Gradeability of up to 20% for dock ramps, with a 2,550 mm turning radius.
Full Specifications
| Capacity | 4-5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 2,550mm |
| Gradeability | Up to 20% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD40
- CPD45
- CPD50
| Model | Drive | Capacity | Load centre | Capacity at 7 m (dual tyres) | Laden travel | Laden gradeability |
|---|---|---|---|---|---|---|
| CPD40-XD6-SI28 | AC | 4,000 kg | 500 mm | 3,400 kg | 18 km/h | 15% |
| CPD40-XCY2-SI | PMSM | 4,000 kg | 500 mm | 3,400 kg | 19 km/h | 16% |
| CPD45-XD6-SI28 | AC | 4,500 kg | 500 mm | 3,400 kg | 18 km/h | 15% |
| CPD45-XCY2-SI | PMSM | 4,500 kg | 500 mm | 3,400 kg | 19 km/h | 16% |
| CPD50-XXD6-SI28 (mini) | AC | 5,000 kg | 500 mm | 3,800 kg | 18 km/h | 15% |
| CPD50-XCXY2-SI (mini) | PMSM | 5,000 kg | 500 mm | 3,800 kg | 19 km/h | 16% |
| CPD50-XD6-SI28 | AC | 5,000 kg | 600 mm | 3,600 kg | 18 km/h | 15% |
| CPD50-XCY2-SI | PMSM | 5,000 kg | 600 mm | 3,600 kg | 19 km/h | 16% |
All models: 2,550 mm turning radius and 80V/608Ah battery as standard. Figures from the Hangcha XC Series 4-5 t brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
