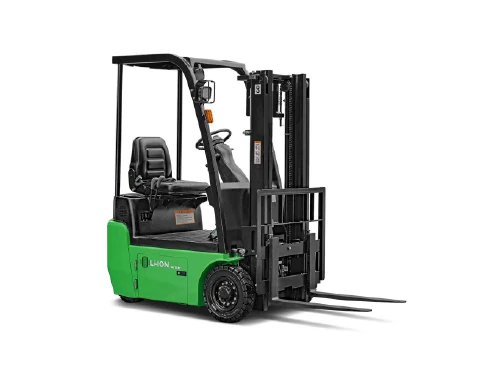

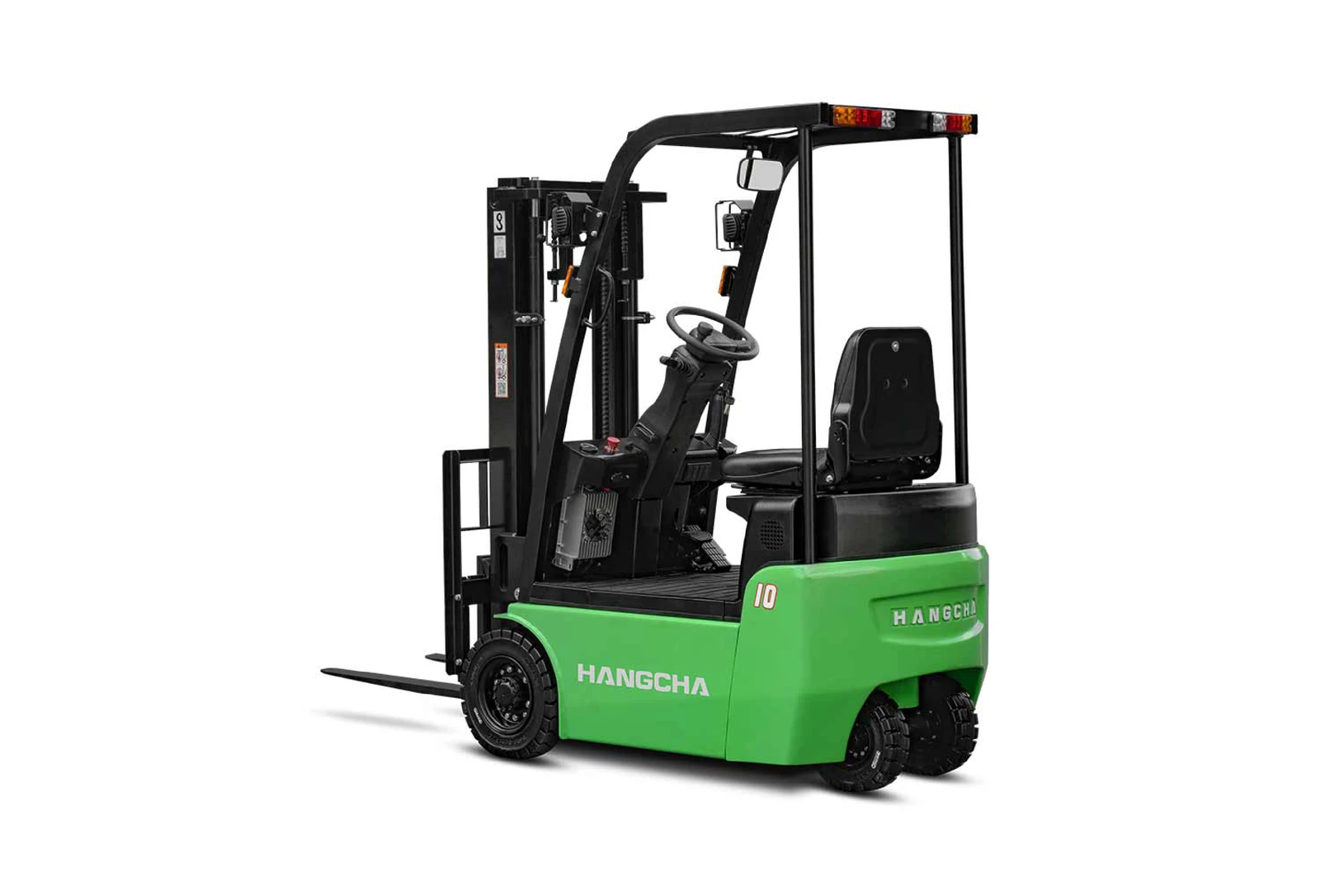

X Series 3-Wheel Electric Forklift 0.6-1 t
A 0.6-1 t 3-wheel electric forklift range for indoor warehouse operations, combining electric operation with lift heights of up to 4.5 m and Li-ion / Lead-acid battery options for day-to-day material handling.
0.6-1 t
Capacity
Li-ion / Lead-acid
Power
Up to 4.5 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 3-Wheel Model: Lead-Acid or Lithium

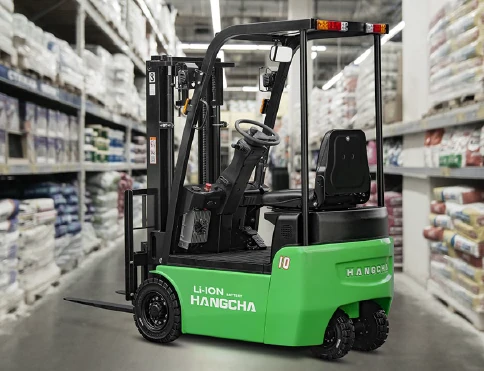

The X Series 3-wheel electric forklift is a compact 24V truck for 600-1,000 kg loads in narrow places: between floors, in and out of lifts, and in warehouses, supermarkets and workshops. Each capacity comes with a lead-acid battery or, on the I models, a lithium battery.
- CPDS06 (600 kg): the smallest, at 830 mm wide with a 1,220 mm turning radius and a 2,695 mm aisle for 1000 x 1200 mm pallets crossways.
- CPDS08 and CPDS10 (800-1,000 kg): 900 mm wide with a 1,465-1,475 mm turning radius, a 3 kW drive motor and 10 km/h laden travel.
- Lead-acid or lithium: the lithium battery weighs 45-95 kg against 150-340 kg for lead-acid, and comes as 125Ah on the 600 kg model and 250Ah or 300Ah on the larger ones.
Ratings are at a 400 mm load centre, with a 2.5 m duplex wide-view mast as standard and masts up to 4.5 m, where the 1,000 kg model still lifts 700 kg on the wide-view mast. Patterned front tyres resist slipping on wet, sandy or cold store floors, and a charger is built in. For heavier loads, see the XC Series 3-wheel electric forklift 1.3-2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Emergency Power-Off Switch
An emergency power-off switch lets the operator cut power quickly if something goes wrong.
Compact 3-Wheel Turning
A 3-wheel layout with a 1,220-1,475 mm turning radius for tight warehouse aisles.
Full Specifications
| Capacity | 0.6-1 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | Up to 4.5 m |
| Battery Voltage | 24V |
| Turning Radius | 1,220-1,475mm |
| Tyre Type | Solid |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPDS06
- CPDS08
- CPDS10
| Model | Capacity | Battery (lead-acid / lithium) | Overall width | Turning radius | Aisle (1000 x 1200 crossways) | Laden travel |
|---|---|---|---|---|---|---|
| CPDS06 | 600 kg | 168Ah / 125Ah | 830 mm | 1,220 mm | 2,695 mm | 9 km/h |
| CPDS08 | 800 kg | 294Ah / 250Ah | 900 mm | 1,465 mm | 2,955 mm | 10 km/h |
| CPDS10 | 1,000 kg | 400Ah / 250Ah | 900 mm | 1,465 / 1,475 mm | 2,955 / 2,965 mm | 10 km/h |
Standard 24V batteries. Where two figures are given, the second is the lithium version. Rated at a 400 mm load centre. Figures from the Hangcha X Series 3-wheel electric forklift brochure (2022).
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Servicing & Repairs
Keep equipment reliable with scheduled service and breakdown support.
