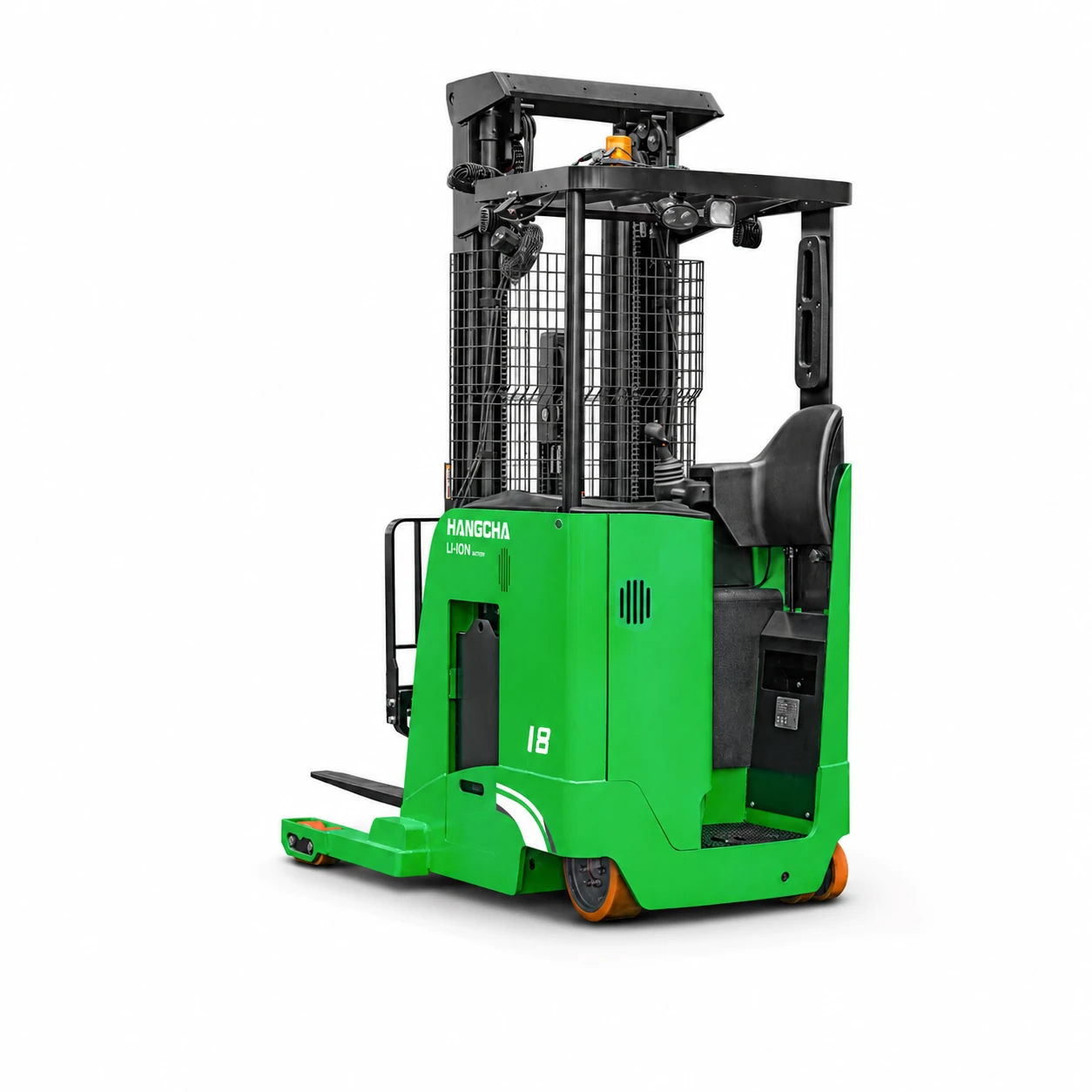

X Series Pantograph Reach Truck - Fore-Aft 1.4-2 t
A Fore-Aft pantograph reach truck configuration in the Hangcha X Series, covering 1.4-2 t for indoor warehouse and narrow-aisle operations with lift heights up to 11.5 m and reach distances of 610-1,067 mm.
1.4-2 t
Capacity
Electric battery
Power
Up to 11.5 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing a Single or Double Reach X Series Pantograph Model
The X Series pantograph reach truck uses fore-aft automotive steering, so the operator steers the same way whether driving forks first or forks trailing. Choose single reach for standard racking and double reach when pallets are stored two deep.
- Single reach CQD14, CQD16, CQD18 and CQD20 (1,361-2,041 kg): 610 mm reach, a 1,722 mm turning radius and a 2,673 mm aisle with the standard battery. At 11.5 m they still carry 1,000-1,050 kg.
- Double reach CQD14 and CQD16 (1,361-1,588 kg): 1,067 mm reach to pick the second pallet in double-deep racking, with a 1,849 mm turning radius and a 2,713 mm aisle. At 11.5 m they carry 770-820 kg.
Every model is rated at a 600 mm load centre, with a 5,030 mm standard triplex mast, masts up to 11.5 m and a 1,080 mm overall width. J models run on a 36V lead-acid battery and JI models on a 38.6V lithium-ion battery. A larger battery compartment adds about 50 mm to the turning radius and aisle.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
11.5 m Lift Height
Lifts 1.4-2 t loads to heights of up to 11.5 m for high-bay racking.
1,067 mm Pantograph Reach
Pantograph reach of 610-1,067 mm into racking, with aisle widths from 2,673 mm.
Full Specifications
| Capacity | 1.4-2 t |
|---|---|
| Power | Electric battery |
| Lift Height | Up to 11.5 m |
| Minimum Aisle Width | From 2,673mm |
| Turning Radius | 1,722-1,975mm |
| Battery Type / Voltage | Electric battery, 36V or 38.6V (Li-ion) |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CQD14
- CQD16
- CQD18
- CQD20
| Model | Type | Rated capacity | Reach | Capacity at 11.5 m | Turning radius | Aisle (40 x 48 in pallet) |
|---|---|---|---|---|---|---|
| CQD14-XD3Q-J / JI | Single reach | 1,361 kg | 610 mm | 1,000 kg | 1,722 mm | 2,673 mm |
| CQD16-XD3Q-J / JI | Single reach | 1,588 kg | 610 mm | 1,000 kg | 1,722 mm | 2,673 mm |
| CQD18-XD3Q-J / JI | Single reach | 1,814 kg | 610 mm | 1,000 kg | 1,722 mm | 2,673 mm |
| CQD20-XD3Q-J / JI | Single reach | 2,041 kg | 610 mm | 1,050 kg | 1,722 mm | 2,673 mm |
| CQD14-XD3Q-JD / JDI | Double reach | 1,361 kg | 1,067 mm | 770 kg | 1,849 mm | 2,713 mm |
| CQD16-XD3Q-JD / JDI | Double reach | 1,588 kg | 1,067 mm | 820 kg | 1,849 mm | 2,713 mm |
Capacities at a 600 mm load centre with the standard 1,170 mm wheel-arm spread. Turning radius and aisle with the standard 16.5 in battery compartment, aisle for 1,026 x 1,220 mm pallets with 200 mm clearance. Figures from the Hangcha X Series pantograph reach truck brochure.
