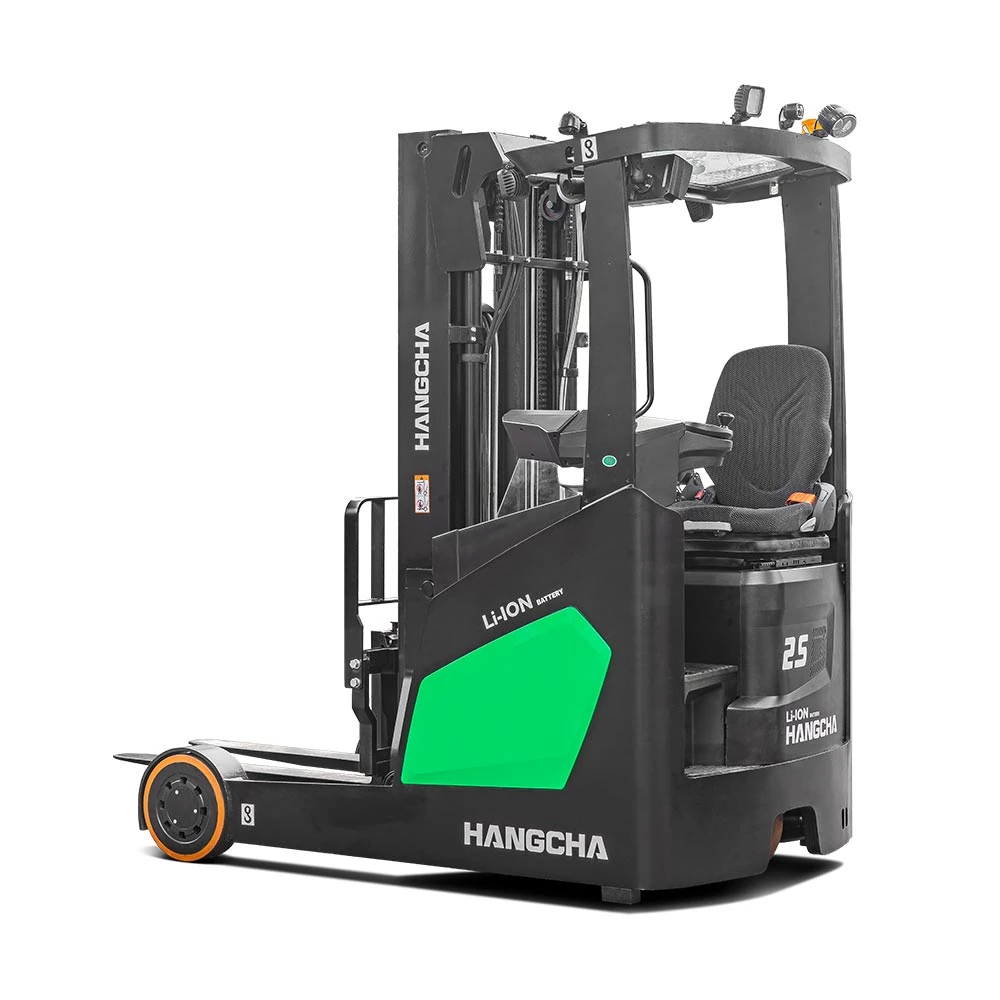

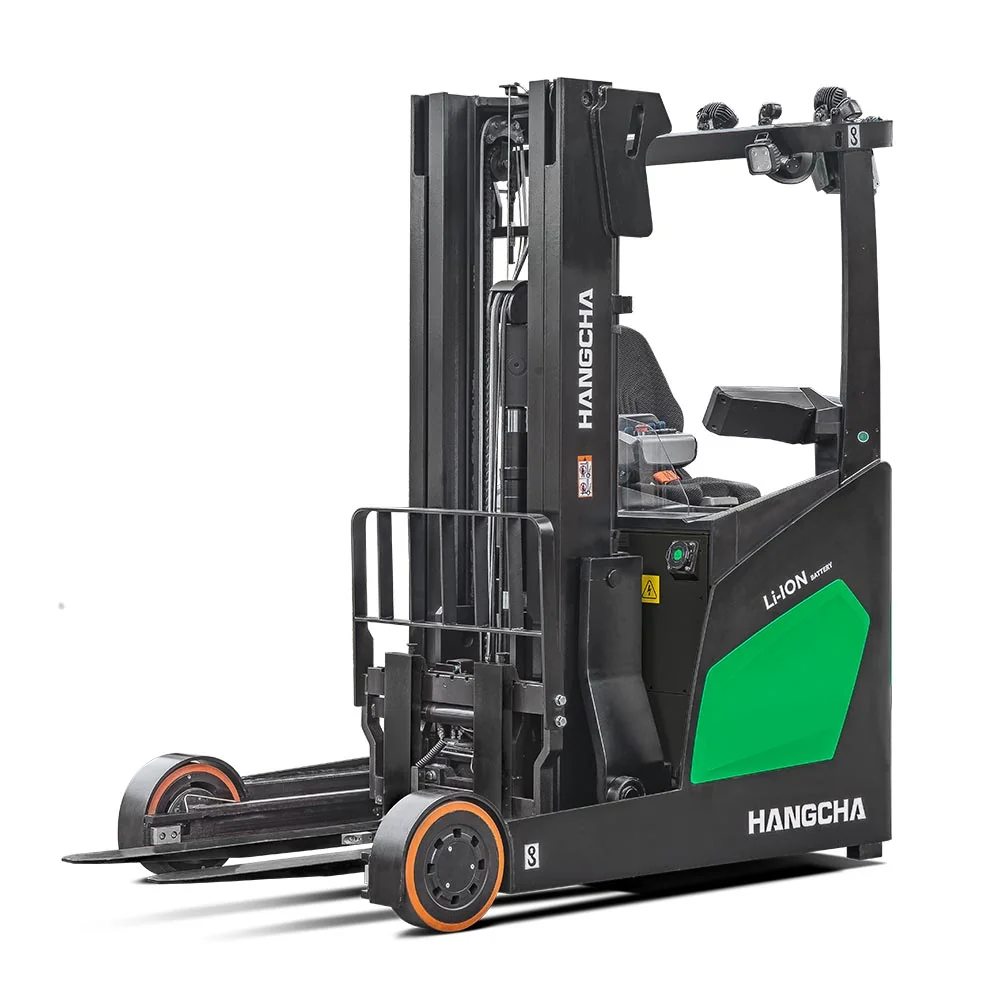

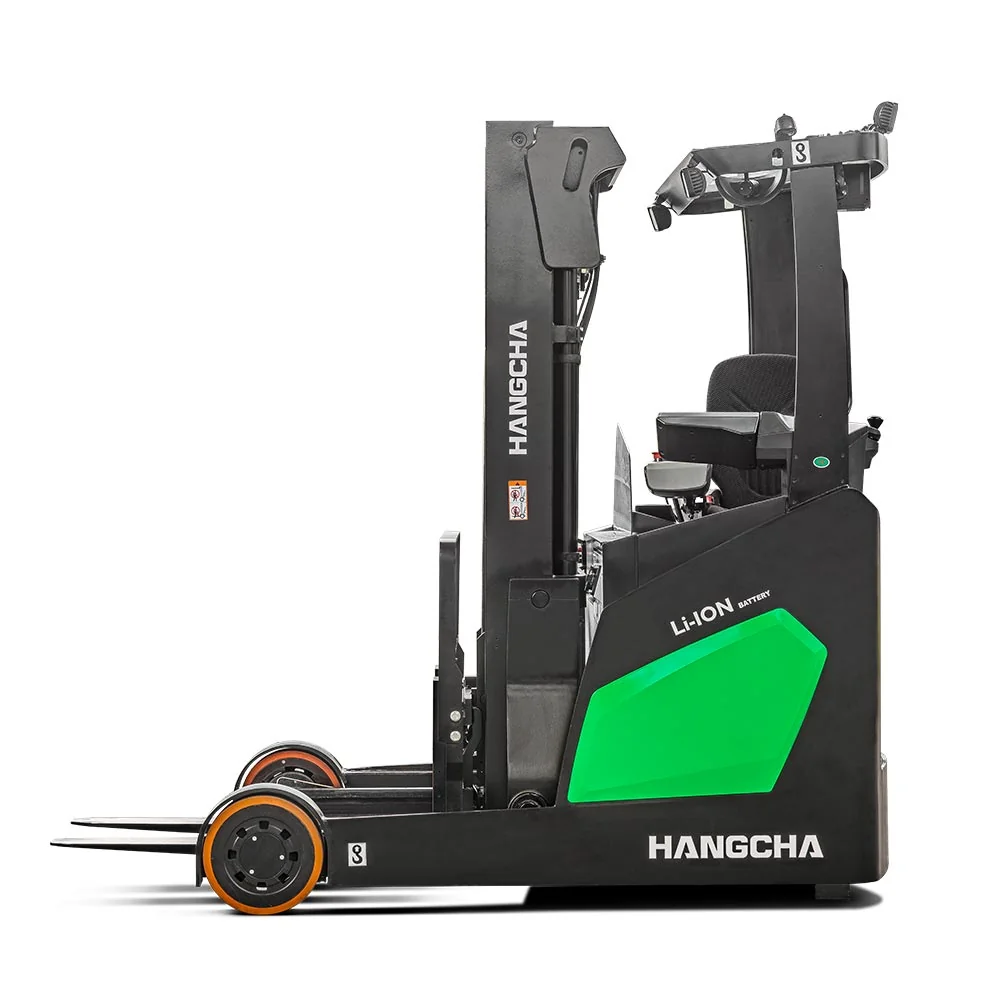

XC Series Reach Truck 1.4-2.5 t

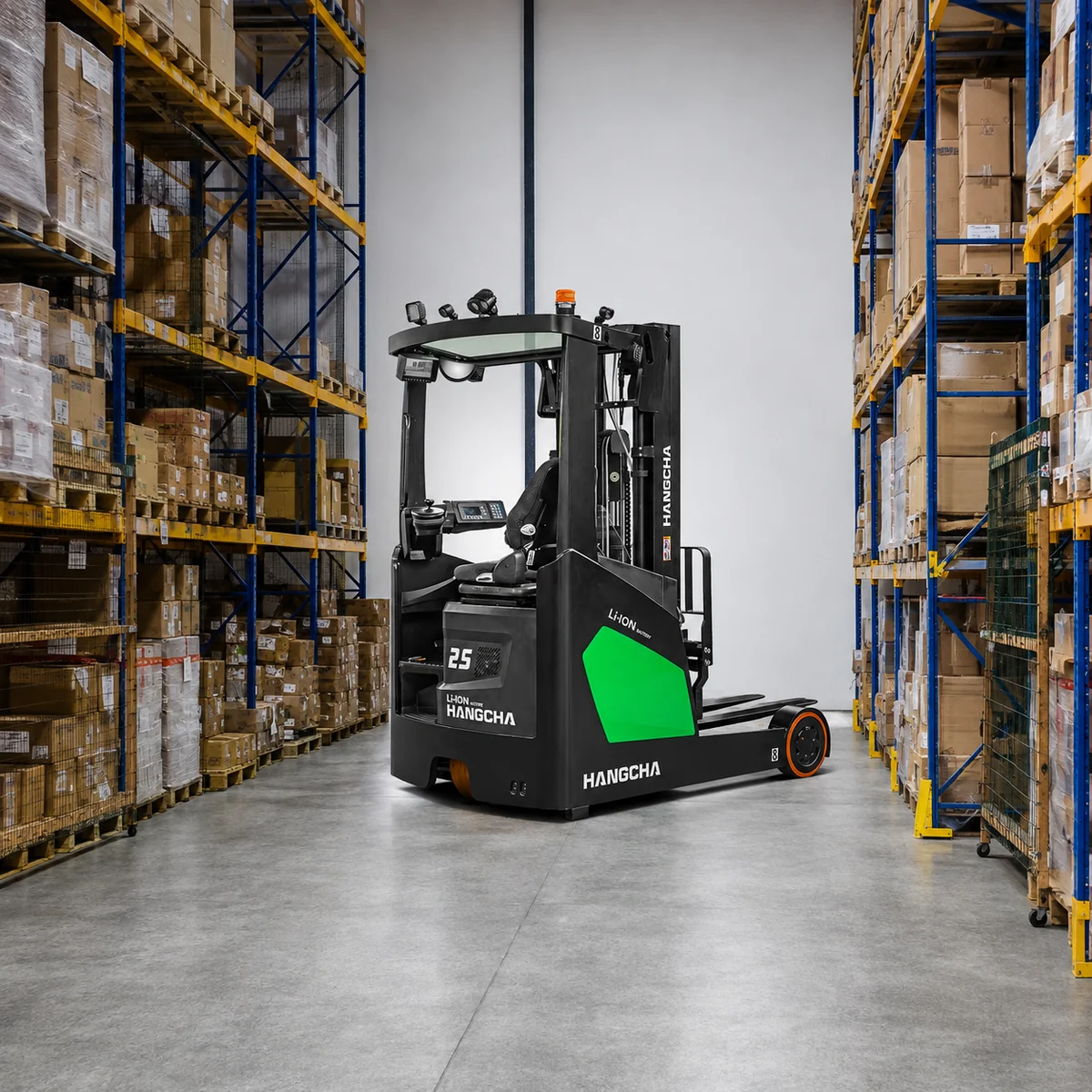

A 1.4-2.5 t reach truck range for indoor warehouse and narrow-aisle operations, with lift heights of up to 13 m for load handling where storage height, reach and aisle space need to be considered together.
1.4-2.5 t
Capacity
Li-ion
Power
Up to 13 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the Right XC Reach Truck Model
Choose an XC reach truck by the weight you need to place on the top beam, not by the headline capacity. Every model keeps its full rating up to 6-6.5 m, then loses capacity as the mast goes higher.
- CQD14 and CQD16 (1.4-1.6 t): the most compact, with a 1,610-1,660 mm turning radius and a 2,687-2,701 mm aisle for 1000 x 1200 mm pallets. Masts go to 11 m, where capacity falls to 350 kg and 550 kg.
- CQD18 (1.8 t): masts to 11.5 m, still handling 1,400 kg at 8.5 m.
- CQD20 and CQD25 (2-2.5 t): the tallest masts at 13 m. The CQD25 still lifts 1,950 kg to 10 m and 1,000 kg to 13 m, but needs a 2,867 mm aisle and a 1,876 mm turning radius.
XC4 models use a mechanical control lever. XC4D models add fingertip controls with height display, height selection and height limit across the full lift range. Ratings are at a 600 mm load centre on the standard 80V/250Ah battery, and an 80V/404Ah battery is available for longer shifts.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

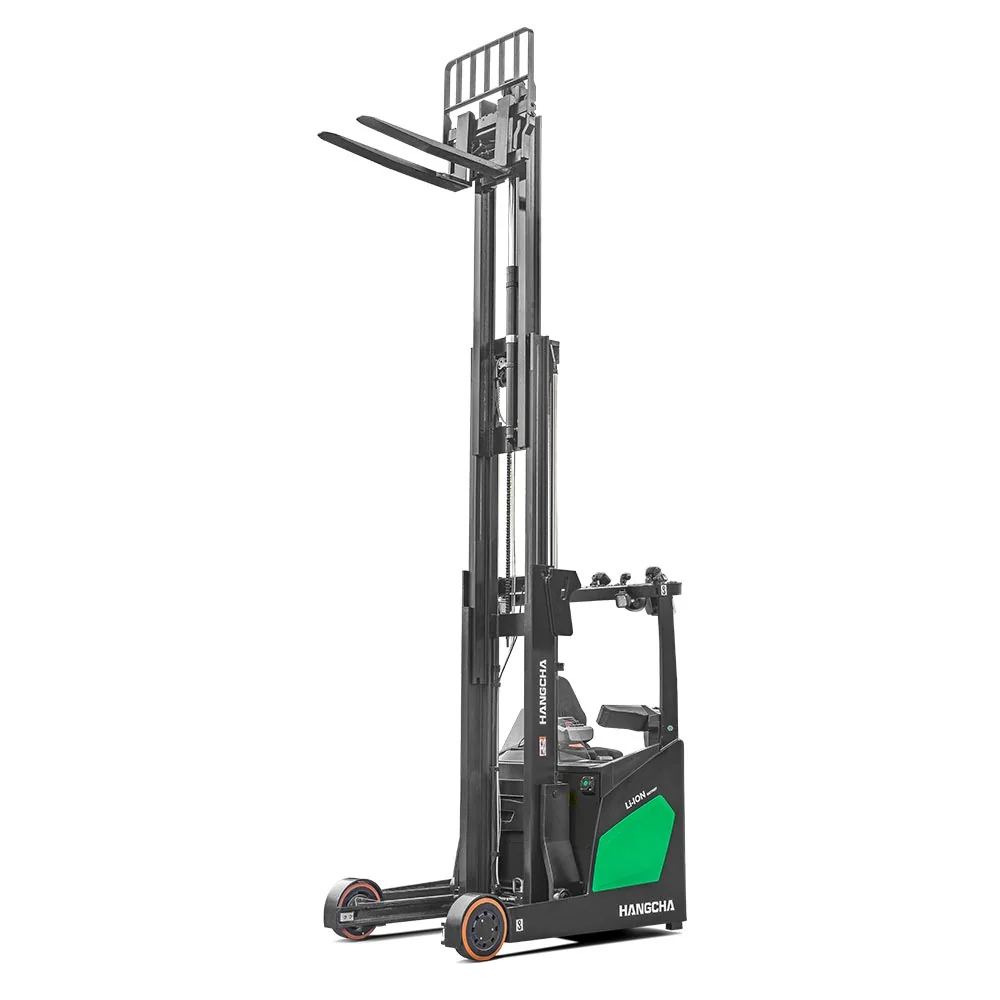

Lift Heights to 13 m
Reach masts lift up to 13 m, with reach distances of 493-716 mm for high racking.
Pre-Set Height Selection
Pre-set height selection and a central sideshift help place loads accurately at height.
Full Specifications
| Capacity | 1.4-2.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 13 m |
| Minimum Aisle Width | From 2,687mm |
| Turning Radius | 1,610-1,876mm |
| Battery Type / Voltage | Li-ion, 80V |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CQD14
- CQD16
- CQD18
- CQD20
- CQD25
| Model | Rated capacity | Max lift | Capacity at max lift | Reach | Aisle (1000 x 1200) | Turning radius |
|---|---|---|---|---|---|---|
| CQD14-XC4(D)-SI | 1,400 kg | 11,000 mm | 350 kg | 571 mm | 2,687 mm | 1,610 mm |
| CQD16-XC4(D)-SI | 1,600 kg | 11,000 mm | 550 kg | 621 mm | 2,701 mm | 1,660 mm |
| CQD18-XC4(D)-SI | 1,800 kg | 11,500 mm | 550 kg | 588 mm | 2,719 mm | 1,660 mm |
| CQD20-XC4(D)-SI | 2,000 kg | 13,000 mm | 500 kg | 594 mm | 2,802 mm | 1,726 mm |
| CQD25-XC4(D)-SI | 2,500 kg | 13,000 mm | 1,000 kg | 716 mm | 2,867 mm | 1,876 mm |
Capacities at a 600 mm load centre. Reach and aisle figures with the standard 3,000 mm mast. Figures from the Hangcha XC Series reach truck brochure.
