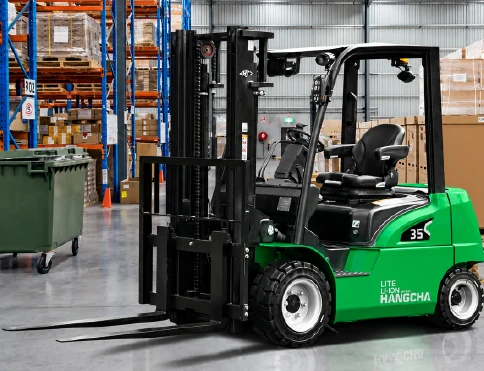

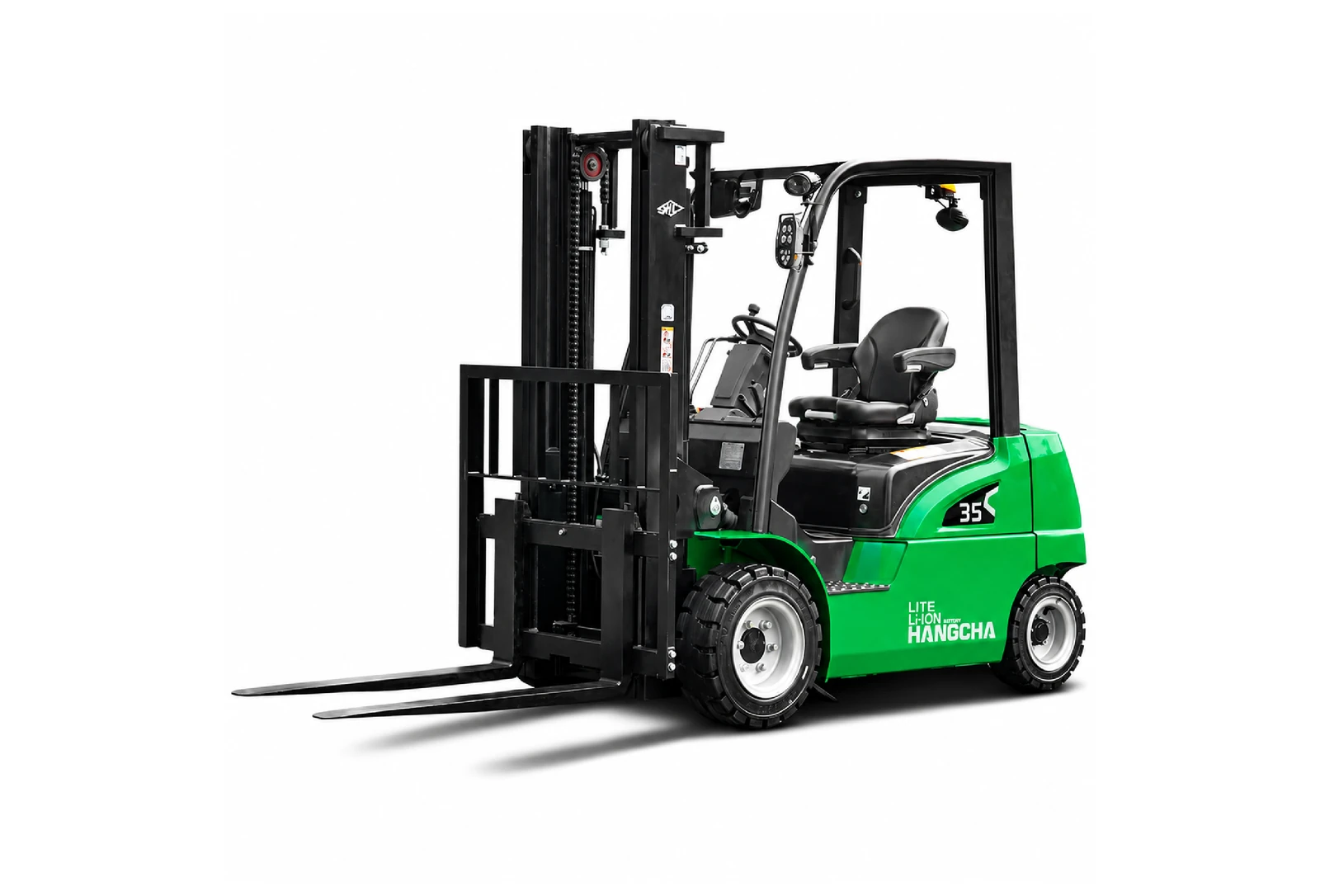

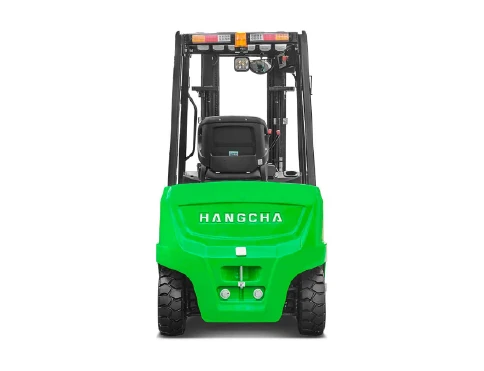

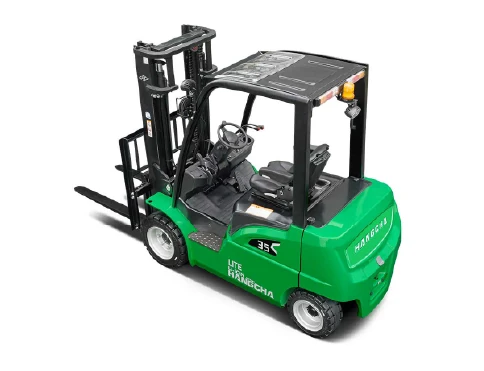

XC Series 4-Wheel Electric Forklift - Light Duty 2-3.5 t
A 2-3.5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
2-3.5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the Right XC Light Duty Model
The XC Light Duty range covers 2-3.5 t loads with an 11 kW drive motor. Choose a model by load weight and by the space you have to turn.
- CPD20 and CPD25 (2-2.5 t): the most compact models, with a 2,090 mm turning radius and a 3,734 mm working aisle for 1000 x 1200 mm pallets crossways, on an 80V/230Ah lithium iron phosphate battery.
- CPD30 (3 t): steps up to an 80V/304Ah battery for more runtime, with a 2,270 mm turning radius and pneumatic tyres for mixed indoor and yard work.
- CPD35 (3.5 t): the same 304Ah battery on super elastic tyres, which do not puncture on sites with sharp debris.
Every model has a 14 km/h laden travel speed and 14% laden gradeability, rated at a 500 mm load centre with a 3,000 mm standard lift and masts up to 7 m. For steeper ramps or harder daily duty, the XA Series 4-wheel electric forklift has a 15 kW drive motor and up to 18% laden gradeability.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
2,090-2,270 mm Turning Radius
A turning radius of 2,090-2,270 mm, depending on the model, for manoeuvring between racks.
Gradeability to 15%
Gradeability of up to 15% for handling loads on ramps and inclines around the site.
Full Specifications
| Capacity | 2-3.5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 2,090-2,270mm |
| Gradeability | Up to 15% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD20
- CPD25
- CPD30
- CPD35
| Model | Capacity | Turning radius | Aisle (1000 x 1200 crossways) | Battery | Tyres | Service weight |
|---|---|---|---|---|---|---|
| CPD20-XD6-SI21 | 2,000 kg | 2,090 mm | 3,734 mm | 80V / 230Ah | Pneumatic | 3,620 kg |
| CPD25-XD6-SI21 | 2,500 kg | 2,090 mm | 3,734 mm | 80V / 230Ah | Pneumatic | 3,920 kg |
| CPD30-XD6-SI21 | 3,000 kg | 2,270 mm | 3,950 mm | 80V / 304Ah | Pneumatic | 4,740 kg |
| CPD35-XD6-SI21 | 3,500 kg | 2,270 mm | 3,955 mm | 80V / 304Ah | Super elastic | 5,080 kg |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha XC Series brochure.
