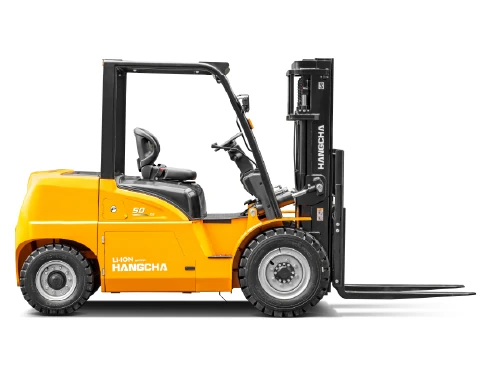

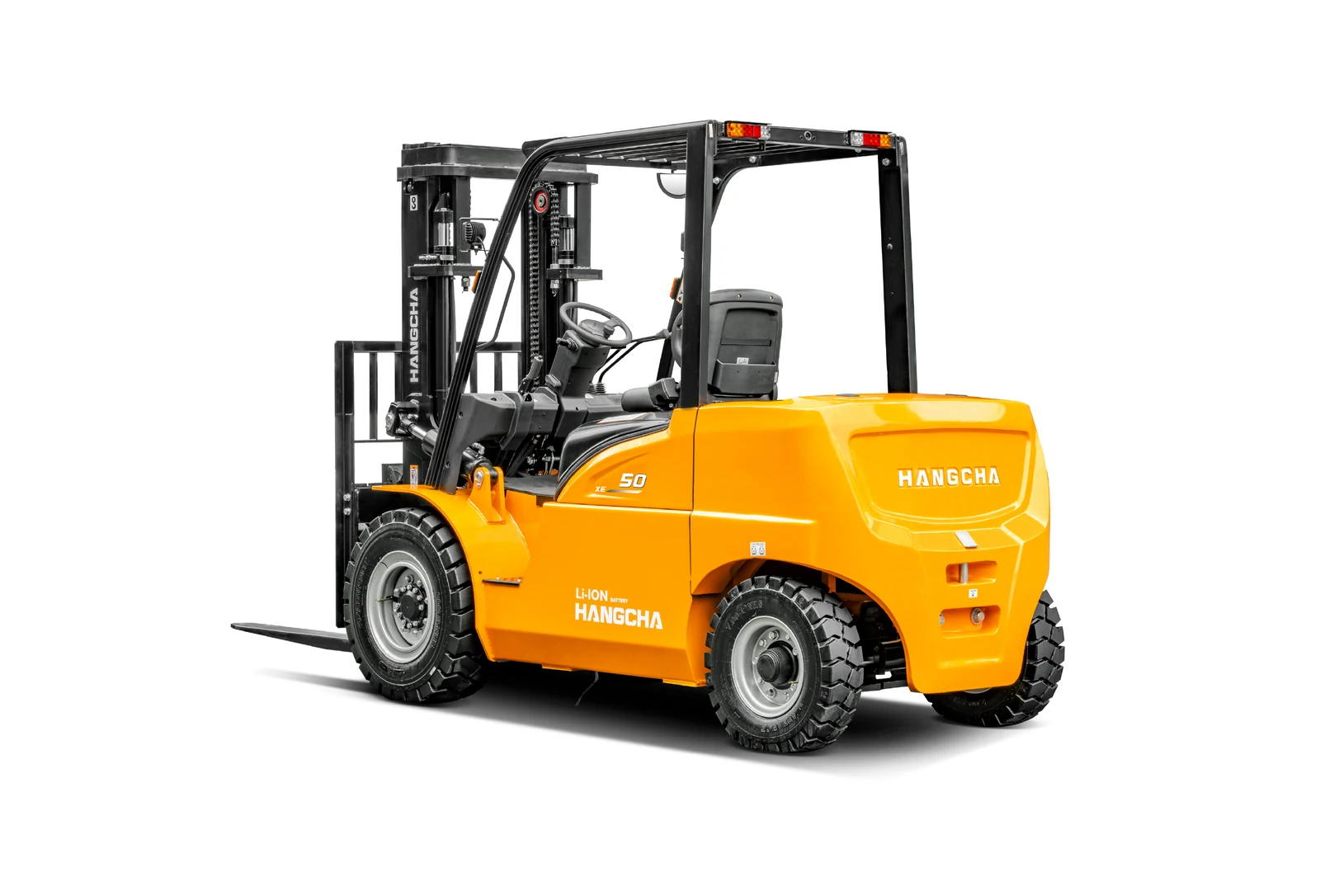

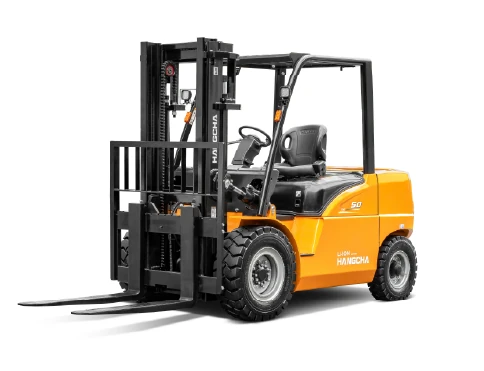

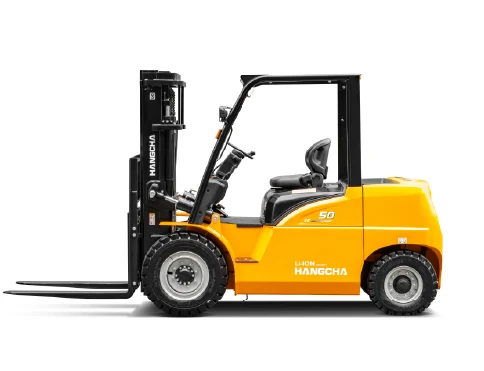

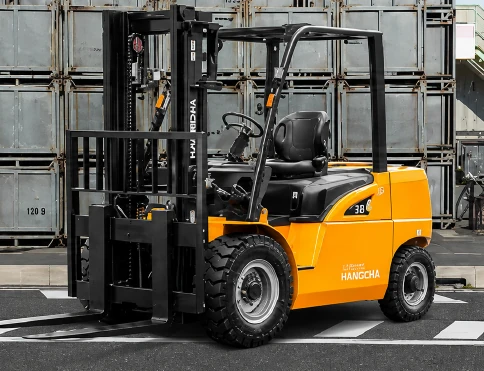

XE Series 4-Wheel Electric Forklift 4-5 t
A 4-5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
4-5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XE Series 4-5 t Model

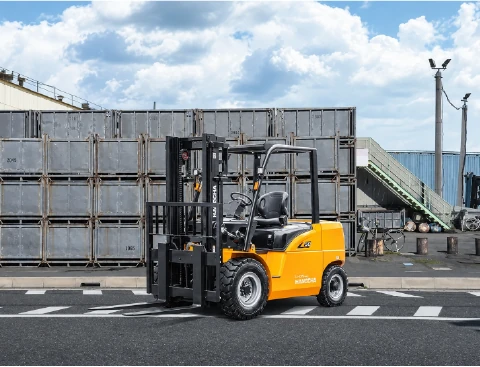

The XE Series 4-5 t pairs an 80V dual permanent magnet synchronous motor system with IC truck axles, mast and large tyres, for outdoor yards that would otherwise use an engine forklift. Every model travels at 19 km/h and uses an 80V/460Ah lithium battery as standard.
- CPD40 and CPD45 (4-4.5 t): a 2,680 mm turning radius and 17% laden gradeability, carrying 3,000-3,200 kg at 7 m on single tyres.
- CPD50 mini and CPD50 (5 t): rated at 500 mm and 600 mm load centres, with a 2,740 mm turning radius, 16% laden gradeability and 3,500 kg at 7 m on single tyres.

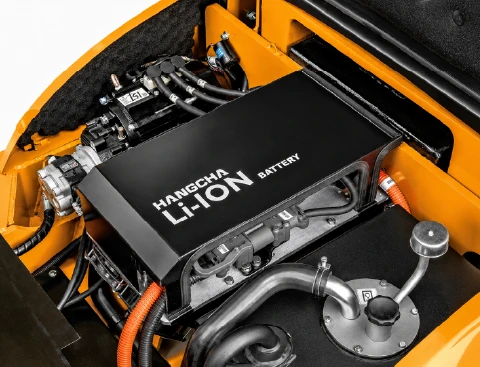

The whole truck is rated IPX4 with battery heating for cold weather. Optional batteries go up to 80V/840Ah for longer shifts, and a cold storage option covers -18ยฐC or -30ยฐC. For an AC or PMSM alternative with a larger standard battery, compare the XC Series 4-5 t.
Practical Features for Daily Operation
Electric Power

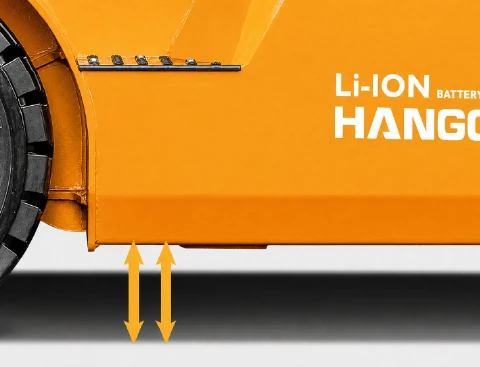

Electric drive with high ground clearance and battery heating for indoor, outdoor and cold-weather use.
IPX4 Water Resistance
IPX4 water resistance helps protect the truck when working in wet outdoor conditions.
Heavy-Duty Axles and Tyres
Heavy-duty axles, large tyres and a low centre of gravity keep 4-5 t loads stable.
Full Specifications
| Capacity | 4-5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 2,680-2,740mm |
| Gradeability | Up to 22% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD50
- CPD40
- CPD45
| Model | Capacity | Load centre | Capacity at 7 m (single / dual tyres) | Turning radius | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPD40-XEY2-SI | 4,000 kg | 500 mm | 3,000 / 3,400 kg | 2,680 mm | 17% | 6,240 kg |
| CPD45-XEY2-SI | 4,500 kg | 500 mm | 3,200 / 3,400 kg | 2,680 mm | 17% | 6,630 kg |
| CPD50-XEXY2-SI (mini) | 5,000 kg | 500 mm | 3,500 / 3,800 kg | 2,740 mm | 16% | 6,930 kg |
| CPD50-XEY2-SI | 5,000 kg | 600 mm | 3,500 / 3,800 kg | 2,740 mm | 16% | 7,230 kg |
Figures from the Hangcha XE Series 4-5 t brochure.
