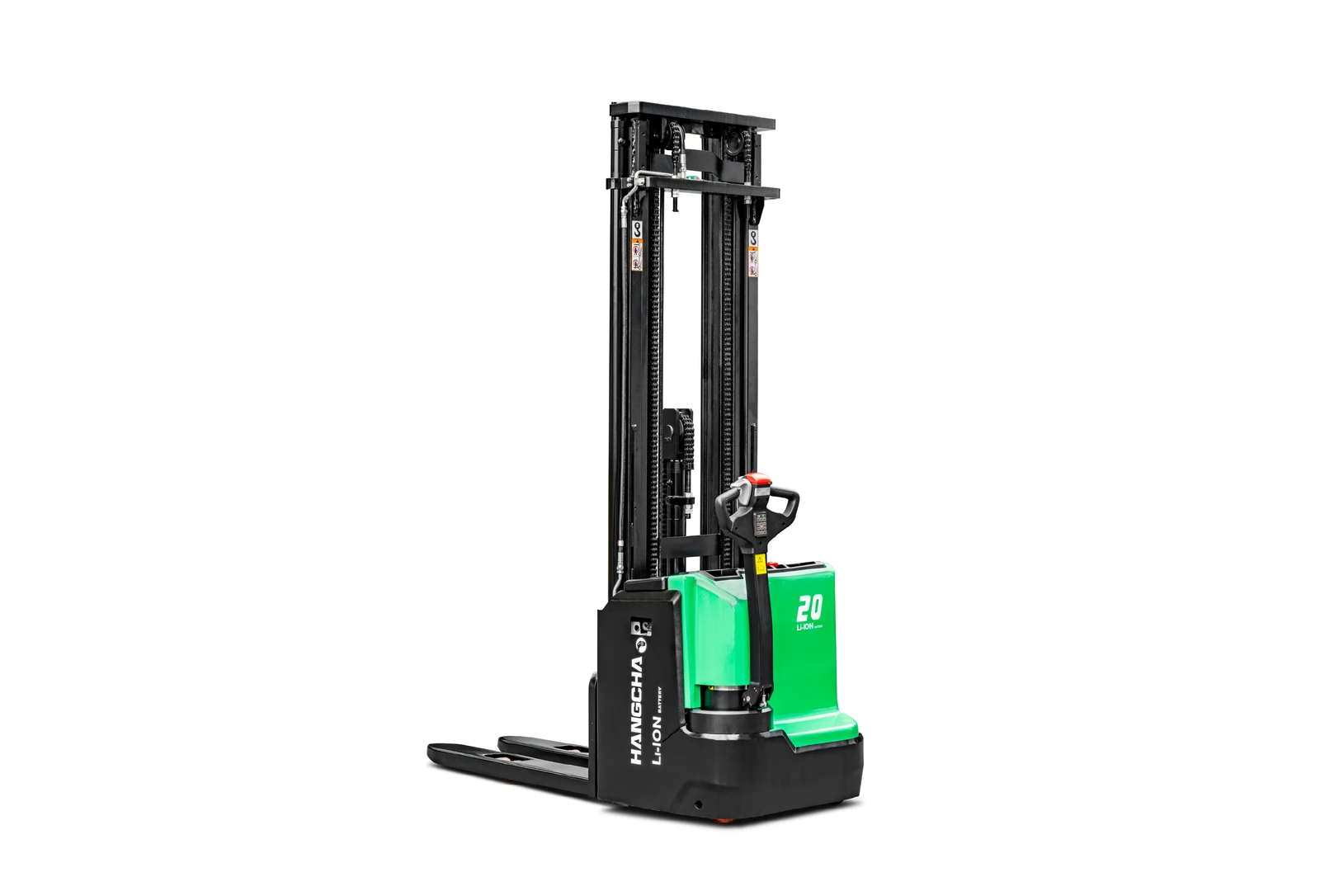

X Series Pallet Stacker 1.2-2 t
A 1.2-2 t pallet stacker range for indoor warehouse operations, with lift heights of up to 6.0 m for pallet movement and stacking where load, lift height and operating space need to be matched.
1.2-2 t
Capacity
Li-ion
Power
Up to 6.0 m
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Pallet Stacker: Pedestrian or Stand-On
The X Series pallet stacker comes in pedestrian (XT1) and stand-on (XT1S) versions from 1.2 t to 2 t, all on a 48V lithium battery with a permanent magnet synchronous drive and an 800 mm wide chassis. Choose by how far the operator travels and how high the top pallet sits.
- Pedestrian XT1 models: 6 km/h travel, a 1,550 mm turning radius and a 2,200 mm aisle for 1000 x 1200 mm pallets, suited to short runs and tight stores.
- Stand-on XT1S models: 8-9 km/h laden on a shock-absorbing platform with electronic steering, for longer runs between dock and racking.
- Lift height: the CDD12 reaches 4.7 m and the CDD14, CDD16 and CDD20 reach 6 m, where they still carry 450-700 kg.
Ratings are at a 600 mm load centre with a 2,700 mm standard lift. Travel speed drops once the forks pass 500 mm, and the LiFePO4 battery carries a 6-year or 12,000-hour warranty. F2 models suit cold stores down to -30°C. For a stand-on stacker with a standard overhead guard, see the X Series rider pallet stacker.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
6.0 m Lift Height

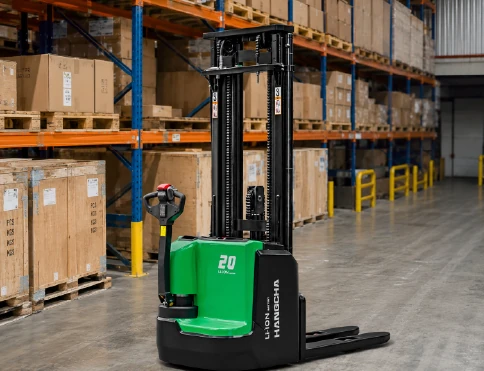

Stacks 1.2-2 t pallets to heights of up to 6.0 m in warehouse racking.
Walk or Ride Formats
Pedestrian, walkie and stand-on formats, working in aisles from 2,200 mm wide.
Full Specifications
| Capacity | 1.2-2 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 6.0 m |
| Battery Type / Voltage | Li-ion, 48V |
| Minimum Aisle Width | From 2,200mm |
| Turning Radius | 1,550-2,017mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CDD12
| Model | Operator | Capacity | Max lift | Capacity at max lift | Turning radius | Laden travel |
|---|---|---|---|---|---|---|
| CDD12-XT1-SI | Pedestrian | 1,200 kg | 4,700 mm | 700 kg | 1,550 mm | 6 km/h |
| CDD14-XT1-SI | Pedestrian | 1,400 kg | 6,000 mm | 450 kg | 1,550 mm | 6 km/h |
| CDD16-XT1-SI | Pedestrian | 1,600 kg | 6,000 mm | 500 kg | 1,550 mm | 6 km/h |
| CDD20-XT1-SI | Pedestrian | 2,000 kg | 6,000 mm | 550 kg | 1,550 mm | 6 km/h |
| CDD12-XT1S-SI | Stand-on | 1,200 kg | 4,700 mm | 700 kg | 1,551 / 1,982 mm | 9 km/h |
| CDD14-XT1S-SI | Stand-on | 1,400 kg | 6,000 mm | 450 kg | 1,586 / 2,017 mm | 9 km/h |
| CDD16-XT1S-SI | Stand-on | 1,600 kg | 6,000 mm | 500 kg | 1,586 / 2,017 mm | 9 km/h |
| CDD20-XT1S-SI | Stand-on | 2,000 kg | 6,000 mm | 550 kg | 1,586 / 2,017 mm | 8 km/h |
Rated at a 600 mm load centre. The brochure lists two turning radius figures for the stand-on models. Figures from the Hangcha X Series hi-range stacker brochure.
