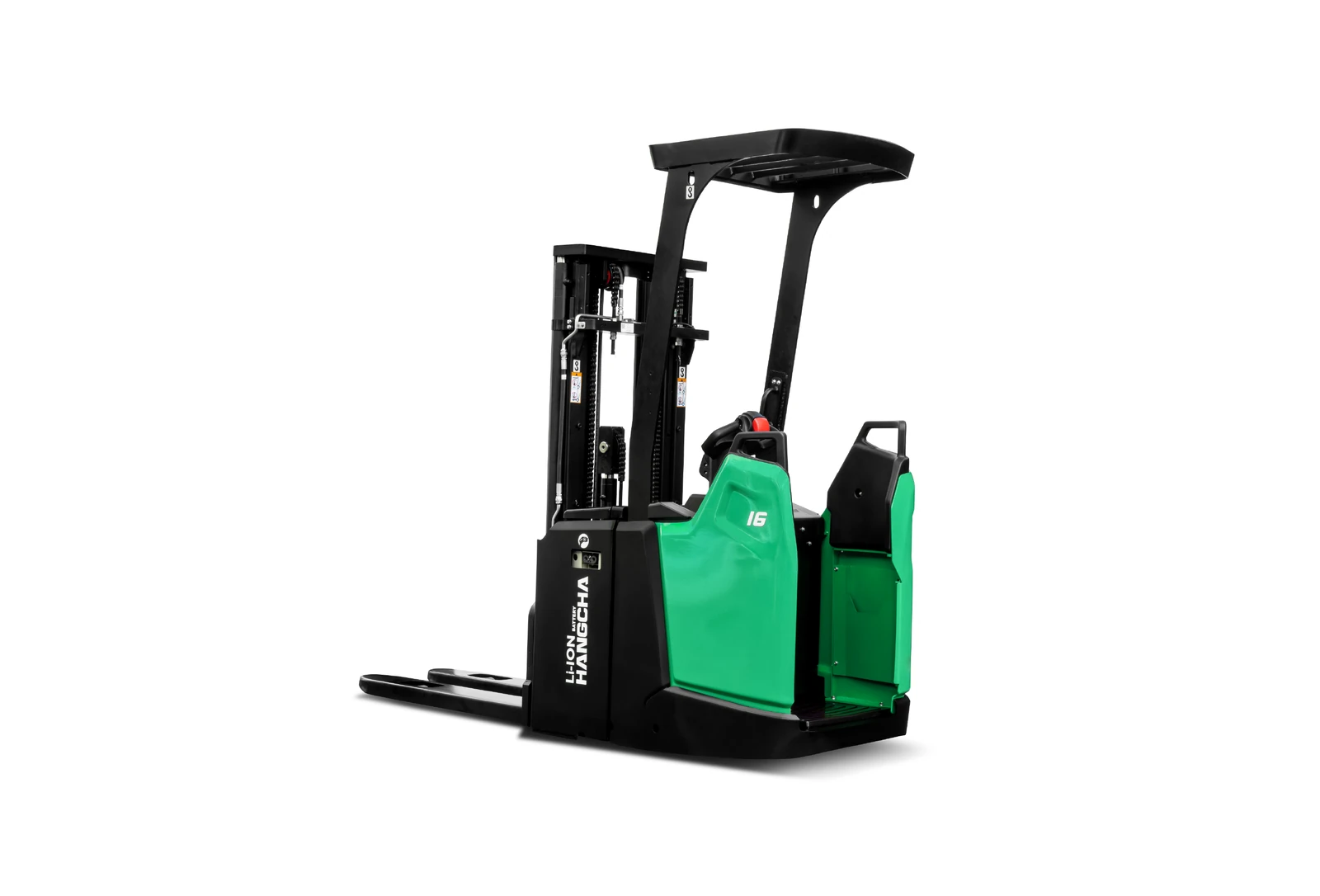

X Series Rider Pallet Stacker 1.4-1.6 t
A 1.4-1.6 t rider pallet stacker range for indoor warehouse operations, with lift heights of up to 6 m for pallet movement and stacking where load, lift height and operating space need to be matched.
1.4-1.6 t
Capacity
Li-ion
Power
Up to 6 m
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the CDD14 and CDD16 Rider Stackers
The X Series rider pallet stacker is a stand-on stacker with a standard overhead guard, built for operators who ride the truck through the shift and stack to height. Both models run on a 48V lithium battery and travel at 9 km/h laden.
- CDD14 (1,400 kg): 10% laden gradeability and 450 kg capacity at the 6 m maximum lift.
- CDD16 (1,600 kg): 8% laden gradeability and 500 kg capacity at 6 m.
Both share a 2,005 mm turning radius, a 2,655 mm aisle for 1000 x 1200 mm pallets and an 800 mm wide chassis, rated at a 600 mm load centre with a 2,700 mm standard lift. A foot detection sensor that slows or stops the truck when the operator's foot leaves the platform is optional. For a walk-behind version or a stand-on stacker without the overhead guard, see the X Series pallet stacker 1.2-2 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

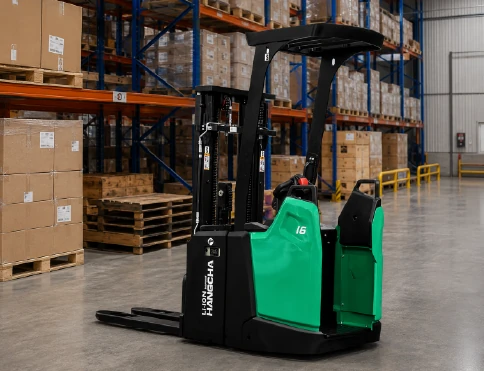

Ride-On Operation
A rider format for longer travel and stacking runs across the warehouse floor.
Stacks to 6 m
Lift heights of up to 6 m, working in aisles from 2,655 mm wide.
Full Specifications
| Capacity | 1.4-1.6 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 6 m |
| Battery Type / Voltage | Li-ion, 48V |
| Minimum Aisle Width | From 2,655mm |
| Turning Radius | 2,005mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CDD16
- CDD14
| Model | Capacity | Max lift | Capacity at max lift | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability |
|---|---|---|---|---|---|---|
| CDD14-XT1S-SISU | 1,400 kg | 6,000 mm | 450 kg | 2,005 mm | 2,655 mm | 10% |
| CDD16-XT1S-SISU | 1,600 kg | 6,000 mm | 500 kg | 2,005 mm | 2,655 mm | 8% |
Rated at a 600 mm load centre. Figures from the Hangcha X Series rider pallet stacker brochure.
