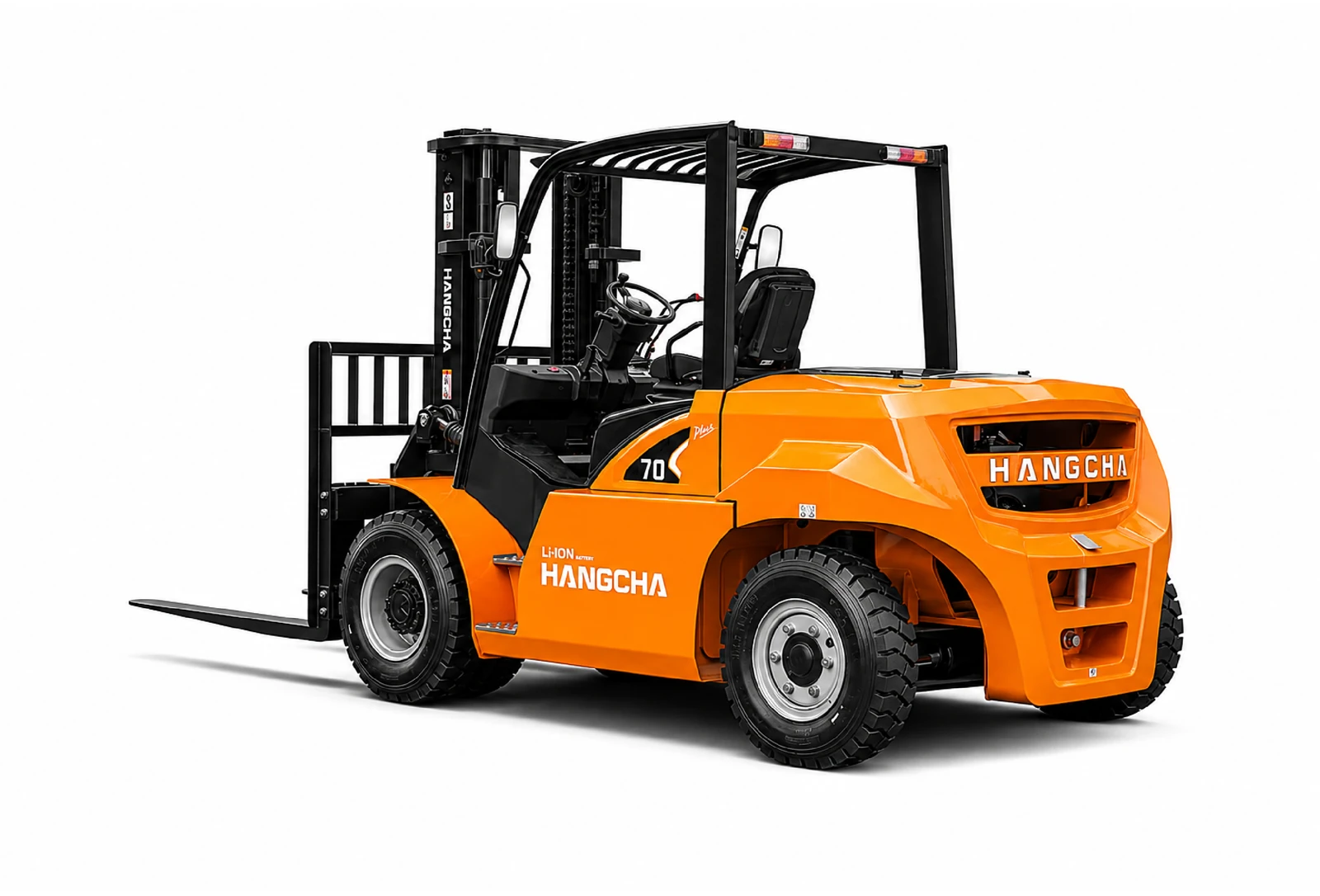

XH Series 4-Wheel Electric Forklift - Heavy Duty 6-10 t
A 6-10 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery power for day-to-day material handling.
6-10 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XH Heavy Duty 6-10 t Model
The XH Heavy Duty 6-10 t runs on a 309V high-voltage lithium battery with dual water cooling for both motor and battery, built for long, high-intensity shifts in heat or heavy rain. Every model reaches 28-29 km/h laden and charges in about an hour with the cooling running.
- CPD60 and CPD70 (6-7 t): a 45 kW drive motor, 309V/228Ah battery and a 3,280-3,330 mm turning radius, with up to 34% laden gradeability on the CPD60.
- CPD80, CPD90 and CPD100 (8-10 t): a 54.5 kW drive motor, 309V/302Ah battery and 3,620 mm turning radius, with 22-26% laden gradeability.
All models are rated at a 600 mm load centre with masts to 7 m, IPX4 body sealing and IP67 components. CATL batteries come with automatic fire extinguishing as standard and a 6-year or 12,000-hour warranty. A sideshifter reduces capacity by 200-300 kg.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
6-10 t Load Capacity
Rated capacities from 6 t to 10 t for heavy pallets and bulky warehouse loads.
Turning Radius Range
Turning radius from 3,280 mm to 3,620 mm, depending on the model chosen.
Full Specifications
| Capacity | 6-10 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 309V |
| Turning Radius | 3,280-3,620mm |
| Gradeability | Up to 34% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD70
- CPD60
- CPD80
- CPD90
- CPD100
| Model | Capacity | Capacity at 7 m | Turning radius | Aisle (1000 x 1200 crossways) | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPD60-XHY2G-W | 6,000 kg | 3,100 kg | 3,280 mm | 5,088.5 mm | 34% | 9,150 kg |
| CPD70-XHY2G-W | 7,000 kg | 3,600 kg | 3,330 mm | 5,138.5 mm | 30% | 9,850 kg |
| CPD80-XHY2G-W | 8,000 kg | 4,000 kg | 3,620 mm | 5,533.8 mm | 26% | 12,000 kg |
| CPD90-XHY2G-W | 9,000 kg | 4,800 kg | 3,620 mm | 5,545.8 mm | 24% | 13,400 kg |
| CPD100-XHY2G-W | 10,000 kg | 5,200 kg | 3,620 mm | 5,545.8 mm | 22% | 14,200 kg |
Rated at a 600 mm load centre. Figures from the Hangcha XH Series Heavy Duty 6-10 t brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Related Equipment
XC Series 4-Wheel Electric Forklift 1.8-3.1 t
XH Series 4-Wheel Electric Forklift 4-5 t

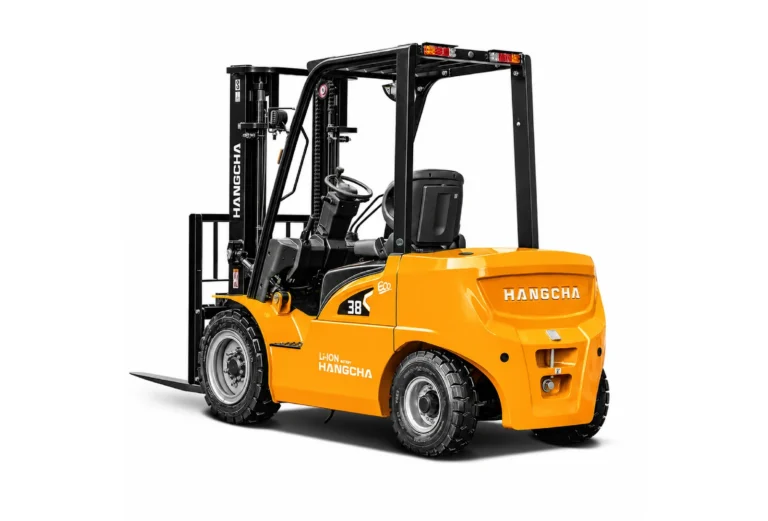

XE Series 4-Wheel Electric Forklift 1.5-3.8 t
