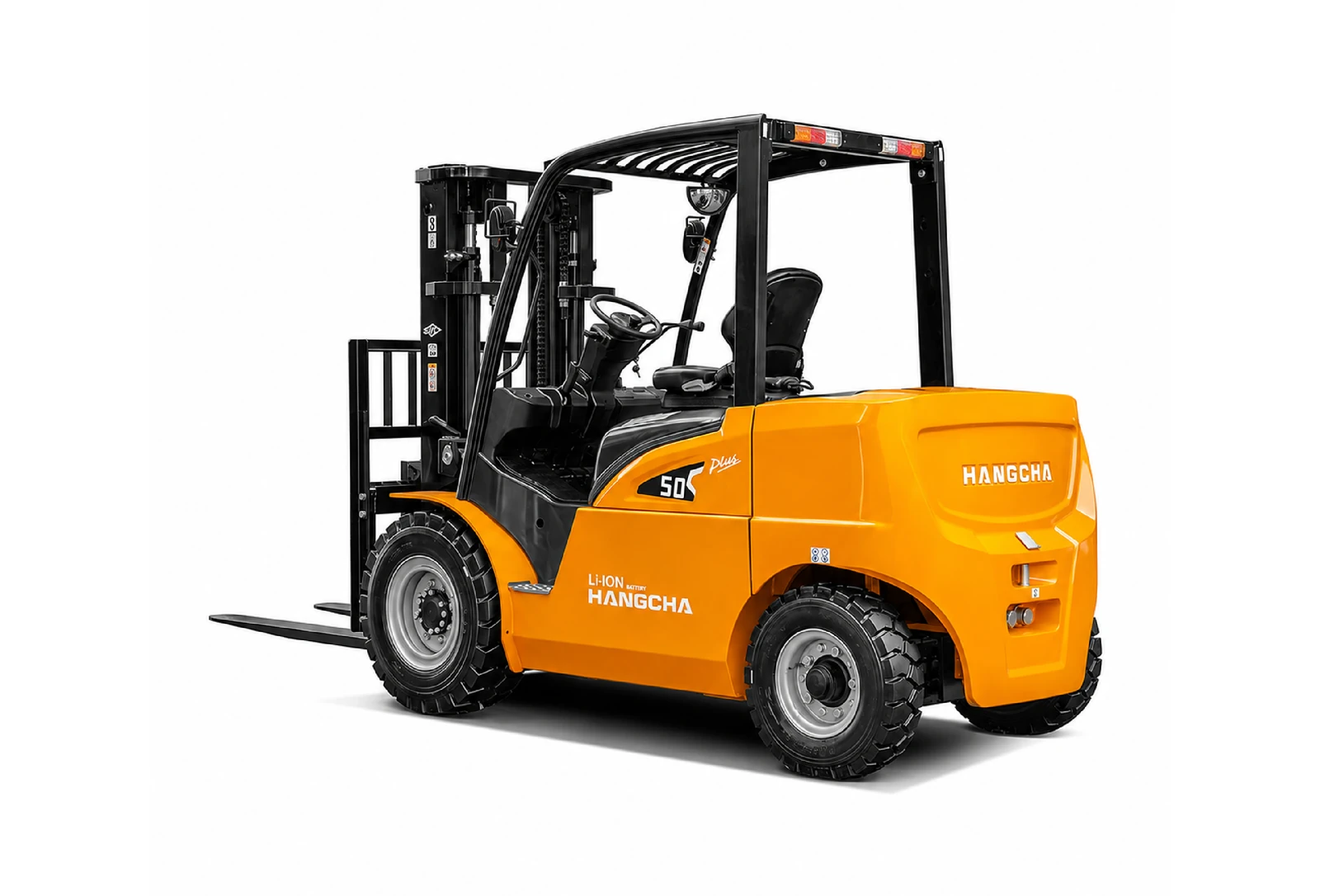

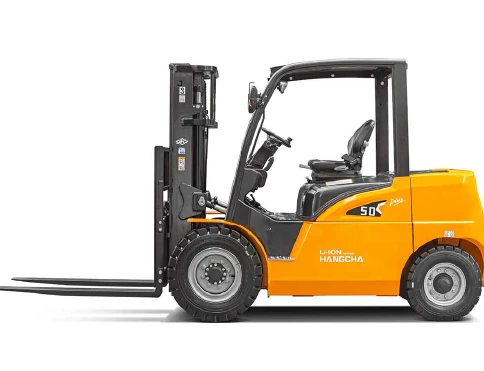

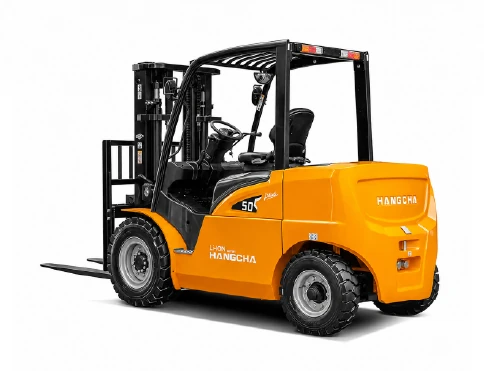

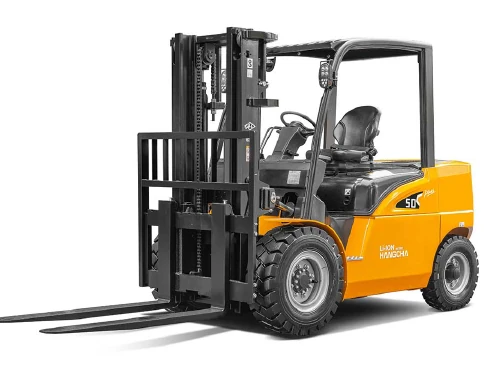

XH Series 4-Wheel Electric Forklift 4-5 t

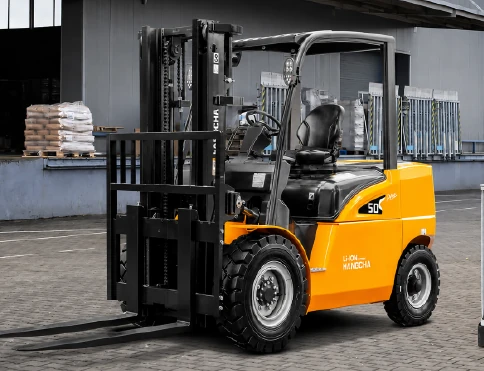

A 4-5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery power for day-to-day material handling.
4-5 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XH Series 4-5 t Electric Forklift: Capacity and Battery
The Hangcha XH Series electric forklift runs on a 309V high-voltage lithium battery (173Ah, 53.4 kWh as standard, or 228Ah as an option) and lifts 4,000, 4,500 or 5,000 kg. The brochure quotes a full charge in about 1 hour, and the battery pack has low-temperature electric heating for cold conditions.
- CPD40 and CPD45: 4,000 and 4,500 kg at a 500 mm load centre, with a 2,650 mm turning radius and a 4,435 mm aisle for 1000 x 1200 mm pallets crossways.
- CPD50-XHXY2G: 5,000 kg at a 500 mm load centre, turning in 2,700 mm.
- CPD50-XHY2G: 5,000 kg rated at a longer 600 mm load centre for bulky loads, with a taller lowered mast (2,495 mm against 2,245 mm).
All four models travel at 24/25 km/h laden and unladen and climb 23% laden. The standard lift is 3,000 mm, with full free duplex masts to 3,700 mm and triplex masts to 7,000 mm; at 7,000 mm capacity drops to 3,000-3,800 kg depending on model and tyres. The body is rated IPX4 and the motors, controllers and high-voltage parts IP67. Solid tyres, a reversing camera, blue lights, a sideshifter and a cold store version are optional. For the later 348V version with a 2,100 mm wheelbase, see the XH Series heavy duty electric forklift 4-5 t.
Practical Features for Daily Operation
Electric Power
High-voltage battery system with fast charging support, for work indoors and outdoors.
IP67 Sealed Components
Motors, controllers and high-voltage parts are IP67 rated, under an IPX4 rated cover.
Tool-Free Service Access
A quick-release water tank lid and enlarged access area make routine checks quicker.
Full Specifications
| Capacity | 4-5 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 309V |
| Turning Radius | 2,650-2,700mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD50
- CPD45
- CPD40
| Model | Capacity | Load centre | Turning radius | Laden gradeability | Service weight |
|---|---|---|---|---|---|
| CPD40-XHY2G | 4,000 kg | 500 mm | 2,650 mm | 23% | 6,150 kg |
| CPD45-XHY2G | 4,500 kg | 500 mm | 2,650 mm | 23% | 6,350 kg |
| CPD50-XHXY2G | 5,000 kg | 500 mm | 2,700 mm | 23% | 6,750 kg |
| CPD50-XHY2G | 5,000 kg | 600 mm | 2,700 mm | 23% | 7,100 kg |
Battery 309V / 173Ah lithium (53.4 kWh) as standard, 309V / 228Ah optional. Standard lift 3,000 mm, masts to 7,000 mm. Figures from the Hangcha XH Series high-voltage lithium battery forklift brochure (2023).
