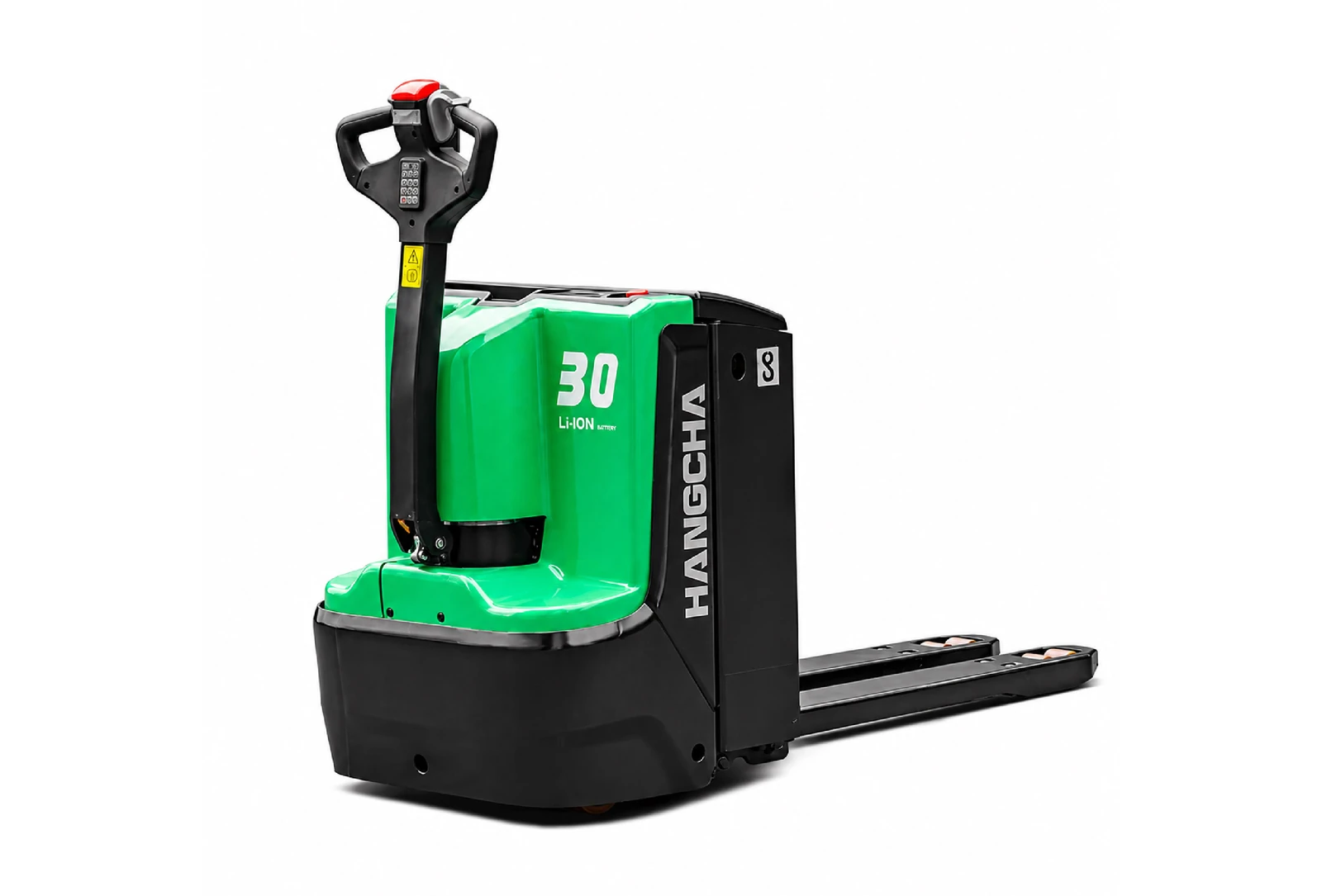

X Series Pallet Truck 2-3 t
A 2-3 t pallet truck range for indoor warehouse operations, with lift heights of 125 mm and pedestrian / walkie / stand-on operator formats for day-to-day pallet movement where travel routes, floor conditions and operator format influence model selection.
2-3 t
Capacity
Li-ion
Power
125 mm
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Pallet Truck: Pedestrian or Stand-On
The X Series pallet truck is a 48V lithium pallet truck with permanent magnet synchronous drive, built in 2 t and 3 t capacities and two operator versions. Choose the stand-on version when operators cover longer distances.
- Pedestrian XT1 models: 735 mm wide, 6 km/h, a 1,548 mm turning radius and a 1,986 mm aisle for 1000 x 1200 mm pallets.
- Stand-on XT1S models: 770 mm wide with a shock-absorbing platform and electronic steering, travelling at 9.5 km/h laden for the CBD20 and 7.5 km/h for the CBD30, with a 1,627 mm turning radius.
- 2 t or 3 t: the CBD20 manages 10% laden gradeability and the CBD30 6%, so check ramp gradients before choosing the heavier model.
All models lift 125 mm, use 1,150 mm forks and run on a 48V/105Ah LiFePO4 battery with a 6-year or 12,000-hour warranty, or 48V/125Ah as an option. F2 models suit cold stores down to -30°C and A models add C5 anti-corrosion protection. For a 24V AC stand-on truck with a lead-acid option, compare the XA Series pallet truck.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Walk or Stand-On Formats
Pedestrian, walkie and stand-on formats to suit the length of each pallet run.
1,150 mm Forks
Forks of 1,150 mm and a 125 mm lift height for everyday pallet movement.
Full Specifications
| Capacity | 2-3 t |
|---|---|
| Power | Li-ion |
| Lift Height | 125 mm |
| Battery Type | Li-ion |
| Fork Length | 1,150mm |
| Turning Radius | 1,548-2,065mm |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD20
| Model | Operator | Capacity | Width | Turning radius | Laden travel | Laden gradeability |
|---|---|---|---|---|---|---|
| CBD20-XT1-SI | Pedestrian | 2,000 kg | 735 mm | 1,548 mm | 6 km/h | 10% |
| CBD30-XT1-SI | Pedestrian | 3,000 kg | 735 mm | 1,548 mm | 6 km/h | 6% |
| CBD20-XT1S-SI | Stand-on | 2,000 kg | 770 mm | 1,627 mm | 9.5 km/h | 10% |
| CBD30-XT1S-SI | Stand-on | 3,000 kg | 770 mm | 1,627 mm | 7.5 km/h | 6% |
Rated at a 600 mm load centre. Figures from the Hangcha X Series pallet truck brochure.
