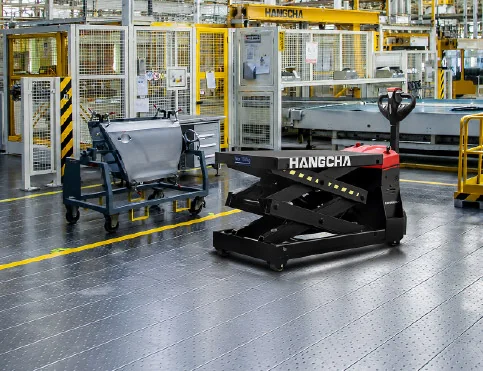

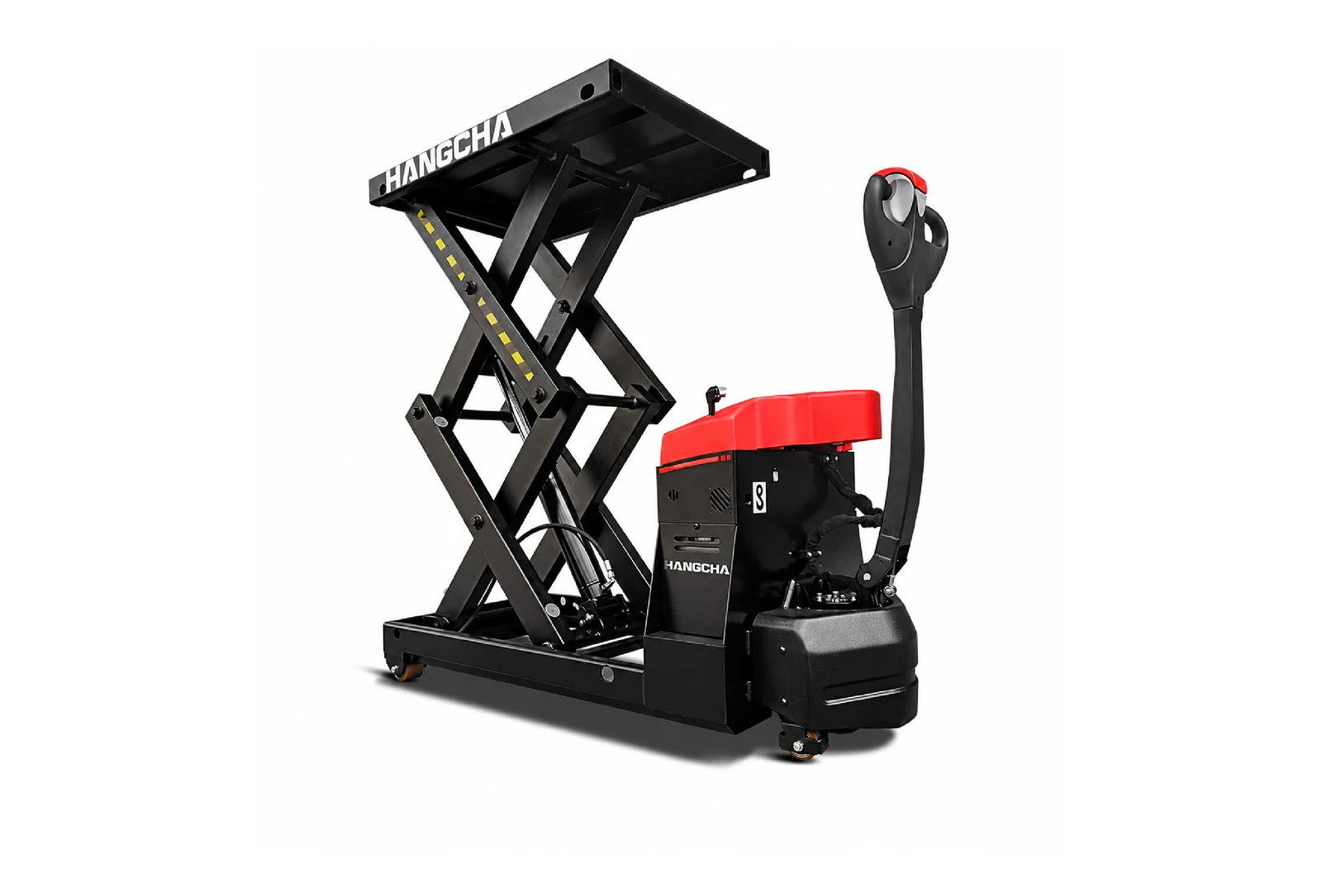

XB Series Pallet Truck with Scissor Lift
A 0.5-2.0 t pallet truck with scissor lift range for indoor warehouse operations, with platform lift heights of 1.0-2.0 m for day-to-day pallet movement where travel routes and floor conditions guide model selection.
0.5-2.0 t
Capacity
Lead-acid / Li-ion
Power
1.0-2.0 m
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XB Series Scissor Pallet Truck Model
The XB Series scissor pallet truck lifts a pallet to a comfortable working height, so staff can load or pick without bending. Choose by the weight on the platform and the height you need to reach, since capacity and lift height trade against each other.
- 2005XB (500 kg): the highest lift at 2,000 mm on a 1,000 x 680 mm platform.
- 1510XB (1,000 kg): lifts to 1,500 mm on the same 1,000 x 680 mm platform.
- 1020XB (2,000 kg): the heaviest loads, lifting to 1,000 mm on a larger 1,500 x 800 mm platform.
All three are pedestrian trucks with a permanent magnet motor, travelling at up to 2.8 km/h with 6% gradeability. XB models use a maintenance-free lead-acid battery (24V/70Ah, or 100Ah on the 1020XB) and XBI models a 24V/40Ah lithium battery. Side supports, electronic lift limits and an emergency reverse button are standard.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

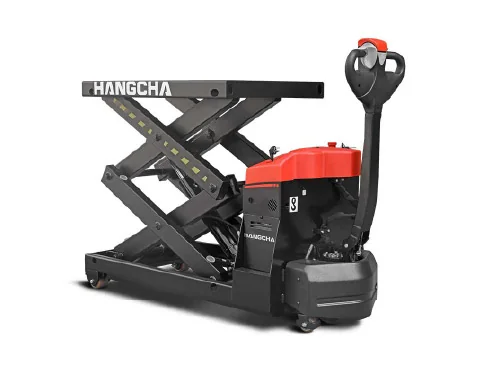

Double Scissor Lift
A double scissor design lifts the platform 1.0-2.0 m with added stability.
Side Battery Removal
The battery removes from the chassis side, and a one-piece cover eases servicing.
Full Specifications
| Capacity | 0.5-2.0 t |
|---|---|
| Power | Lead-acid / Li-ion |
| Lift Height | 1.0-2.0 m |
| Battery Type | Lead-acid / Li-ion, 24V |
| Fork Length | Not applicable - integrated scissor platform |
| Turning Radius | 1,450-2,040mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- 2005XB
- 1510XB
- 1020XB
| Model | Capacity | Max platform height | Platform size | Outside turning radius | Width | Service weight |
|---|---|---|---|---|---|---|
| 2005XB / XBI | 500 kg | 2,000 mm | 1,000 x 680 mm | 1,450 mm | 680 mm | 340 kg |
| 1510XB / XBI | 1,000 kg | 1,500 mm | 1,000 x 680 mm | 1,450 mm | 680 mm | 340 kg |
| 1020XB / XBI | 2,000 kg | 1,000 mm | 1,500 x 800 mm | 2,040 mm | 800 mm | 490 kg |
Figures from the Hangcha XB Series scissor pallet truck brochure.
