A Series Walkie Pallet Truck 2.7-3.6 t
A 2.7-3.6 t walkie pallet truck range for indoor warehouse operations, with lift heights of 150 mm and stand-on operator formats for day-to-day pallet movement where travel routes, floor conditions and operator format influence model selection.
2.7-3.6 t
Capacity
Li-ion
Power
150 mm
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the WP27Li and WP36Li Walkie Pallet Trucks

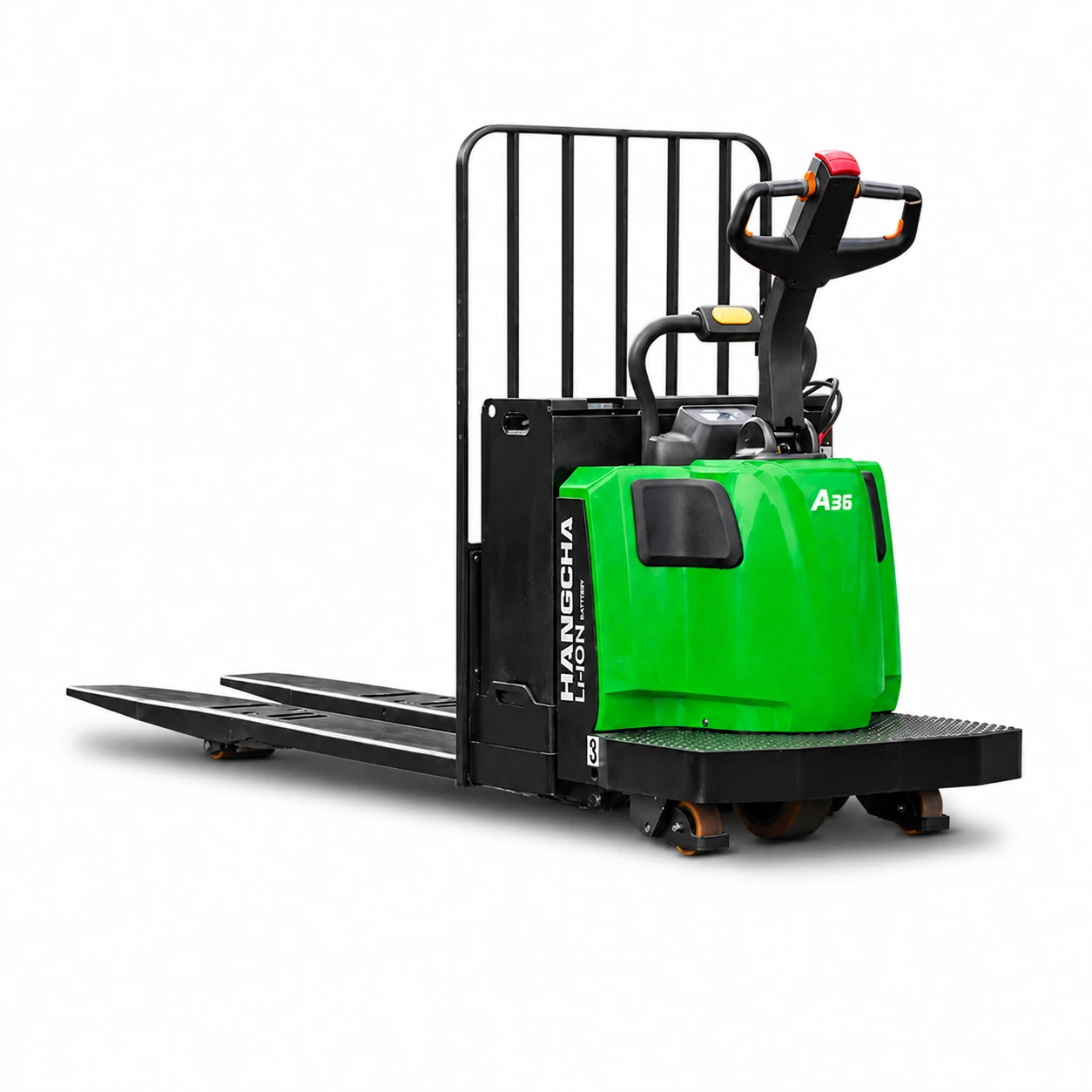

The A Series walkie pallet truck is a heavy-duty pedestrian pallet truck on a 25.6V lithium iron phosphate battery, built for high-intensity loading and picking work. Both models travel at 6 km/h laden and have fork-tip guide wheels for smoother pallet entry.
- WP27Li (2,700 kg): 10% laden and unladen gradeability, the better choice where ramps are steeper.
- WP36Li (3,600 kg): the higher capacity for heavy pallets, with 8% laden gradeability.
Both are rated at a 610 mm (24 in) load centre, lift 150 mm and are 860 mm wide with a 1,840-1,955 mm turning radius. Standard forks are 1,220 mm long, with lengths up to 3,658 mm available for moving several pallets at once. The battery is 25.6V/230Ah as standard or 460Ah as an option, with electric heating for cold conditions and anti-rollback on ramps. For a ride-on version, see the A Series end-control rider pallet truck.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Fork Lengths to 3,658 mm
Fork lengths from 1,372 mm to 3,658 mm to suit different pallet sizes and loads.
Stand-On Operation
A stand-on operator position for moving pallets across larger warehouse floors.
Full Specifications
| Capacity | 2.7-3.6 t |
|---|---|
| Power | Li-ion |
| Lift Height | 150 mm |
| Battery Type | Li-ion, 25.6V |
| Fork Length | 1,372-3,658mm (available lengths) |
| Turning Radius | 1,840-1,955mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD27
- CBD36
| Model | Capacity | Load centre | Laden travel | Laden gradeability | Turning radius | Service weight |
|---|---|---|---|---|---|---|
| WP27Li | 2,700 kg | 610 mm | 6 km/h | 10% | 1,840 / 1,955 mm | 810 kg |
| WP36Li | 3,600 kg | 610 mm | 6 km/h | 8% | 1,840 / 1,955 mm | 810 kg |
Figures from the Hangcha A Series walkie pallet truck brochure (HC Forklift America).
