X Series Rider Pallet Truck 2-3 t
A 2-3 t rider pallet truck range for indoor warehouse operations, with lift heights of 125 mm and rider operator formats for day-to-day pallet movement where travel routes, floor conditions and operator format influence model selection.
2-3 t
Capacity
Li-ion
Power
125 mm
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Rider Pallet Truck: 2 t or 3 t

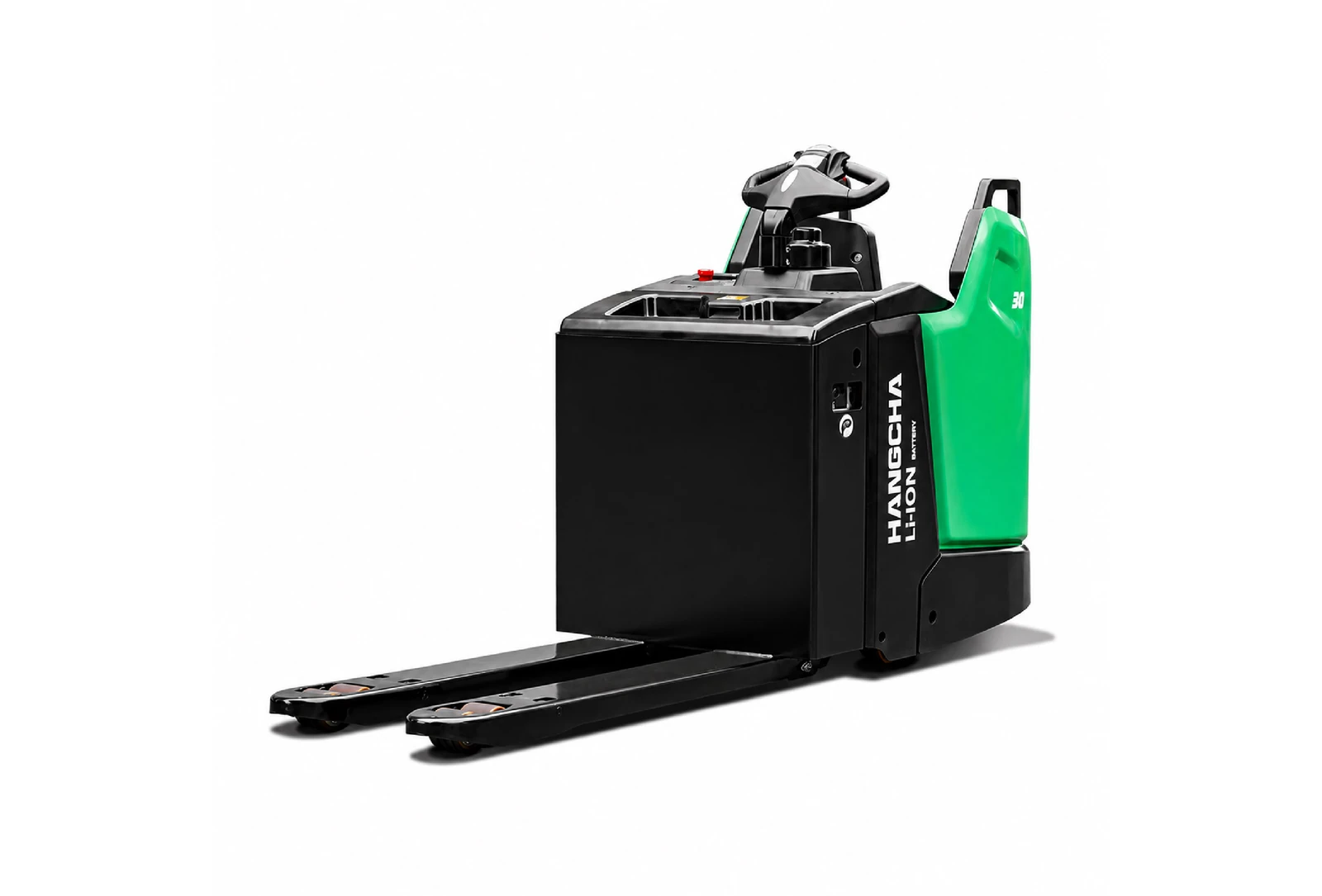

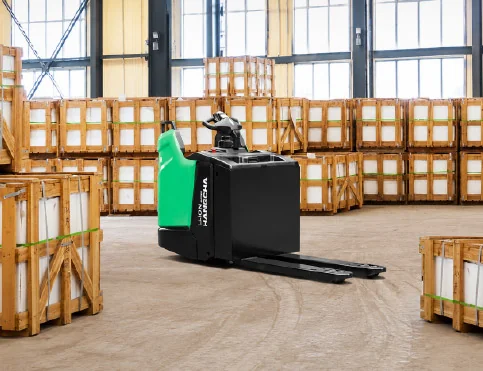

The Hangcha X Series rider pallet truck moves 2,000 or 3,000 kg at a 600 mm load centre with the operator standing on board, for long runs across warehouses and loading docks. Both models share the same 770 mm wide, 2,290 mm long chassis and a 48V/105Ah battery.
- CBD20-XT1S-SISU: 2,000 kg, travelling at 9.5 km/h laden and 12.5 km/h unladen, with 10% laden gradeability.
- CBD30-XT1S-SISU: 3,000 kg on the same chassis, travelling at 7.5/12.5 km/h with 6% laden gradeability.
Both turn in 2,052-2,120 mm and need a 2,490 mm aisle for 1000 x 1200 mm pallets crossways. Forks are 1,150 mm long and 540 mm across, lifting 125 mm from 85 mm lowered. A 2.2 kW drive motor with regenerative braking and polyurethane wheels are standard, and service weight is 705 kg. For loads up to 3.6 t with a centre-control layout, compare the A Series centre-control rider pallet truck.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Floating Drive Suspension
A floating drive suspension absorbs shocks to keep the ride smooth for the operator.
Speed Control in Turns
Electric power steering, with travel speed reduced automatically during turns.
Full Specifications
| Capacity | 2-3 t |
|---|---|
| Power | Li-ion |
| Lift Height | 125 mm |
| Battery Type | Li-ion |
| Fork Length | 1,150mm |
| Turning Radius | 2,052-2,120mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CBD30
- CBD20
| Model | Capacity | Travel laden / unladen | Laden gradeability | Turning radius | Battery |
|---|---|---|---|---|---|
| CBD20-XT1S-SISU | 2,000 kg | 9.5 / 12.5 km/h | 10% | 2,052-2,120 mm | 48V / 105Ah |
| CBD30-XT1S-SISU | 3,000 kg | 7.5 / 12.5 km/h | 6% | 2,052-2,120 mm | 48V / 105Ah |
Rated at a 600 mm load centre. Overall length 2,290 mm, width 770 mm. Figures from the Hangcha X Series rider pallet truck brochure (2025).
