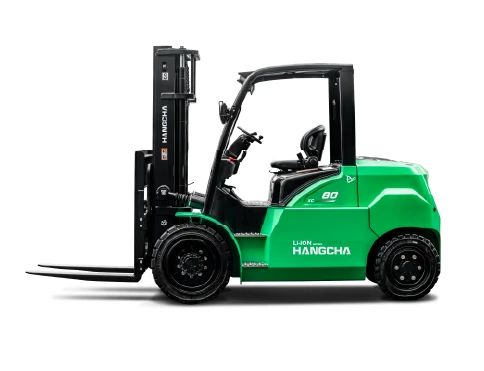

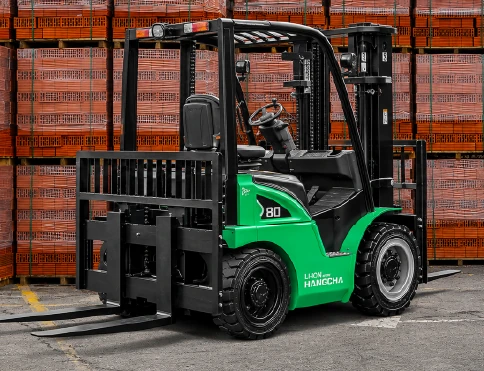

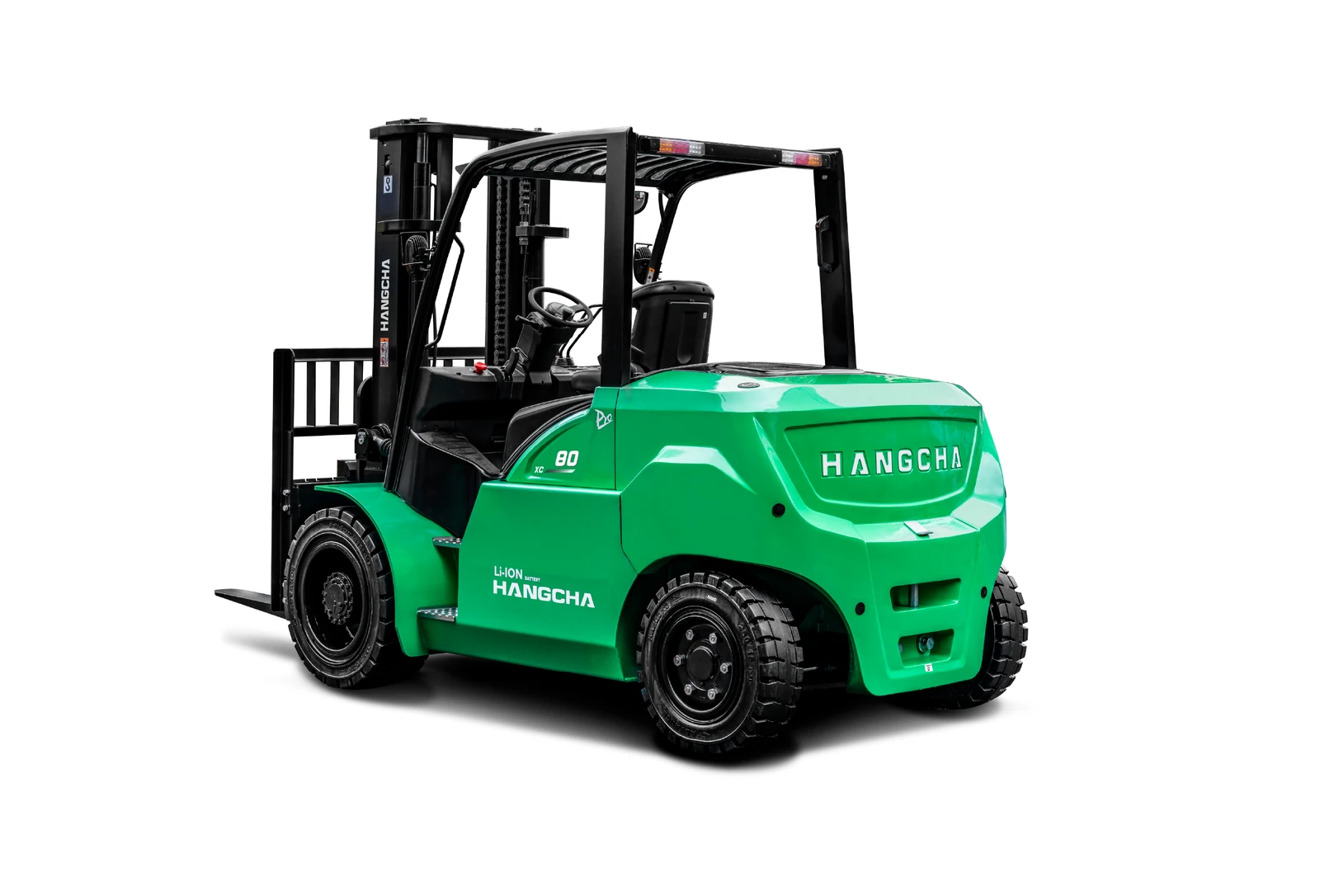

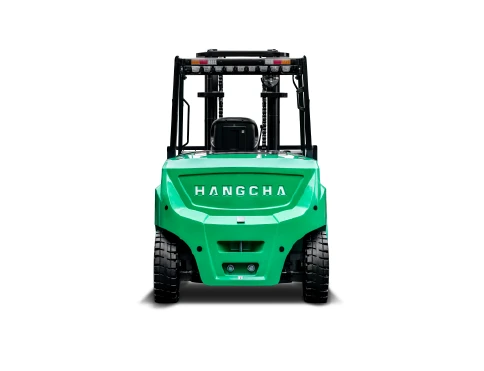

XC Series 4-Wheel Electric Forklift 6-10 t
A 6-10 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
6-10 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series 6-10 t Model: AC or PMSM
The XC Series 6-10 t is a lithium-only 96V forklift on solid tyres, built on two platforms: XCD4 models with AC asynchronous drive and XCY2 models with permanent magnet synchronous drive. Both are rated IPX4 and carry a 6-year or 12,000-hour battery warranty.
- CPD60, CPD70 and CPD80 (6-8 t): a 3,140 mm turning radius and 17-18 km/h laden travel, with a 96V/690Ah battery as standard.
- CPD80 L, CPD90 and CPD100 (8-10 t): dual front tyres, a 3,350 mm turning radius and a 96V/920Ah battery. The CPD80 L is rated at a 900 mm load centre for long loads.
- AC or PMSM: on the 6-8 t models the PMSM version has a 40 kW drive motor and twin 28 kW lift motors against 32 kW and twin 23 kW for AC. On the 8 t L to 10 t models, PMSM travels at 17 km/h laden against 15 km/h.
Laden gradeability is 15-19% and masts reach 7 m, with a -30°C cold storage option. For engine-style outdoor work on pneumatic tyres, compare the XE Series 6-10 t.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
6-10 t Capacity Range
Rated capacities of 6-10 t for heavy loads in warehouse and indoor handling work.
Lift Heights to 7 m
Lift heights of up to 7 m with a 3,140-3,350 mm turning radius for heavy floor stacking.
Full Specifications
| Capacity | 6-10 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 96V |
| Turning Radius | 3,140-3,350mm |
| Gradeability | Up to 29% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD60
- CPD70
- CPD80
- CPD90
- CPD100
| Model | Capacity | Load centre | Capacity at 7 m (dual tyres) | Turning radius | Battery (std) | Laden gradeability |
|---|---|---|---|---|---|---|
| CPD60-XCY2 / XCD4-SI | 6,000 kg | 600 mm | 4,000 kg | 3,140 mm | 96V / 690Ah | 19% |
| CPD70-XCY2 / XCD4-SI | 7,000 kg | 600 mm | 4,200 kg | 3,140 mm | 96V / 690Ah | 18% |
| CPD80-XCY2 / XCD4-SI | 8,000 kg | 600 mm | 5,200 kg | 3,140 mm | 96V / 690Ah | 16% |
| CPD80-XCLY2 / XCLD4-SI | 8,000 kg | 900 mm | 5,500 kg | 3,350 mm | 96V / 920Ah | 16% |
| CPD90-XCY2 / XCD4-SI | 9,000 kg | 600 mm | 6,000 kg | 3,350 mm | 96V / 920Ah | 16% |
| CPD100-XCY2 / XCD4-SI | 10,000 kg | 600 mm | 7,000 kg | 3,350 mm | 96V / 920Ah | 15% |
Figures from the Hangcha XC Series 6-10 t brochure.
