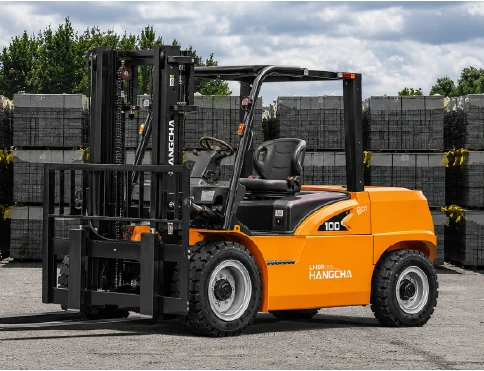

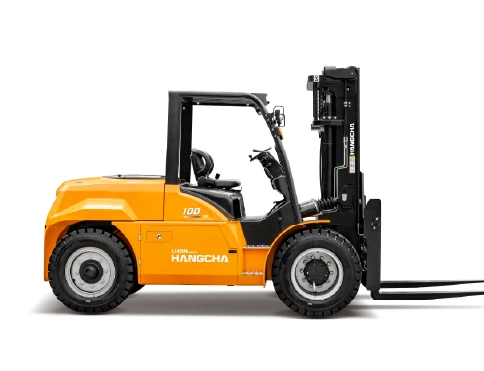

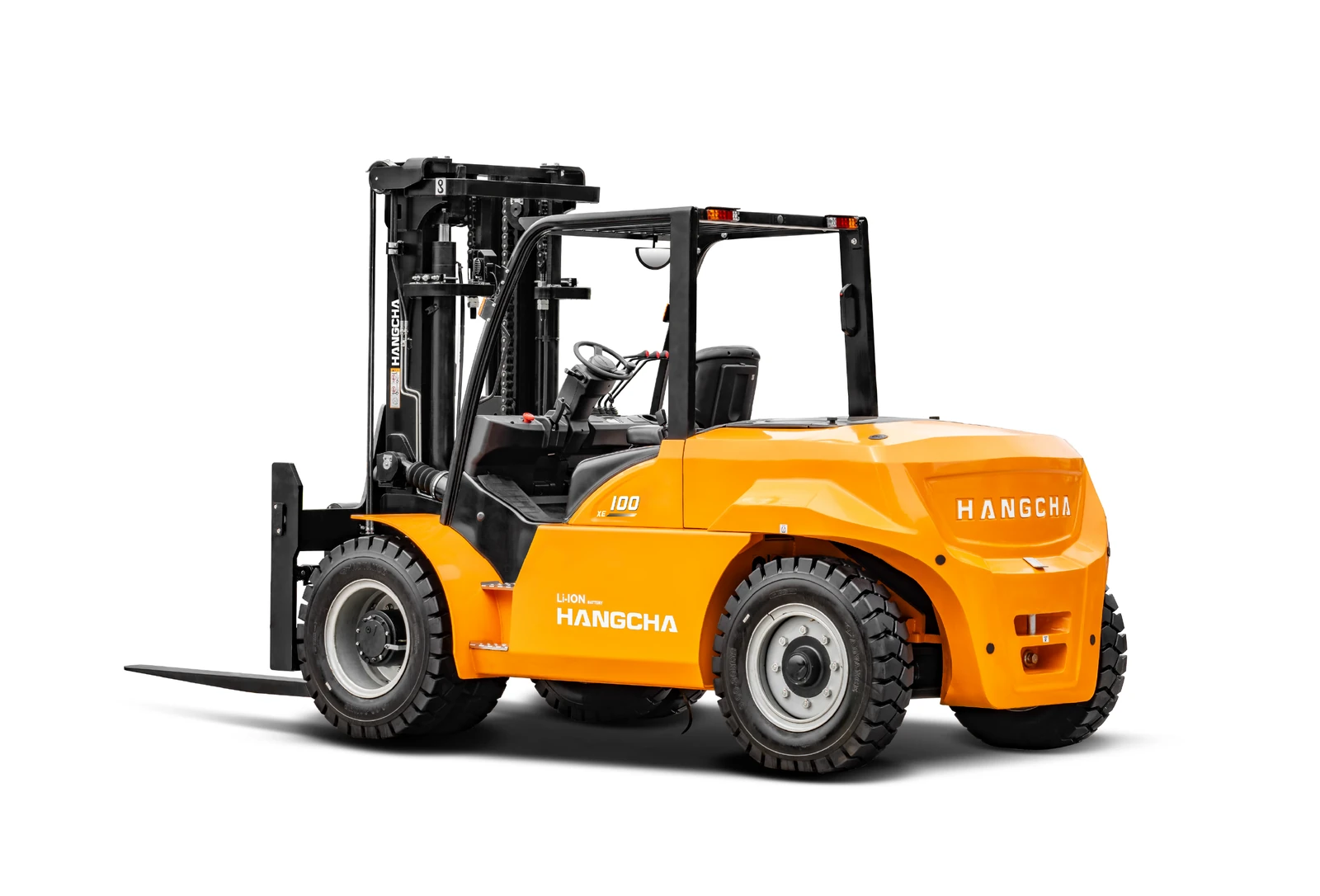

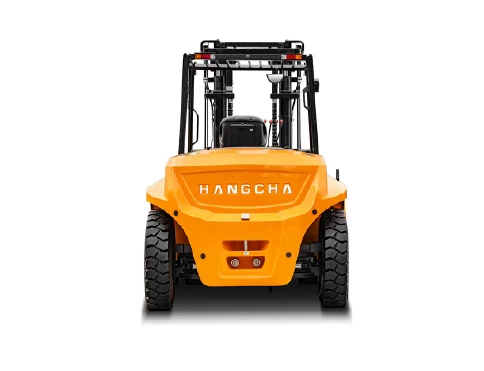

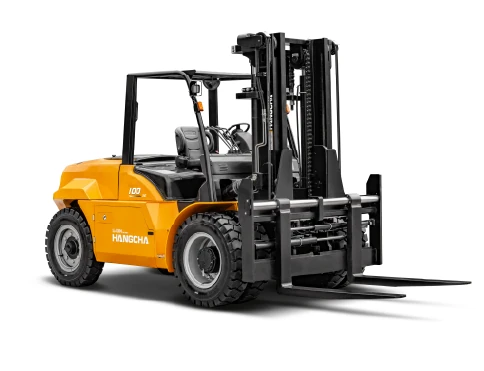

XE Series 4-Wheel Electric Forklift 6-10 t
A 6-10 tonne 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
6-10 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XE Series 6-10 t Model
The XE Series 6-10 t uses an IC truck frame, axles and large pneumatic tyres with a 96V lithium battery and permanent magnet synchronous drive, so it suits outdoor yards and rough surfaces where an engine forklift would normally work. It produces no exhaust at the point of use, like every battery electric forklift.
- CPD60 and CPD70 (6-7 t): 19 km/h laden travel, 19-20% laden gradeability and a 3,360 mm turning radius on 8.25-15 tyres, with a 96V/560Ah battery as standard.
- CPD80, CPD90 and CPD100 (8-10 t): 9.00-20 tyres for heavier loads, a 3,740 mm turning radius and a 96V/690Ah battery as standard, with up to 1,216Ah as an option.
All five are rated at a 600 mm load centre with masts up to 7 m and IPX4 protection. Quick-change battery packs and dual-gun fast charging are standard, and the battery has a 6-year or 12,000-hour warranty. On smoother floors, the XC Series 6-10 t turns tighter on solid tyres.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Heavy 6-10 t Capacity
Handles loads of 6-10 t with lift heights of up to 7 m for heavy handling work.
Climbs Ramps to 30%
Rated gradeability of up to 30% for loading ramps and inclines between work areas.
Full Specifications
| Capacity | 6-10 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 96V |
| Turning Radius | 3,360-3,740mm |
| Gradeability | Up to 30% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD60
- CPD70
- CPD80
- CPD90
- CPD100
| Model | Capacity | Capacity at 7 m | Turning radius | Aisle (1000 x 1200 crossways) | Battery (std) | Laden gradeability |
|---|---|---|---|---|---|---|
| CPD60-XEY2-SI | 6,000 kg | 3,100 kg | 3,360 mm | 5,163.5 mm | 96V / 560Ah | 20% |
| CPD70-XEY2-SI | 7,000 kg | 3,600 kg | 3,360 mm | 5,168.5 mm | 96V / 560Ah | 19% |
| CPD80-XEY2-SI | 8,000 kg | 4,000 kg | 3,740 mm | 5,653.8 mm | 96V / 690Ah | 19% |
| CPD90-XEY2-SI | 9,000 kg | 4,800 kg | 3,740 mm | 5,665.8 mm | 96V / 690Ah | 16% |
| CPD100-XEY2-SI | 10,000 kg | 5,200 kg | 3,740 mm | 5,665.8 mm | 96V / 690Ah | 15% |
Rated at a 600 mm load centre. Figures from the Hangcha XE Series 6-10 t brochure.
