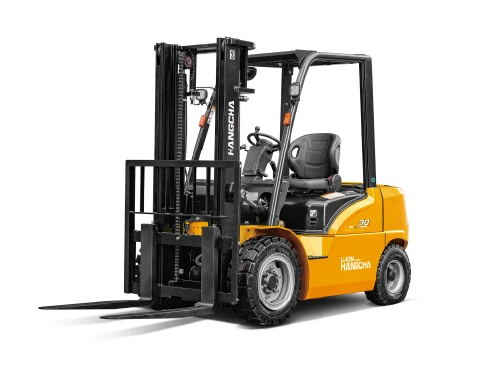

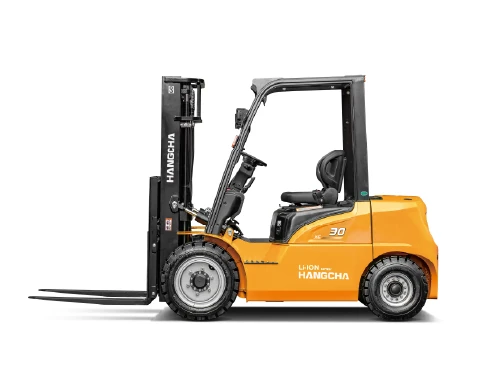

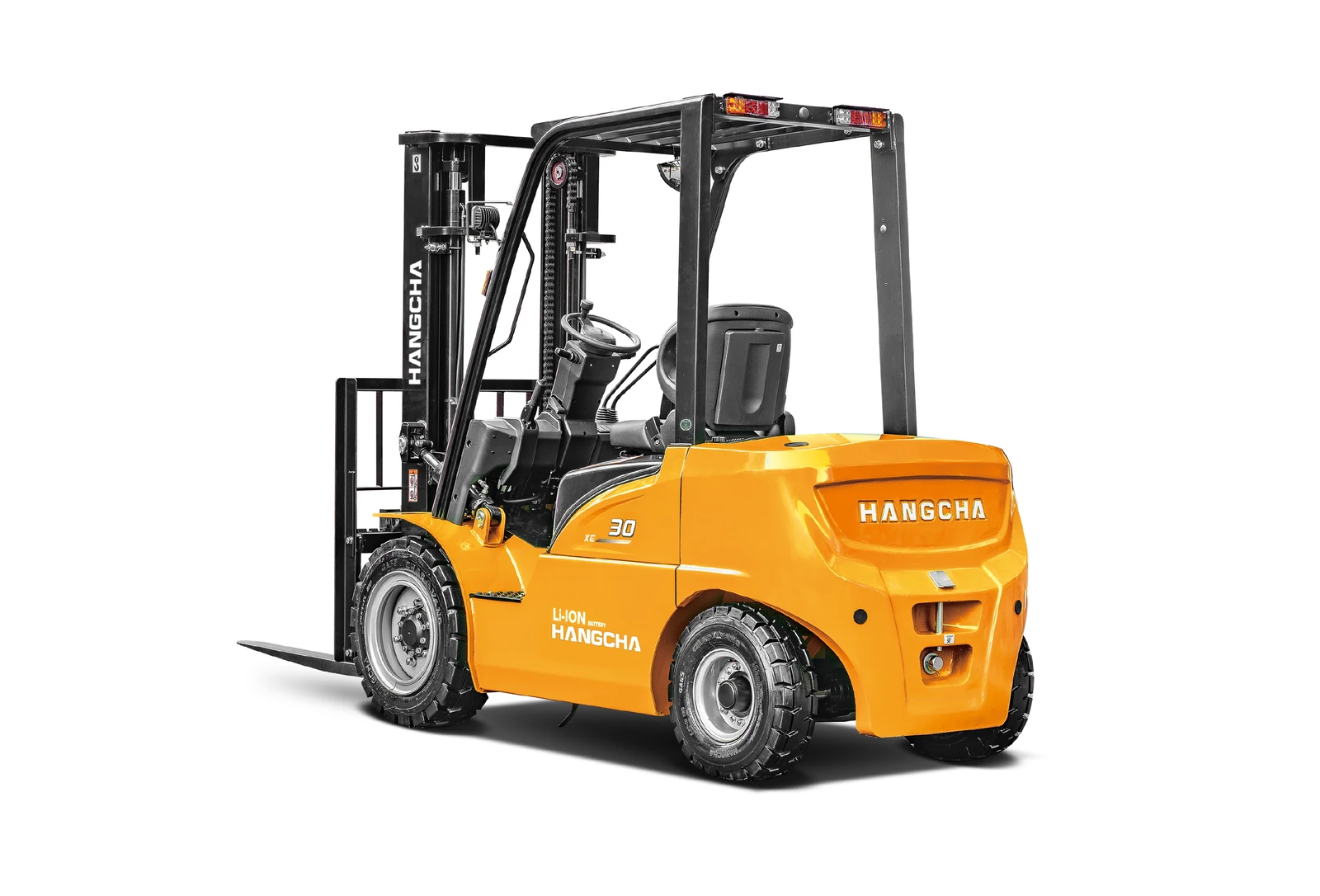

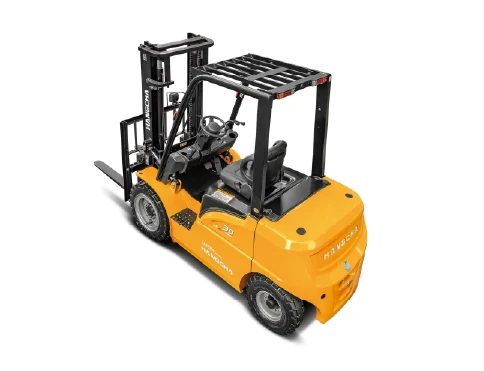

XE Series 4-Wheel Electric Forklift 1.5-3.8 t

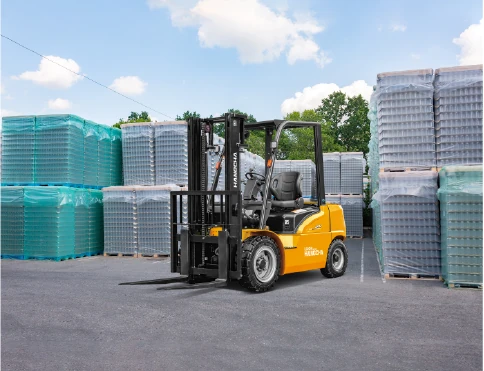

A 1.5-3.8 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery options for day-to-day material handling.
1.5-3.8 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XE Series 1.5-3.8 t Model and Version

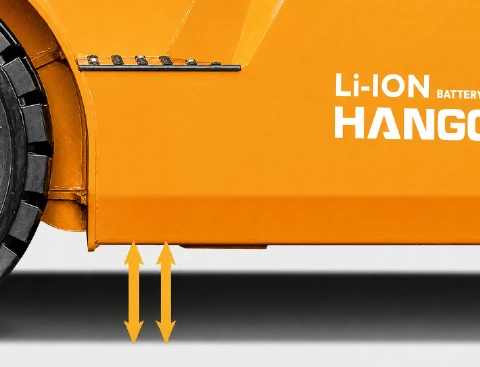

The XE Series 1.5-3.8 t is built for work usually done by engine forklifts, with IC truck axles and tyres, extra ground clearance and an 80V dual permanent magnet synchronous motor system. It comes in two versions, HA and the higher-output H2.
- CPD15, CPD18 and CPD20 mini (1.5-2 t): the compact chassis, with a 2,035 mm turning radius, 10 kW drive motor and an 80V/150Ah battery as standard.
- HA models CPD20 to CPD38 (2-3.8 t): 16 kW drive and 24 kW lift motors, 16-17 km/h laden travel and an 80V/230Ah battery as standard.
- H2 models CPD20 to CPD38 (2-3.8 t): 20 kW drive and 28 kW lift motors, 19.5-20 km/h laden travel, faster lifting and a larger 304-460Ah battery for heavier daily duty.
All models are rated at a 500 mm load centre with IPX4 protection and battery heating for cold weather. Masts reach 6 m on the 1.5-2 t compact models and 7 m on the larger trucks, and the 3.5-3.8 t models can take a 4.5 m container mast. Maximum unladen gradeability is 25% across the range.
Practical Features for Daily Operation
Electric Power

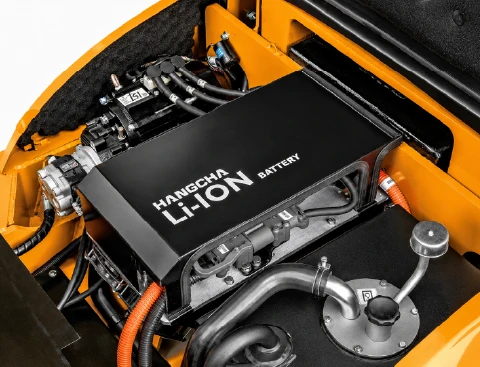

Li-ion electric drive with front-wheel traction for indoor floors and outdoor slopes.

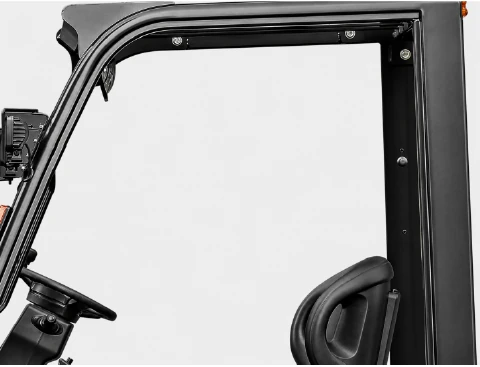

Adjustable Seat and Steering
An adjustable steering wheel and seat let each operator set a comfortable driving position.
Wide-View Mast
A wide-view mast aids sightlines, with an emergency shut-off switch and optional seat sensor.
Full Specifications
| Capacity | 1.5-3.8 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 80V |
| Turning Radius | 2,035-2,420mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD15
- CPD18
- CPD20
- CPD25
- CPD30
- CPD35
- CPD38
| Model | Capacity | Version | Drive / lift motor | Battery (std) | Laden travel | Turning radius |
|---|---|---|---|---|---|---|
| CPD15-XEY2HA-SI | 1,500 kg | HA | 10 / 13 kW | 80V / 150Ah | 15 km/h | 2,035 mm |
| CPD18-XEY2HA-SI | 1,800 kg | HA | 10 / 13 kW | 80V / 150Ah | 15 km/h | 2,035 mm |
| CPD20-XEXY2HA-SI (mini) | 2,000 kg | HA | 10 / 13 kW | 80V / 150Ah | 15 km/h | 2,035 mm |
| CPD20-XEY2HA-SI | 2,000 kg | HA | 16 / 24 kW | 80V / 230Ah | 16 km/h | 2,200 mm |
| CPD25-XEY2HA-SI | 2,500 kg | HA | 16 / 24 kW | 80V / 230Ah | 16 km/h | 2,200 mm |
| CPD30-XEY2HA-SI | 3,000 kg | HA | 16 / 24 kW | 80V / 230Ah | 17 km/h | 2,350 mm |
| CPD35-XEY2HA-SI | 3,500 kg | HA | 16 / 24 kW | 80V / 230Ah | 17 km/h | 2,350 mm |
| CPD38-XEY2HA-SI | 3,800 kg | HA | 16 / 24 kW | 80V / 230Ah | 17 km/h | 2,350 mm |
| CPD20-XEY2H2-SI | 2,000 kg | H2 | 20 / 28 kW | 80V / 304Ah | 20 km/h | 2,200 mm |
| CPD25-XEY2H2-SI | 2,500 kg | H2 | 20 / 28 kW | 80V / 304Ah | 20 km/h | 2,200 mm |
| CPD30-XEY2H2-SI | 3,000 kg | H2 | 20 / 28 kW | 80V / 460Ah | 20 km/h | 2,420 mm |
| CPD35-XEY2H2-SI | 3,500 kg | H2 | 20 / 28 kW | 80V / 460Ah | 20 km/h | 2,420 mm |
| CPD38-XEY2H2-SI | 3,800 kg | H2 | 20 / 28 kW | 80V / 460Ah | 19.5 km/h | 2,420 mm |
Rated at a 500 mm load centre with the standard 3,000 mm mast. Figures from the Hangcha XE Series 1.5-3.8 t brochure.
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Servicing & Repairs
Keep equipment reliable with scheduled service and breakdown support.
