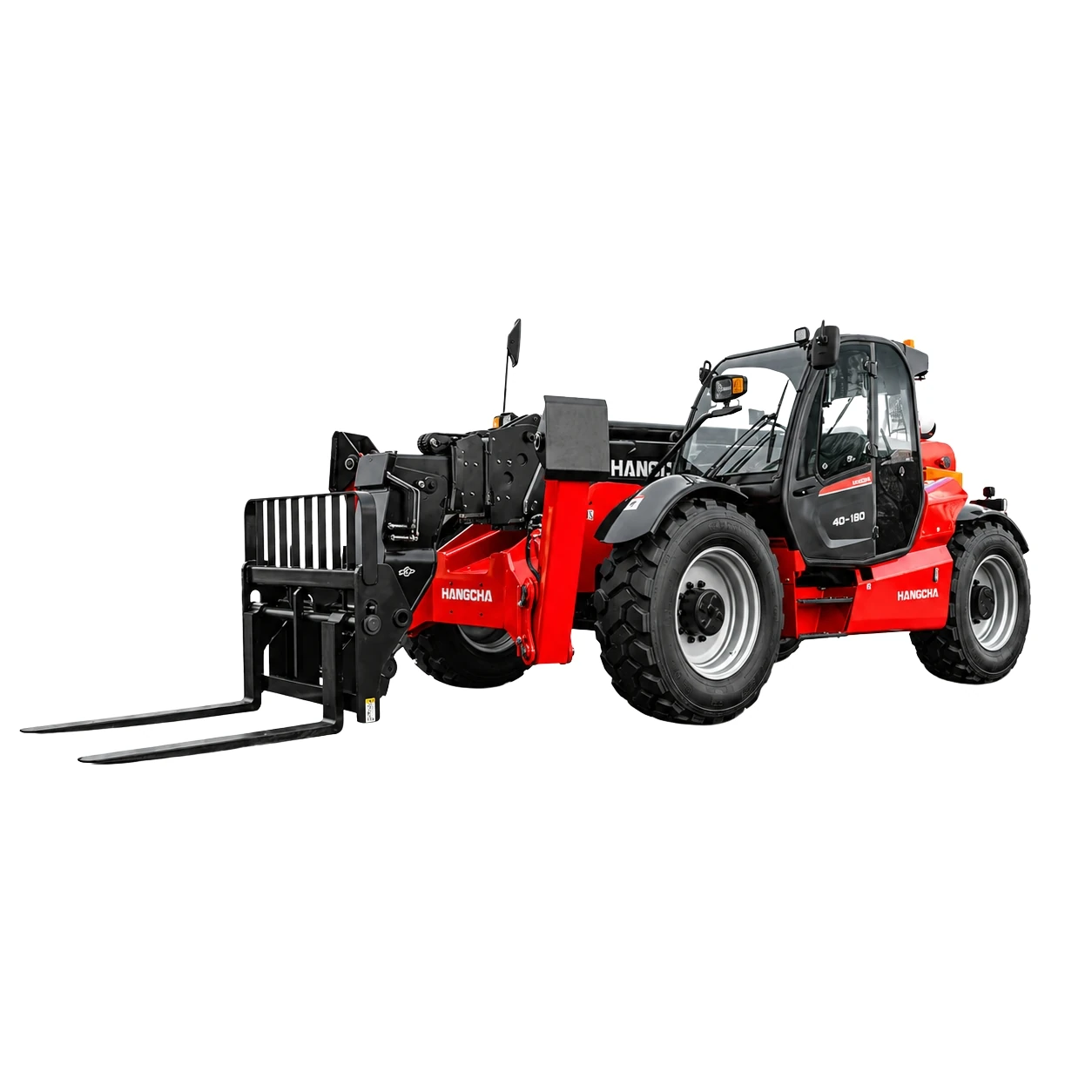

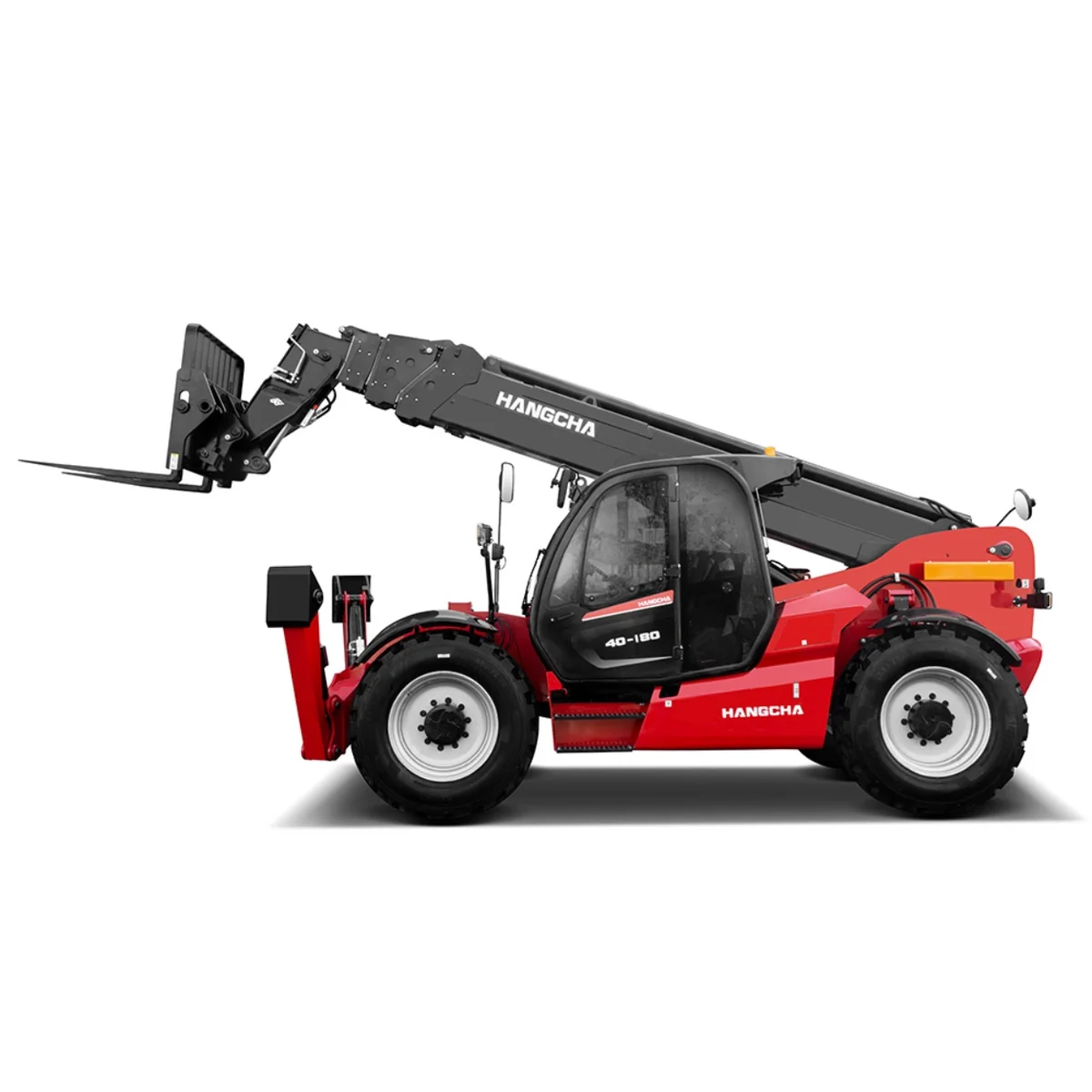

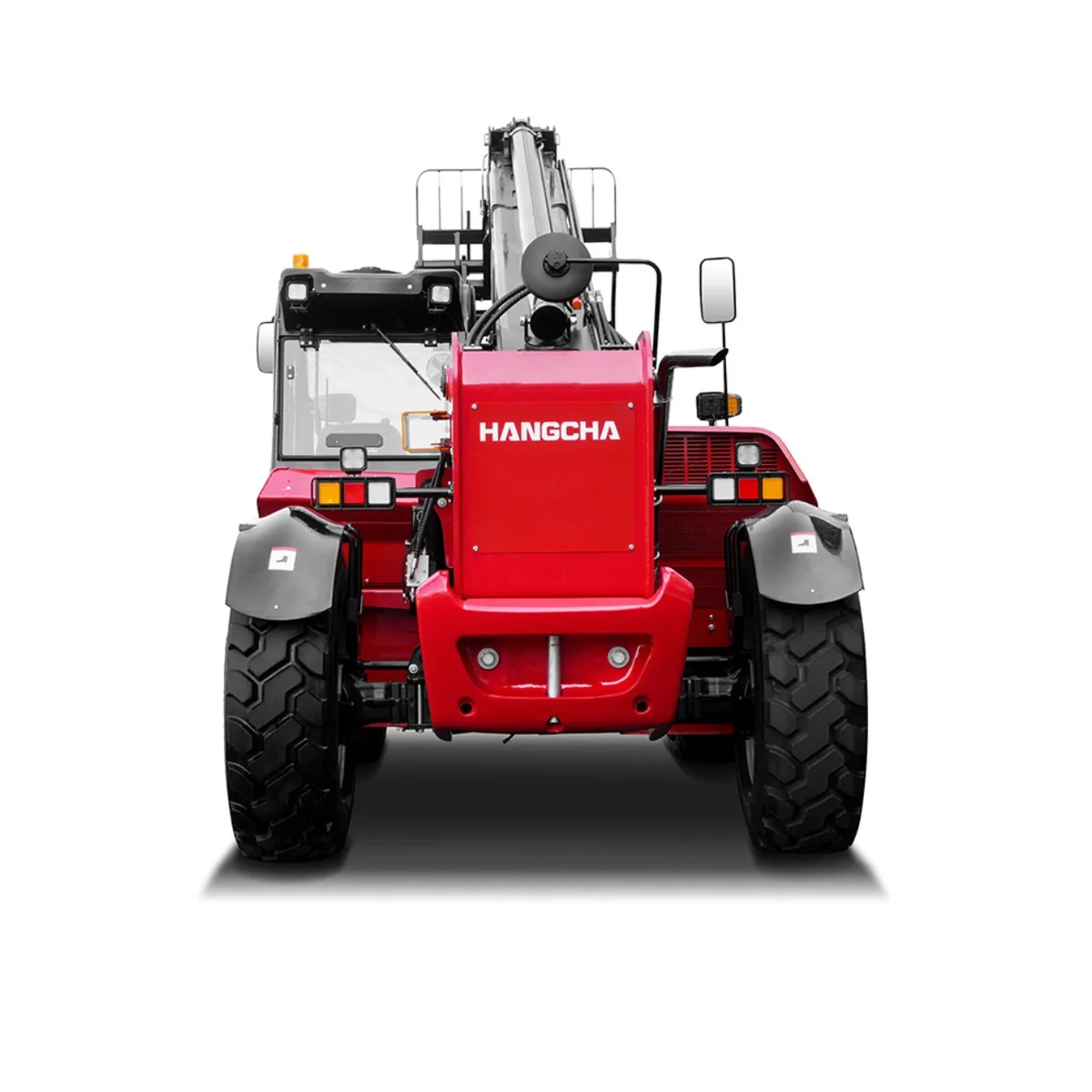

Hangcha X Series Telehandler 4T
A 4 t rough terrain telehandler for outdoor work on uneven ground, with a lift height of up to 17.7 m and forward reach of up to 13.02 m.
4 t
Capacity
Diesel
Power
Up to 17.7 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Telehandler: Engine and Stabilisers
The Hangcha X Series diesel telehandler lifts 4,000 kg at a 500 mm load centre to a maximum height of 17.7 m, with a forward reach of 13.02 m. Two models share the same boom, cab and chassis and differ only in engine: the T40-180XH16D with a 90 kW Cummins F3.8, and the T40-180XW70D with an 86 kW Cummins QSF3.8.

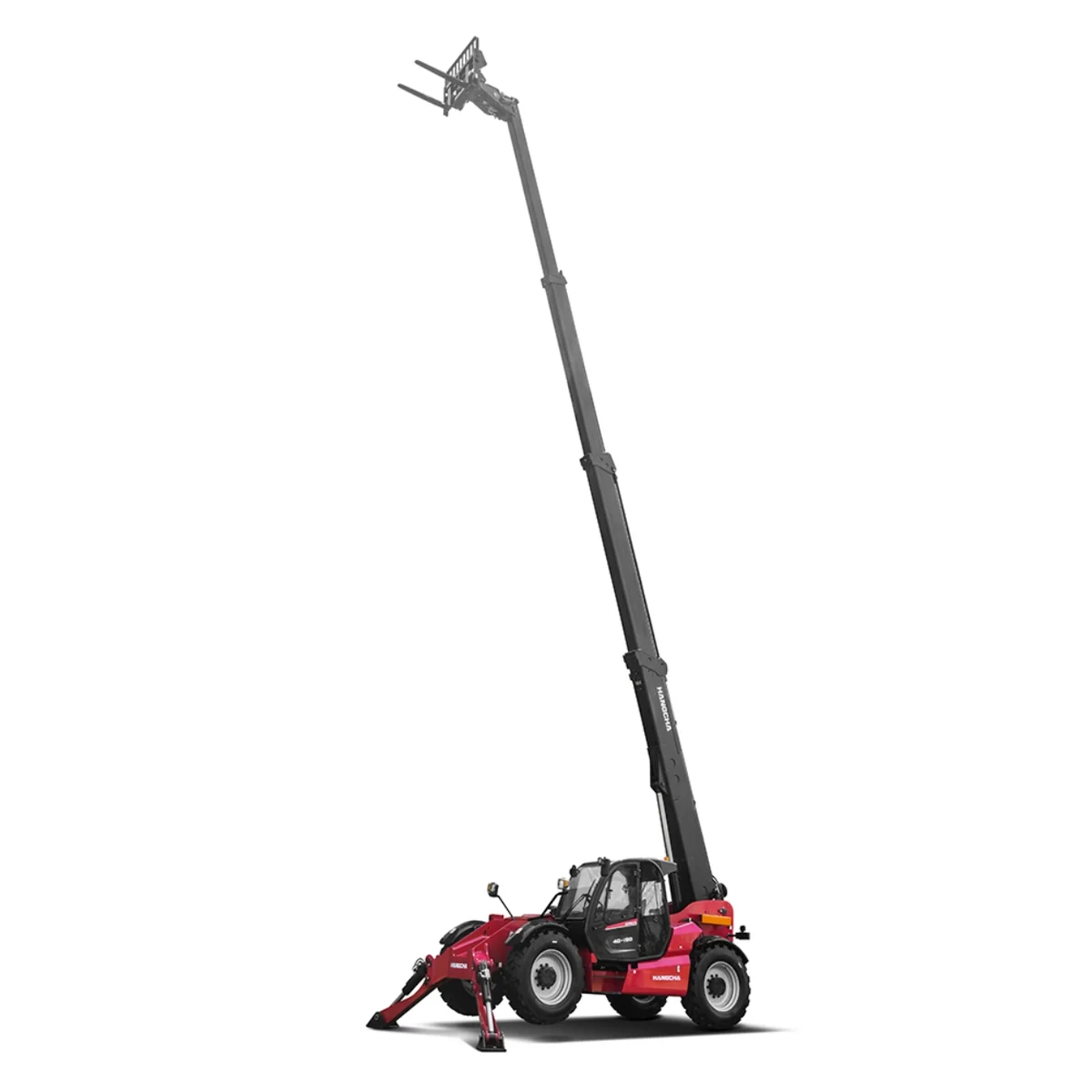

- Stabilisers down: 17.7 m of lift and 13.02 m of reach, carrying 2,500 kg at full height and 850 kg at full reach.
- Stabilisers up: the load chart drops to 12.72 m of height and 9.61 m of reach, with 400 kg at full reach, so plan stabiliser use for high or long placements.
- Chassis: 4x4 drive with a 2WD/4WD switch, front, crab and circle steering, frame levelling up to 10° and 400 mm of ground clearance.
The telehandler travels at up to 35 km/h with 4 forward and 3 reverse gears, climbs 40% grades and turns in 4,100 mm on 400/75-28 tyres. A load moment limiter, quick-change fork carriage and hydraulic quick coupler are standard, and a bucket, crane arm and soft bag clamp are optional attachments. For battery power and a lighter machine, compare the XH Series high-voltage telehandler.
Practical Features for Daily Operation
4WD Rough Terrain Drive
Four-wheel drive and rough terrain tyres for outdoor sites and uneven ground.

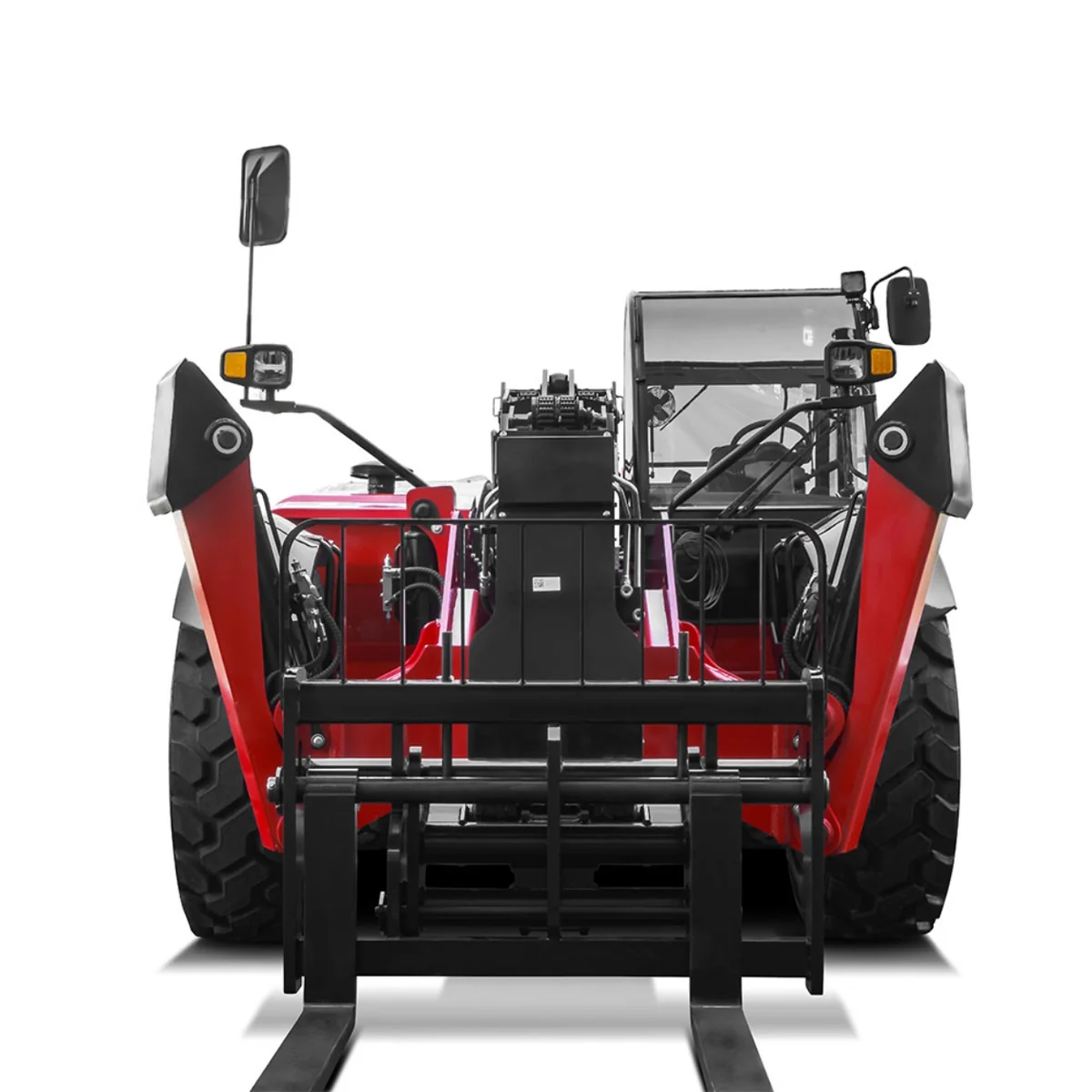

Front Stabilisers
Front stabilisers give a steadier base when lifting at full height or reach.

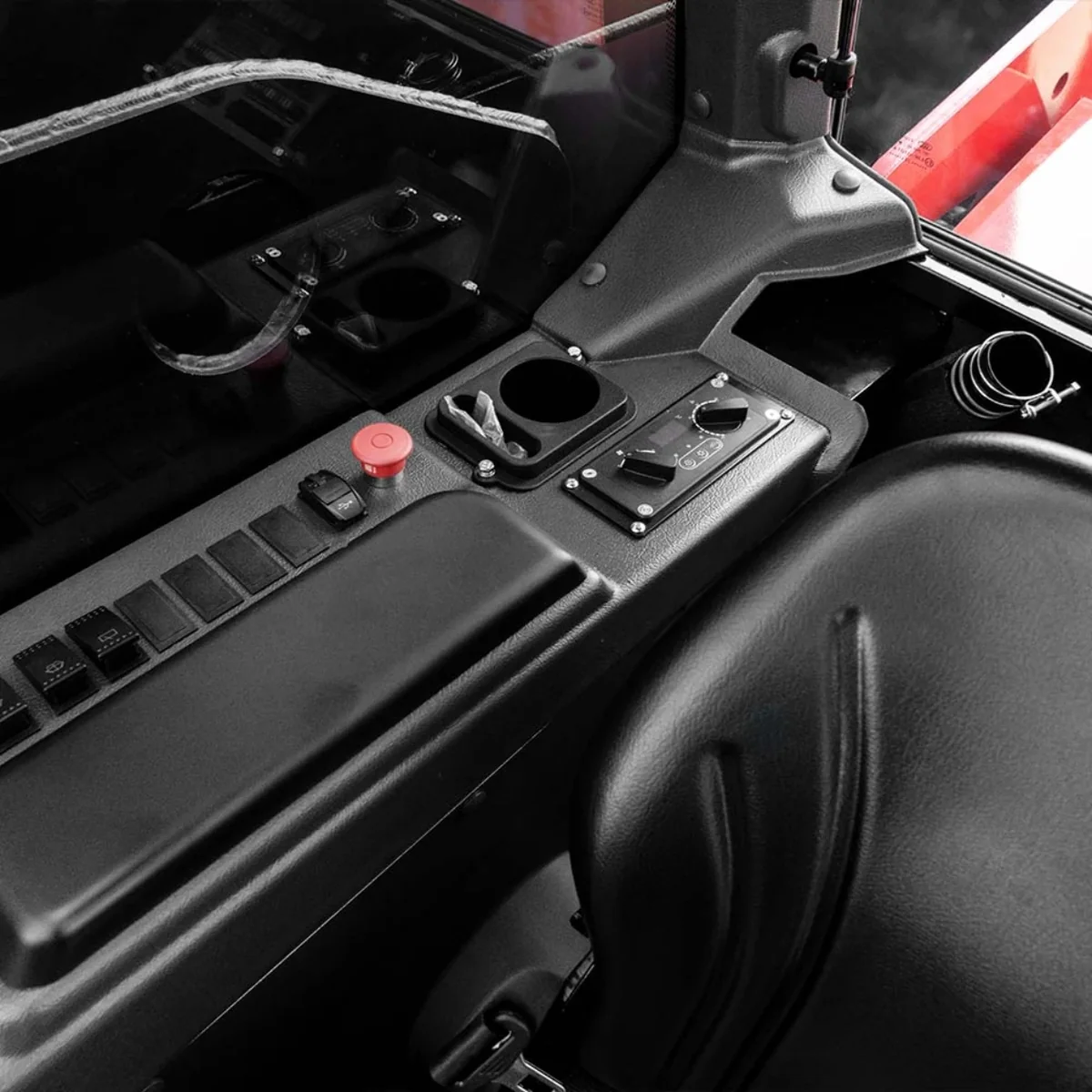

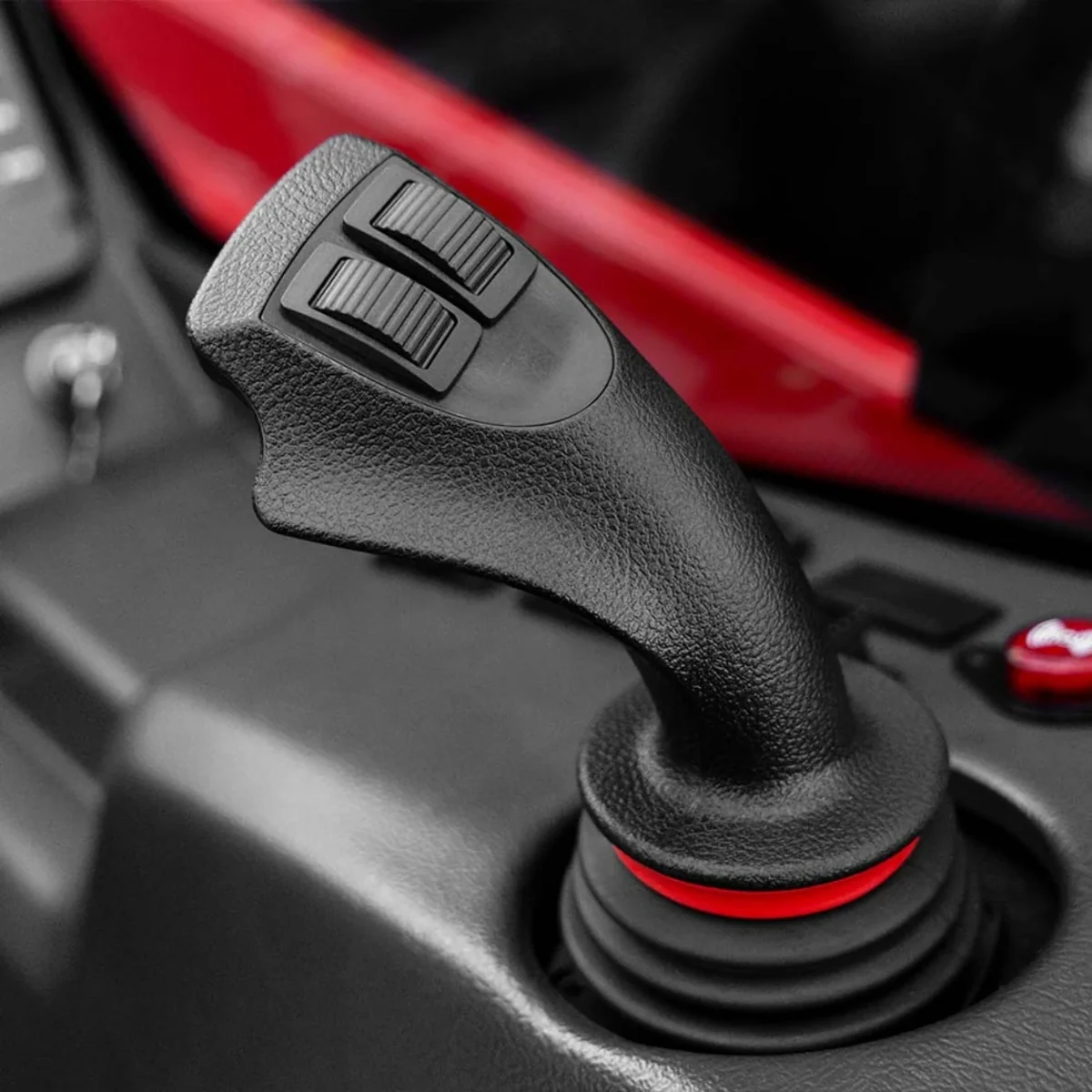

Enclosed Joystick Cab
Enclosed cab with single-joystick boom control and a clear view to the forks.
Full Specifications
| Capacity | 4 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 17.7 m |
| Drive System | 4WD (telehandler) |
| Ground Clearance | 400mm |
| Power / Fuel Type | Diesel |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- T40
| Model | Engine | Engine power | Capacity | Max lift / reach | Drawbar pull | Service weight |
|---|---|---|---|---|---|---|
| T40-180XH16D | Cummins F3.8 | 90 kW | 4,000 kg | 17.7 m / 13.02 m | 80 kN | 13,700 kg |
| T40-180XW70D | Cummins QSF3.8 | 86 kW | 4,000 kg | 17.7 m / 13.02 m | 70 kN | 13,650 kg |
Lift and reach with stabilisers down; with stabilisers up the chart gives 12.72 m and 9.61 m. Rated at a 500 mm load centre. Figures from the Hangcha X Series diesel telehandler brochure (2026).
