Hangcha XH Series Telehandler 2.5-3.5T
A 2.5-3.5 tonne rough terrain forklift range for outdoor work on uneven ground, with lift heights of up to 9.8 m for load handling where ground conditions shape model selection.
2.5-3.5 t
Capacity
Lithium-ion
Power
Up to 9.8 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XH Series High-Voltage Telehandler: 2.5 t or 3.5 t
The Hangcha XH Series is a battery-electric telehandler with a 310V lithium iron phosphate battery and permanent magnet motors, so it produces no exhaust indoors or outdoors. This electric telehandler comes in two sizes that differ in more than capacity: the T35 is almost twice the weight and reaches much higher.
- T25-60XHYG: 2,500 kg, 5.8 m of lift and 3.31 m of reach, with 800 kg at full reach. At 1,820 mm wide and 5,500 kg it is the compact choice, with 240 mm of ground clearance.
- T35-100XHYG: 3,500 kg, 9.8 m of lift and 7.0 m of reach, with 2,500 kg at full height. It adds frame levelling and 400 mm of ground clearance, at 9,600 kg.
- Charging: a built-in 3 kW (single phase) or 10 kW (three phase) charger, plus a DC fast-charge port quoted at 30% to 80% in 30 minutes.
Both models travel at up to 25 km/h, climb 45% grades and have 4x4 drive with a 2WD/4WD switch and three steering modes. A load moment limiter, quick-change fork carriage and hydraulic quick coupler are standard, with a bucket, bale clamp, crane arm and fork-mounted work platform as options. The X Series diesel telehandler lifts 4,000 kg to 17.7 m on diesel power.
Practical Features for Daily Operation
High-Voltage Telehandler
High performance operation suited to any situations.

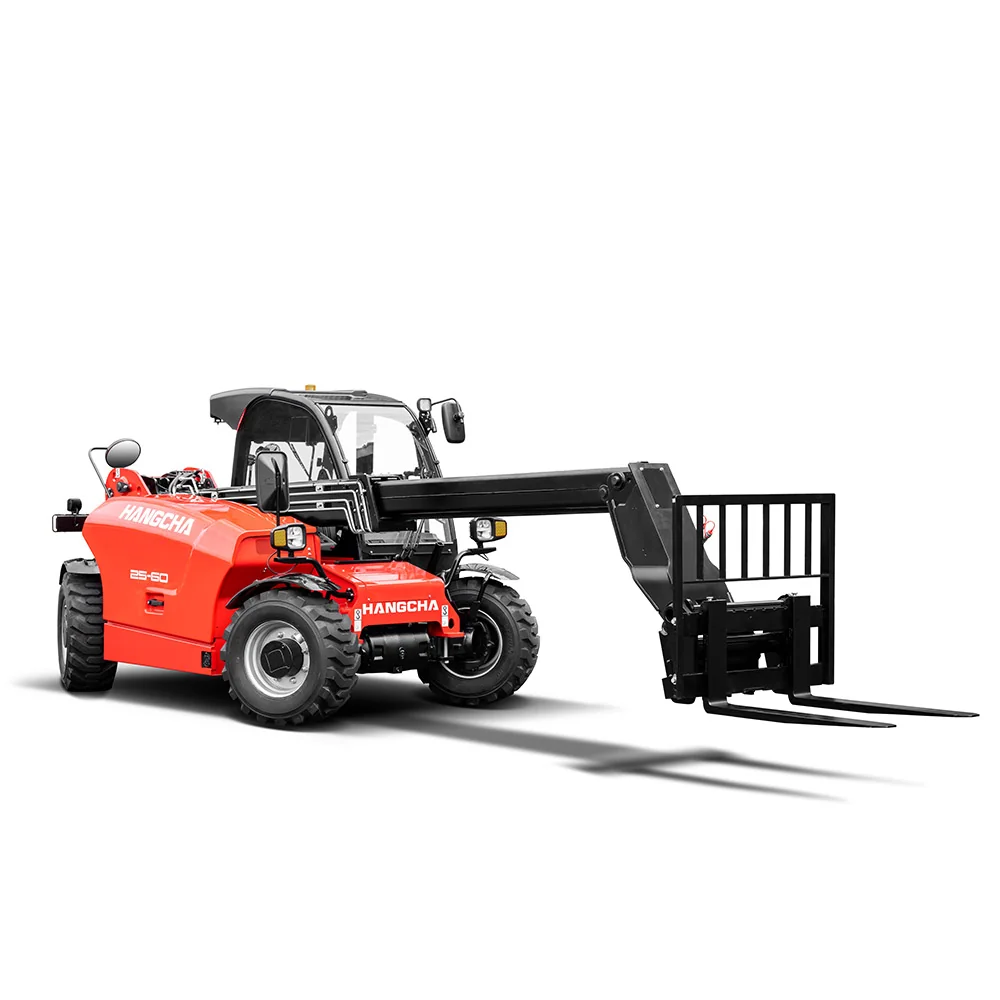

Forward Reach to 7 m
Forward reach of up to 7 m and lift heights of up to 9.8 m for placing loads at height.
Overload and Tilt Protection
Overload and tilt protection, plus a display with real-time status and fault diagnostics.
Full Specifications
| Capacity | 2.5-3.5 t |
|---|---|
| Power | Lithium-ion |
| Lift Height | Up to 9.8 m |
| Drive System | 4WD (telehandler) |
| Ground Clearance | 240-400mm |
| Power / Fuel Type | Lithium-ion |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- T25
- T35
| Model | Capacity | Max lift | Max reach | Battery | Ground clearance | Service weight |
|---|---|---|---|---|---|---|
| T25-60XHYG | 2,500 kg | 5.8 m | 3.31 m | 310V / 150Ah (46 kWh) | 240 mm | 5,500 kg |
| T35-100XHYG | 3,500 kg | 9.8 m | 7.0 m | 310V / 173Ah (53 kWh) | 400 mm | 9,600 kg |
Rated at a 500 mm load centre. Capacity at full reach: 800 kg (T25), 500 kg (T35). Figures from the Hangcha XH Series high-voltage telehandler brochure (2025).
Everything You Need After the Product Decision
DJJ support continues beyond the initial equipment decision, with local teams available to help with service, parts and ongoing equipment support.
Servicing & Repairs
Keep equipment reliable with scheduled service and breakdown support.
