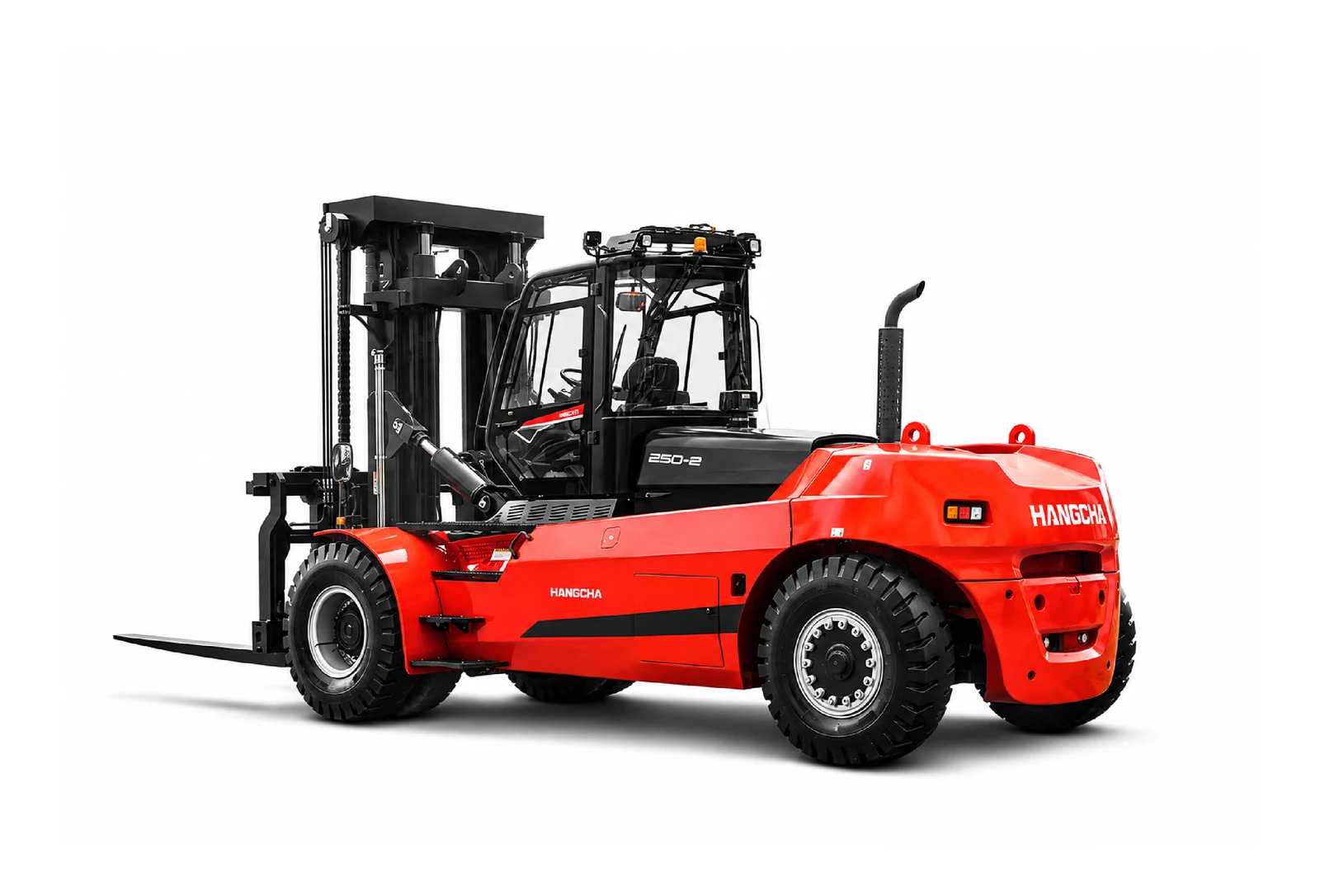

X Series Diesel Forklift 20-35 t
A 20-35 t diesel forklift range for outdoor operations, with lift heights of up to 7 m and Diesel power options for material handling where load, lift height and site conditions guide model selection.
20-35 t
Capacity
Diesel
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 20-35 t Diesel Forklift: Capacity and Engine
The Hangcha X Series 20-35 t diesel forklift covers 20, 25, 28, 30, 32 and 35 t at a 1,200 mm load centre, with a ZF 3WG 211 transmission (three forward, three reverse) and a 4,000 mm standard lift. Each capacity comes with one of three engines.
- Volvo TAD881VE (XRH10G): 185 kW and EU Stage V, the cleanest option.
- Volvo TAD851VE (XRW83G): 185 kW, Stage IIIA / Tier 3.
- Cummins QSC8.3 (XRW36G): 179 kW, Stage IIIA / Tier 3.
The 20-25 t models turn in 5,800 mm and climb 25% laden, with a 3,580 mm cab height and up to 27/31 km/h travel. The 28-35 t models are 3,420 mm wide, turn in 6,600 mm, climb 20% laden and travel at 22/25 km/h. Masts reach 7,000 mm. For 38 t and above, see the X Series diesel forklift 38-48 t.
Practical Features for Daily Operation
Cummins or Volvo Engine
Cummins or Volvo engine options for heavy 20-35 t outdoor loads.
Heavy 20-35 t Capacity
Capacities of 20-35 t for heavy outdoor loads, with lift heights of up to 7 m.
Grades Up to 25%
Pneumatic tyres and gradeability of up to 25% for outdoor ramps and yards.
Full Specifications
| Capacity | 20-35 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 7 m |
| Engine | CUMMINS / VOLVO |
| Tyre Type | Pneumatic |
| Gradeability | Up to 25% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD200
- CPCD250
| Model | Capacity | Width | Turning radius | Laden gradeability | Cab height | Service weight |
|---|---|---|---|---|---|---|
| CPCD200 | 20,000 kg | 3,050 mm | 5,800 mm | 25% | 3,580 mm | 33,500 kg |
| CPCD250 | 25,000 kg | 3,050 mm | 5,800 mm | 25% | 3,580 mm | 35,500 kg |
| CPCD280 | 28,000 kg | 3,420 mm | 6,600 mm | 20% | 3,710 mm | 40,000 kg |
| CPCD300 | 30,000 kg | 3,420 mm | 6,600 mm | 20% | 3,710 mm | 42,000 kg |
| CPCD320 | 32,000 kg | 3,420 mm | 6,600 mm | 20% | 3,710 mm | 43,600 kg |
| CPCD350 | 35,000 kg | 3,420 mm | 6,600 mm | 20% | 3,710 mm | 46,500 kg |
Rated at a 1,200 mm load centre. Standard lift 4,000 mm, masts to 7,000 mm. One 25 t column prints 33,500 kg; the other two give 35,500 kg. Figures from the Hangcha X Series 20-35 t diesel forklift brochure (2025).
