X Series Diesel Forklift 12 t
A 12 t diesel forklift range for outdoor operations, with lift heights of up to 6.5 m and Diesel power options for material handling where load, lift height and site conditions guide model selection.
12 t
Capacity
Diesel
Power
Up to 6.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing the X Series 12 t Diesel Forklift: Mast and Lift Height
The Hangcha X Series 12 t diesel forklift (CPCD120-XRG57) carries 12,000 kg at a 600 mm load centre, powered by a YC6J160 diesel engine producing 118 kW and 650 Nm. Because it is a single model, the main choice is the mast, since capacity falls as lift height rises.
- Up to 5 m: the full 12,000 kg rating.
- 6.5 m mast: the tallest option, rated at 8,000 kg at full height.
- Travel and grades: 27/30 km/h laden and unladen through a 2-speed powershift transmission, with 28% laden gradeability.

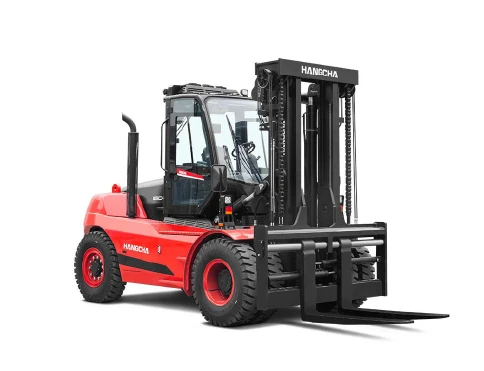

The truck is 2,356 mm wide, turns in 4,180 mm and weighs 14,950 kg. Caliper disc brakes, full hydraulic power steering, an adjustable steering column, a panoramic mirror and a wide-view duplex mast are standard; a cabin with heater, solid tyres, a suspension seat and a spark arrester are options. For the same capacity with Cummins Stage V engines and a climate-controlled cab, see the X Series diesel forklift 12-16 t.
Practical Features for Daily Operation
Diesel Engine
Diesel fuel, with engine choices for each model shown in the brochure.
Heavy 12 t Capacity
Rated to lift 12 t loads to heights of up to 6.5 m for heavy outdoor handling.
Grades Up to 28%
Pneumatic tyres and gradeability up to 28% for ramps and outdoor work areas.
Full Specifications
| Capacity | 12 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 6.5 m |
| Engine | YUCHAI (YC6J160-T300) |
| Tyre Type | Pneumatic |
| Gradeability | Up to 28% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD120
| Model | Capacity | Engine | Max lift (capacity) | Turning radius | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CPCD120-XRG57 | 12,000 kg | YC6J160, 118 kW | 6,500 mm (8,000 kg) | 4,180 mm | 28% | 14,950 kg |
Rated at a 600 mm load centre. Full 12,000 kg up to 5,000 mm lift. Figures from the Hangcha X Series 12 t diesel forklift brochure (2025).
