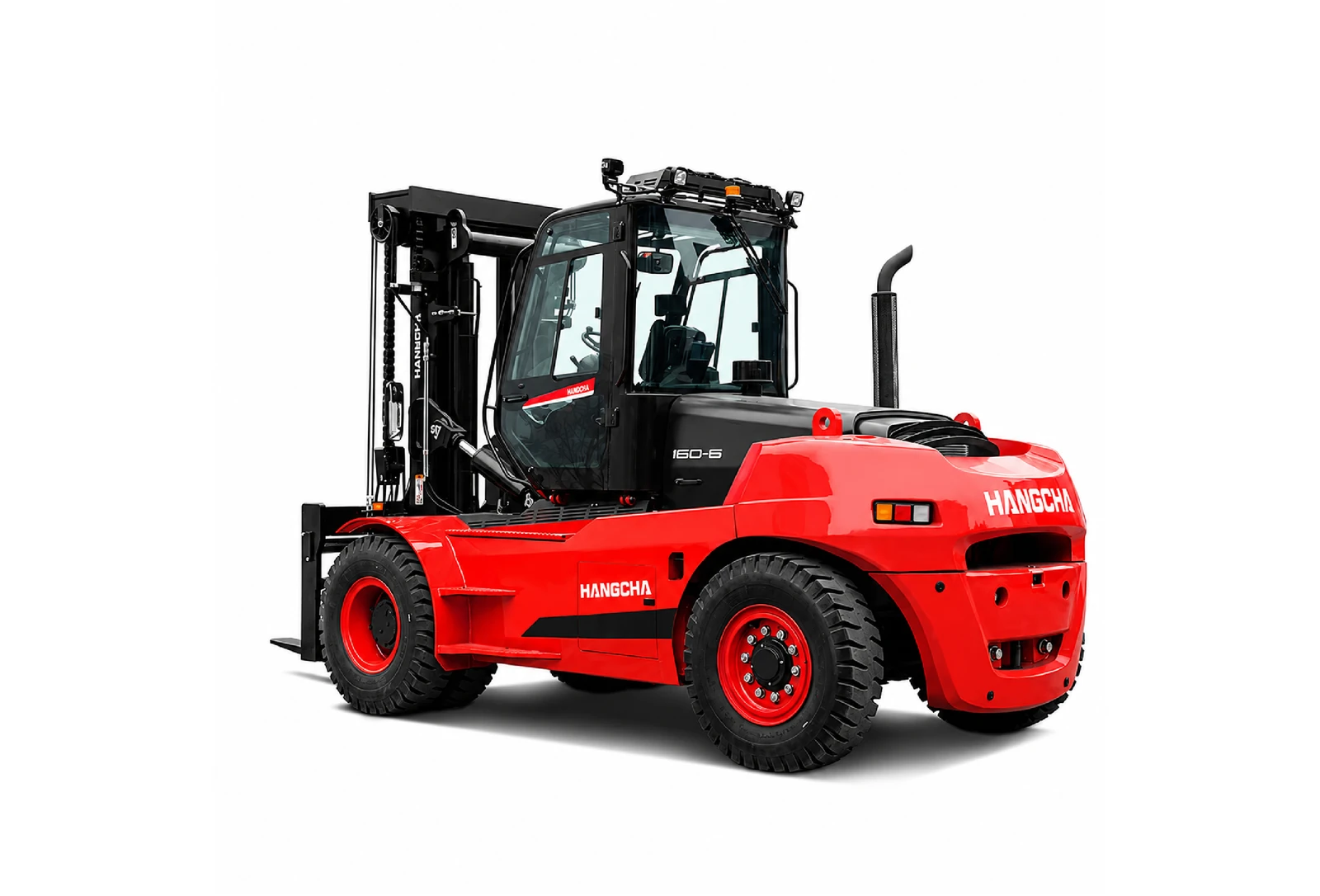

X Series Diesel Forklift 12-16 t

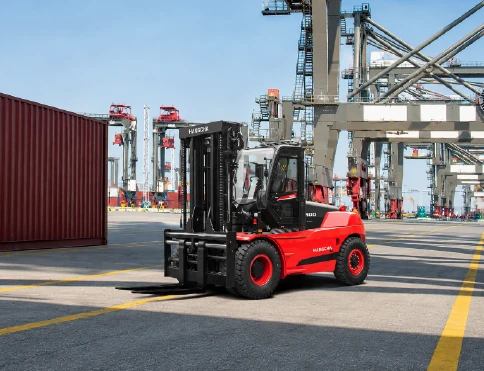

A 12-16 t diesel forklift range for outdoor operations, with lift heights of up to 6.5 m and Diesel power options for material handling where load, lift height and site conditions guide model selection.
12-16 t
Capacity
Diesel
Power
Up to 6.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 12-16 t Diesel Forklift: Capacity and Engine
The Hangcha X Series 12-16 t diesel forklift comes in 12,000, 14,000 and 16,000 kg capacities, mostly at a 600 mm load centre, with longer-load versions at 750 mm and 900 mm. Every engine option is a Cummins six-cylinder.
- Cummins B6.7: 116 kW and EU Stage V / Tier 4.
- Cummins QSB6.7-C160: 119 kW and Stage IIIA / Tier 3.
- Cummins QSB6.7 (Stage IV / Tier 4F): 118 kW, on one 16 t version.
All models use an Okamura powershift transmission with a manually tilting climate-controlled cabin, integrated joystick and four-way hydraulic valve as standard, and climb 20% laden. The standard lift is 3,000 mm and masts reach 6,500 mm, where capacity drops to 7,500, 9,500 and 11,500 kg. Solid tyres, automatic lubrication, a spark arrester and an electric tilting cabin are options. For 14-18 t with a ZF transmission, see the X Series diesel forklift 14-18 t.
Practical Features for Daily Operation
Diesel Engine
Diesel fuel, with several engine options listed in the model brochure.
Pneumatic Tyres
Pneumatic tyres give grip and cushioning on unsealed yards and rough outdoor ground.
Gradeability to 20%
Gradeability of up to 20% for ramps and sloping outdoor yards across the 12-16 t range.
Full Specifications
| Capacity | 12-16 t |
|---|---|
| Power | Diesel |
| Lift Height | Up to 6.5 m |
| Engine | CUMMINS |
| Tyre Type | Pneumatic |
| Gradeability | Up to 20% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPCD120
- CPCD140
- CPCD160
| Model | Capacity (600 mm) | Turning radius | Travel laden / unladen | Capacity at 6.5 m | Service weight |
|---|---|---|---|---|---|
| CPCD120 | 12,000 kg | 4,350 mm | 24 / 28 km/h | 7,500 kg | 16,000 kg |
| CPCD140 | 14,000 kg | 4,350 mm | 25 / 29 km/h | 9,500 kg | 18,200 kg |
| CPCD160 | 16,000 kg | 4,450 mm | 25 / 29 km/h | 11,500 kg | 19,200 kg |
Figures for the 600 mm load centre versions with the QSB6.7-C160 engine. A 12 t version at 900 mm and 16 t versions at 750 mm (4,750 mm turning radius) are also listed; service weights run to 20,300 kg. Figures from the Hangcha X Series 12-16 t diesel forklift brochure (2025).
