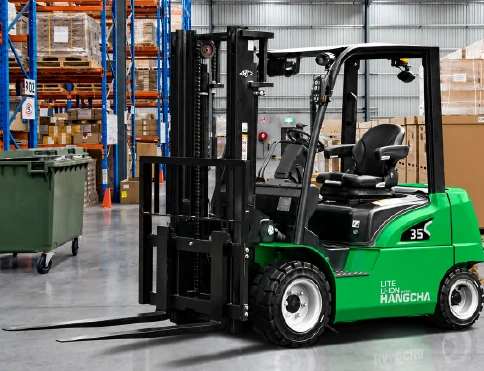

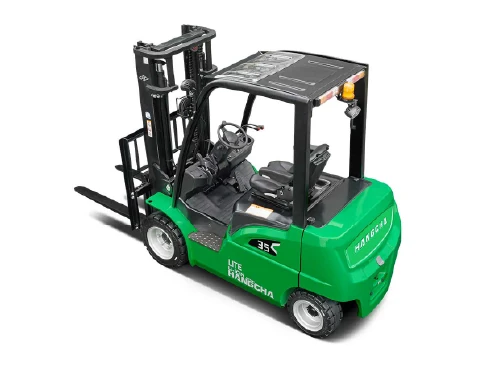

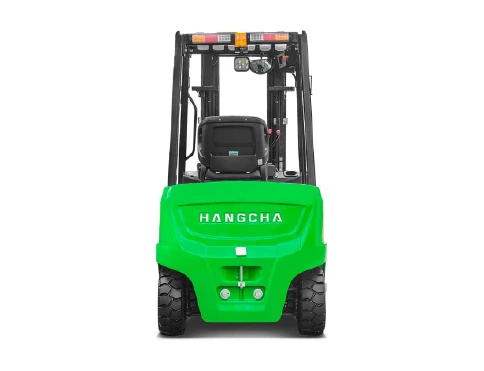

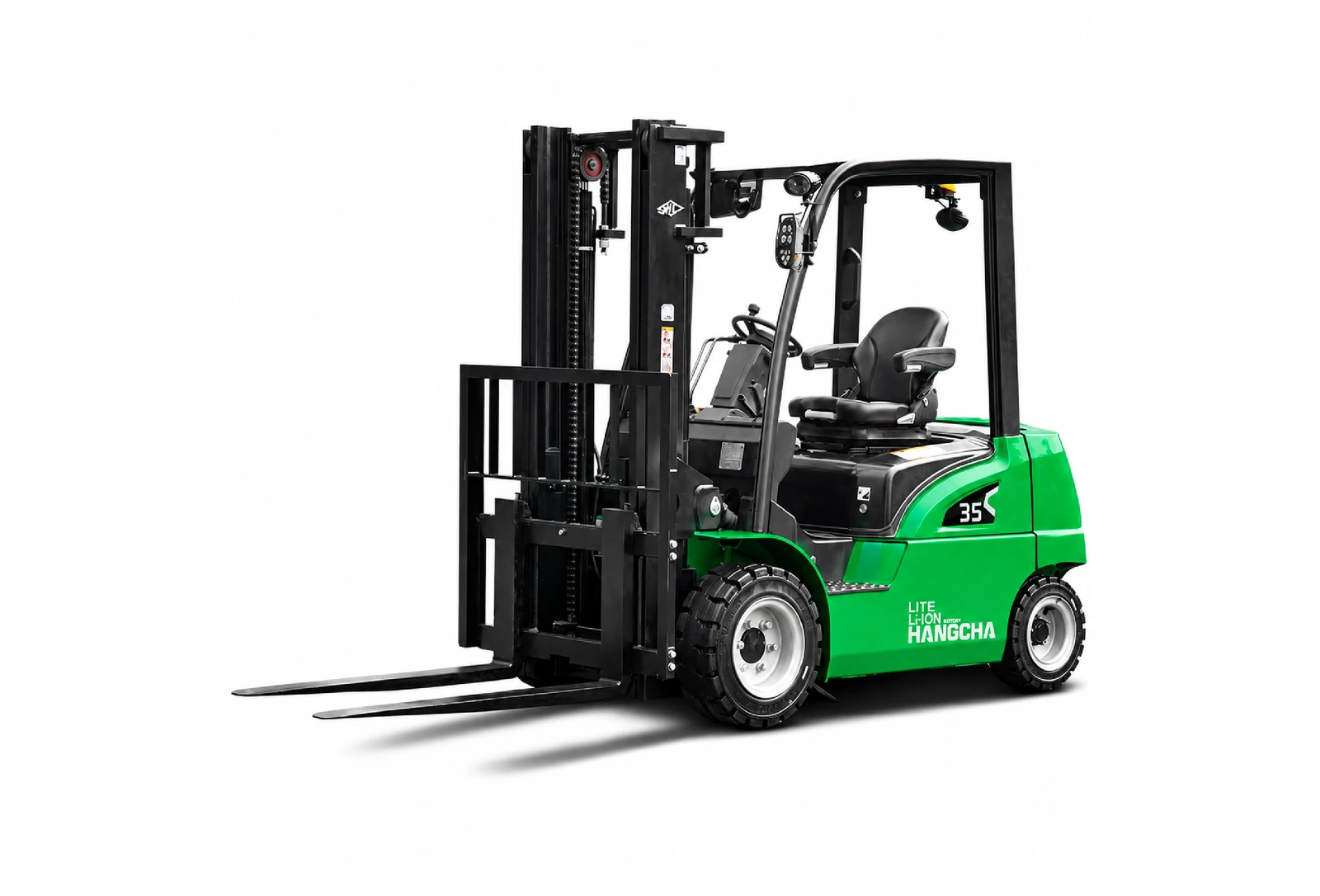

XC Series 4-Wheel Electric Forklift 1.8-3.1 t
A 1.8-3.1 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7.05 m and Li-ion battery options for day-to-day material handling.
1.8-3.1 t
Capacity
Li-ion
Power
Up to 7.05 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an XC Series Compact Pneumatic Electric Forklift
This XC Series electric forklift page uses Hangcha's North American brochure for the FB20Li to FB35Li, an 80V lithium-ion truck on compact pneumatic tyres for indoor and outdoor work. Capacities are rated at a 600 mm (24 in) load centre, from 1,810 to 3,170 kg across four models.
- FB20Li and FB25Li: 1,810 and 2,270 kg on an 80V/456Ah (36.48 kWh) battery, 1,252 mm wide with a 2,090 mm turning radius.
- FB30Li and FB35Li: 2,720 and 3,170 kg on an 80V/604Ah (48.32 kWh) battery, with a 2,270 mm turning radius. The FB35Li runs on super elastic tyres.
- Mast: a 4,700 mm standard lift and a quad mast to 7,055 mm, with more residual capacity at full height on double front tyres (870-1,140 kg against 590-980 kg on single tyres).
Every model travels at 18/19 km/h laden and unladen and climbs 20% grades. The battery pack rolls out from the side and has low-temperature electric heating, and an operator presence system, LED lights and a colour instrument cluster are standard. Solid or non-marking tyres, a backup camera and blue lights are optional. For cushion tyres on smooth indoor floors, compare the X Series 4-wheel electric forklift.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Stacks Up to 7.05 m
Lift heights of up to 7.05 m for loading high racking and stacking pallets.
Gradeability to 20%
Gradeability of up to 20% for loading ramps and sloped dock approaches.
Full Specifications
| Capacity | 1.8-3.1 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7.05 m |
| Battery Voltage | 80V |
| Turning Radius | 2,090-2,270mm |
| Gradeability | Up to 20% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD20
- CPD25
- CPD30
- CPD35
| Model | Rated capacity (600 mm / 24 in) | Battery | Width | Turning radius | Max lift | Service weight |
|---|---|---|---|---|---|---|
| FB20Li (CPD20) | 1,810 kg (4,000 lb) | 80V / 456Ah | 1,252 mm | 2,090 mm | 7,055 mm | 4,010 kg |
| FB25Li (CPD25) | 2,270 kg (5,000 lb) | 80V / 456Ah | 1,252 mm | 2,090 mm | 7,055 mm | 4,310 kg |
| FB30Li (CPD30) | 2,720 kg (6,000 lb) | 80V / 604Ah | 1,252 mm | 2,270 mm | 7,055 mm | 5,230 kg |
| FB35Li (CPD35) | 3,170 kg (7,000 lb) | 80V / 604Ah | 1,298 mm | 2,270 mm | 7,055 mm | 5,490 kg |
North American specification. Standard lift 4,700 mm; 7,055 mm uses a quad mast. Figures from the HC Forklift America XC Series compact pneumatic lithium forklift brochure (2025).
