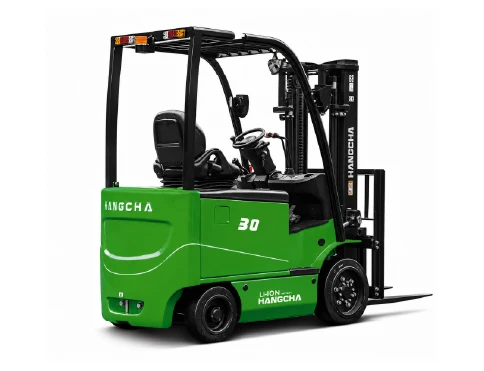

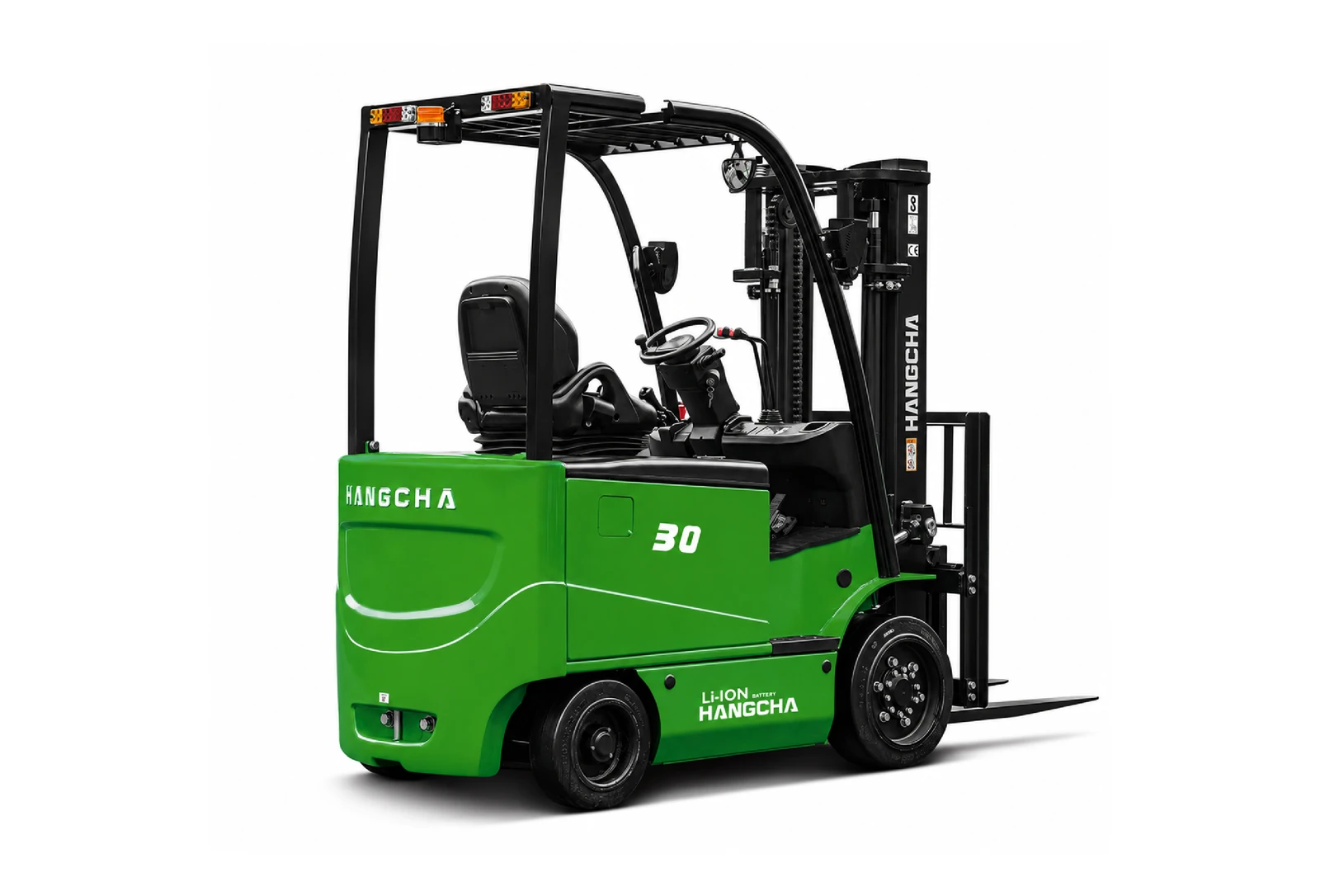

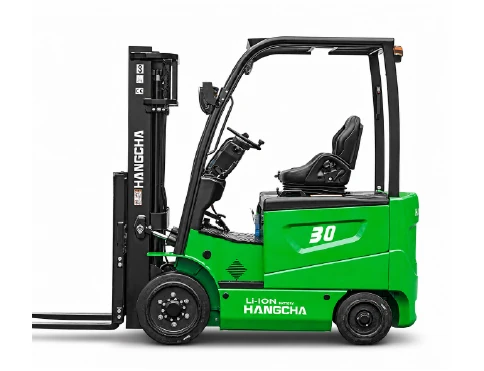

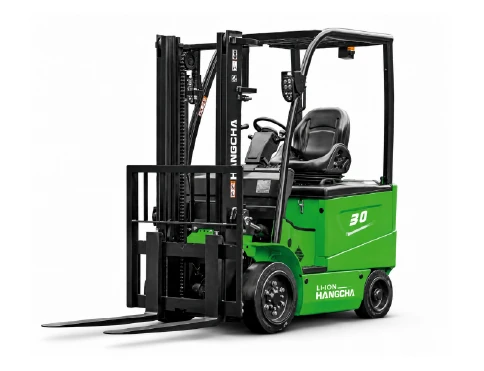

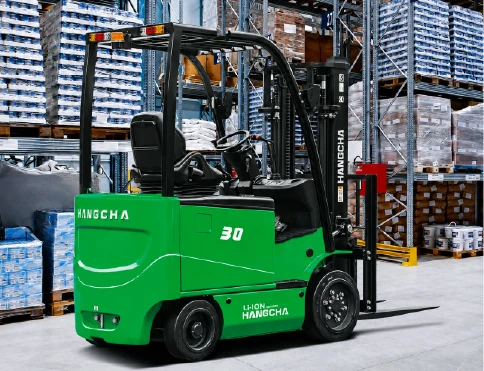

X Series 4-Wheel Electric Forklift 1.4-2.9 t
A 1.4-2.9 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7.3 m and Li-ion battery power for day-to-day material handling.
1.4-2.9 t
Capacity
Li-ion
Power
Up to 7.3 m
Lift Height
Warranty & Support
24 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Electric Cushion Forklift Model
This X Series electric forklift page uses Hangcha's North American brochure for the FB15CLi to FB32CLi, a 48V lithium iron phosphate truck on smooth cushion tyres for indoor warehouse floors. Because it is a North American specification, capacities are rated at a 600 mm (24 in) load centre, from 1,360 to 2,950 kg across six models.
- FB15CLi and FB18CLi: 1,360 and 1,600 kg, 964 mm wide with a 1,710 mm turning radius and a 48V/604Ah battery; masts reach 6,000 mm.
- FB20CLi and FB25CLi: 1,810 and 2,270 kg, 1,070 mm wide with a 1,863 mm turning radius and a 684Ah battery.
- FB30CLi and FB32CLi: 2,720 and 2,950 kg, 1,113 mm wide with a 2,000 mm turning radius; a 912Ah battery is optional on FB20 to FB32.
Travel speed is 17-18.5 km/h laden, and four preset performance modes (Super, Power, Economy and SPE), an operator presence system and load-sensing power steering are standard. The FB20 to FB32 can take a quad mast to 7,300 mm, with residual capacity of 450-1,050 kg at full height. Cold store, non-marking tyres and side battery extraction are optional. For pneumatic tyres and an 80V battery, compare the XC Series 4-wheel electric forklift.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Lift Heights to 7.3 m
Lift heights of up to 7.3 m reach upper racking levels in warehouse storage.
Tight Turning Radius
A 1,710-2,000 mm turning radius helps the truck work in narrower warehouse aisles.
Full Specifications
| Capacity | 1.4-2.9 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7.3 m |
| Battery Voltage | 48V |
| Turning Radius | 1,710-2,000mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD15
- CPD18
- CPD20
- CPD25
- CPD30
- CPD32
| Model | Rated capacity (600 mm / 24 in) | Battery | Width | Turning radius | Max lift | Service weight |
|---|---|---|---|---|---|---|
| FB15CLi (CPD15) | 1,360 kg (3,000 lb) | 48V / 604Ah | 964 mm | 1,710 mm | 6,000 mm | 3,140 kg |
| FB18CLi (CPD18) | 1,600 kg (3,500 lb) | 48V / 604Ah | 964 mm | 1,710 mm | 6,000 mm | 3,260 kg |
| FB20CLi (CPD20) | 1,810 kg (4,000 lb) | 48V / 684Ah | 1,070 mm | 1,863 mm | 7,300 mm | 3,840 kg |
| FB25CLi (CPD25) | 2,270 kg (5,000 lb) | 48V / 684Ah | 1,070 mm | 1,863 mm | 7,300 mm | 4,155 kg |
| FB30CLi (CPD30) | 2,720 kg (6,000 lb) | 48V / 684Ah | 1,113 mm | 2,000 mm | 7,300 mm | 4,600 kg |
| FB32CLi (CPD32) | 2,950 kg (6,500 lb) | 48V / 684Ah | 1,113 mm | 2,000 mm | 7,300 mm | 4,830 kg |
North American specification, cushion tyres. 7,300 mm uses a quad mast. Figures from the HC Forklift America X Series lithium cushion forklift brochure (2025).
