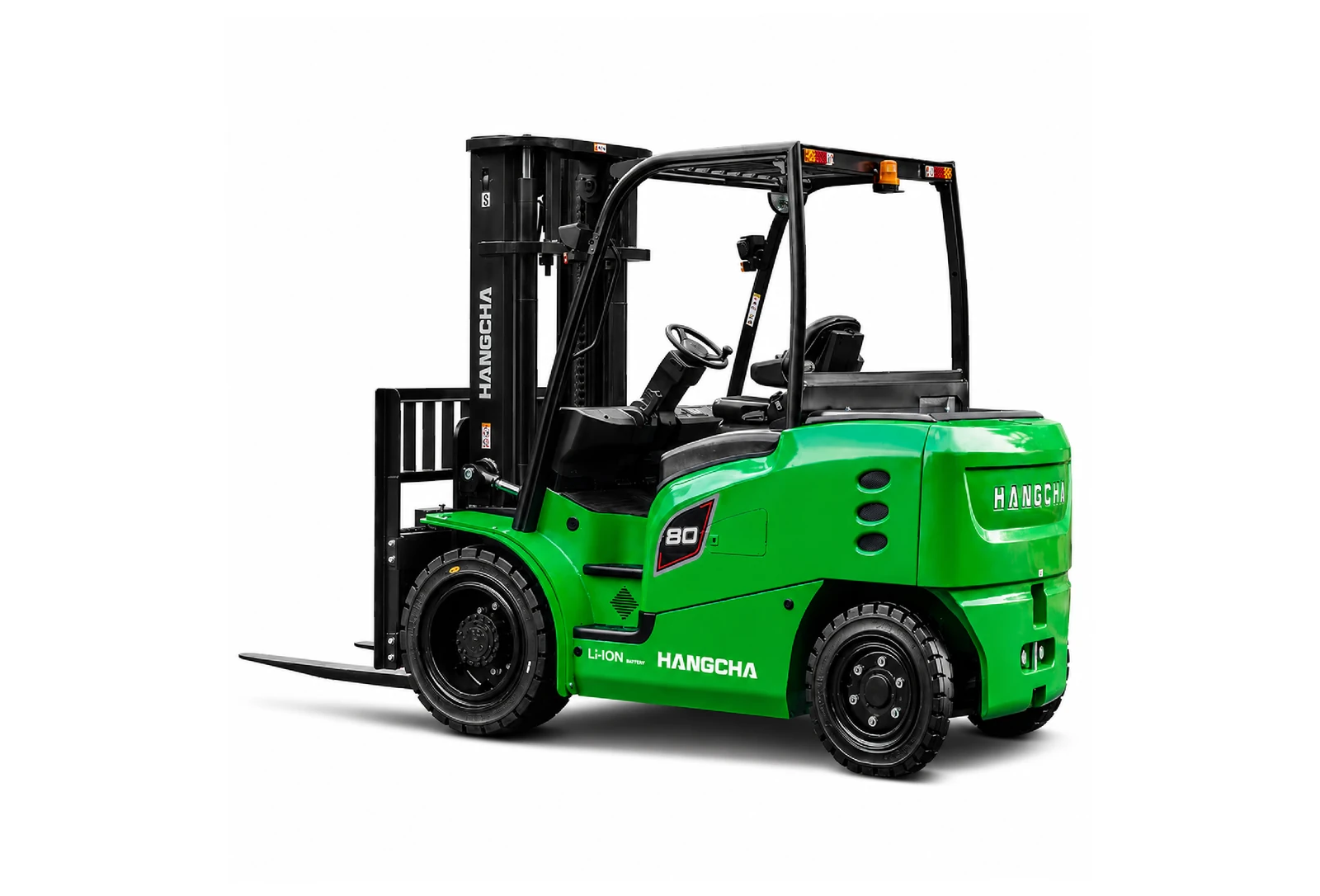

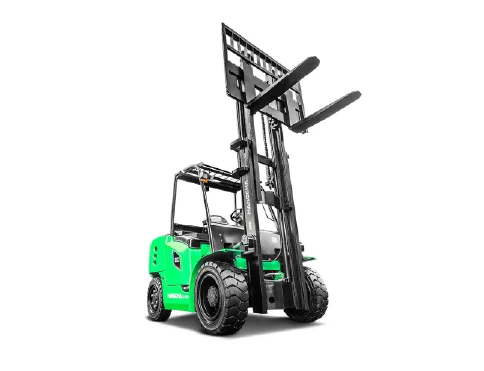

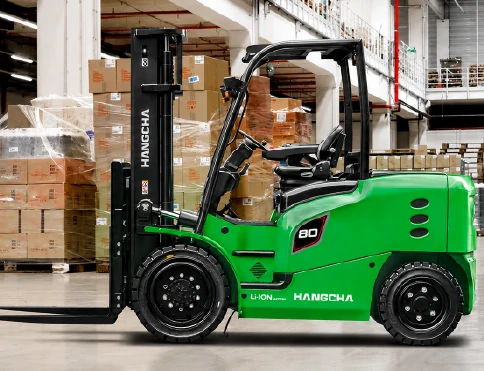

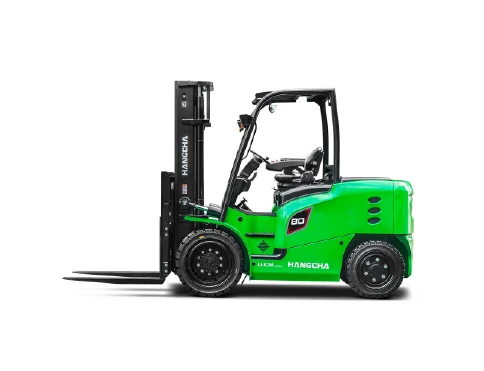

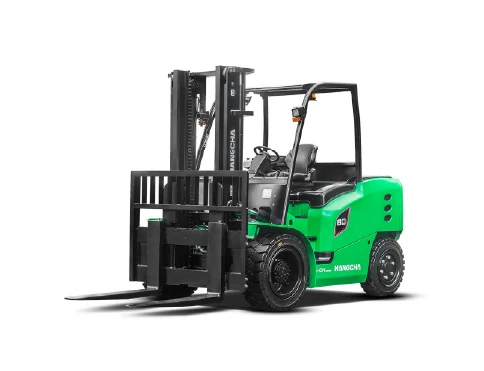

X Series 4-Wheel Electric Forklift 6-10 t
A 6-10 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 6 m and Li-ion / Lead-acid battery options for day-to-day material handling.
6-10 t
Capacity
Li-ion / Lead-acid
Power
Up to 6 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 6-10 t Electric Forklift Model
The X Series 6-10 t is a 96V heavy electric forklift on superelastic solid tyres, offered with a lead-acid battery as standard or a CATL lithium battery on the -I models. Choose by load weight, load length and whether the truck must work inside containers.
- CPD60 and CPD70 (6-7 t): a 3,050 mm turning radius and 1,870 mm width, the most compact trucks in the range.
- CPD80 (8 t): the same 3,050 mm turning radius on 355/50-20 front tyres. The CPD80 L long-wheelbase version is rated at a 900 mm load centre for long loads.
- CPD90 and CPD100 (9-10 t): dual front tyres, a 3,350 mm turning radius and a 52 kW lift motor for the heaviest loads.
- Container models (-IX): low-mast lithium versions with a 2,185-2,200 mm lowered height and 2,000-2,500 mm lift for loading inside containers.
The standard models are rated at a 600 mm load centre with a 3,000 mm standard lift and masts up to 6 m, where they keep 5,000-8,700 kg. Laden gradeability is 12-16% and laden travel speed 13.5-15 km/h.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
6 m Lift Height
Lifts 6-10 t loads to heights of up to 6 m, so heavy pallets can be stacked high.
Turning Radius 3,050 mm
Turning radius of 3,050-3,350 mm, depending on model, for manoeuvring heavy loads.
Full Specifications
| Capacity | 6-10 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | Up to 6 m |
| Battery Voltage | 96V |
| Turning Radius | 3,050-3,350mm |
| Gradeability | Up to 16% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD60
- CPD70
- CPD80
- CPD90
- CPD100
| Model | Capacity | Load centre | Capacity at 6 m | Turning radius | Battery std (lead-acid / lithium) | Laden gradeability |
|---|---|---|---|---|---|---|
| CPD60-XC5 / -I | 6,000 kg | 600 mm | 5,000 kg | 3,050 mm | 96V 720Ah / 604Ah | 16% |
| CPD70-XC5 / -I | 7,000 kg | 600 mm | 5,900 kg | 3,050 mm | 96V 810Ah / 604Ah | 15% |
| CPD80-XC5 / -I | 8,000 kg | 600 mm | 6,900 kg | 3,050 mm | 96V 945Ah / 604Ah | 14% |
| CPD80-XLC5 / -I (long wheelbase) | 8,000 kg | 900 mm | 6,900 kg | 3,350 mm | 96V 945Ah / 684Ah | 13% |
| CPD90-XC5 / -I | 9,000 kg | 600 mm | 7,700 kg | 3,350 mm | 96V 1,104Ah / 684Ah | 12% |
| CPD100-XC5 / -I | 10,000 kg | 600 mm | 8,700 kg | 3,350 mm | 96V 1,260Ah / 684Ah | 12% |
Capacity at 6 m with the duplex mast. Figures from the Hangcha X Series 6-10 t brochure.
