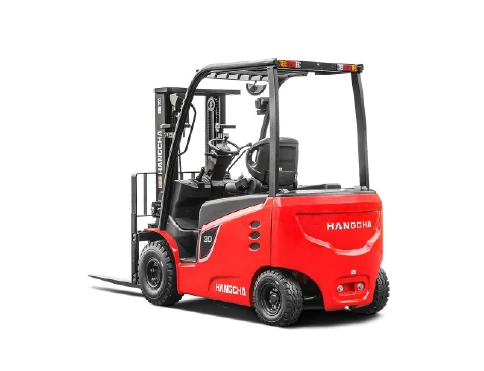

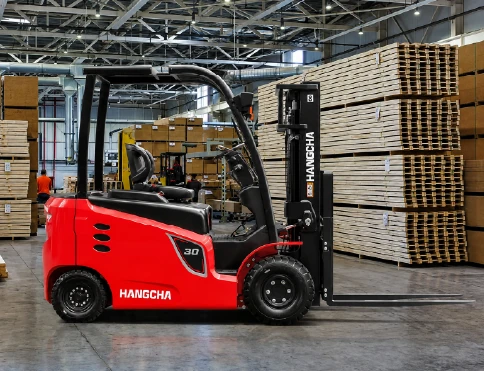

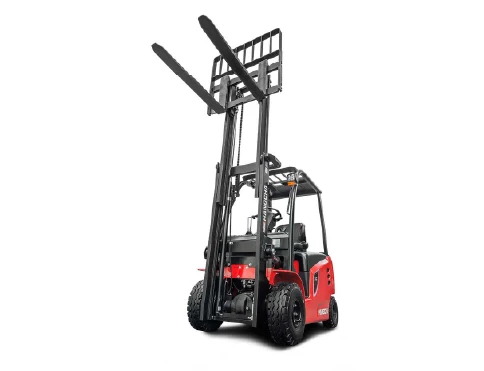

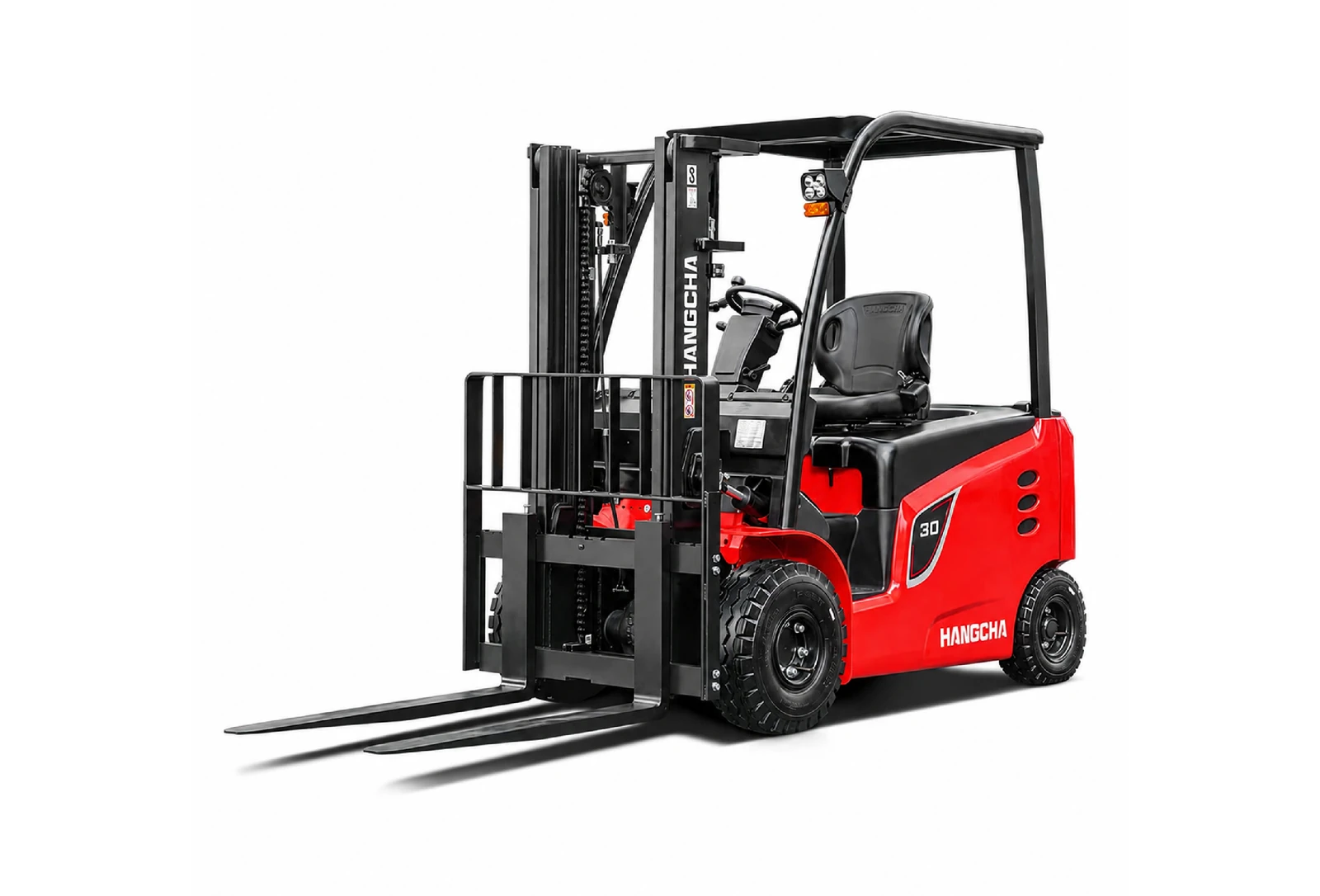

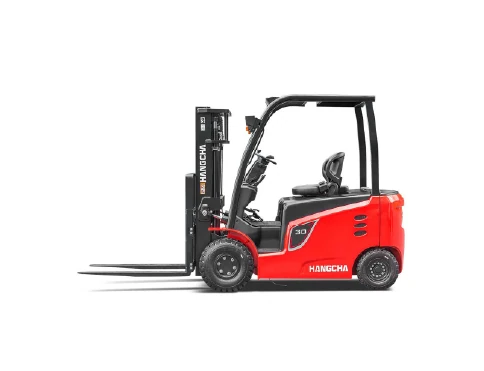

X Series 4-Wheel Electric Forklift 1-3.5 t
A 1-3.5 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion / Lead-acid battery options for day-to-day material handling.
1-3.5 t
Capacity
Li-ion / Lead-acid
Power
Up to 7 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series 1-3.5 t Electric Forklift Model
The X Series 1-3.5 t covers nine electric counterbalance models on pneumatic tyres, each available with a lead-acid battery (XJ4) or a lithium battery (XJ4-I). Choose by load weight, then by battery voltage and the aisle space on your site.
- CPD10, CPD15 and CPD18 (1-1.75 t): 48V trucks with a 1,845-1,888 mm turning radius and a 3,436-3,484 mm aisle, the most compact in the range.
- CPD20 mini (2 t): a 2 t truck on the short 1,410 mm wheelbase, turning in 1,888 mm against 1,990 mm for the standard CPD20.
- CPD20 and CPD25 (2-2.5 t): 48V trucks with an 18 kW drive motor and a 1,185 mm overall width, turning in 1,990-2,055 mm.
- CPD25 L, CPD30 and CPD35 (2.5-3.5 t): 80V trucks for heavier work, turning in 2,170-2,270 mm. The CPD35 runs on superelastic tyres.
All models are rated at a 500 mm load centre with a 3,000 mm standard lift and masts up to 7 m. Laden gradeability is 17-20% and laden travel speed 14-17 km/h. An A version with anti-corrosion protection is available for C5 marine and industrial environments.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Racking Heights to 7 m
Lift heights of up to 7 m across 1-3.5 t capacities for tall warehouse racking.
Turning Radius from 1,845 mm
A 1,845-2,270 mm turning radius keeps the truck agile between racking rows.
Full Specifications
| Capacity | 1-3.5 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | Up to 7 m |
| Battery Voltage | 48/80V |
| Turning Radius | 1,845-2,270mm |
| Gradeability | Up to 20% |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD10
- CPD15
- CPD18
- CPD20
- CPD25
- CPD30
- CPD35
| Model | Capacity | Battery (lead-acid / lithium) | Turning radius | Aisle (1000 x 1200 crossways) | Capacity at 7 m | Laden gradeability |
|---|---|---|---|---|---|---|
| CPD10-XJ4 / -I | 1,000 kg | 48V 360Ah / 302Ah | 1,845 mm | 3,436 mm | 650 kg | 20% |
| CPD15-XJ4 / -I | 1,500 kg | 48V 420Ah / 456Ah | 1,845 mm | 3,436 mm | 700 kg | 20% |
| CPD18-XJ4 / -I | 1,750 kg | 48V 420Ah / 456Ah | 1,845 / 1,888 mm | 3,441 / 3,484 mm | 950 kg | 19% |
| CPD20-XXJ4 / -I (mini) | 2,000 kg | 48V 450Ah / 456Ah | 1,888 mm | 3,494 mm | 1,000 kg | 17% |
| CPD20-XJ4 / -I | 2,000 kg | 48V 525Ah / 500Ah | 1,990 mm | 3,617 mm | 1,050 kg | 20% |
| CPD25-XJ4 / -I | 2,500 kg | 48V 600Ah / 500Ah | 2,055 mm | 3,682 mm | 1,350 kg | 19% |
| CPD25-XLJ4 / -I | 2,500 kg | 80V 360Ah / 302Ah | 2,170 / 2,195 mm | 3,797 / 3,822 mm | 1,400 kg | 20% |
| CPD30-XJ4 / -I | 3,000 kg | 80V 480Ah / 456Ah | 2,195 / 2,230 mm | 3,846 / 3,881 mm | 1,650 kg | 20% |
| CPD35-XJ4 / -I | 3,500 kg | 80V 480Ah / 456Ah | 2,230 / 2,270 mm | 3,909 / 3,949 mm | 1,850 kg | 17% |
Rated at a 500 mm load centre. Capacity at 7 m with single front tyres. Where two figures are shown, the first is lead-acid and the second lithium. Figures from the Hangcha X Series 1-3.5 t brochure.
