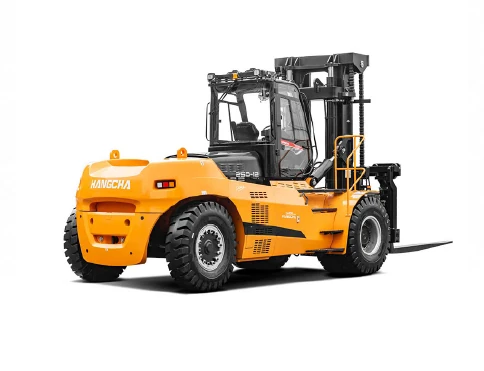

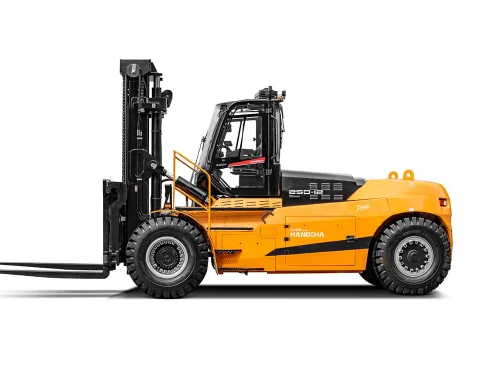

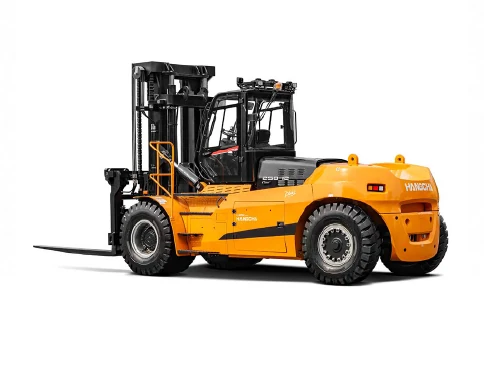

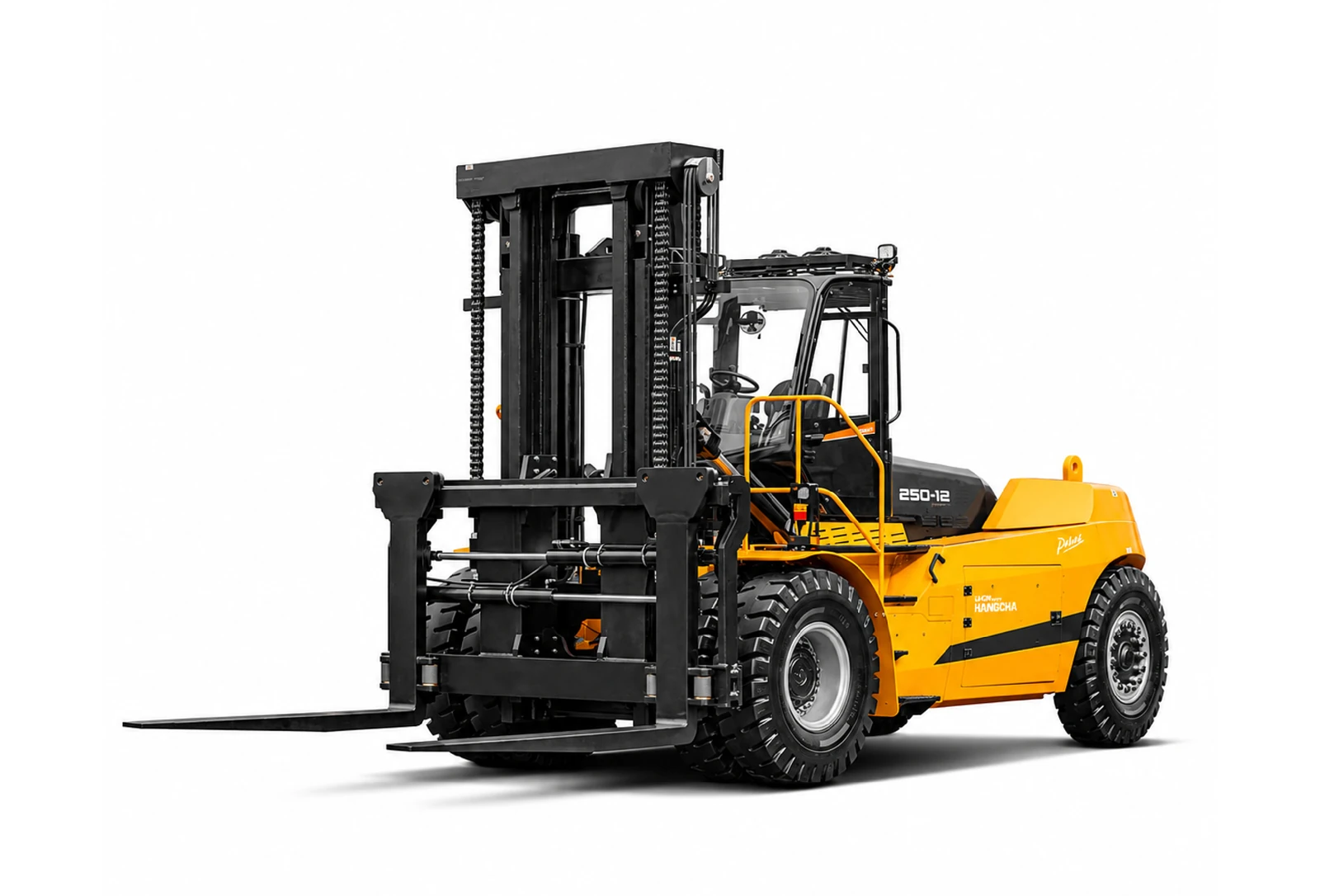

XH Series 4-Wheel Electric Forklift 20-25 t
A 20-25 t 4-wheel electric forklift range for warehouse, indoor and outdoor operations, combining electric operation with lift heights of up to 7 m and Li-ion battery power for day-to-day material handling.
20-25 t
Capacity
Li-ion
Power
Up to 7 m
Lift Height
Warranty & Support
24 Months / 4,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing Between the XH Series 20 t and 25 t
The XH Series 20-25 t is Hangcha's heaviest high-voltage lithium forklift, rated at a 1,200 mm load centre for long, heavy loads. Both models run on a 541V/456Ah (247 kWh) battery that charges from 20% to 100% in 1 hour, with a 608V/604Ah battery as an option, and water cooling for the motor, controller and battery.
- CPD200 (20,000 kg): 13,000 kg at the 7 m maximum lift and a 35,100 kg service weight.
- CPD250 (25,000 kg): 18,000 kg at 7 m and a 37,500 kg service weight.
Both share 2,440 mm forks, a 3,050 mm overall width, a 5,800 mm turning radius, 25 km/h travel, 25% gradeability and 160 kN drawbar pull. The standard lift is 4,000 mm, full capacity holds to 5 m, and hydraulic fork spacing and sideshift are standard. A Kessler heavy-duty drive axle, wet disc brakes and a fully enclosed cab with air conditioning and heating complete the specification. For 12-18 t loads, see the XH Series 4-wheel electric forklift 12-18 t.
Practical Features for Daily Operation
Electric Power
Water-cooled electric drive for long, heavy shifts indoors and outdoors.
Enclosed Suspended Cab
Fully enclosed cab on four-point rubber suspension to cut vibration on long shifts.
Tilting Cab for Service
Electric or manual cab tipping opens up access to components for servicing.
Full Specifications
| Capacity | 20-25 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 7 m |
| Battery Voltage | 541/608V |
| Turning Radius | 5,800mm |
| Gradeability | Up to 25% |
| Warranty | 24 Months / 4,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CPD200
- CPD250
| Model | Capacity (1,200 mm centre) | Capacity at 5 m | Capacity at 7 m | Turning radius | Drawbar pull | Service weight |
|---|---|---|---|---|---|---|
| CPD200-XHL2G | 20,000 kg | 20,000 kg | 13,000 kg | 5,800 mm | 160 kN | 35,100 kg |
| CPD250-XHL2G | 25,000 kg | 25,000 kg | 18,000 kg | 5,800 mm | 160 kN | 37,500 kg |
Rated at a 1,200 mm load centre. Figures from the Hangcha XH Series high-voltage lithium battery forklift brochure (20-25 t, 2024).
