A Series Reach Truck 1.2-2 t
A 1.2-2 t reach truck range for indoor warehouse and narrow-aisle operations, with lift heights of up to 12.5 m for load handling where storage height, reach and aisle space need to be considered together.
1.2-2 t
Capacity
Li-ion / Lead-acid
Power
Up to 12.5 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an A Series Reach Truck: Capacity and Mast
The Hangcha A Series reach truck lifts 1,200 to 2,000 kg across five models and reaches up to 12.5 m with a full free triplex mast. Each model also comes as a cold store version (F2) rated down to -30°C, and the 1.6-2 t models can take an 80V/302Ah lithium battery instead of the standard 48V battery.
- CQD12 and CQD14: 1,200 and 1,400 kg with 528 mm reach, a 2,838 mm aisle for 1000 x 1200 mm pallets crossways and 12% laden gradeability. They are not offered with the tallest masts.
- CQD16 and CQD18: 1,600 and 1,800 kg with a 48V/500Ah battery or the lithium option, and a 2,907 mm aisle.
- CQD20: 2,000 kg with 538 mm reach, a 2,922 mm aisle and a 1,804 mm turning radius.
Capacity falls as the mast rises: at 12.5 m the 1.6, 1.8 and 2 t trucks carry 150, 350 and 550 kg, so check the mast chart for top-level racking. Travel speed is 10.2 km/h and a 3 m duplex mast is standard, with 2.7-5 m duplex and 4.3-12.5 m triplex masts as options. A sideshifter, fork tilt, 180-degree steering, a safety pedal and polyurethane wheels are standard. For a scissor-type (pantograph) reach mechanism, see the X Series pantograph reach truck.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.

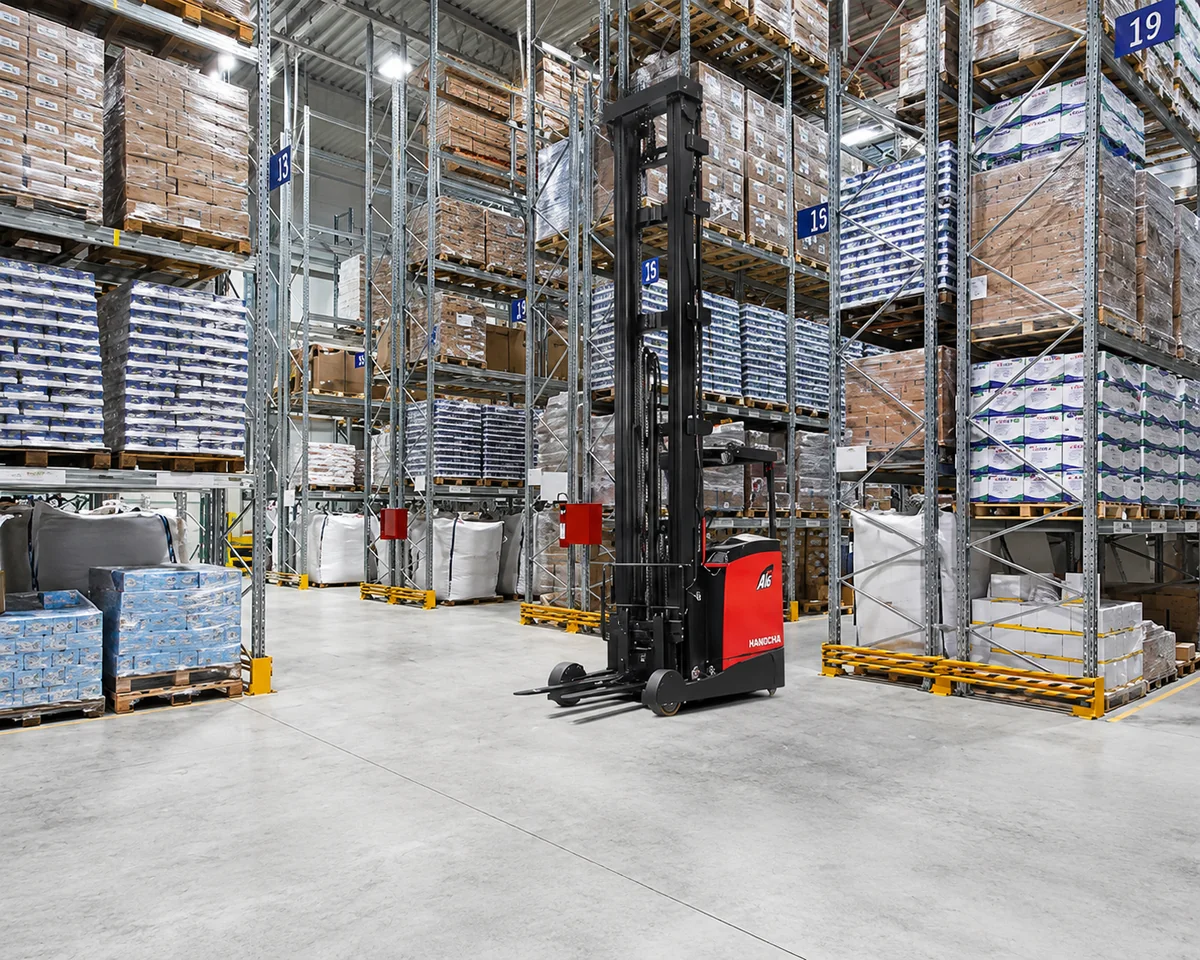

High-Bay Reach to 12.5 m
Lift heights of up to 12.5 m for high-bay racking, with 438-538 mm of reach.
Aisles From 2,838 mm
Minimum aisle widths from 2,838 mm with a 1,735-1,804 mm turning radius.
Full Specifications
| Capacity | 1.2-2 t |
|---|---|
| Power | Li-ion / Lead-acid |
| Lift Height | Up to 12.5 m |
| Minimum Aisle Width | From 2,838mm |
| Turning Radius | 1,735-1,804mm |
| Battery Type / Voltage | Lead-acid 48V / Li-ion 80V |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CQD12
- CQD14
- CQD16
- CQD18
- CQD20
| Model | Capacity | Battery (standard) | Reach | Aisle (1000 x 1200 crossways) | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CQD12-AC5 | 1,200 kg | 48V / 400Ah | 528 mm | 2,838 mm | 12% | 3,130 kg |
| CQD14-AC5 | 1,400 kg | 48V / 400Ah | 528 mm | 2,838 mm | 12% | 3,130 kg |
| CQD16-AC5 | 1,600 kg | 48V / 500Ah | 438 mm | 2,907 mm | 11% | 3,320 kg |
| CQD18-AC5 | 1,800 kg | 48V / 500Ah | 468 mm | 2,907 mm | 10% | 3,330 kg |
| CQD20-AC5 | 2,000 kg | 48V / 500Ah | 538 mm | 2,922 mm | 10% | 3,340 kg |
Cold store F2 versions share these figures. 80V/302Ah lithium is available on 1.6-2 t. Figures from the Hangcha A Series reach truck brochure (2025).
