Others IC Side Loader 3-6 t
A 3-6 tonne IC side loader range for warehouse, indoor and outdoor operations, with lift heights up to 6 m for material handling where load dimensions and available working space guide model selection.
3-6 t
Capacity
IC (diesel)
Power
Up to 6 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an IC Side Loader Model

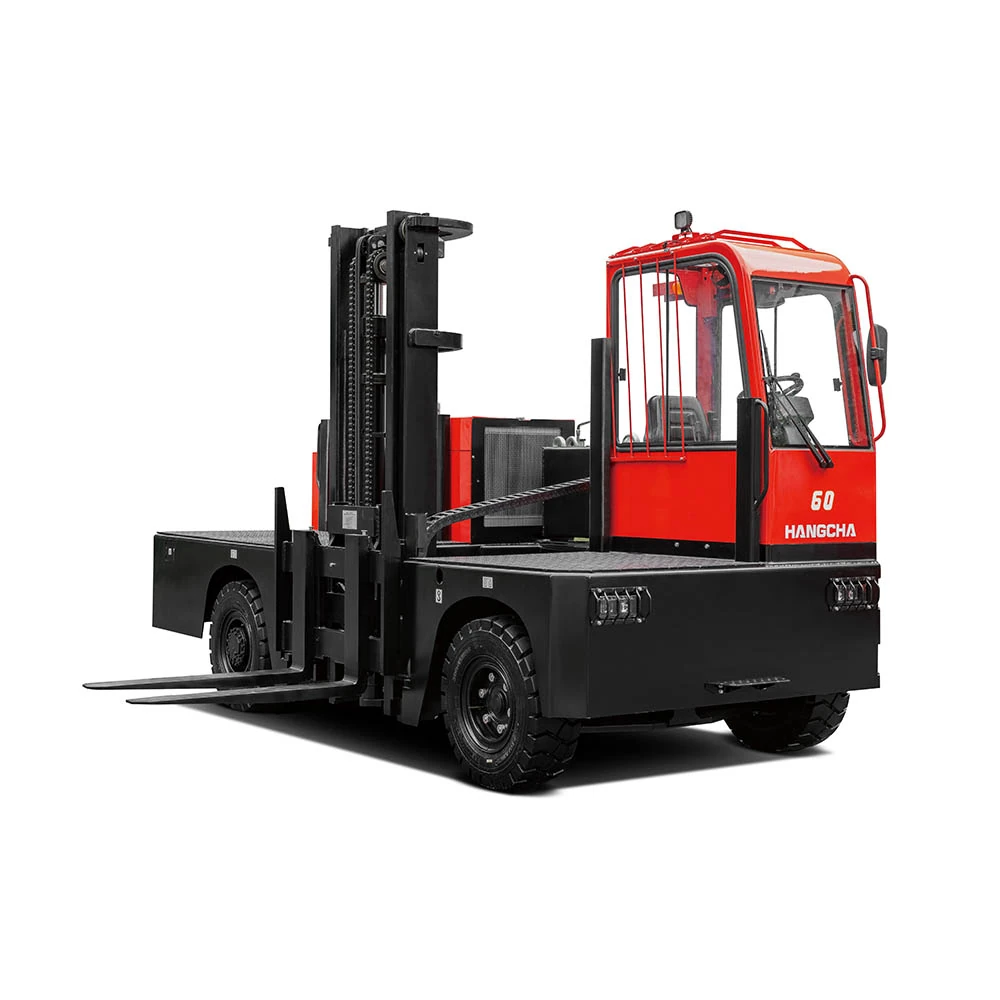

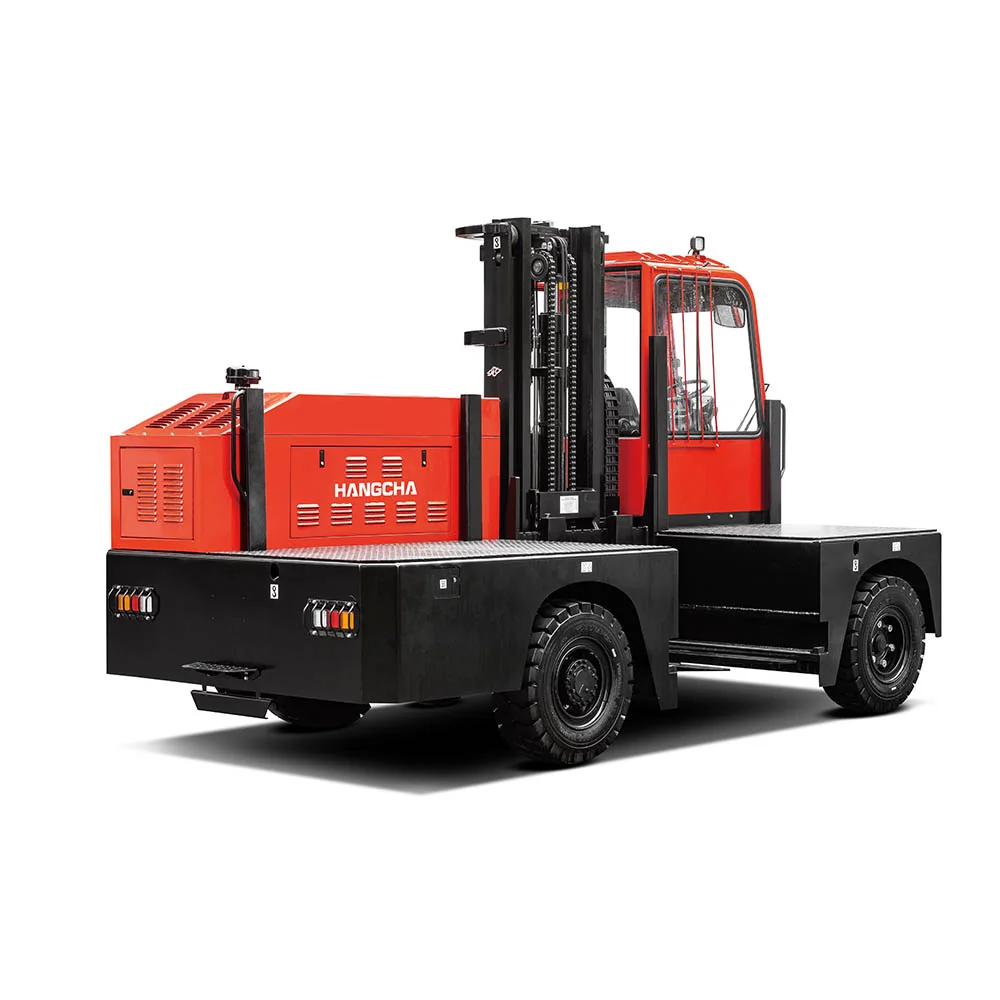

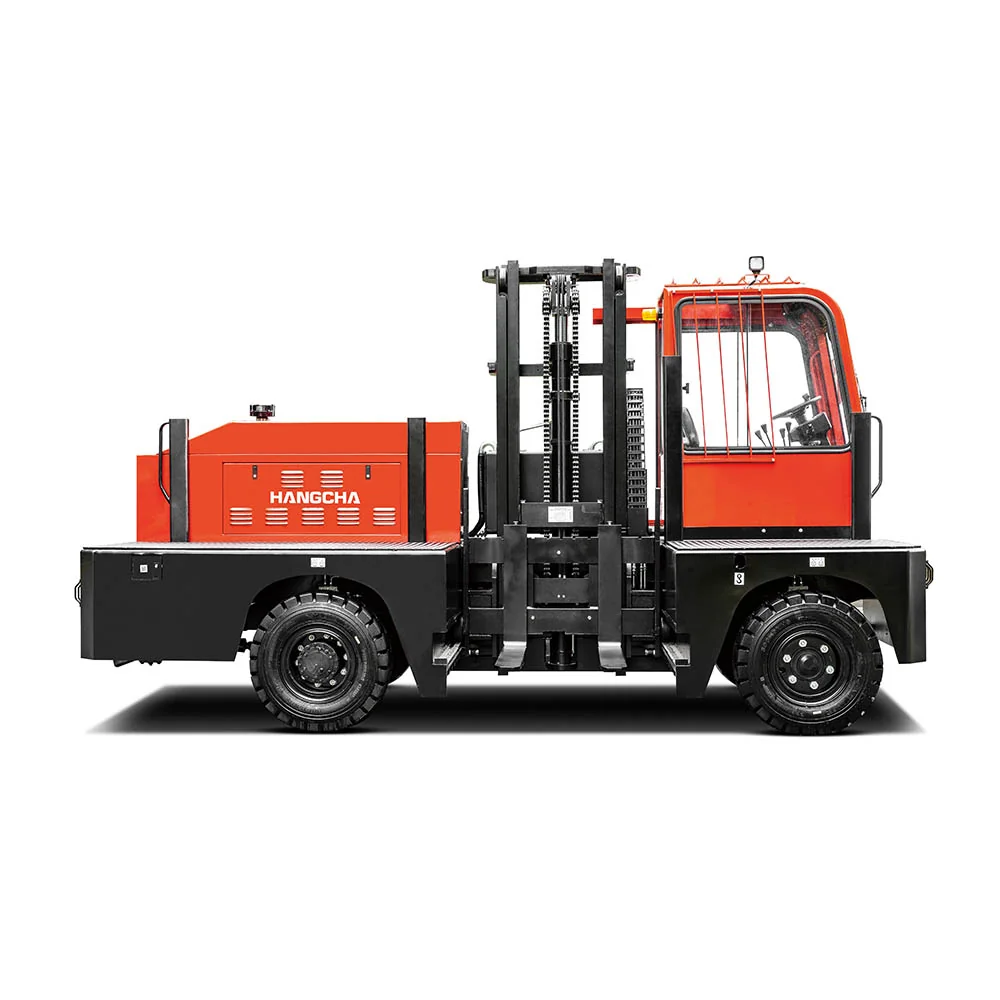

The Hangcha IC side loader carries long loads such as steel pipe, section steel, utility poles and timber along its body. The side-mounted mast reaches out to pick the load and sets it on the deck for travel, so the truck can move through narrow aisles and channels. All six models of this IC side loader are diesel.
- 3 t: a 2,040 mm overall width and a 4,255 mm turning radius on a 45 kW Xinchai engine, with 18% laden gradeability.
- 5-6 t: a 66-67 kW Yuchai engine, a 2,100 mm overall width and a 4,700 mm turning radius, with 25-30% laden gradeability.
- Emission standard: each capacity is offered with a China GB III engine or an EU Stage V engine. The Stage V 5-6 t models climb 30% laden, against 25% for the GB III versions.
The platform and fork carriage both tilt, there are no stabiliser legs, and the cab has front and rear sliding doors for narrow passages. Ratings are at a 600 mm load centre with a 3,600 mm standard lift and masts up to 6 m, using 1,220 mm forks and a hydraulic transmission with a torque converter.
Practical Features for Daily Operation
Diesel Engine Power
Diesel power for outdoor yard work and long shifts with quick refuelling.
Side-Loading Design

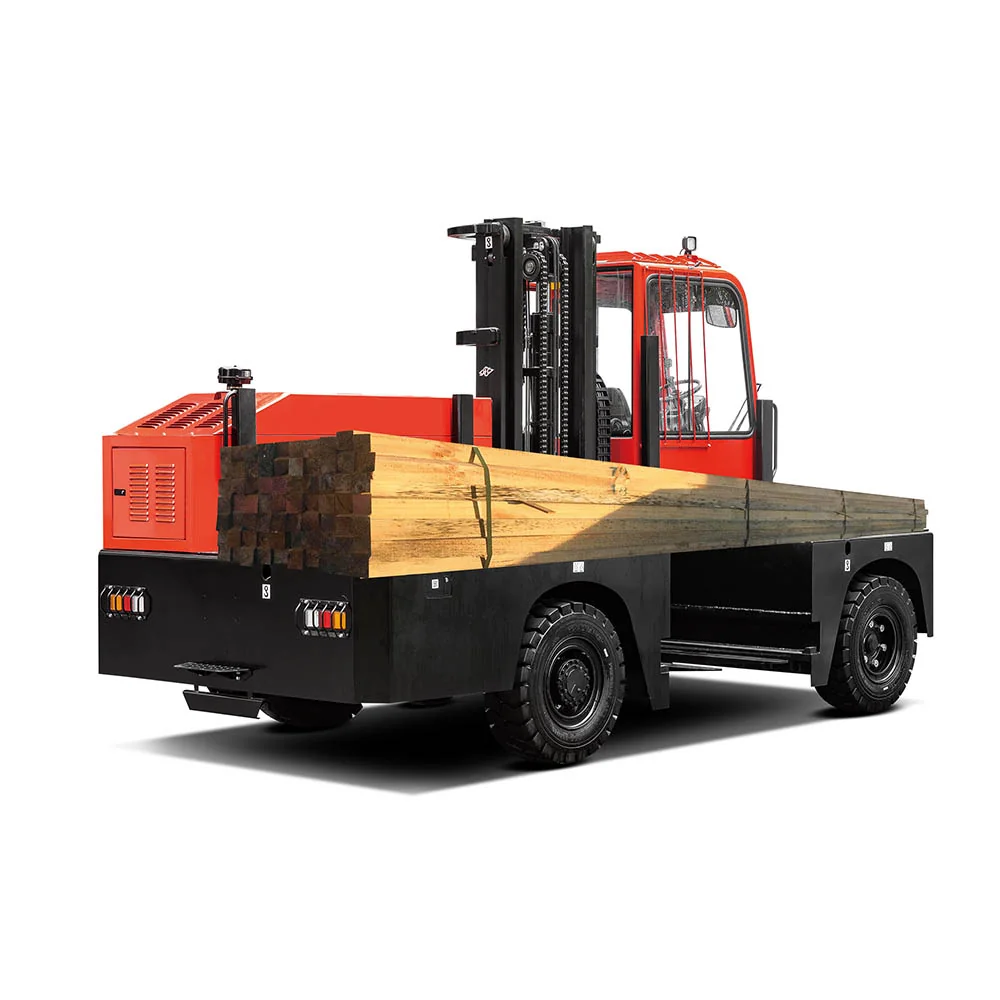

Loads ride along the side of the truck, suited to long items such as timber, pipe and steel.
Works in Narrow Lanes
Travels alongside racks and stacks, so long loads need less aisle width.
Full Specifications
| Capacity | 3-6 t |
|---|---|
| Power | IC (diesel) |
| Lift Height | Up to 6 m |
| Load Centre | 600mm |
| Travel / Steering Type | Side-loading / lateral handling |
| Power Type | IC (diesel) |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CCCD30
- CCCD50
- CCCD60
| Model | Capacity | Engine | Emission standard | Turning radius | Laden gradeability | Service weight |
|---|---|---|---|---|---|---|
| CCCD30-G72B | 3,000 kg | Xinchai 4D32XG30, 45 kW | GB III | 4,255 mm | 18% | 6,000 kg |
| CCCD30-H7B | 3,000 kg | Xinchai 3E22YG51, 45 kW | EU Stage V | 4,255 mm | 18% | 6,000 kg |
| CCCD50-G76 | 5,000 kg | Yuchai YC4DK90, 66 kW | GB III | 4,700 mm | 25% | 9,100 kg |
| CCCD50-H32 | 5,000 kg | Yuchai YCF3690-S500, 67 kW | EU Stage V | 4,700 mm | 30% | 9,100 kg |
| CCCD60-G76 | 6,000 kg | Yuchai YC4DK90, 66 kW | GB III | 4,700 mm | 25% | 9,400 kg |
| CCCD60-H32 | 6,000 kg | Yuchai YCF3690-S500, 67 kW | EU Stage V | 4,700 mm | 30% | 9,400 kg |
Rated at a 600 mm load centre with the standard 3,600 mm mast. Figures from the Hangcha side loader forklift brochure (3-6 t).
