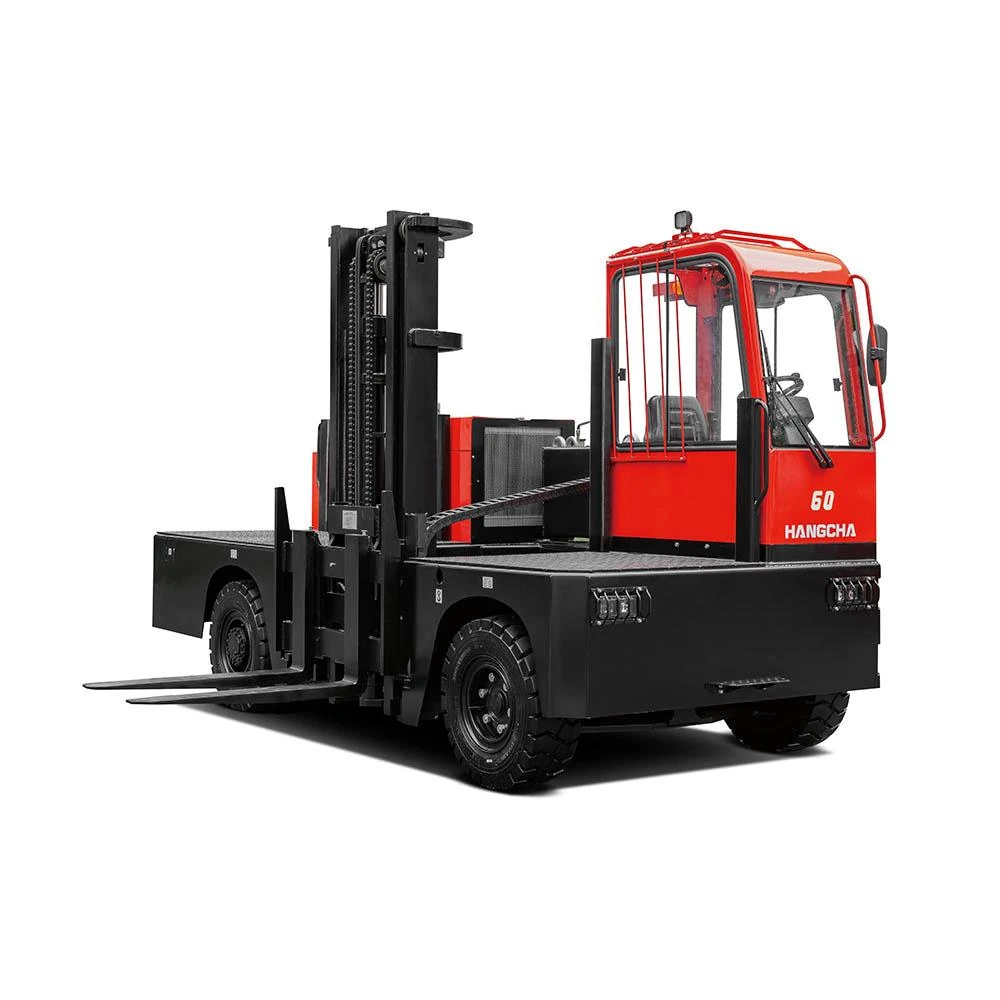

X Series Multidirectional Side Loader 3.5-4.5 t
A 3.5-4.5 t multidirectional side loader range for warehouse, indoor and outdoor operations, with lift heights up to 8 m for material handling where load dimensions and available working space guide model selection.
3.5-4.5 t
Capacity
Electric
Power
Up to 8 m
Lift Height
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Multidirectional Side Loader: Capacity and Battery

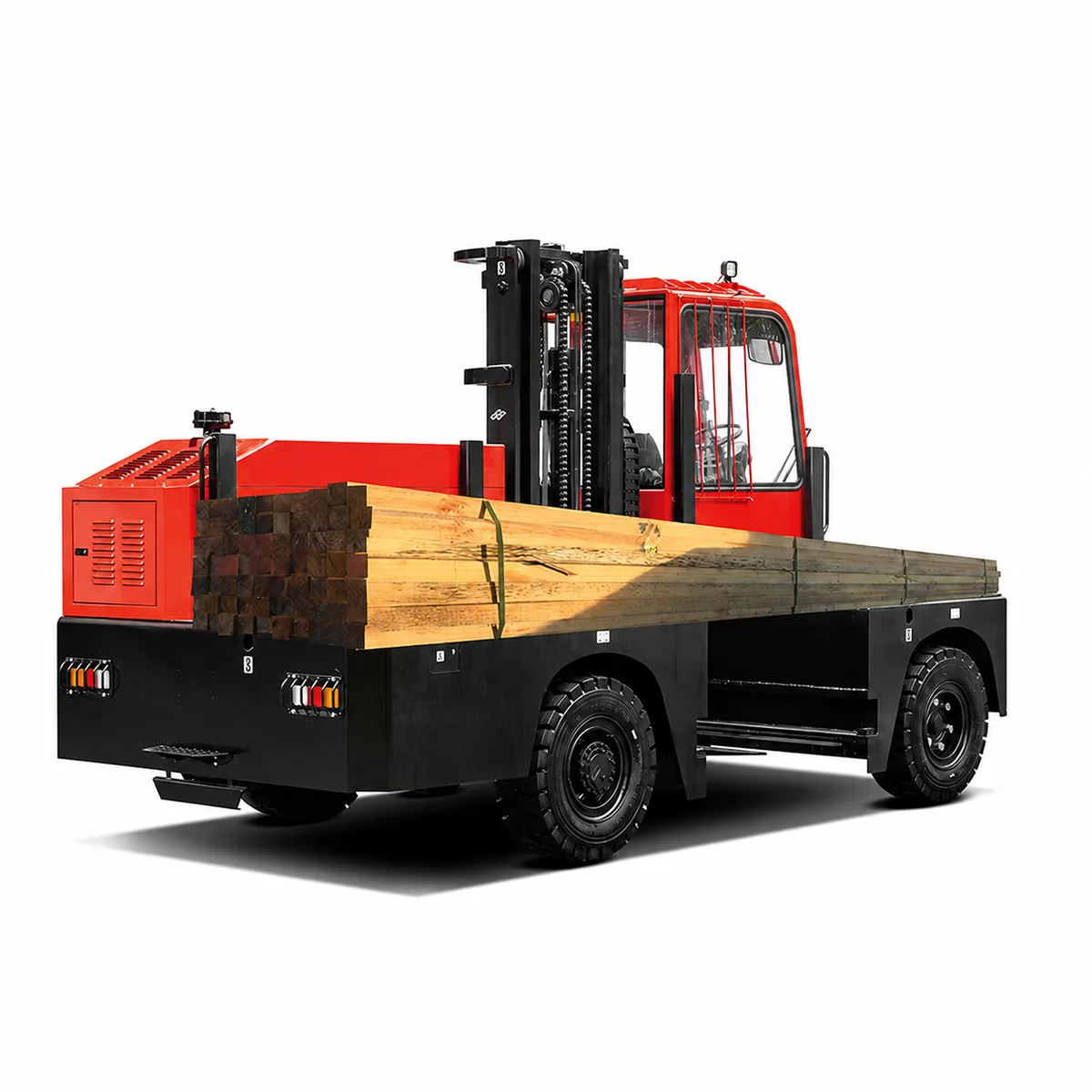

The X Series multidirectional side loader carries long loads lengthways through narrow aisles. It drives forwards, sideways or turns on the spot, with turning radii of 2,388 mm in straight mode, 2,485 mm in sideways mode and 1,675 mm in 360-degree mode. Capacities of 3,500, 4,000 and 4,500 kg are rated at a 600 mm load centre, each with an 80V lithium or lead-acid battery.
- CCD35: 3,500 kg, the fastest at 11/12 km/h laden and unladen with 9% laden gradeability, and a 21 kW lift motor.
- CCD40 and CCD45: 4,000 and 4,500 kg with a 25.4 kW lift motor, 10/12 and 9/12 km/h travel and a 6,800 kg service weight.
- Battery: lithium (ID models) at 456-536Ah and 400-420 kg, or lead-acid (D models) at 480-660Ah and 1,240-1,680 kg.
The truck is 2,500 mm wide and needs a 2,600 mm aisle for a 1200 x 6000 mm load carried crossways. A 4 m duplex wide-view mast is standard, and triplex masts reach 8 m, where capacity falls to 2,000-2,500 kg. Two 5 kW drive motors, electronic steering, a safety pedal and an OPS system are standard. Other masts, attachments and a fully suspended seat are optional.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Multidirectional Travel
Multidirectional travel and steering for handling long loads where space is limited.
Lift Heights to 8 m
Lift heights of up to 8 m, rated at a 600 mm load centre with 1,150 mm forks.
Full Specifications
| Capacity | 3.5-4.5 t |
|---|---|
| Power | Electric |
| Lift Height | Up to 8 m |
| Load Centre | 600mm |
| Travel / Steering Type | Multidirectional |
| Power Type | Electric |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CCD35
- CCD40
- CCD45
| Model | Capacity | Battery (lithium / lead-acid) | Lift motor | Travel laden / unladen | Capacity at 8 m | Service weight |
|---|---|---|---|---|---|---|
| CCD35-XC4 | 3,500 kg | 80V / 456Ah / 480Ah | 21 kW | 11 / 12 km/h | 2,000 kg | 6,500 kg |
| CCD40-XC4 | 4,000 kg | 80V / 536Ah / 540Ah | 25.4 kW | 10 / 12 km/h | 2,200 kg | 6,800 kg |
| CCD45-XC4 | 4,500 kg | 80V / 536Ah / 660Ah | 25.4 kW | 9 / 12 km/h | 2,500 kg | 6,800 kg |
Rated at a 600 mm load centre. The brochure's mast tables list the CCD35 at 3,000 kg; the spec table gives 3,500 kg. Lithium models end in -ID, lead-acid in -D. Figures from the Hangcha X Series multidirectional side loader brochure (2026).
