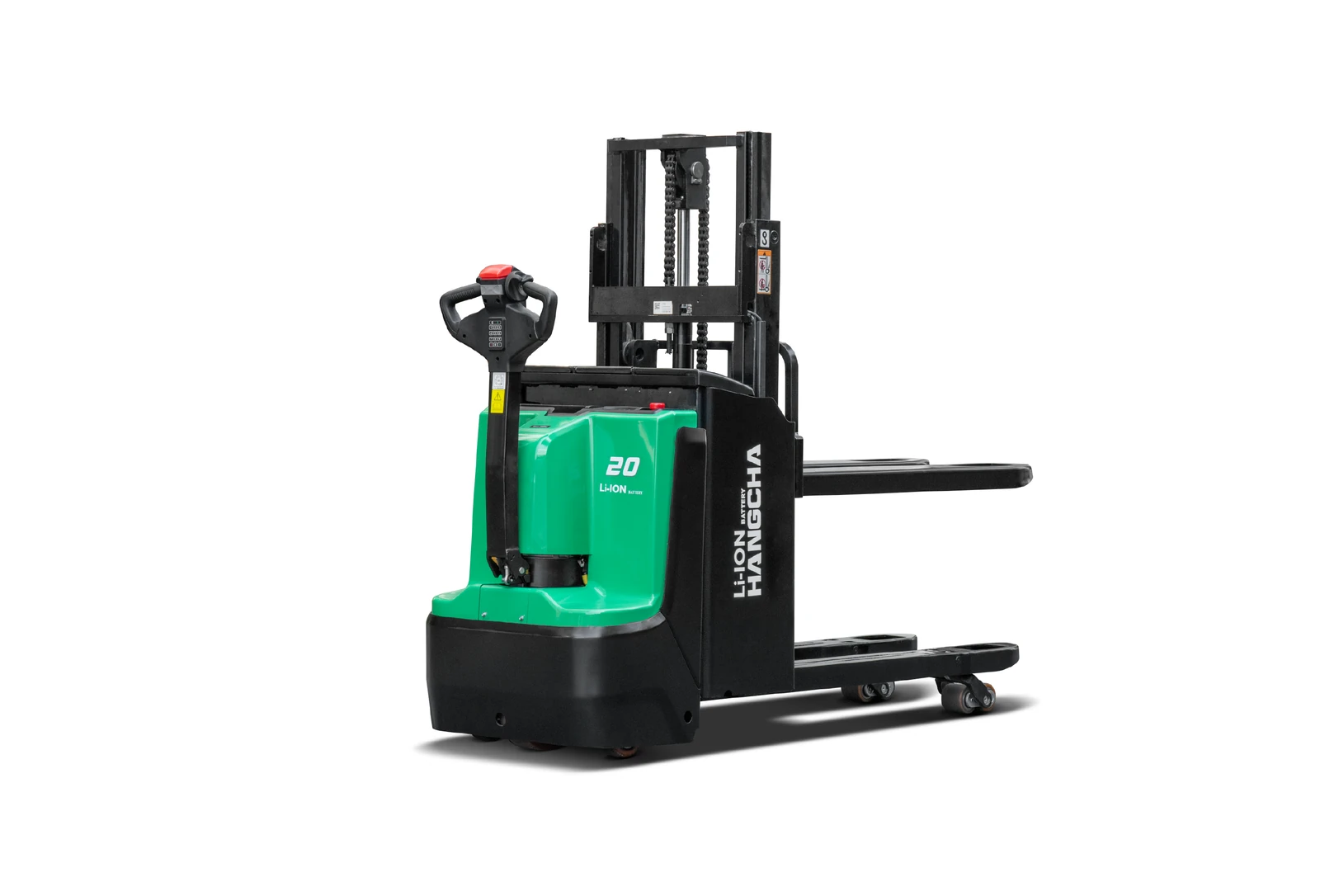

X Series Double Pallet Stacker - Double Stacker 2 t
A 2 t double pallet stacker range for indoor warehouse operations, with lift heights of up to 2.905 m for pallet movement and stacking where load, lift height and operating space need to be matched.
2 t
Capacity
Li-ion
Power
Up to 2.905 m
Lift Height
Warranty & Support
12 Months / 2,000 Hours Warranty DJJ local after-sales support
NOT SURE IF THIS MODEL FITS YOUR APPLICATION?
Ask the DJJ team to confirm capacity, operating requirements, site conditions and configuration before final selection.
Choosing an X Series Double Stacker: Pedestrian, Stand-On or Rider
The X Series double stacker moves two pallets at once: the support arms lift the bottom pallet while the mast carries the second. It is rated at 2,000 kg on the support arms and 1,000 kg on the mast, with a 48V lithium battery on all three versions.
- Pedestrian CDD20-XT1-SID: the most compact at 735 mm wide, with a 1,770 mm turning radius, a 2,248 mm aisle, 6 km/h travel and 10% laden gradeability.
- Stand-on CDD20-XT1S-SID: 9.5 km/h laden for longer runs, with a 1,840 mm turning radius and a 2,313 mm aisle.
- Rider CDD20-XT1S-SISUD: the same 9.5 km/h with an optional overhead guard, turning in 2,265 mm and needing a 2,741 mm aisle.
All three lift to 2,905 mm, carrying 1,000 kg up to 2.5 m and 700 kg at full height, rated at a 600 mm load centre. Initial lift on the support arms is 125 mm. For a stand-on double-deck truck with a fold-down seat and a 24V battery, compare the XA Series double pallet stacker.
Practical Features for Daily Operation
Electric Power
Electric operation suited to indoor and warehouse environments.
Double Pallet Stacker
A double pallet stacker layout with a 2 t capacity and lift heights up to 2.905 m.

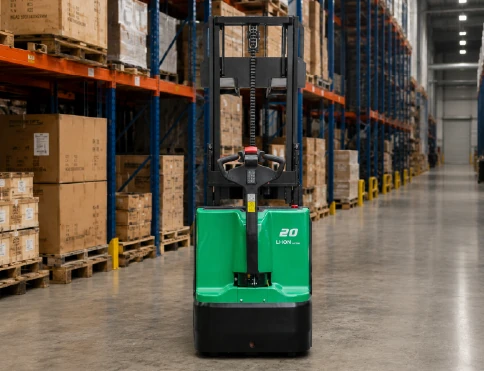

Walk or Stand-On Driving
Operate on foot or from the stand-on position, in aisles from 2,248 mm wide.
Full Specifications
| Capacity | 2 t |
|---|---|
| Power | Li-ion |
| Lift Height | Up to 2.905 m |
| Battery Type / Voltage | Li-ion, 48V |
| Minimum Aisle Width | From 2,248mm |
| Turning Radius | 1,770-2,265mm |
| Warranty | 12 Months / 2,000 Hours Warranty |
Models in This Series
This series is available in multiple models. Exact availability and technical specifications vary by capacity and configuration.
- CDD20
| Model | Operator | Width | Turning radius | Aisle (1000 x 1200 crossways) | Laden travel | Laden gradeability |
|---|---|---|---|---|---|---|
| CDD20-XT1-SID | Pedestrian | 735 mm | 1,770 mm | 2,248 mm | 6 km/h | 10% |
| CDD20-XT1S-SID | Stand-on | 770 mm | 1,840 mm | 2,313 mm | 9.5 km/h | 8% |
| CDD20-XT1S-SISUD | Rider | 770 mm | 2,265 mm | 2,741 mm | 9.5 km/h | 8% |
2,000 kg on the support arms; 1,000 kg on the mast up to 2.5 m and 700 kg at 2,905 mm, at a 600 mm load centre. Figures from the Hangcha X Series double stacker brochure.
